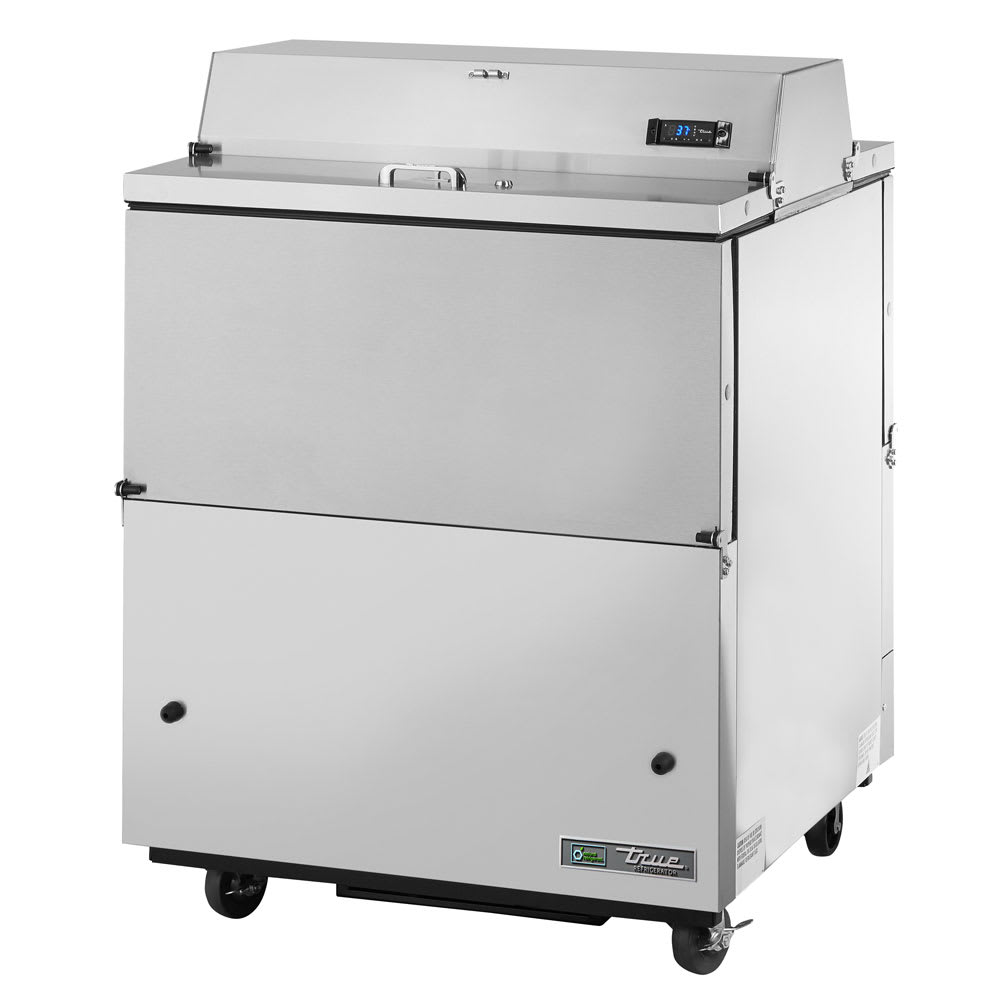

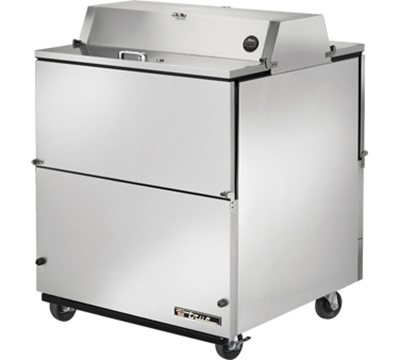

True TMC-34-S-DS-HC Milk Cooler w/ Top & Side Access - (512) Half Pint Carton Capacity, 115v

The True TMC-34-S-DS-HC milk cooler has four doors—two that drop down and two that flip up—to provide access to people of varying heights. The exterior is made of stainless steel, which is durable and can be cleaned swiftly. Inside, the reinforced stainless steel floor can withstand the weight of many milk cartons and the walls are foamed with polyurethane insulation for structure and temperature retention. Its steel frame is black powder coated to resist corrosion.

This True TMC-34-S-DS-HC milk cooler uses forced-air refrigeration to hold milk temperatures safely between 33 and 38 degrees Fahrenheit. The temperature is displayed on an external digital readout so users can verify food-safe temperatures in the unit. To reduce required maintenance, the evaporator fan is sealed and self-lubricating. When service is required, the condenser can be accessed by sliding it out the back.

As the compressor turns on, the condensing fan motor directs air in an opposite direction for 20 seconds toward the condensing coil. This mechanism helps remove buildup of debris and dust so the coil can operate without using as much energy over time. Preventive maintenance is still required to monitor coil operation over time.

Product Details

• Can hold (8) 13-in. W x 13-in. D x 11⁵⁄₈-in. H crates of milk
• Durable, stainless steel exterior construction
• Interior has a clear-coated aluminum liner
• Cabinet is insulated with foamed-in-place polyurethane
• Reinforced, stainless steel floor with 2 floor racks
• Steel frame is covered in a black powder coat for protection from corrosion
• 4-in. castors; 2 with locks
• 2 drop-front doors and 2 flip-up doors
• Door locks protect the contents
• 1-piece magnetic door gaskets can be removed without tools for cleaning
• Exterior digital temperature display ensures food safety
• Clean-out drain and plug

Refrigeration System

• Capillary tube system uses R290 hydrocarbon refrigerant
• Evaporator fan motor is sealed and self-lubricating
• Temperature range: 33-38 degrees F
• Electronically commutated condenser and evaporator fan motors efficiently circulate air
• Compressor start up turns on reverse condensing fan motor mechanism
• Prompt access to the condenser from behind the back grille

Dimensions & Utilities

• 34¹⁄₄ in. W x 35 in. D x 46³⁄₄ in. H
• 2.7 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TMC-34-S-DS-HC within the 48 contiguous states.

From The Manufacturer

Mobile Milk Cooler, forced-air, (8) 13" x 13" x 11-1/8" crate capacity, dual sided stainless steel drop front/hold-open flip-up lids with locks, 33 - 38°F temperature range, (2) heavy-duty floor racks, digital thermometer, stainless exterior, aluminum interior with stainless steel floor, R290 Hydrocarbon refrigerant, 4" castors, 1/5 HP, 115v/60/1-ph, 2.7 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
