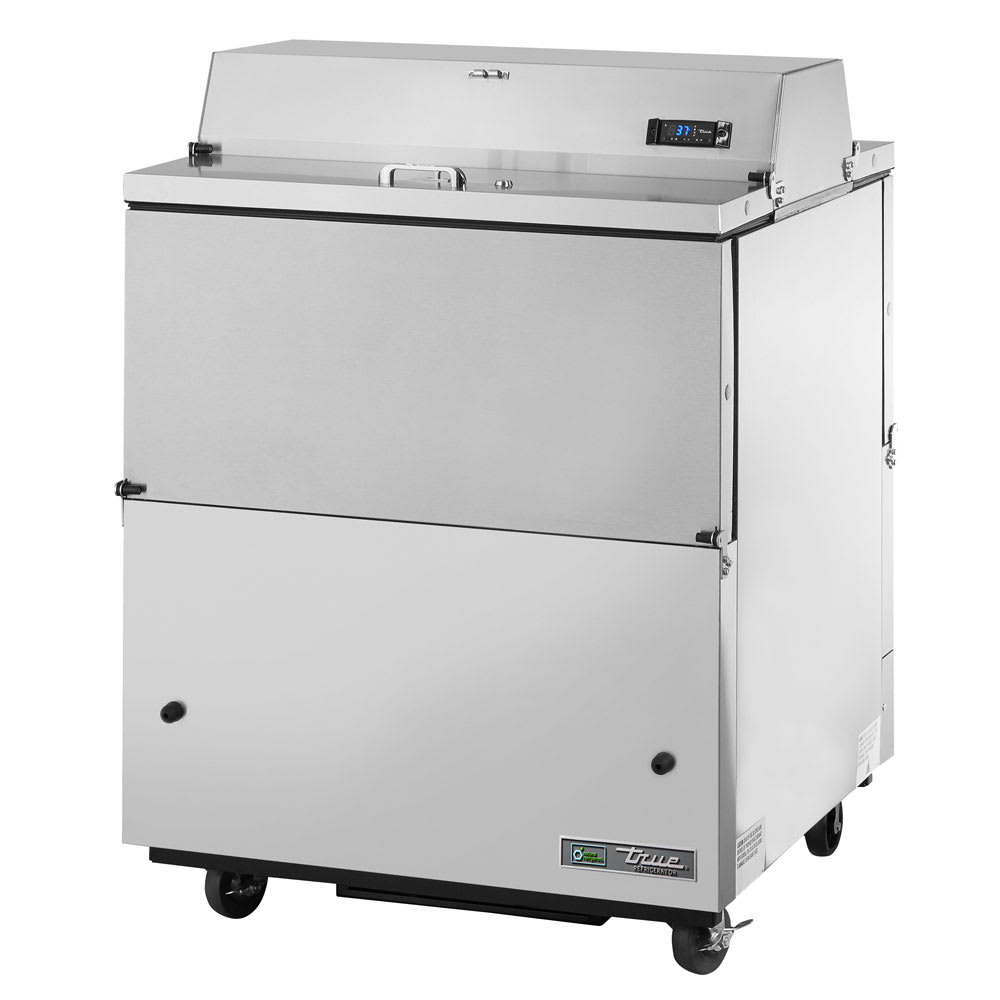

True TMC-34-DS-SS-HC Milk Cooler w/ Top & Side Access - (512) Half Pint Carton Capacity, 115v

The True TMC-34-DS-SS milk cooler is insulated with foamed-in-place polyurethane, and the white vinyl exterior resists chipping and peeling. Stainless steel interior walls and reinforced floor resist denting from heavy use. Children in schools can access milk from both sides through stainless steel drop front and flip-top doors, and this unit can accept eight standard-size milk crates. A powder-coated frame rail creates structure along with the insulation.

Operators can set a temperature between 33 and 38 degrees Fahrenheit that is maintained by R290 hydrocarbon refrigerant. Refrigerant flow is metered by the capillary tube system, removing heat from the cabinet while cool air is evenly moved around the cabinet with condenser and evaporator fan motors. Accessibility to the condensing unit is enabled since it slides out from behind the rear grille, and the True TMC-34-DS-SS milk cooler has an epoxy-coated evaporator that resists corrosion.

To improve unit operation, the condensing fan motor blow air toward the condensing coil for 20 seconds when the compressor turns on, reducing dirt, dust, and debris collection on the coil's surface. This self-cleaning mechanism helps the coil keep product cool for longer periods, and it doesn't have to use as much energy to operate. This mechanism should not replace preventive maintenance for the coil, compressor, or fan motor.

Product Details

• Accepts 8 standard milk crates
• Self-contained, capillary tube system uses R290 hydrocarbon refrigerant to maintain internal temperature
• Forced-air refrigeration moves a consistent amount of air
• Fan motor directs air in opposite direction for 20 seconds to remove condensing coil buildup
• Temperature holding range: 33-38 degrees F
• Cabinet temperature can be monitored with an external digital display
• Convenient clean-out drain with ¹⁄₂-in.-NPT plug

Durable Construction

• Locking top and two side doors offer dual access
• Exterior is white vinyl that resists chipping and peeling
• Stainless steel service doors
• Clear-coated aluminum interior liner resists corrosion
• Floor is reinforced, dent-resistant stainless steel
• Standard with 2 heavy-duty floor racks
• Foamed-in-place polyurethane insulates the cabinet
• 4-in.-diameter castors

Dimensions & Utilities

• Crate size: 13 in. W x 13 in. D x 11⁵⁄₈ in. H
• Overall: 34¹⁄₄ in. W x 35 in. D x 46³⁄₄ in. H
• 2.7 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TMC-34-DS-SS-HC within the 48 contiguous states.

From The Manufacturer

Mobile Milk Cooler, forced-air, (8) 13" x 13" x 11-1/8" crate capacity, dual sided stainless steel drop front/hold-open flip-up lids with locks, 33 - 38°F temperature range, (2) heavy-duty floor racks, digital thermometer, white vinyl exterior, stainless steel interior & floor, 4" castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.7 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
