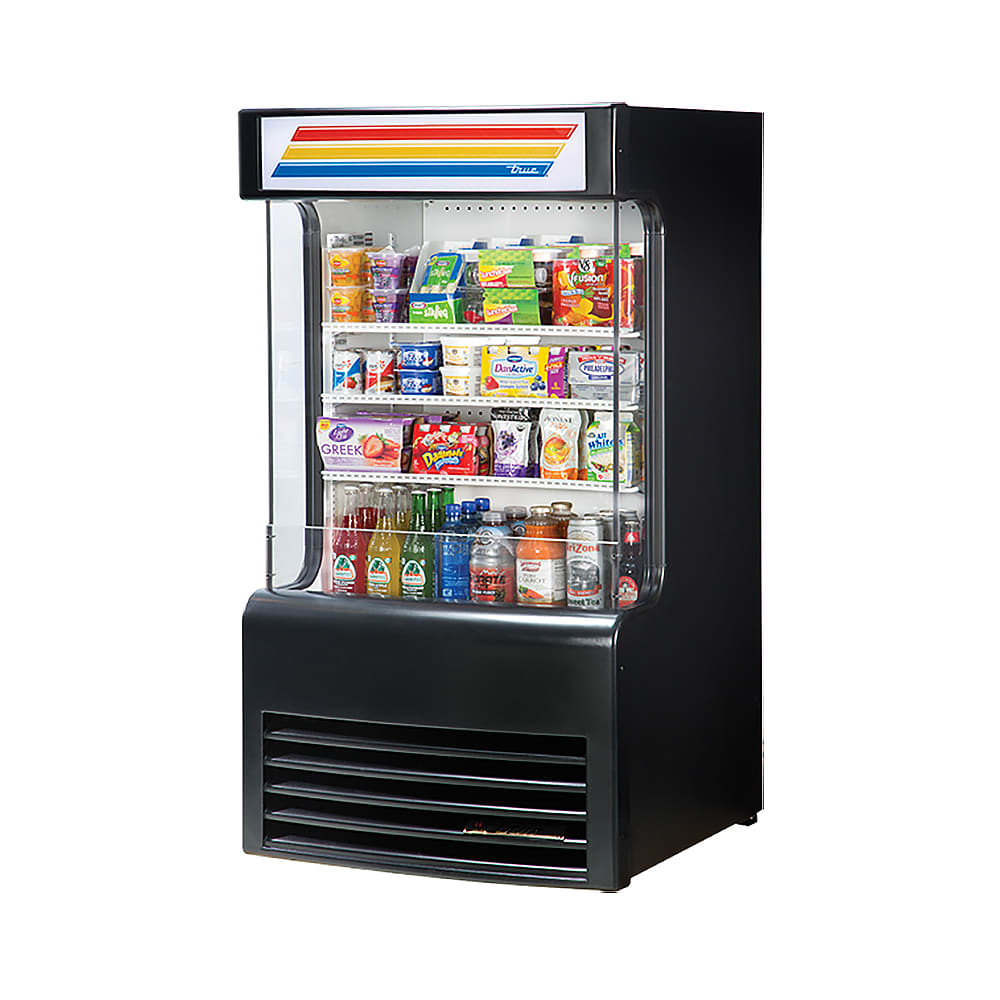

True TAC-14GS-LD 30" Vertical Open Air Cooler w/ (4) Levels, Black, 115v

The True TAC-14GS-LD vertical open-air cooler enables customers to efficiently grab products off the three PVC-coated shelves. To brighten the interior, LED lights shine on products, and an illuminated sign panel merchandises the items to attract attention. Plexiglass side panels provide visibility into the cabinet, while the black exterior hides stains and scratches. Structure and cold-air retention are possible with foamed-in-place polyurethane insulation.

Since the refrigeration system in the True TAC-14GS-LD vertical open-air merchandiser is mounted on the bottom, it is conveniently accessible for maintenance. An operator can set a temperature within a range of 35 to 40 degrees Fahrenheit, and a capillary tube system releases R134A refrigerant to remove heat from the cabinet. To reduce dirt buildup on the condenser coil, the condenser fan motor reverses during the defrost off-cycle.

Product Details

• 3 white, PVC-coated shelves
• Chip- and peel-resistant black vinyl exterior finish
• Plexiglass lower front and side panels provide product visibility
• Illuminated sign panel attracts customers
• LED lighting brightens the interior
• Foamed-in-place insulation retains cold air and adds structure
• Frame rail has leg levelers to adjust on uneven floors
• White aluminum interior liner resists corrosion
• Stainless steel interior floor and deck pans are sturdy
• Back wall is perforated for ideal airflow

Bottom-mount Refrigeration System

• Temperature holding range: 35-40 degrees F
• Uses R134A refrigerant
• Capillary tube system controls refrigerant flow
• Positioned at the bottom to provide service access
• Time-initiated, time-terminated defrost cycle
• Reversing fan motor keeps the condenser coil dirt-free, ensuring it runs efficiently

Ideal Operating Conditions

• Ambient air should not exceed 75 degrees F and relative humidity should not exceed 55 percent
• Installation near HVAC vents, fans, and doorways will disrupt the air curtain
• Runs most efficiently when loaded completely with product
• Manufacturer recommends a drain plumbing hookup

Dimensions & Utilities

• Shelves: 25¹¹⁄₁₆ in. W x 17¹⁄₂ in. D

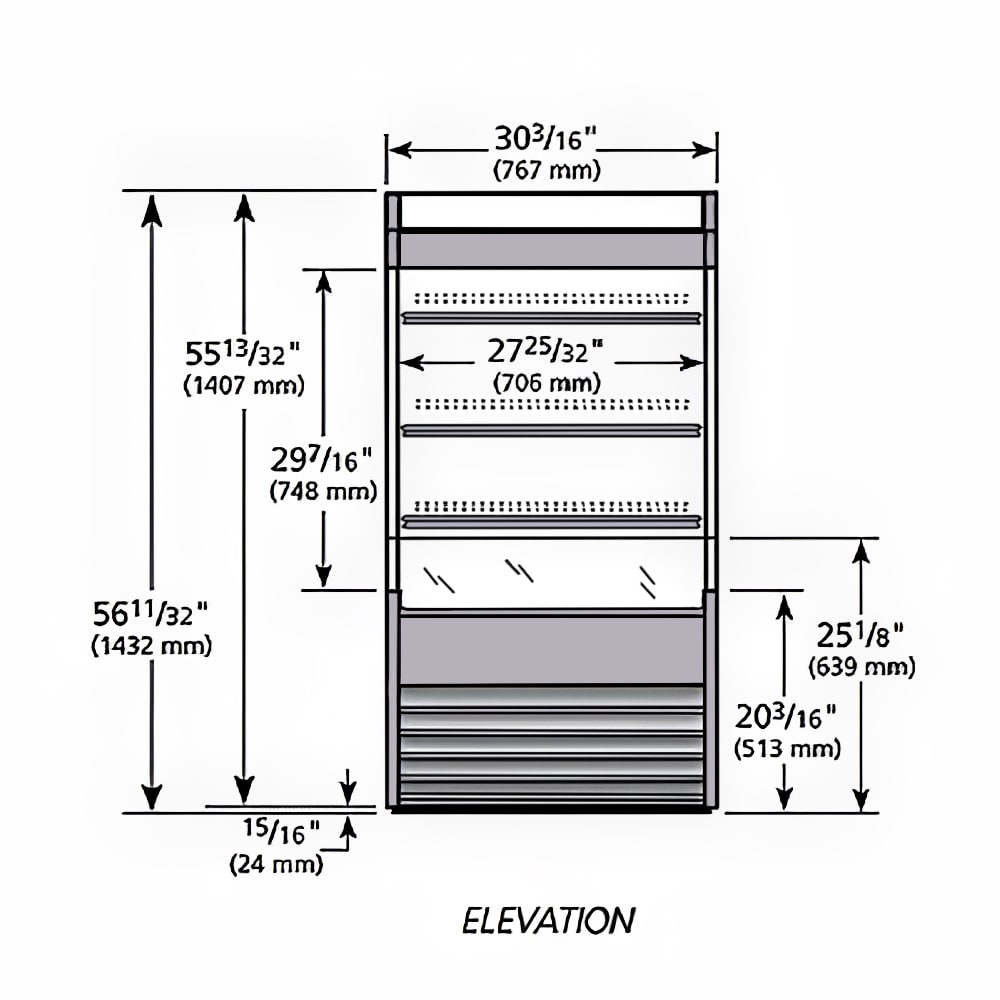

• Overall: 30¹⁄₄ in. W x 32¹⁄₈ in. D x 56³⁄₈ in. H
• 11.2 A, ³⁄₄ HP
• 115 V/60 Hz/1 ph, 6.5-ft. cord with a NEMA 5-15P plug

*Free shipping on True Refrigeration TAC-14GS-LD within the 48 contiguous states.

From The Manufacturer

Vertical Air Curtain Merchandiser, 30-1/4"W x 56-3/8"H, (3) white PVC-coated shelves, LED interior lighting, vinyl exterior, plexiglass side panels, white aluminum interior with stainless steel floor/deck pans, leg levelers, 3/4 HP, 115v/60/1-ph, NEMA 5-15P, 11.2 amps, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor
