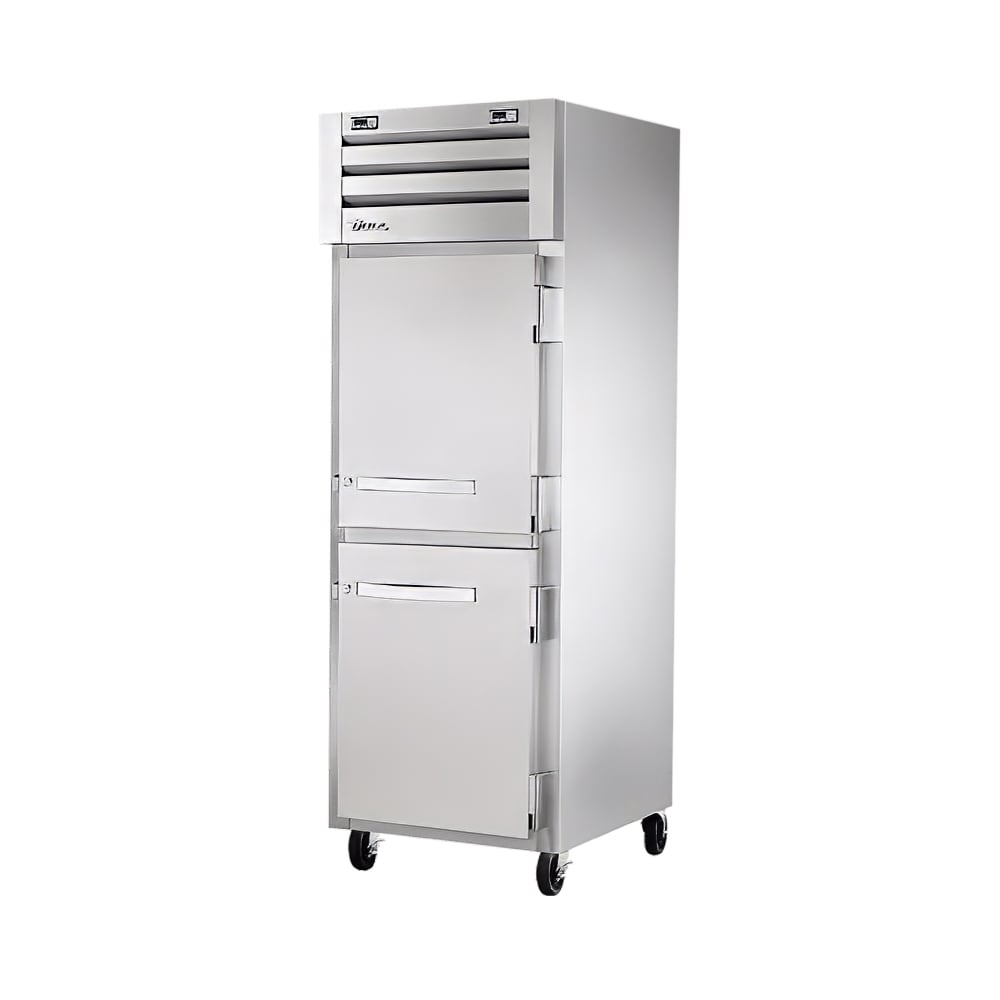

True STA1DT-2HS-HC 27 1/2" SPEC SERIES One Section Commercial Combo Refrigerator Freezer - Solid Doors, Dual Temp, 115v

KaTom #: 598-TA1DT2HS • MPN: STA1DT-2HS-HC
  • 598-TA1DT2HS Primary Thumbnail Image

Extended Leadtime (Call for Availability)

Free Shipping Item
Lowest Price Guarantee

$9,266.66 /Each

Matt Cole User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 01-01-2027 to save before the price increases!

True Refrigeration STA1DT-2HS-HC Description

The True STA1DT-2HS-HC Spec Series® one-section refrigerator freezer is a dual-temperature unit, with each section having its own refrigeration system and digital temperature display. Its refrigerator section holds product between 33 and 38 degrees Fahrenheit, while the freezer section keeps product at -10 degrees Fahrenheit. A top-mounted refrigeration system is placed away from dust and debris, while the freezer has an automatic defrost cycle that runs at a specified time and stops when a certain temperature is reached.

Designed to reduce the accumulation of dirt and debris on the condensing coil, the reverse condensing fan motor operates for 20 seconds after the compressor starts. It reduces the compressor run times to extend the lifespan of the condensing coil and unit overall. For best results, the coil should be maintained frequently.

To resist scuffs and dents, the True STA1DT-2HS-HC reach-in refrigerator freezer has a stainless steel and aluminum construction. Its walls are insulated with polyurethane foam to retain temperatures, while four 5-inch castors with a locking front set are installed for mobility and safety. Two self-closing doors can remain open as wide as 120 degrees, and three chrome interior wire shelves support product. Bolt style door locks prevent theft, and magnetic gaskets snap into the door frame for an airtight seal.

  • Part of the Spec Series
  • 2 half doors swing out
  • Durable metal door handles
  • Positive seal, self-closing doors stay open past 120 degrees
  • Magnetic door gaskets prevent cold air leaks
  • (4) 5-in. castors with locks on the front
  • Ready for curb mounting
  • Entire cabinet and door are foamed in place using polyurethane insulation for structure and cold air retention
  • Safety-shielded LED interior lighting provides cabinet visibility
  • Stainless steel door and aluminum exterior resist corrosion
  • Aluminum interior side walls and back with stainless steel interior floor and ceiling
  • 3 chrome wire shelves per section

  • 2 independent refrigeration systems
  • Evaporator epoxy coated to resist corrosion
  • Top-mounted refrigeration system is protected from dust and debris on the floor
  • Fan motor reverses after compressor start up to blow dirt off the condensing coil
  • Uses R290 hydrocarbon refrigerant
  • Refrigerator temperature range: 33-38 degrees F
  • Freezer operating temperature: -10 degrees F
  • 2 digital temperature displays, one per section
  • Freezer has an automatic defrost system that melts ice off evaporator coils

  • 27 1⁄2 in. W x 35 1⁄4 in. D x 84 1⁄8 in. H
  • 3.7 A, 1⁄10 HP refrigerator, 1⁄4 HP freezer
  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA-5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on True Refrigeration STA1DT-2HS-HC within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

SPEC SERIES® Refrigerator/Freezer, reach-in, one-section, (2) stainless steel half doors, locks, cam-lift hinges, digital temperature control, (3) chrome shelves, LED interior lights, stainless steel front & sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, R 1/10HP, F 1/4HP, 115v/60/1-ph, 3.7 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®
Warranty Icon
7-year Parts & Labor; 7-year Compressor

True Refrigeration STA1DT-2HS-HC Specifications

Warning Small WARNING: Important Prop 65 information for California residents.

Equivalent Items






Related Categories

Compare to Similar Items

0 Customer Reviews
  • 5
    0
  • 4
    0
  • 3
    0
  • 2
    0
  • 1
    0

Review this product!

Relay your experience with this product to help inform other's decisions and help us continue to offer premier foodservice experiences.

The dual displays show refrigerator and freezer temperatures separately.

— KaTom Foodservice Equipment Specialist

Yes. It uses two independent refrigeration systems.

— KaTom Foodservice Equipment Specialist

The polyurethane insulation retains cold air.

— KaTom Foodservice Equipment Specialist

Yes. The top-mounted system stays above floor dust.

— KaTom Foodservice Equipment Specialist

It includes three chrome wire shelves per section.

— KaTom Foodservice Equipment Specialist

Yes. The self-closing doors seal refrigerated compartments.

— KaTom Foodservice Equipment Specialist

This unit has magnetic gaskets removable without tools.

— KaTom Foodservice Equipment Specialist

A set of 5-in. castors includes front locks.

— KaTom Foodservice Equipment Specialist

The refrigerator section maintains 33-38°F.

— KaTom Foodservice Equipment Specialist

The freezer section maintains -10°F.

— KaTom Foodservice Equipment Specialist

Yes, the refrigerator and freezer sections have independent temperature controls.

— KaTom Foodservice Equipment Specialist

It is a dual-temp reach-in refrigerator-freezer.

— KaTom Foodservice Equipment Specialist

It provides 19 cu. ft. of total storage capacity.

— KaTom Foodservice Equipment Specialist

It has 2 right-hinged half solid doors.

— KaTom Foodservice Equipment Specialist

It includes 3 shelves.

— KaTom Foodservice Equipment Specialist

It uses digital temperature control.

— KaTom Foodservice Equipment Specialist

Temperatures are monitored with a digital display and digital thermometer.

— KaTom Foodservice Equipment Specialist

Yes. The doors are self-closing.

— KaTom Foodservice Equipment Specialist

The freezer section uses automatic defrost.

— KaTom Foodservice Equipment Specialist

Yes. It has a self-contained refrigeration system.

— KaTom Foodservice Equipment Specialist

It uses R290 (Hydrocarbon) refrigerant.

— KaTom Foodservice Equipment Specialist

It is UL-EPH certified.

— KaTom Foodservice Equipment Specialist

It is ENERGY STAR certified.

— KaTom Foodservice Equipment Specialist

Yes. The refrigerator and freezer sections use independent cooling systems.

— KaTom Foodservice Equipment Specialist

Yes. The doors include locks for product security.

— KaTom Foodservice Equipment Specialist

Yes. The doors have a stay-open feature for loading or restocking.

— KaTom Foodservice Equipment Specialist

Yes. The refrigerator-freezer includes interior lighting.

— KaTom Foodservice Equipment Specialist

Yes. It has a self-cleaning condenser feature that helps remove dust and debris.

— KaTom Foodservice Equipment Specialist

Yes, it includes 5-in. casters for repositioning and floor cleaning.

— KaTom Foodservice Equipment Specialist
