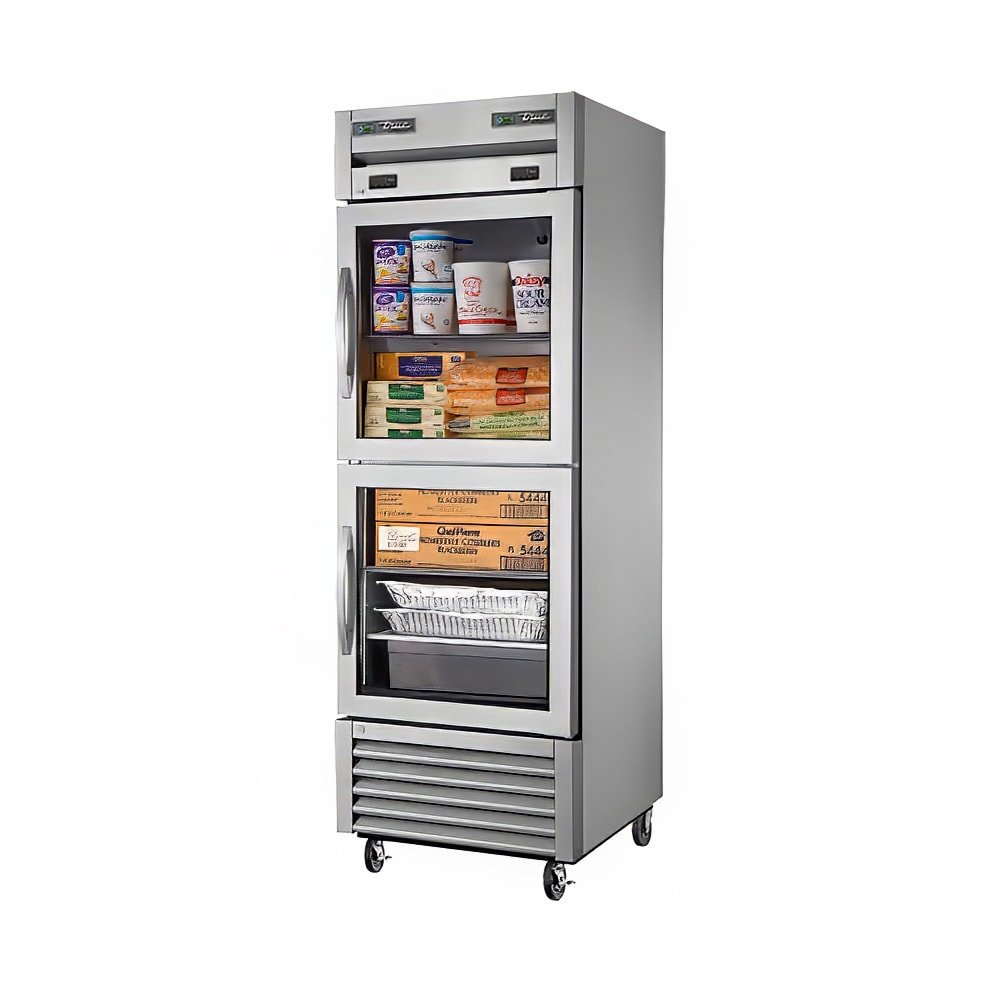

True T-23DT-G-HC~FGD01 27 1/16" One Section Commercial Combo Refrigerator Freezer - Glass Doors, Dual Temp, 115v
Typically ships in 9 - 13 Business Days
$11,465.17 /Each
Selected Hinge: Right Hinge
True Refrigeration T-23DT-G-HC~FGD01 Description
The True T-23DT-G-HC~FGD01 dual-temperature refrigeration unit includes a refrigerator section on top and freezer section on the bottom. Its freezer section maintains -10 degree Fahrenheit, while the refrigerator section temperature ranges from 33 to 38 degrees Fahrenheit; these temperatures are maintained with R290 hydrocarbon refrigerant that runs through capillary tube systems equipped with large evaporator and condenser coils. Since the condensing unit is mounted on the bottom, it is accessible for maintenance and avoids the hottest area of the kitchen.
Each time the compressor is started, the fan motor reverses direction for 20 seconds to eliminate dirt and debris from the condensing coil. By keeping the coil clean and performing maintenance regularly, the unit will run more efficienty and use less energy than when the coil isn't properly maintained. This helps provide proper product temperature and extend the unit's lifespan.
Both doors are glass for product visibility without releasing cold air, and LED interior lighting highlights products in the cabinets. To ensure cold air stays inside, magnetic gaskets around the door frames create a positive seal, while product sits on three PVC-coated, corrosion-resistant shelves. Frost buildup in the freezer is prevented since its perimeter has a minimum wattage heater, and the True T-23DT-G-HC~FGD01 refrigerator freezer has a stainless steel and aluminum exterior cabinet construction.
- Dual-temperature design with a refrigerator on top and freezer on the bottom
- Double-pane, thermal glass refrigerator door
- Freezer door is triple-pane, thermal glass
- Self-closing doors prevent cold air from escaping
- 15-in. extruded aluminum handles
- 1-piece, magnetic door gaskets snap in and out without tools
- 3 adjustable, PVC-coated shelves
- LED interior lights highlight product
- Minimum-wattage heater in cabinet frame and freezer door prevents freezing shut
- Stainless steel front and aluminum sides, top, and back exterior construction
- Aluminum interior has a clear coat liner
- Interior floor is made of stainless steel with coved corners to simplify cleaning
- Foamed-in-place polyurethane insulation prevents warm air from getting inside
- Cabinet frame rail is welded and black powder coated for durability and corrosion resistance
- 4-in. stem castors provide mobility
- Refrigerator temperature range: 33-38 degrees F
- Freezer operating temperature: -10 degrees F
- Digital temperature display on exterior
- Each evaporator is epoxy coated to resist corrosion
- Fan motors are electronically commutated, minimizing heat production and energy consumption
- Compressor start up automatically reverses the fan motor to clean the condensing coil
- Bottom-mount condensing unit is in the coolest area of the kitchen
- Automatic freezer defrost system runs for the shortest time possible
- Shelves: 22 7⁄8 in. W x 23 1⁄4 in. D

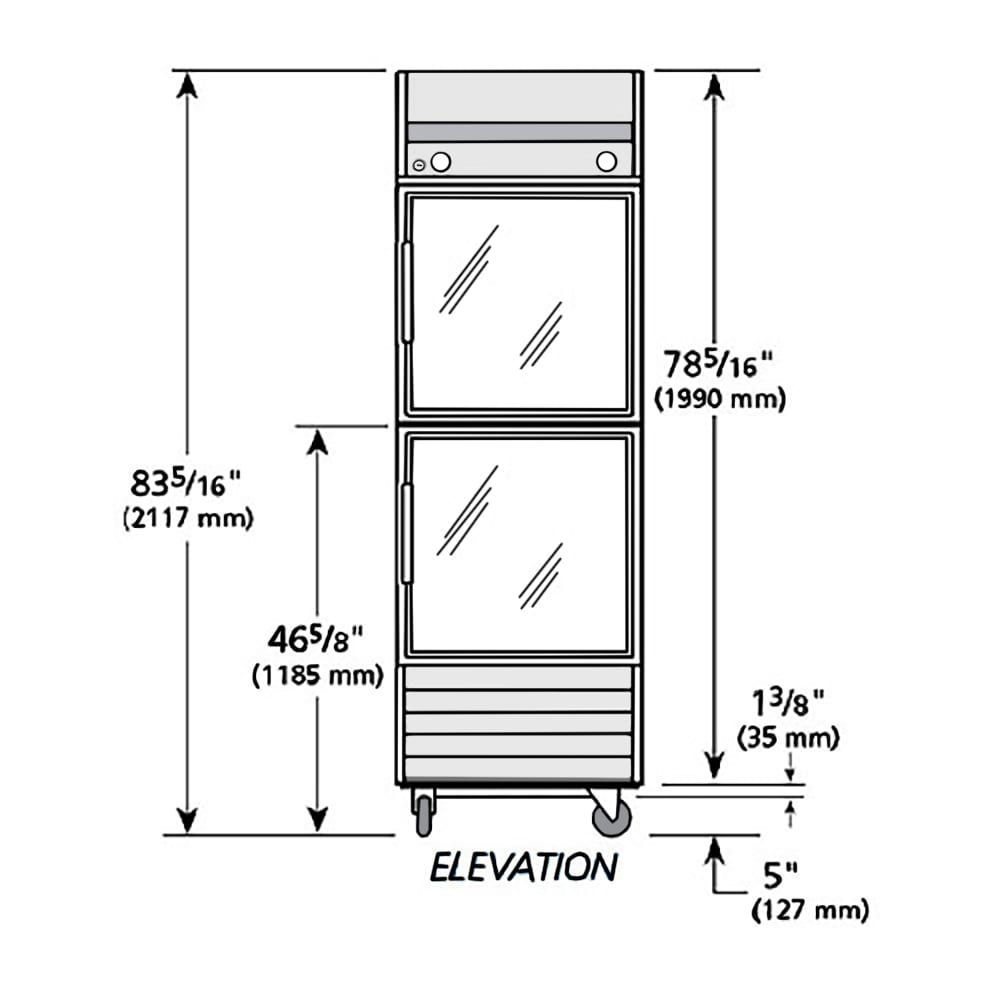

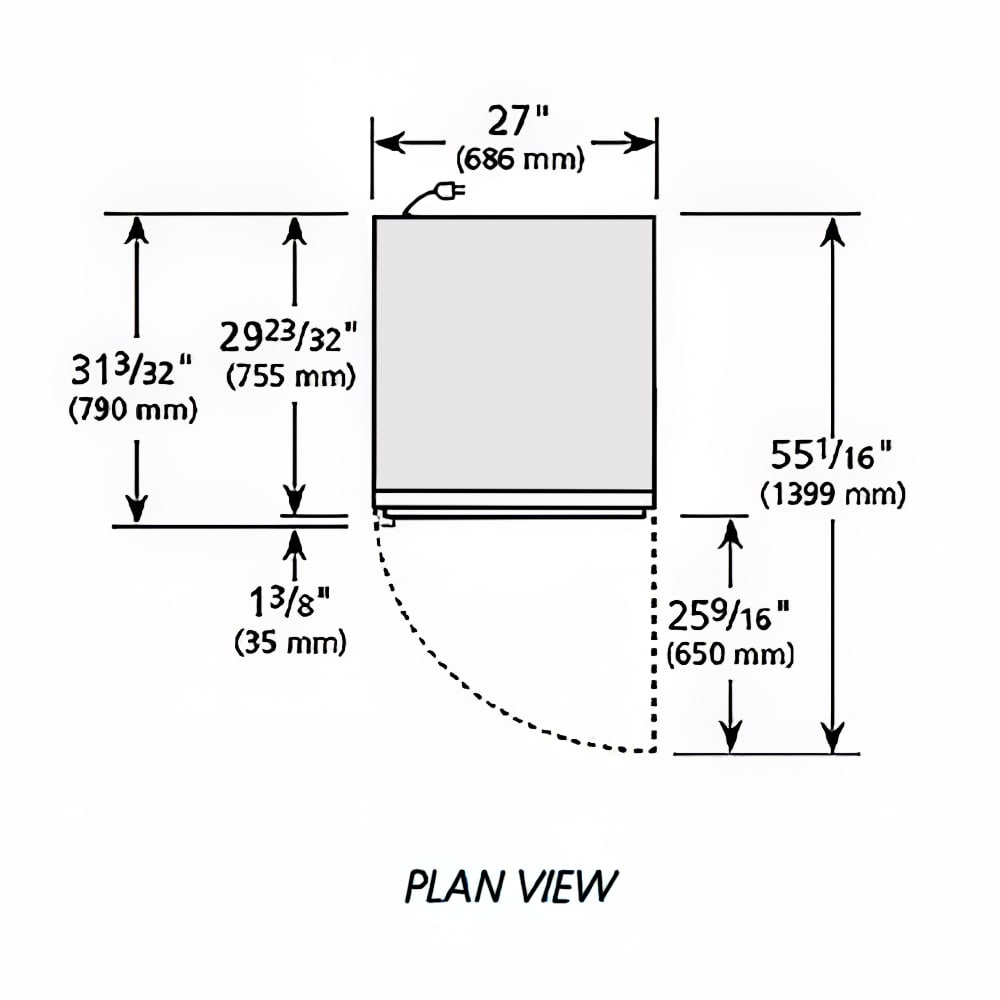

- Overall: 27 in. W x 31 1⁄8 in. D x 83 3⁄8 in. H
- 6.3 A, 1⁄10 HP refrigerator, 1⁄2 HP freezer
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration T-23DT-G-HC~FGD01 within the 48 contiguous states.
From The Manufacturer
Refrigerator/Freezer, reach-in, one-section, framed glass door version 01, (2) glass half doors, stainless steel front, (3) PVC coated adjustable wire shelves, LED interior lighting, aluminum sides, clear coated aluminum interior with stainless steel floor, 4" castors, R290 Hydrocarbon refrigerant, refrigerator 1/10 HP, Freezer 1/2 HP, 115v/60/1-ph, 6.3 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®
True Refrigeration T-23DT-G-HC~FGD01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Access | Door |
| Amps | 6.3 |
| Color | Silver |
| Compressor Location | Bottom |
| Cubic Feet | 19.7 |
| Depth (in) | 31.81 |
| Door Design | Half |
| Door Type | Glass |
| Height (in) | 83.34 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Interior Material | Aluminum |
| NEMA | 5-15P |
| No. of Doors | 2 |
| Phase | 1 |
| Product | Dual Temp Refrigerator Freezers |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | T-Series |
| Shelving Type | Wire |
| Special Features | Casters Included - Uninstalled |
| Style | Dual Temp |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
| Width (in) | 27.03 |
| Weight | 380.00 |
