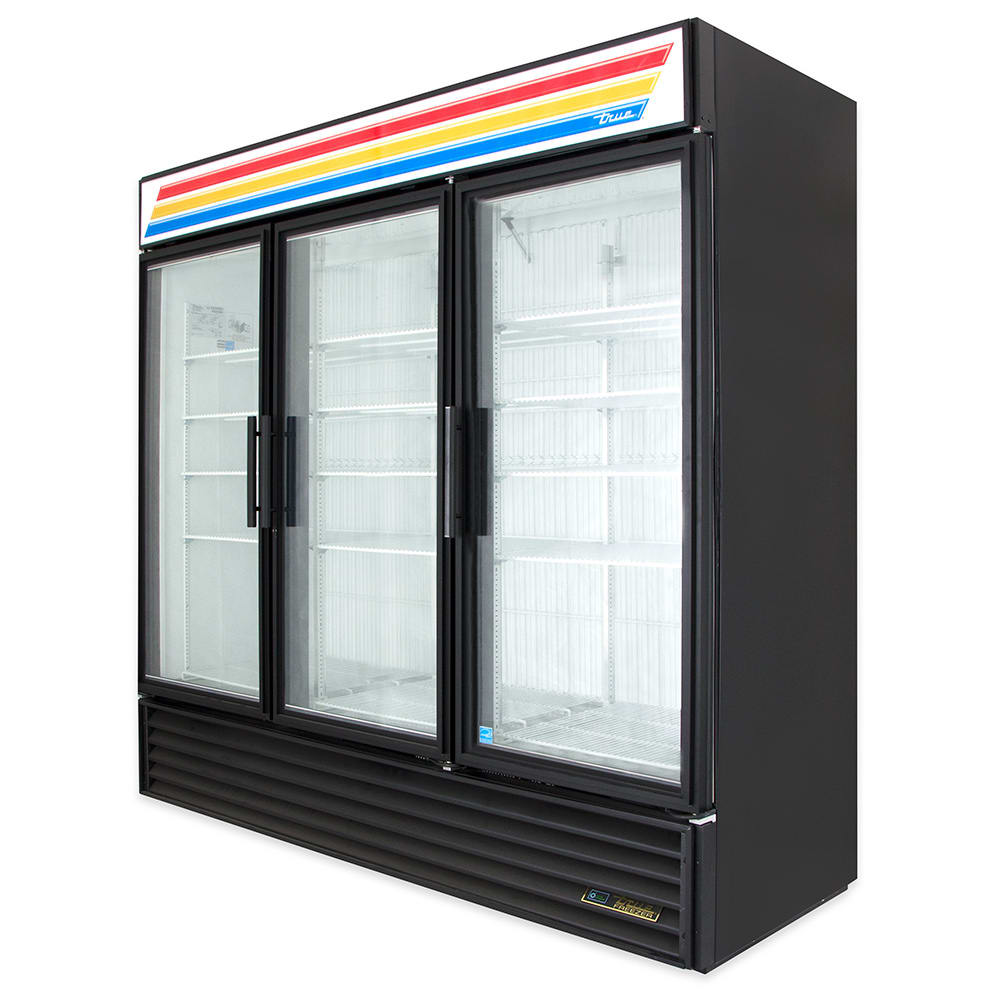

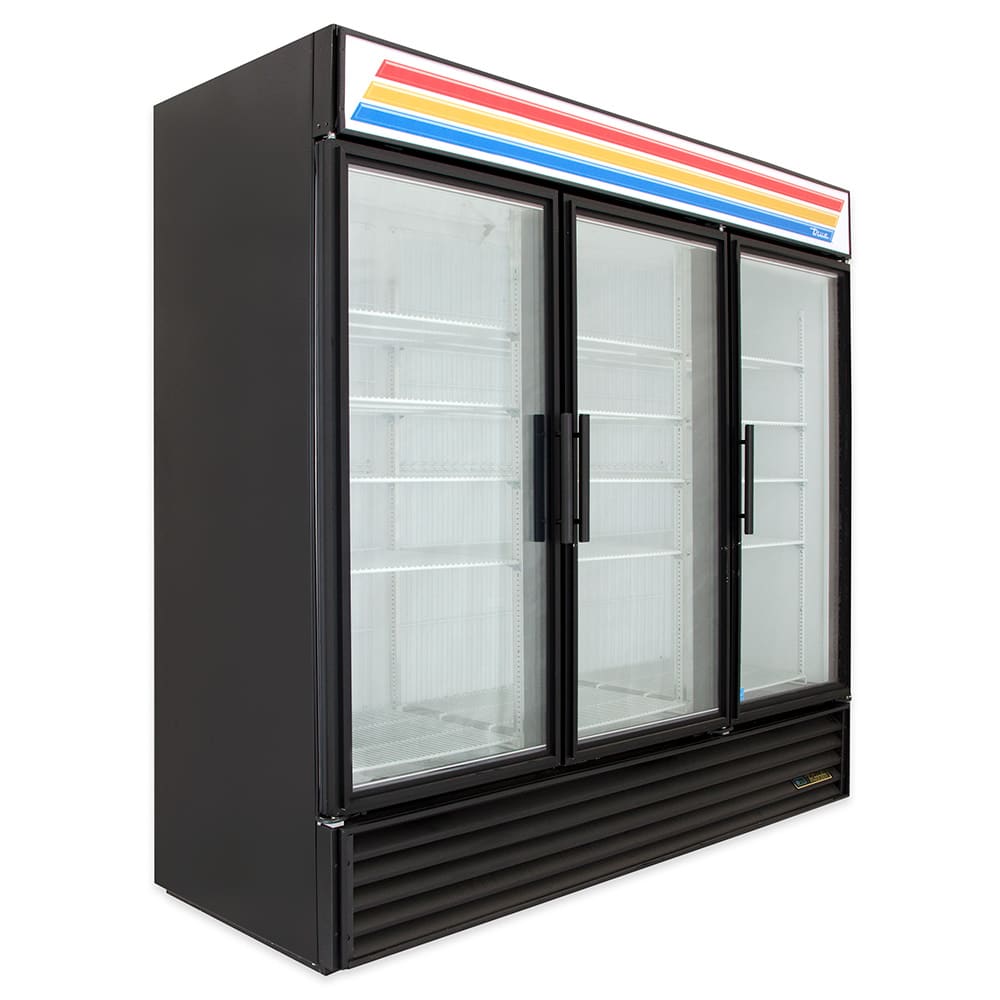

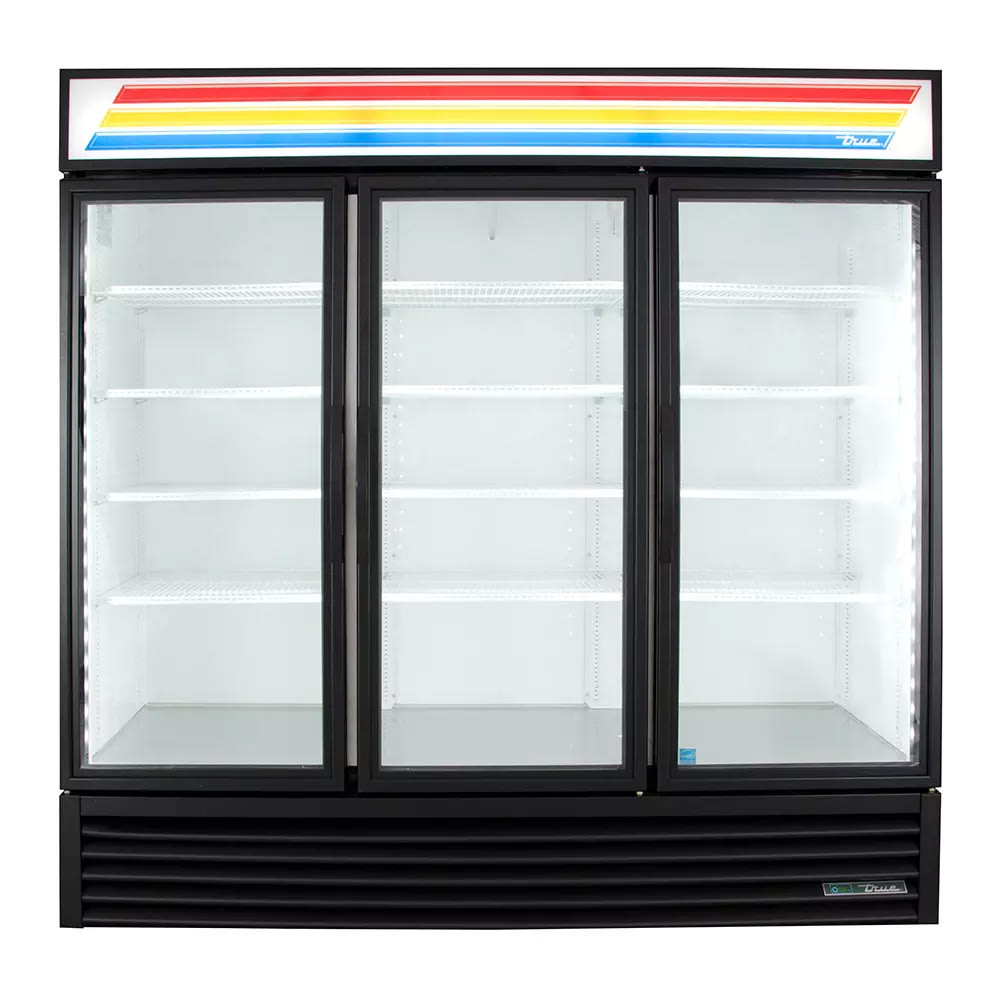

True GDM-72F-HC~TSL01 78" Three Section Display Freezer w/ Swing Doors - Bottom Mount Compressor, Black, 115v

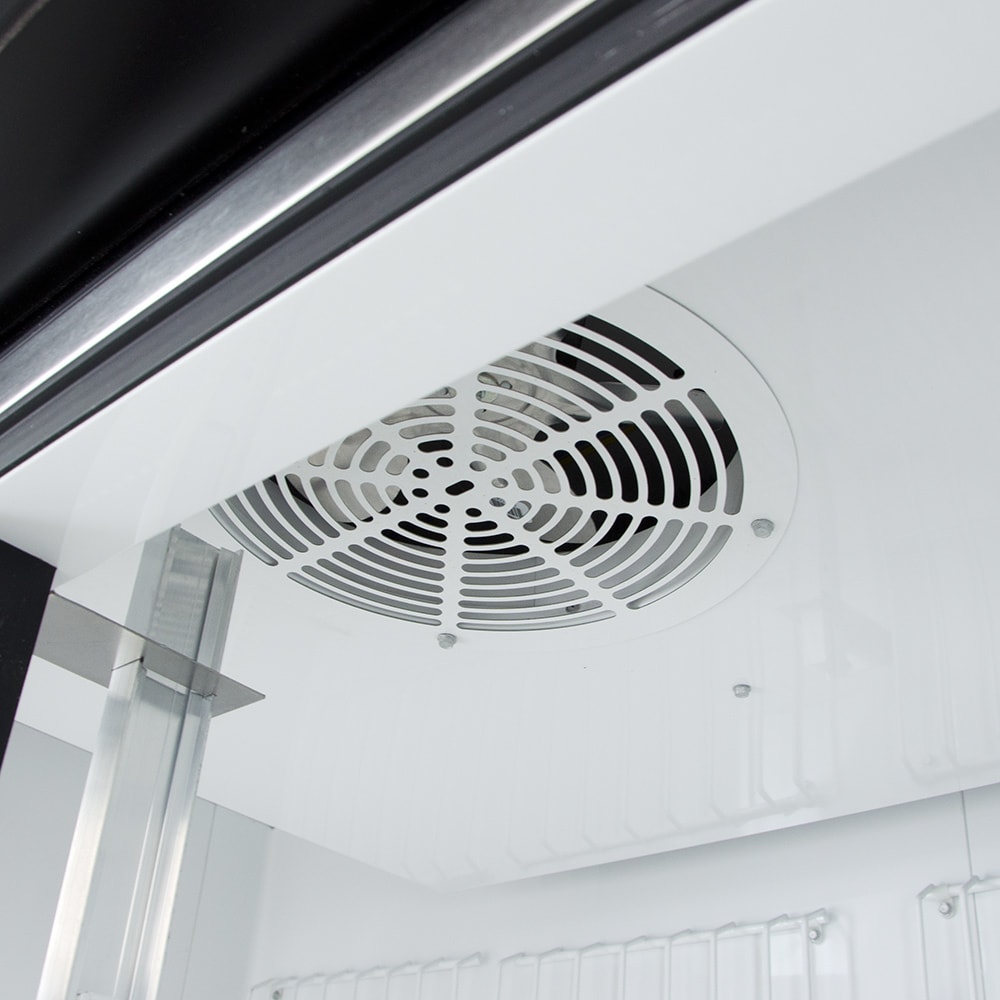

The True GDM-72F-HC~TSL01 three-section display freezer holds temperatures at -10 degrees, which is ideal for packaged frozen products. An automatic defrost system has a short cycle, and it is time initiated and temperature terminated, eliminating the need for manually defrosting. Its electronically commutated evaporator and condenser fan motors move a consistent volume of air that produces less heat, is more energy efficient, and provides reliability. Since the condensing unit is mounted on the bottom of the freezer, it is accessible for service work, elevating the floor to a comfortable height for product accessibility.

Designed to remove excess dust, debris, and dirt from the condenser coil, the condensing fan motor reverses for 20 seconds upon start up. When the coil is clean, the system operates efficiently while reducing energy use. This feature is also used to prolong the lifespan of the refrigeration system, but it isn't a replacement for all preventative system cleaning and maintenance.

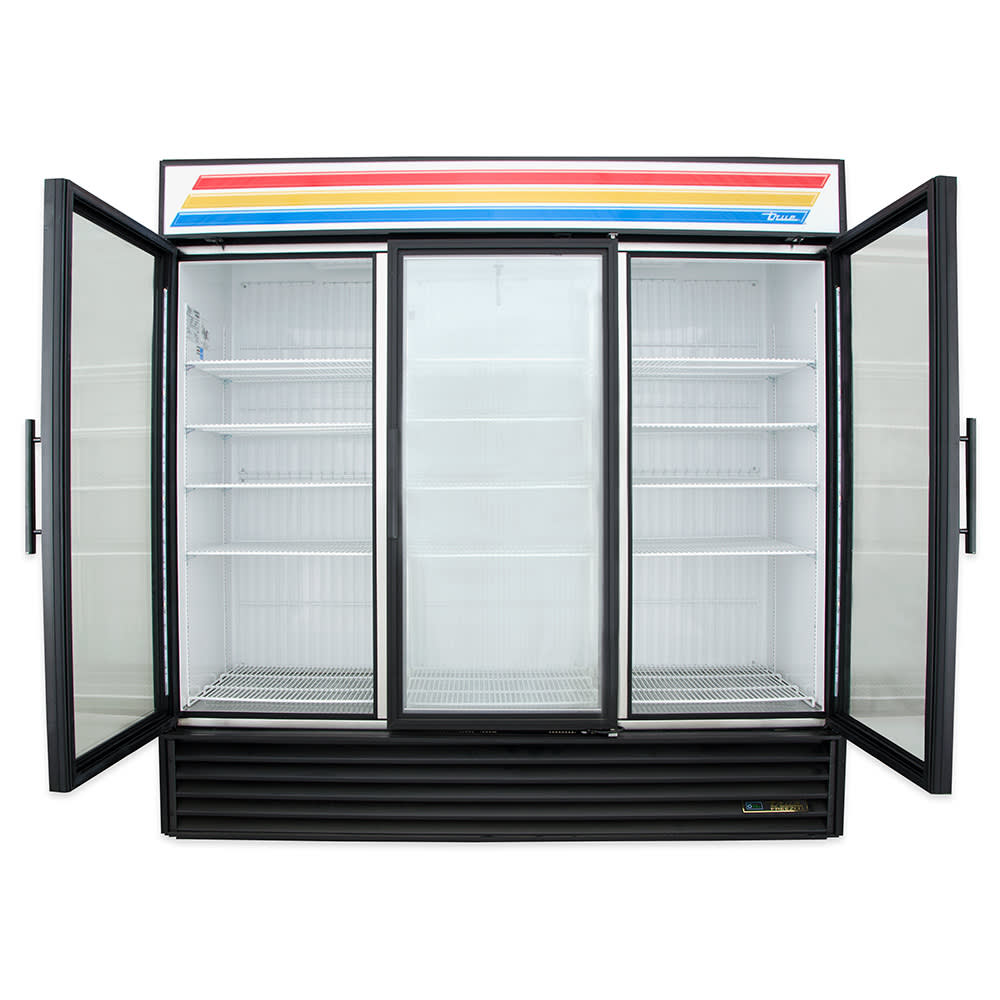

Two self-closing, swinging doors have a positive seal, torsion-type closure system that helps maintain freezing temperatures inside the unit. These doors are triple paned and thermal insulated to keep cold air inside the cabinet. Magnetic door gaskets prevent cold air from escaping and are removable without tools for convenience. Each door has a 12-inch extruded handle that simplifies opening the door.

LED interior lighting illuminates the cabinet so product is visible, and an illuminated exterior sign panel attracts customers. The True GDM-72F-HC~TSL01 three-section display freezer has 12 adjustable, PVC-coated wire shelves that are on ¹⁄₂-inch increments to accommodate taller or shorter products. A black finish on the cabinet highlights product and blends into different design schemes.

Product Details

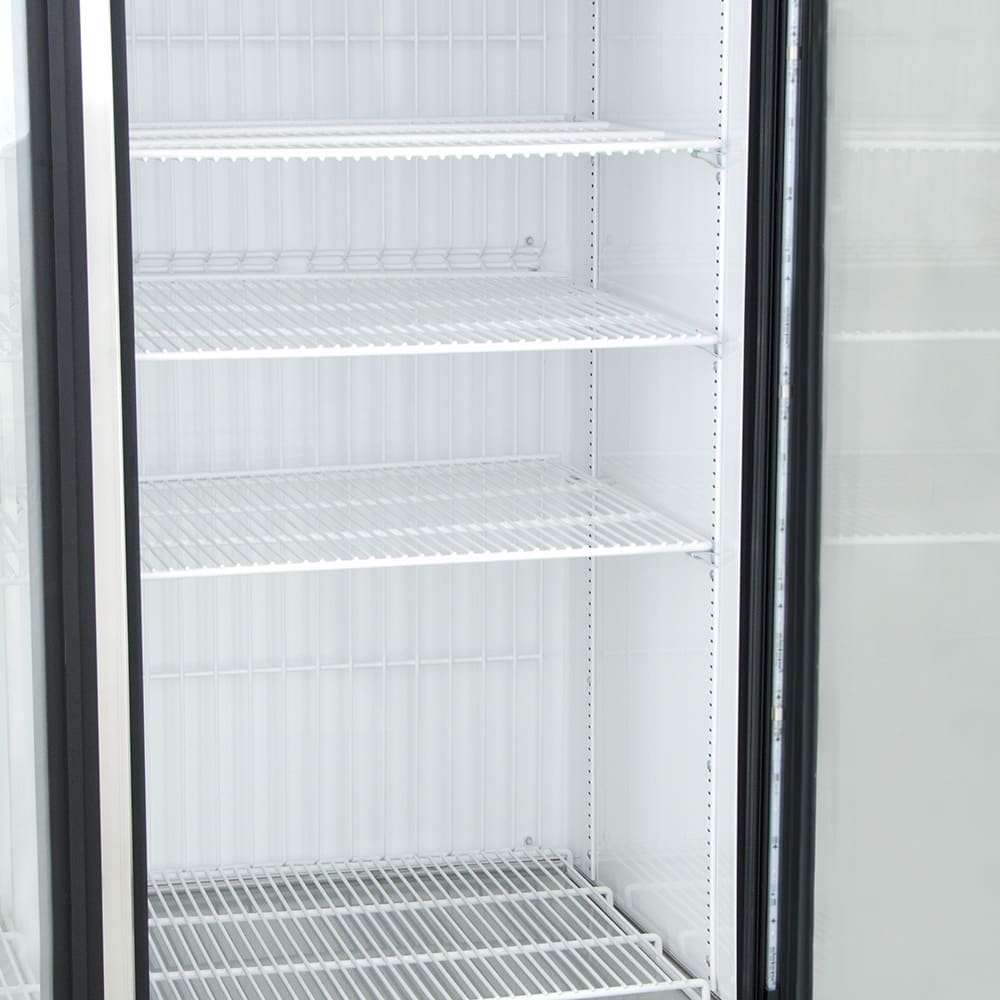

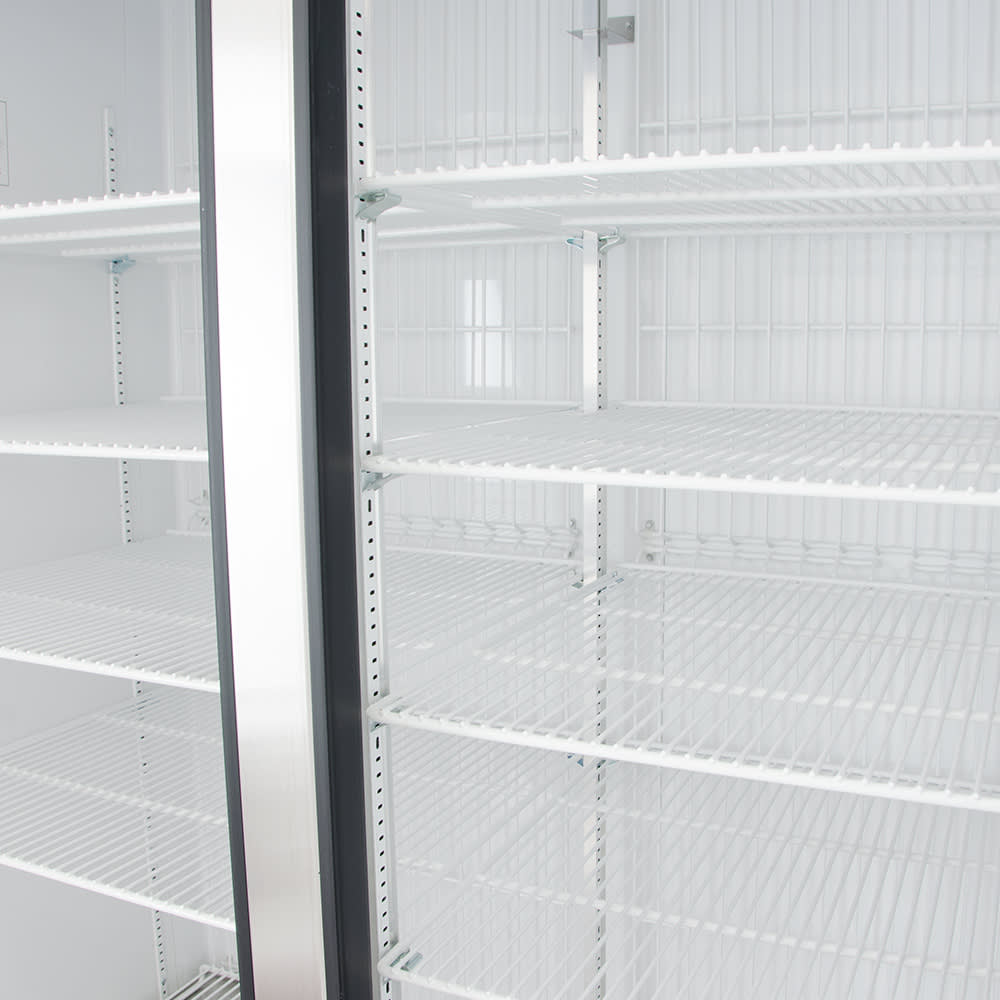

• Includes 12 adjustable PVC-coated wire shelves
• 4 chrome-plated shelf clips included per shelf

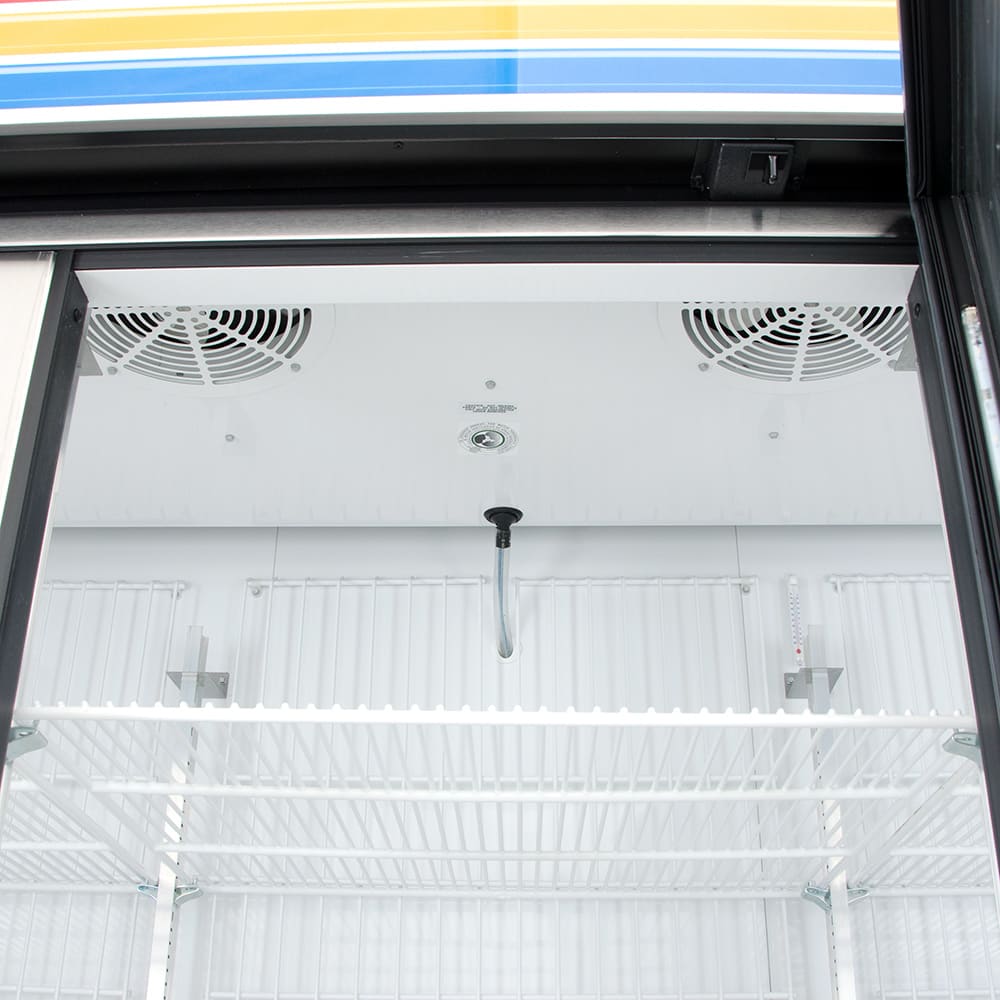

• LED interior lighting brightens interior
• Triple-pane, thermal-insulated glass doors showcase displayed products without letting heat inside
• Doors swing open and self-close with a positive seal, torsion-type closure system
• Doors are fitted with 12-in. handles
• Removable, 1-piece magnetic door gaskets
• Illuminated exterior sign panel attracts customer attention
• Exterior is finished with a black powder coating that resists chipping
• White aluminum interior is durable and corrosion resistant

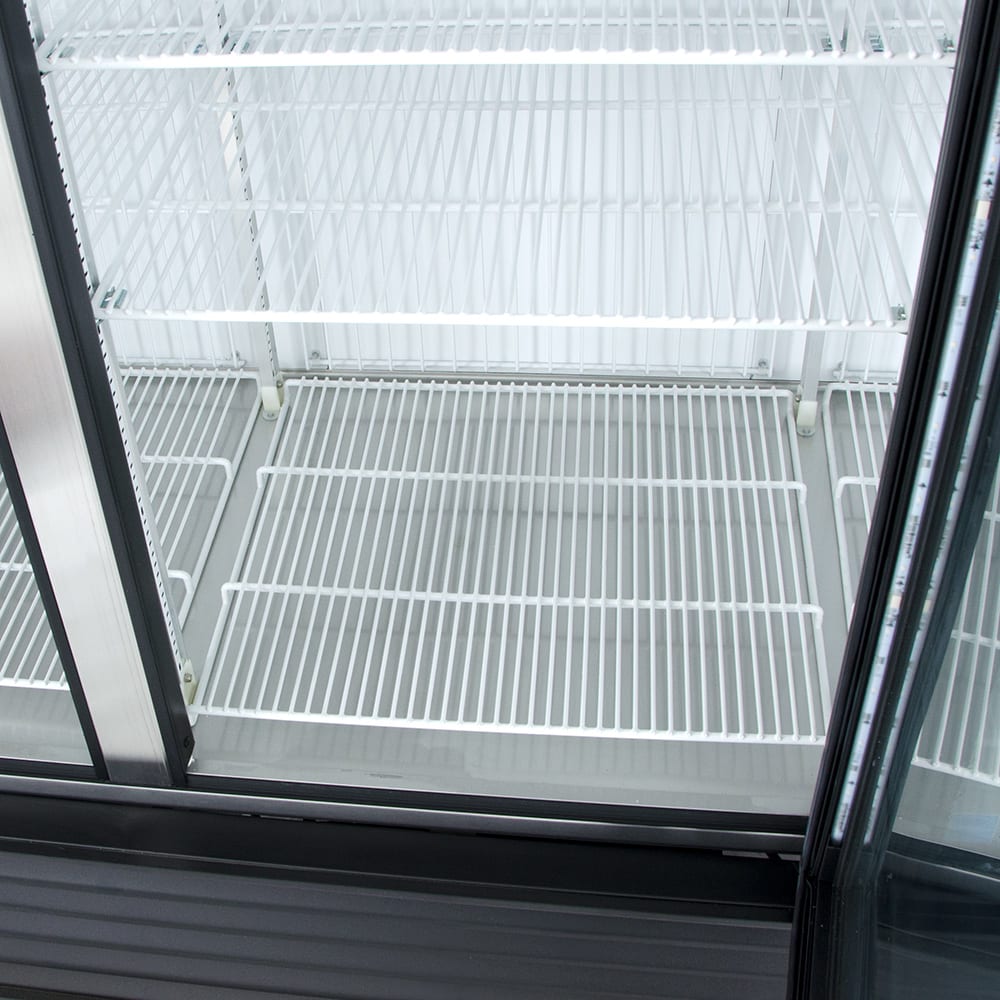

• Stainless steel floor simplifies cleaning
• Entire cabinet has foamed-in-place polyurethane insulation to keep cold air inside
• Frame rail is black powder coated for better corrosion protection and has leg levelers to keep the cabinet stable

Product Features

Advanced Refrigeration System

• Operating temperature: -10 degrees F

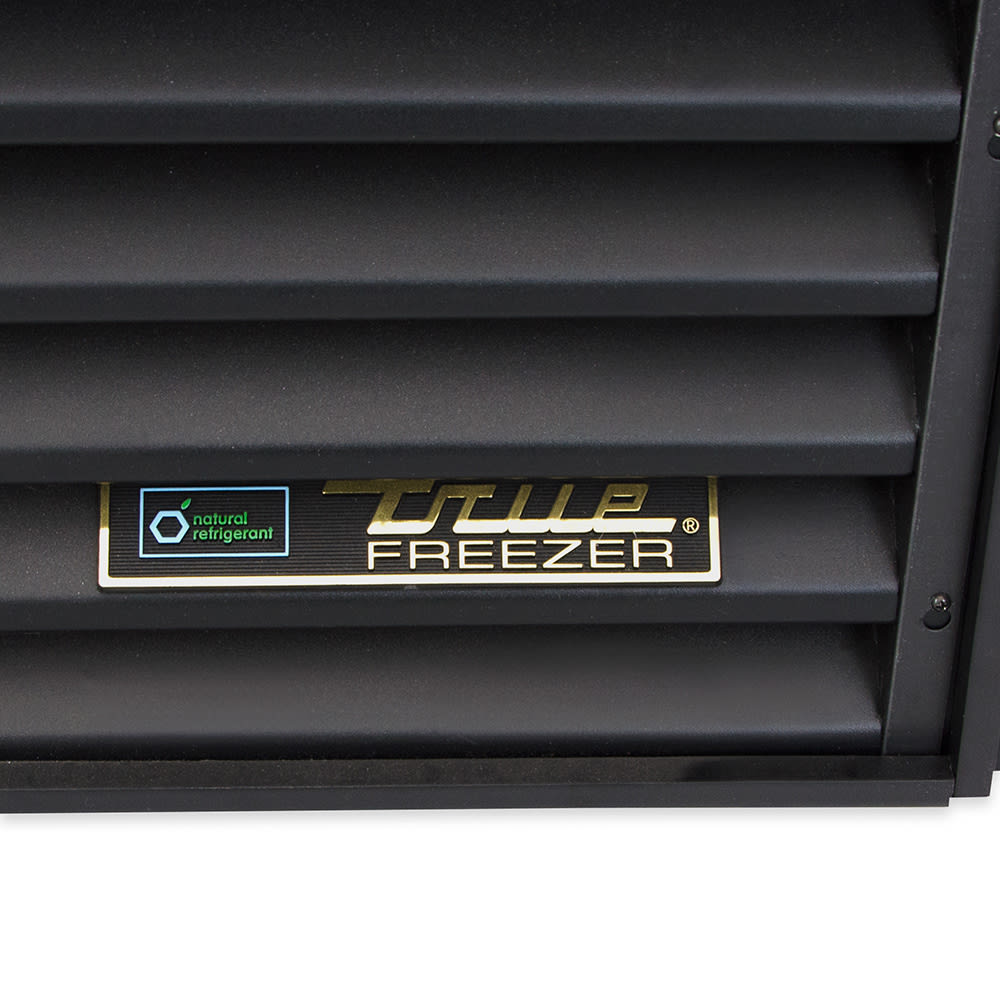

• Capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant

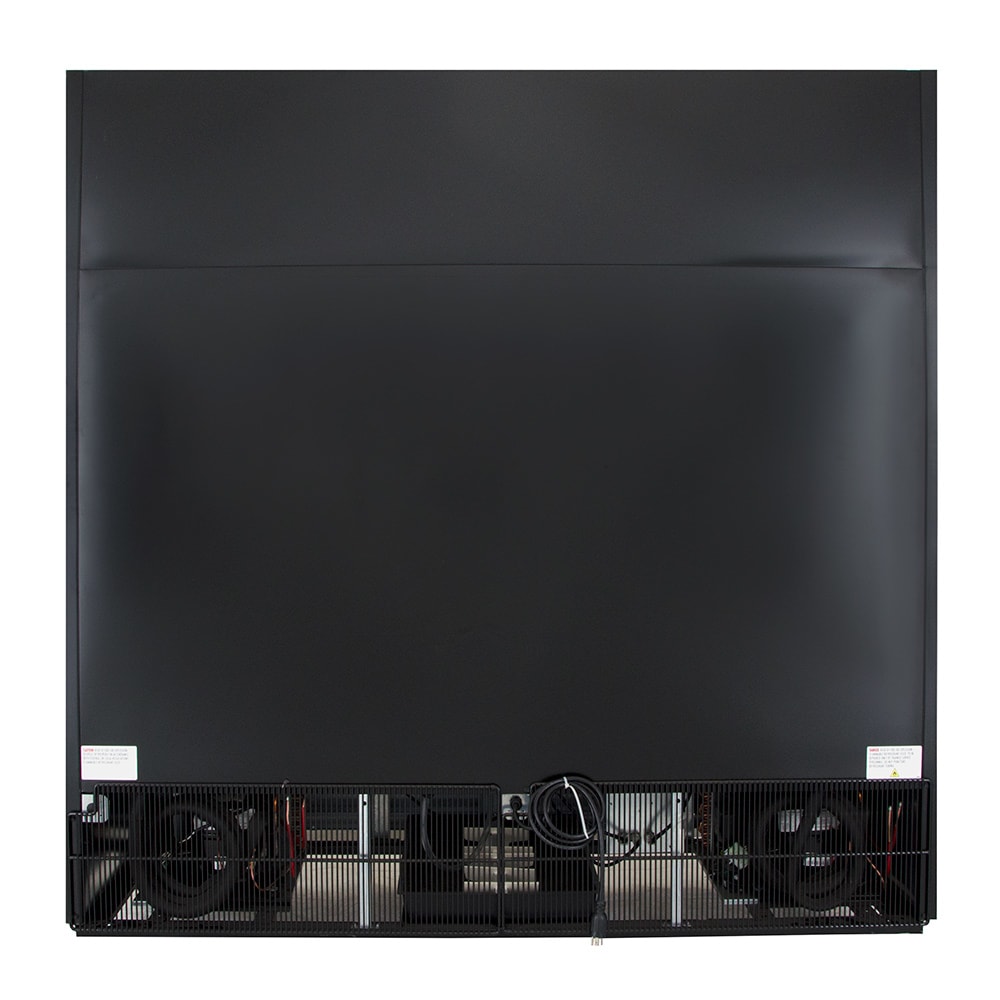

• Bottom-mounted condensing unit is accessible for maintenance and maximizes visibility since product is on a higher level
• Reversing fan motor for thorough condenser coil cleaning
• Automatic defrost system is time initiated and temperature terminated

Dimensions & Utilities

• Shelves: 24¹⁄₈ in. W x 20³⁄₄ in. D
• Overall: 78¹⁄₈ in. W x 31¹⁄₄ in. D x 78⁵⁄₈ in. H
• 11.1 A, 1 HP
• 115 V/60 Hz/1 ph

*Free shipping on True Refrigeration GDM-72F-HC~TSL01 within the 48 contiguous states.

From The Manufacturer

Freezer Merchandiser, three-section, True standard look version 01, -10°F, (12) shelves, (3) triple-pane thermal glass hinged door, LED interior lights, powder coated steel exterior, white interior with stainless steel floor, R290 Hydrocarbon refrigerant, All Units Manufactured Before April 4th, 2021 are pre-wired at the factory and is ready for final connection to a single 115/208-230/60Hz single phase, NEMA 14-20R dedicated outlet. All Units Manufactured After April 4th, 2021 are pre-wired at the factory and is ready for final connection to a single 115/60Hz single phase, NEMA 5-20R dedicated outlet, cULus, UL EPH Classified, Made in USA

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration GDM-72F-HC~TSL01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
