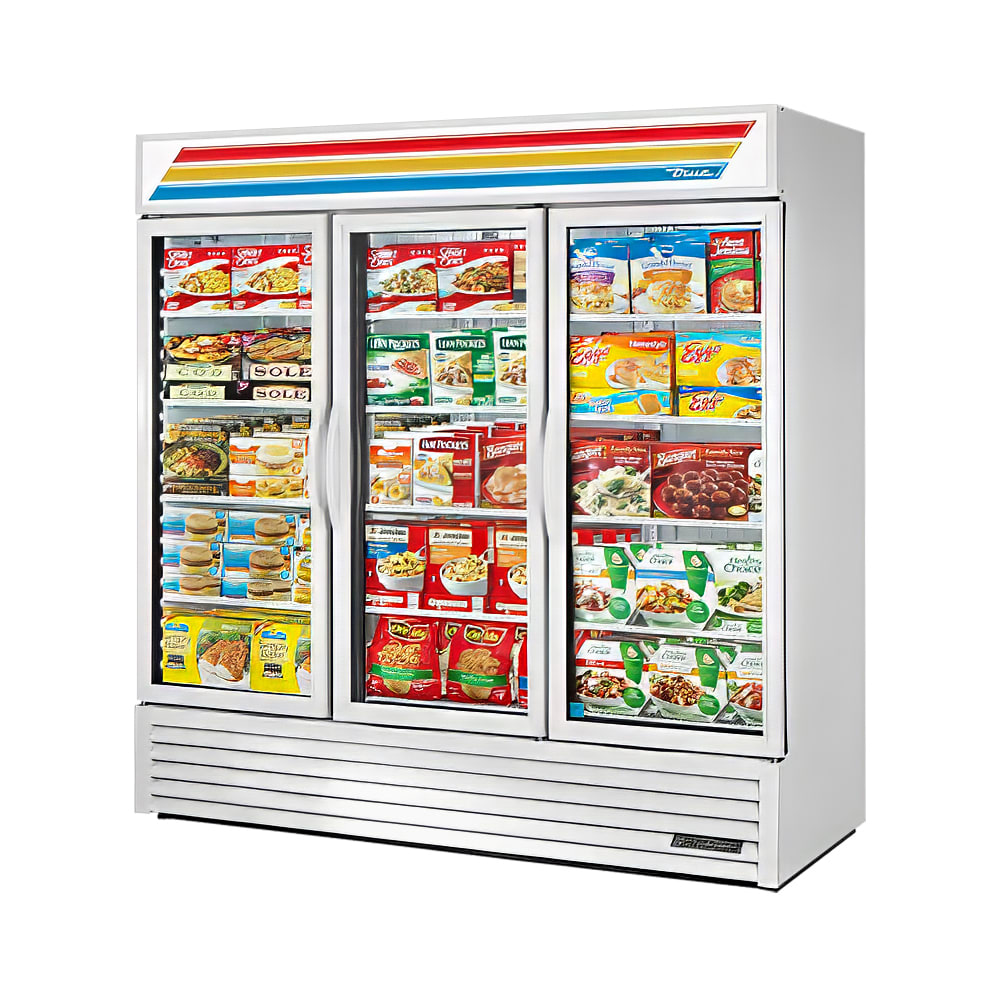

True GDM-72F-HC~TSL01 78" Three-Section Display Freezer w/ Swinging Doors - Bottom Mount Compressor, White

Image may not depict product color, inclusions or accessories.

KaTom #: 598-GDM72F • MPN: GDM-72F-HC~TSL01 WHT
Ships Free

Typically ships within 9 - 13 business days

Need it quicker? Call us today! 800-541-8683
(0 reviews)Write a Review
Retail Price: $8,795.75

Image may not depict product color, inclusions or accessories.

True Refrigeration GDM-72F-HC~TSL01 Description

True Refrigeration

Storing frozen goods in the True GDM-72F-LD three-section display freezer attracts customers and promotes impulse buys. This unit holds temperatures at -10 degrees Fahrenheit, ideal for ice creams and packaged frozen meals. The compressor is bottom-mounted for easy maintenance and no-stoop lower shelf storage. An automatic defrost system is time-initiated and temperature-terminated, making manual defrosting unnecessary. The unit's exterior is white laminated vinyl for better durability and gives the unit a clean, fresh look.

The triple pane, thermal insulated glass doors keep the cool air inside the freezer and has white powder coated frames to resist scratching. Each of the three doors has a 12-inch-long extruded handle that makes opening the door easy for loading and unloading product. The doors are self-closing, and the magnetic door gaskets keep the cold air from escaping and is removable without tools for simple cleaning. Heavy-duty, adjustable, 12 PVC-coated wire shelves holds product inside the freezer. The True GDM-72F-LD three-section display freezer’s shelves are adjustable on 12-inch increments.

Product Details

  • Holds temperature at -10 degrees F that is ideal for ice cream and packaged frozen meals
  • Bottom-mounted compressor provides easy maintenance and no stoop lower shelf storage
  • Automatic defrost system is time initiated and temperature terminated making manual defrosting unnecessary
  • White-laminated vinyl exterior offers durability
  • White aluminum interior insulated with foamed-in-place CFC free, polyurethane insulation
  • 300 series stainless steel floor is damage resistant
  • Frame rail is black powder coated for better corrosion protection
  • LED interior lighting gives even lighting and is safety-shielded
  • Illuminated exterior sign panel attracts customers to improve the chance of sales
  • Triple pane thermal glass doors give clear view of products and protects from heat penetrating
  • 115-208-230 V/60 Hz/1-ph, 12.7 A, 1 HP, 9-ft. cord with a NEMA 14-20P plug
  • Overall Dimensions: 7818 in. W x 2978 in. D x 7858 in. H
  • CE listed, NSF and Energy Star certified

Environmentally-Friendly Refrigeration System

  • Capillary tube system using environmentally-friendly R-290 hydrocarbon refrigerant
  • Extra-large evaporator coil balanced with higher horsepower compressor and large condenser
  • Evaporator fan motor sealed, cast iron and self-lubricating
  • Larger fan blades for more efficient, low velocity, high volume airflow design
  • Airflow gives cold standard temperatures and fast recovery for busy use situations

Insulated Doors and Adjustable Shelves

  • Triple pane thermal insulated glass door made with extruded aluminum frame allows for more visibility of product
  • Doors are fitted with easy-to-grip 12-in. handles
  • Self-closing doors feature torsion-type closure system that assures doors closed conserving energy
  • Removable, 1-piece constructed magnetic door gaskets easily cleaned
  • Includes 12 adjustable, PVC-coated wire shelves hold product
  • 4 chrome-plated shelf clips included per shelf

Product Updates

  • In the Spring of 2016, True introduced a new version of this model with several visual enhancements. These changes include sleeker, one-piece signage areas and grills, black door hinges, and contoured handles. These improvements are aesthetic only and do not affect the performance of the equipment.

Freezer Merchandiser, three-section, -10° F, (12) shelves, laminated vinyl exterior, white interior with stainless steel floor, (3) triple-pane thermal glass hinged door, LED interior lights, R290 Hydrocarbon refrigerant, 1 HP, 115/208-230v/60/1, NEMA 14-20P, 11.1 amps, UL EPH Classified, MADE IN USA, ENERGY STAR®

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

True Refrigeration GDM-72F-HC~TSL01 Specifications

PDF Spec Sheet
Manufacturer True Refrigeration
Exterior Width 78
Sections 3
Door Design Swing
Air Intake Front
Compressor Location Bottom
Warranty 3 year parts & labor/5 year compressor
Cubic Feet 72
Specialty Options LED Lighting
Also Known As GDM-72F, TRUE GDM-72F, TRUGDM72F, 890GDM72F, GDM72F, 675-090, GDM-72F-HC-LD, GDM-72F-HC
Phase 1
Hertz 60
Voltage 115/208/230
Product Display Freezer
Product Type Commercial Refrigeration
Weight 825.00
True GDM-72F-HC~TSL01 Certifications
  • UL
  • NSF
  • Energy Star
