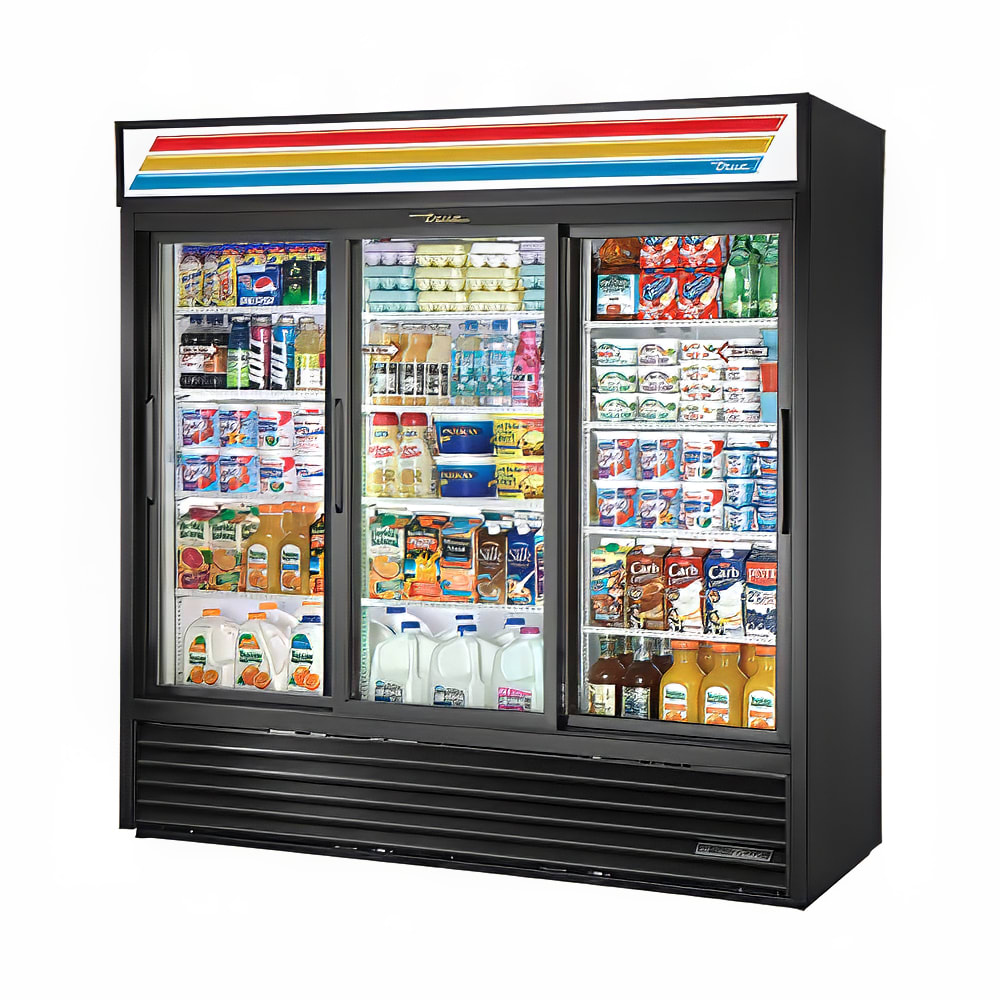

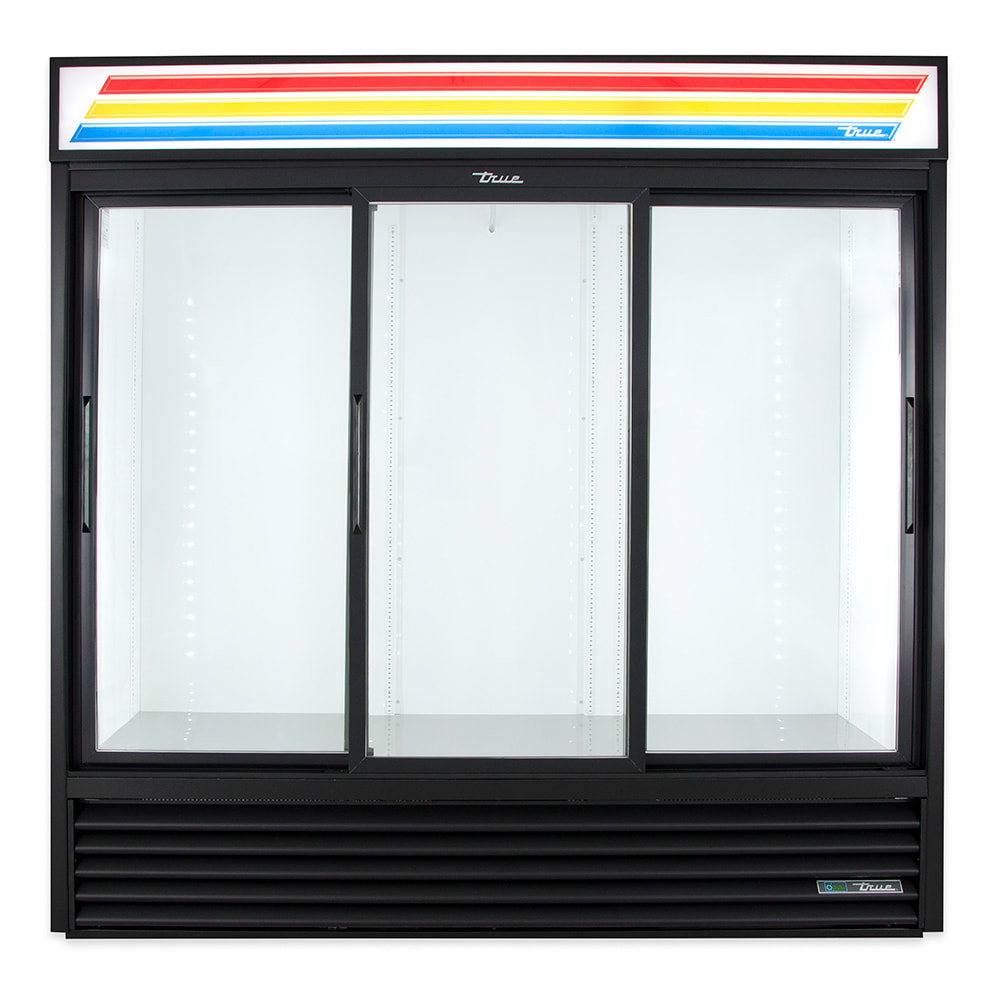

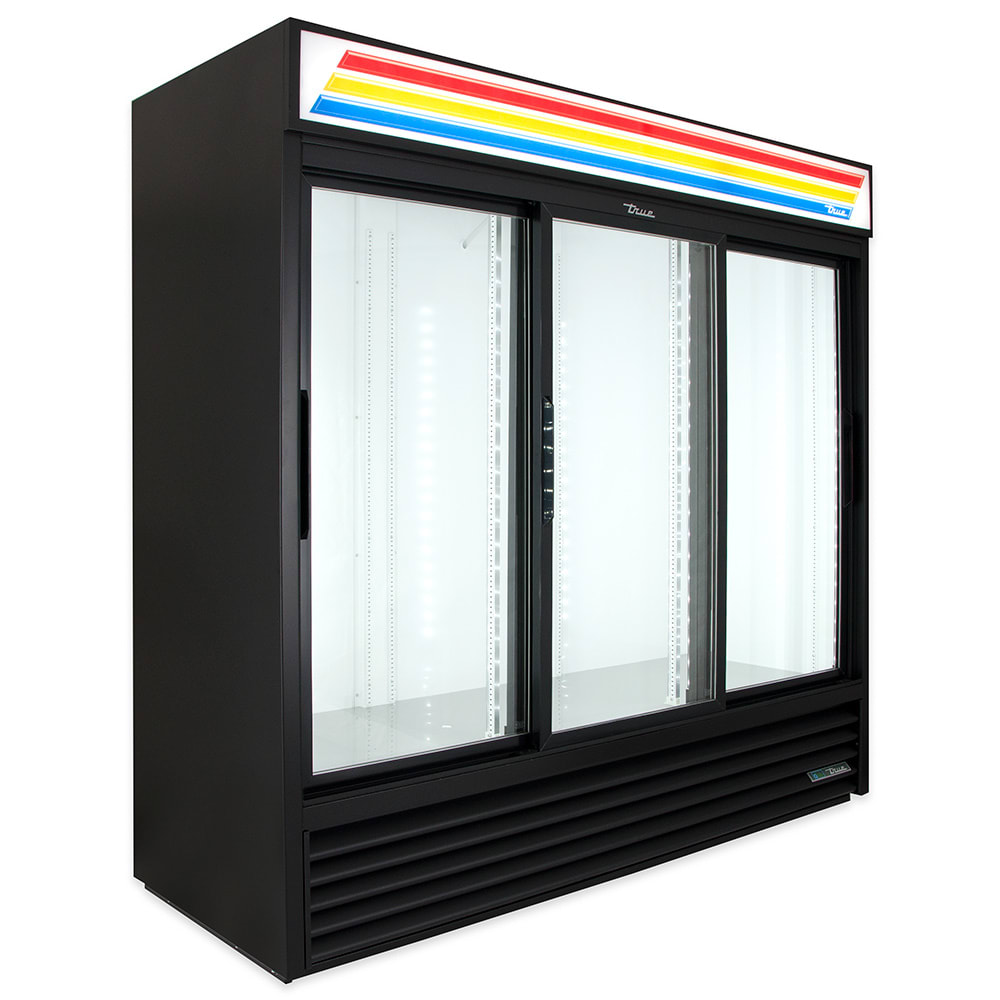

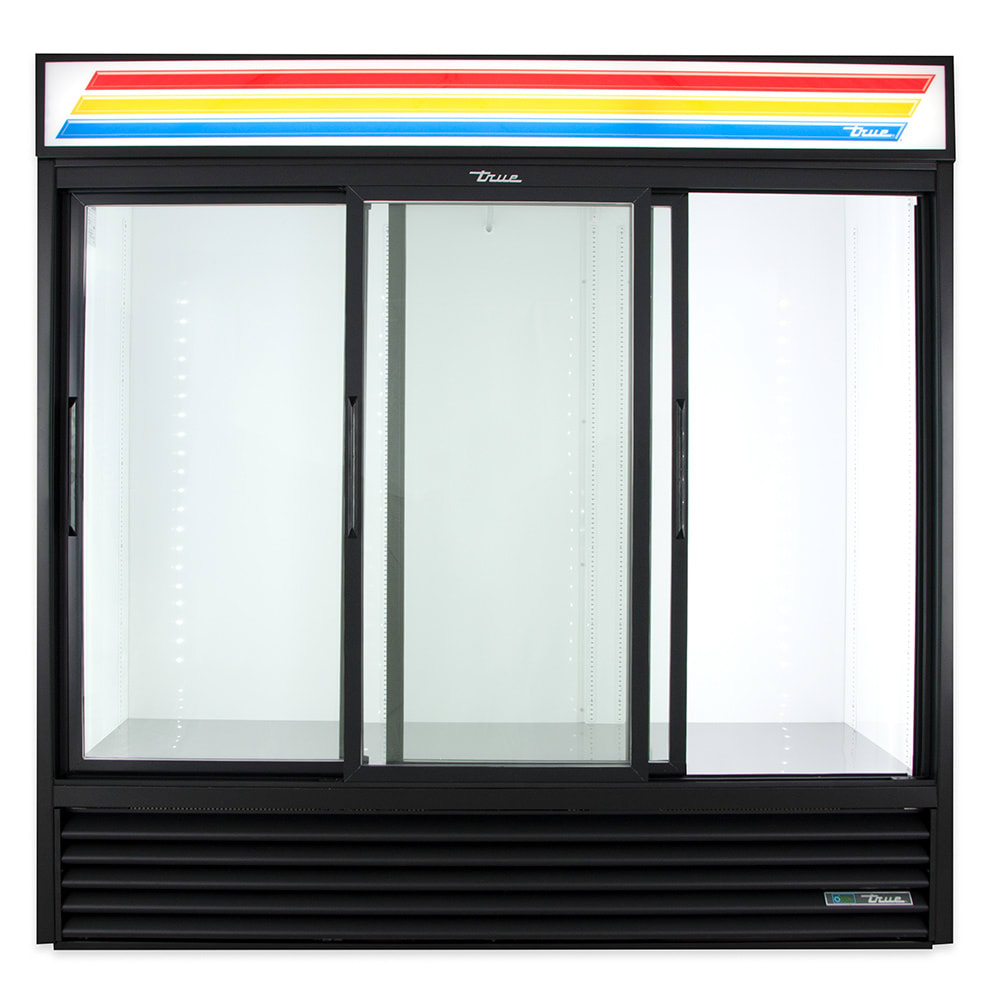

True GDM-69-HC-LD 78 1/8" GDM Series Three Section Glass Door Merchandiser - (3) Sliding Doors, Black, 115v

The True GDM-69-HC-LD three-section glass door merchandiser has ample storage space for a variety of products with 12 PVC-coated, corrosion-resistant, adjustable shelves. True's commitment to using the most energy efficient technology ensures quickly cooling warm products and a fast recovery in high volume settings. This merchandiser's cabinet is fully insulated with polyurethane—an environmentally friendly insulation—that adds structure. Its three double-paned, thermal glass doors retain cool temperatures.

Evaporator coils and fan blades create efficient air flow that evenly distributes 33 to 38 degree Fahrenheit temperatures throughout this cabinet. Since the True GDM-69-HC-LD three-section refrigerated display case has a bottom-mounted condenser, merchandise is raised to a higher level for customer viewing. This unit uses R290 hydrocarbon refrigerant that is better for the environment than traditional options, and the refrigerant is in the capillary tubes, which are self-contained and regulate refrigerant flow.

Producing ideal product temperatures and saving money on energy costs, the condensing coil is kept clean with the reverse condensing fan motor. It operates automatically by blowing in reverse when the compressor is started. This feature helps rid the coil of dust and debris, however, routine maintenance should still be implemented.

Product Details

• Black powder-coated steel exterior is durable and permanent

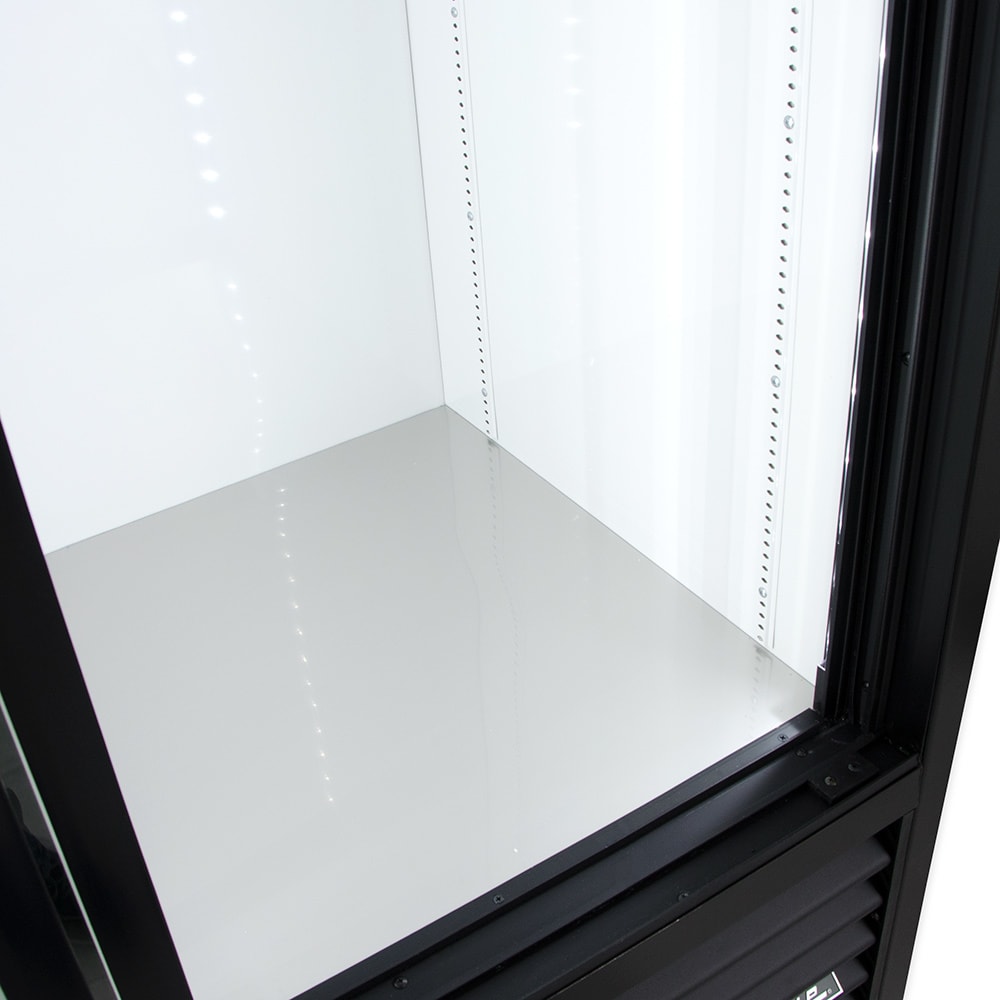

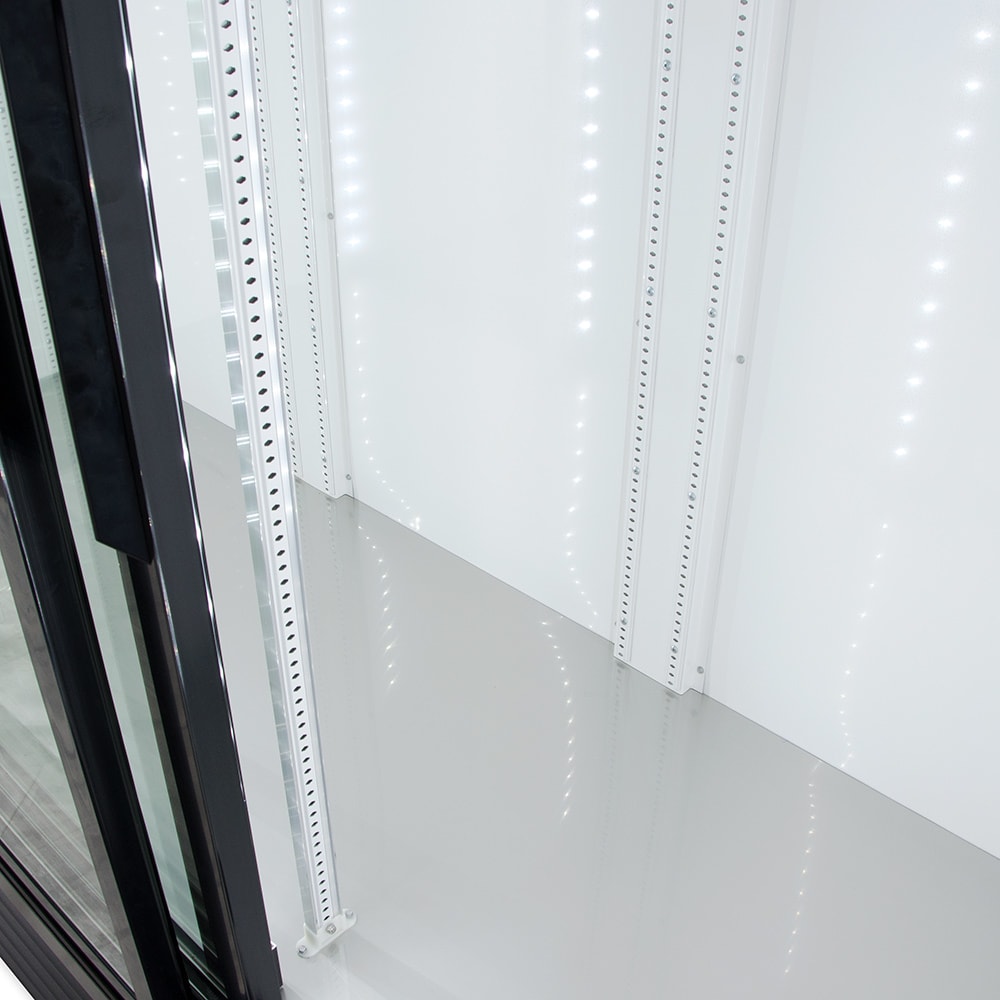

• White aluminum interior liner and stainless steel floor are durable
• Polyurethane insulating throughout the whole cabinet keeps cold air inside and is foamed-in-place to give the cabinet structure
• Heavy-duty, black powder-coated steel frame rail protects against corrosion
• Leg levelers for uneven flooring

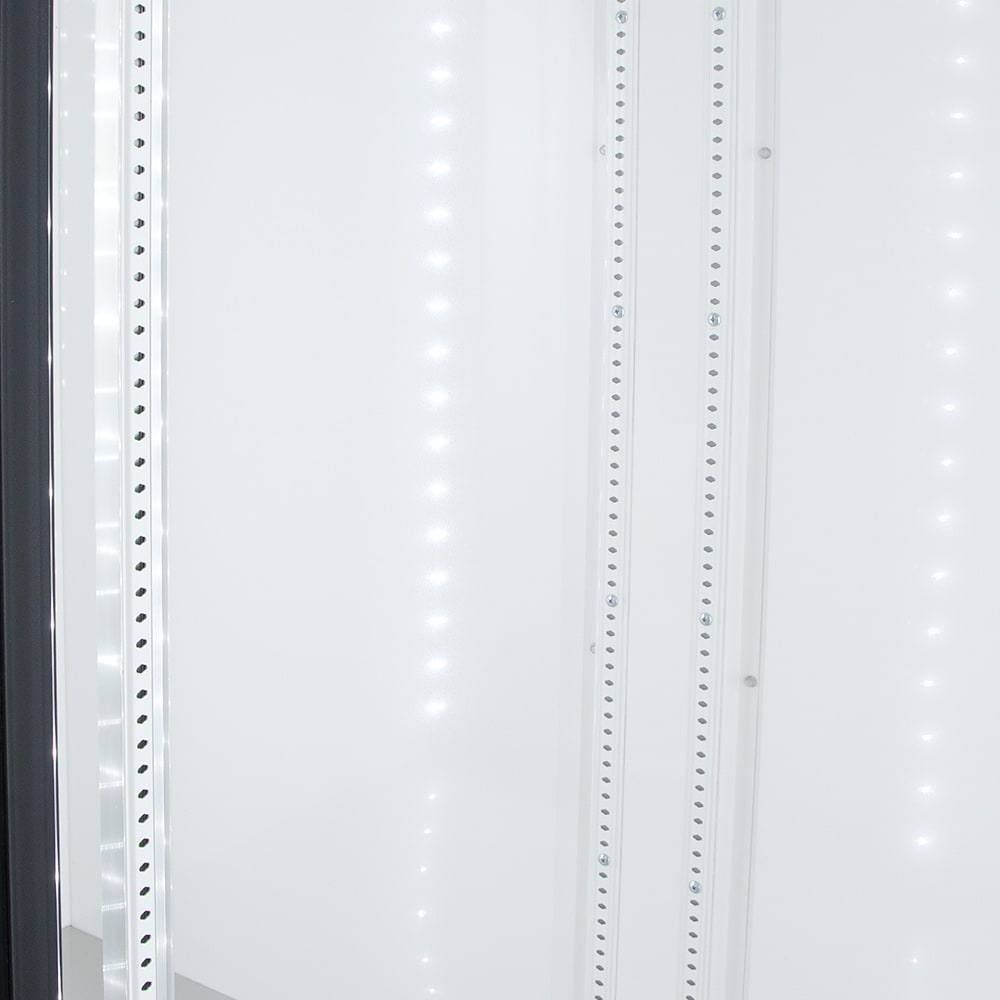

• LED interior lights for product visibility

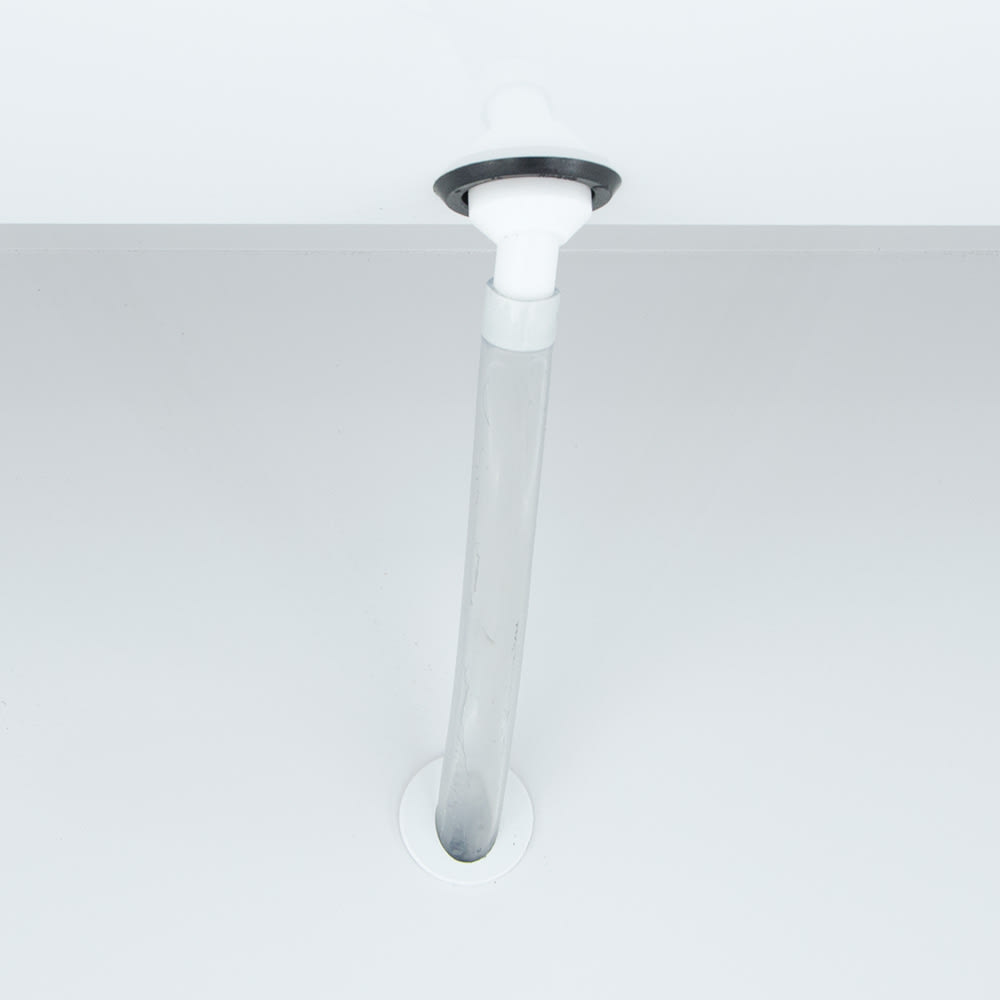

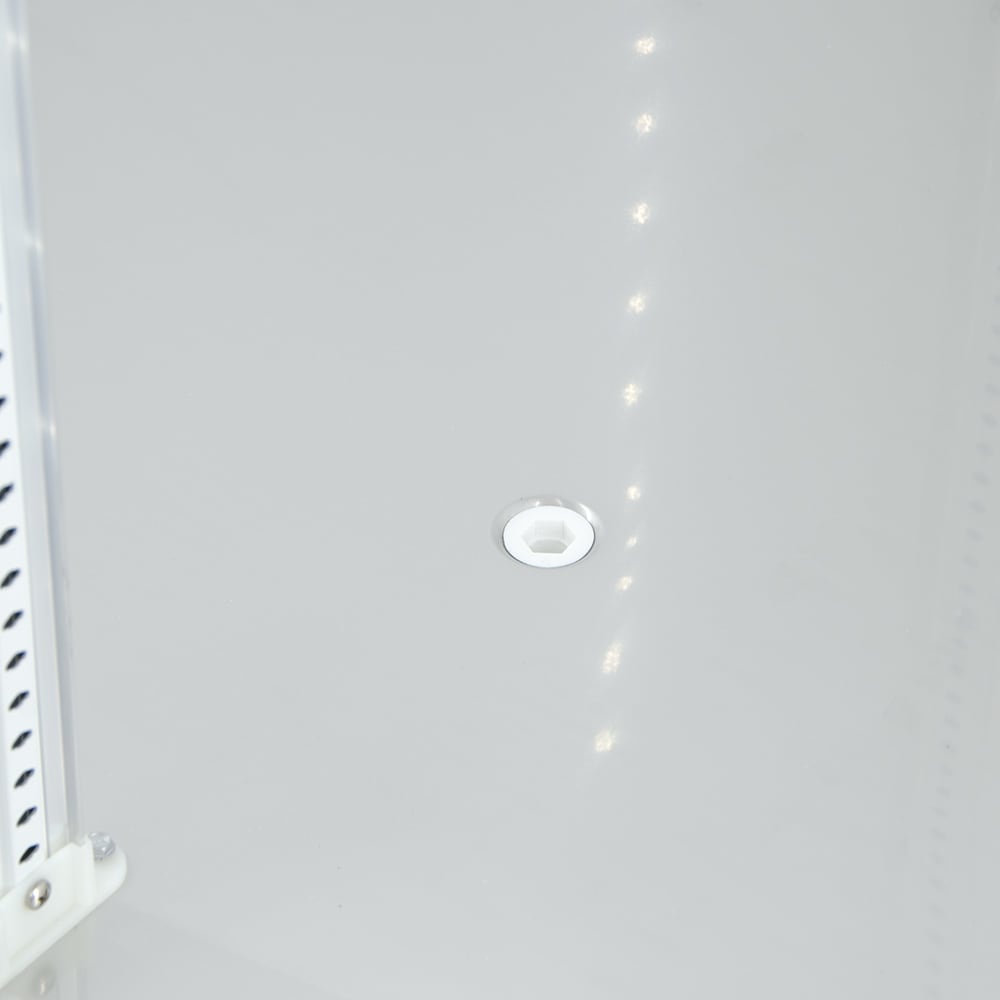

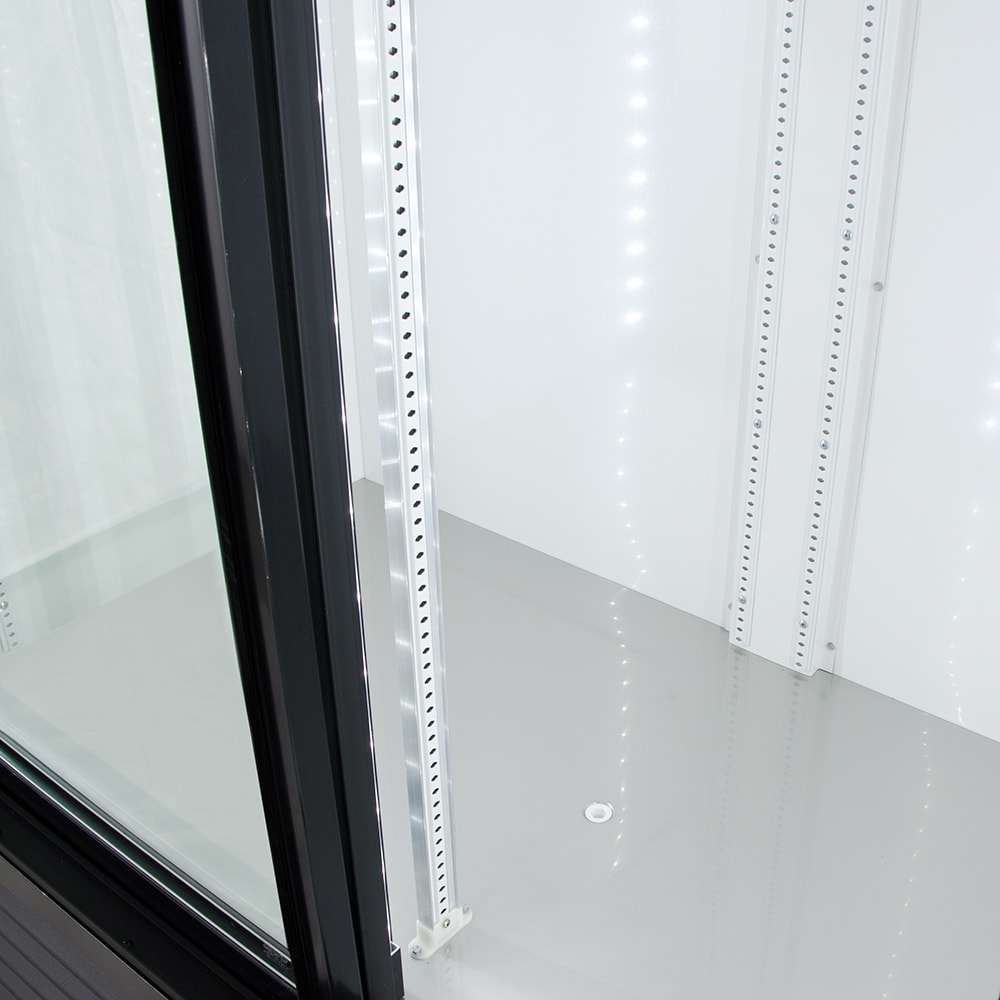

• Clean-out drain is built into the cabinet floor for convenient clean up

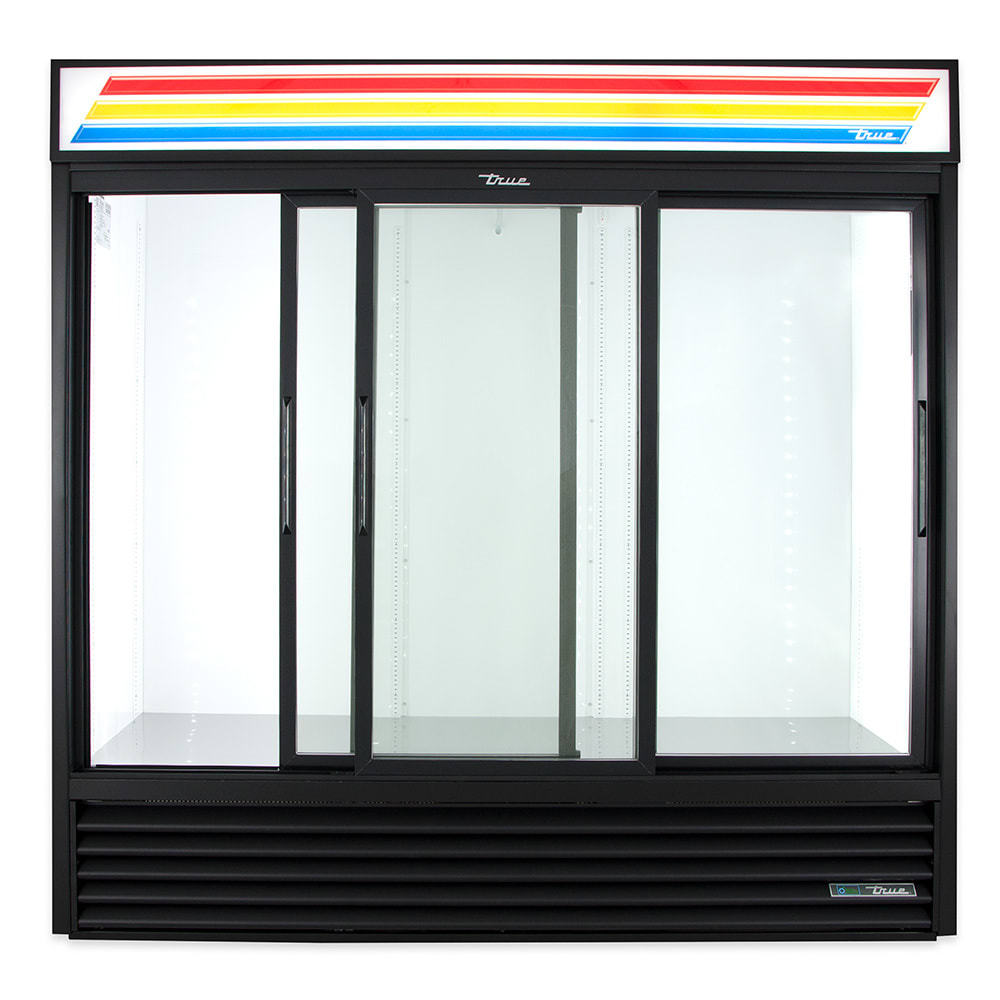

Self-Closing Doors and Adjustable Shelves

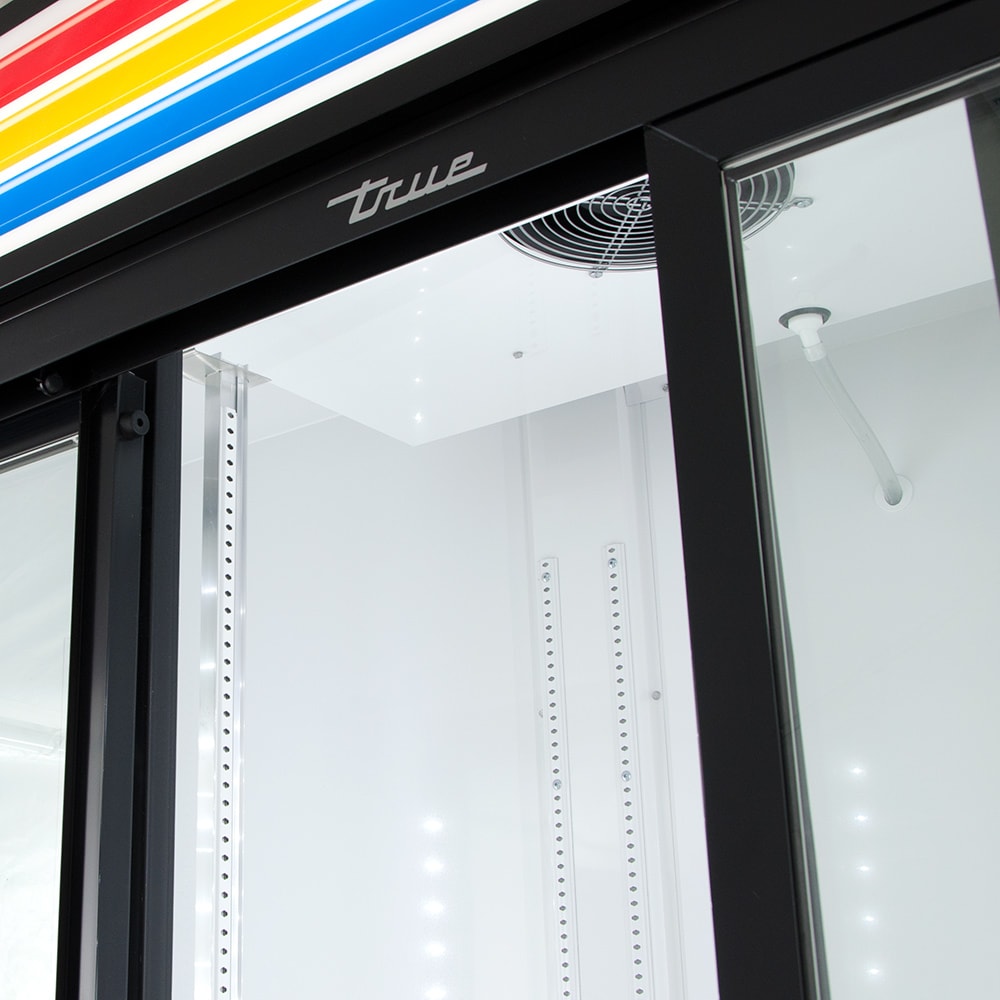

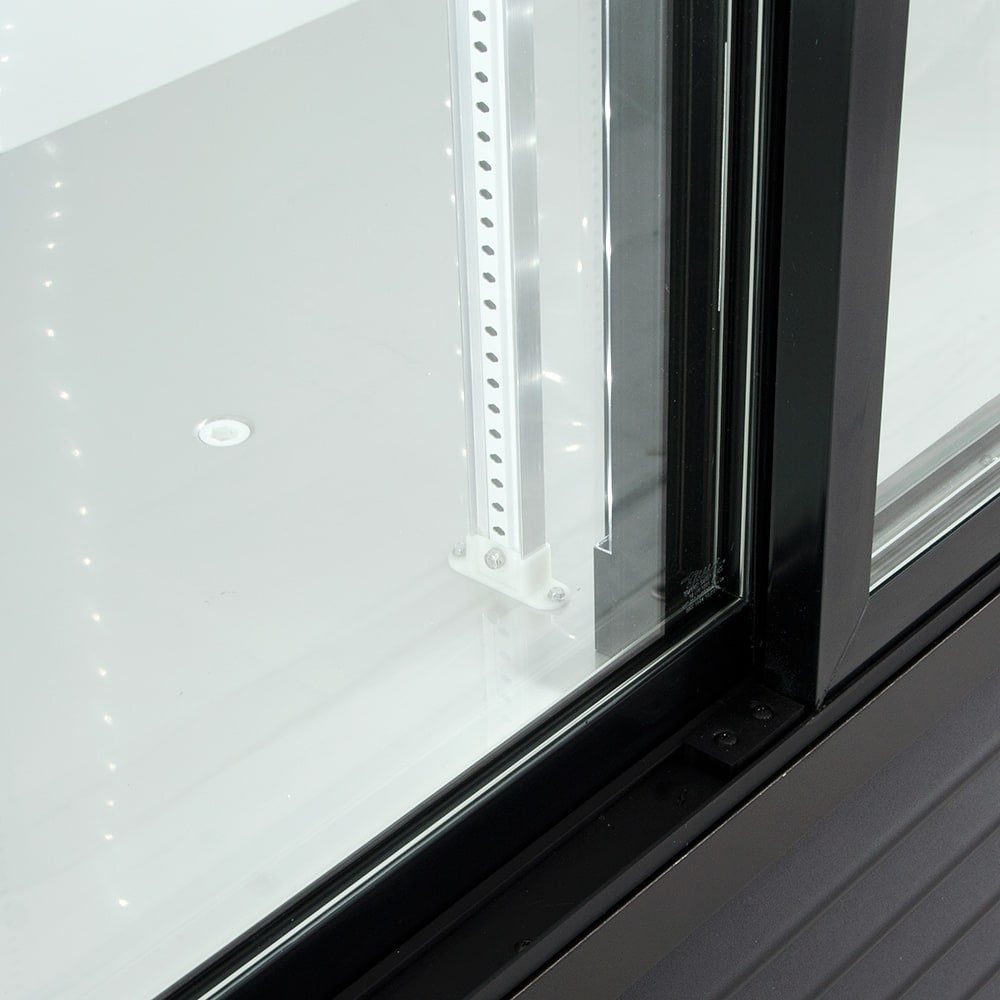

• 3 double-pane, thermal-insulated glass doors trap cold air
• Each door has its own 12-in. extruded handle to simplify opening
• Doors are self-closing to help keep cold air inside
• 12 PVC-coated wire shelves are on ¹⁄₂-in. adjustable increments to accommodate varying heights in products
• 4 chrome-plated shelf clips per shelf
• No stoop lower shelf raises product to a higher level so it is more visible

Refrigeration System

• Temperature range: 33-38 degrees F

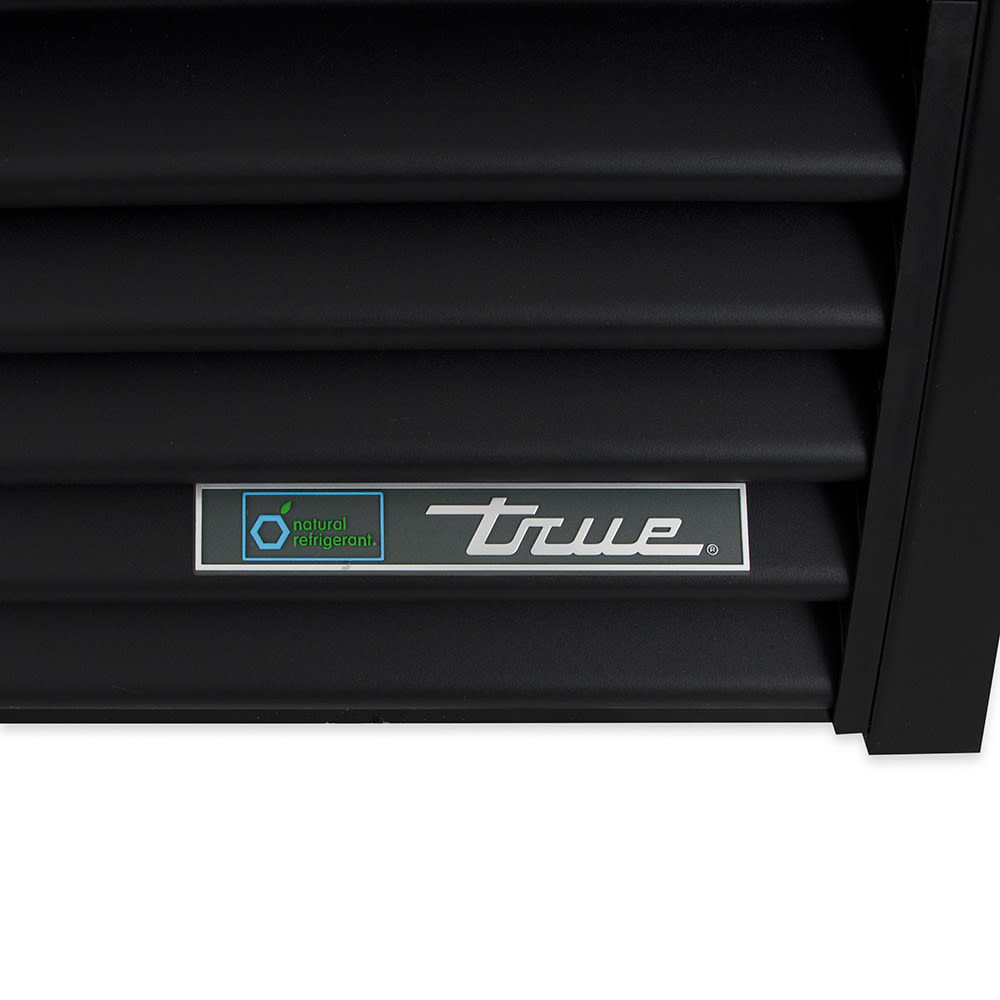

• Uses R290 hydrocarbon refrigerant that is more environmentally friendly than older refrigerants
• Large condenser, high horsepower compressor, and evaporator coils help maintain refrigerated temperatures
• Reversing fan motor is useful for removing dust from the condensing coil

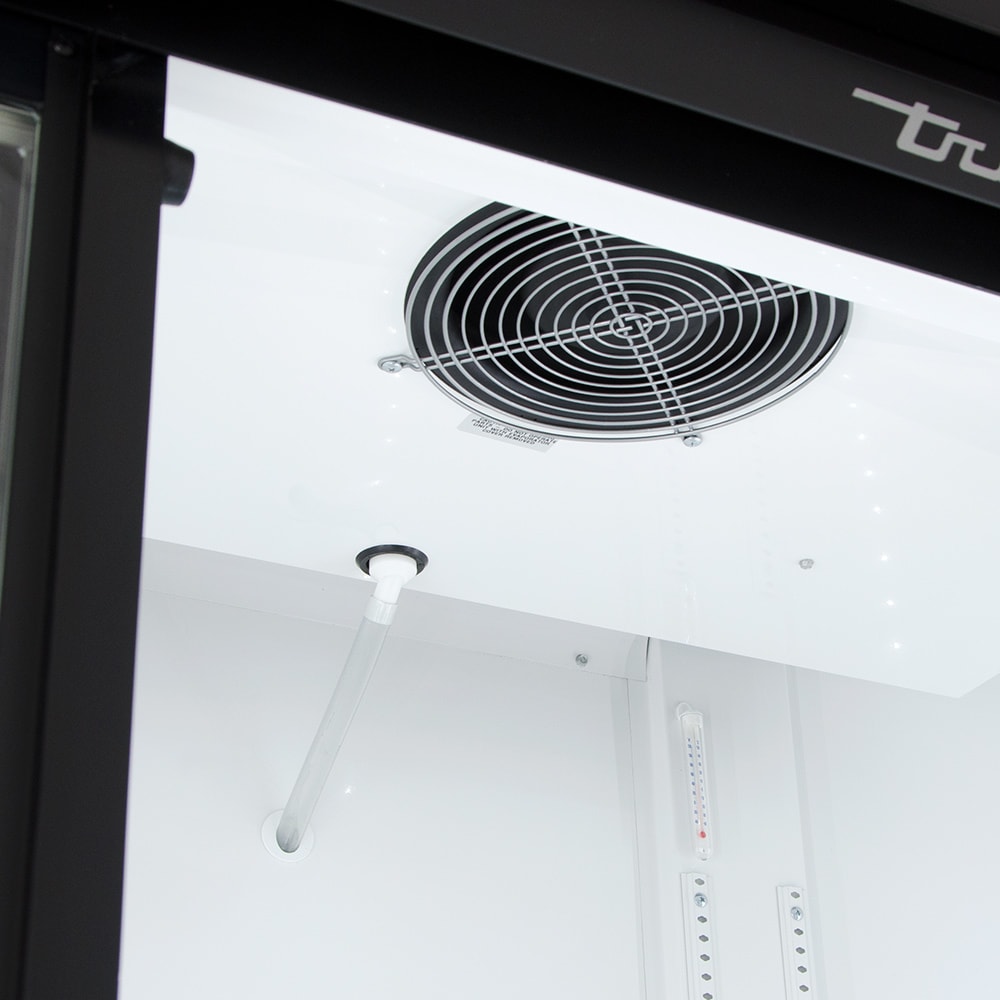

• Evaporator fan motor and fan blades create a high-volume airflow that results in quick pull-down times, fast temperature recovery time, and cold holding temperatures

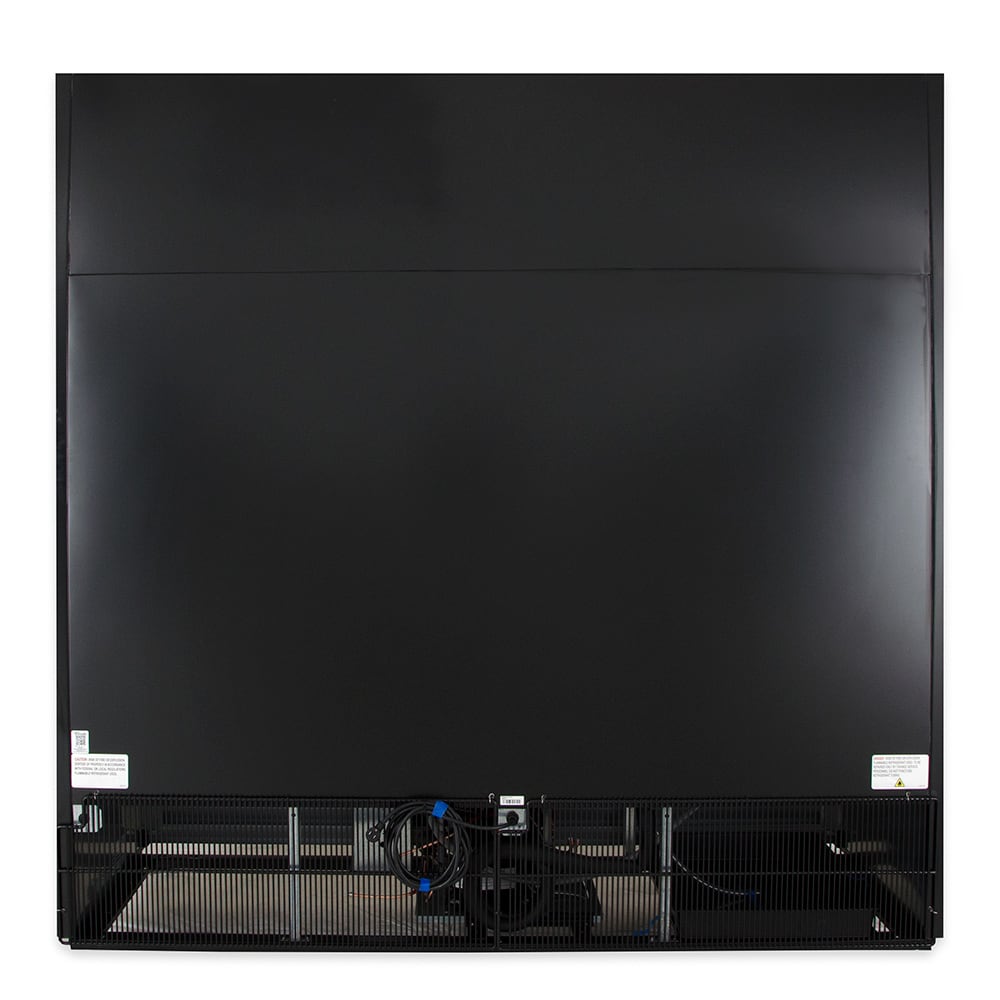

• Condensing unit is mounted on the bottom for maintenance access
• Epoxy-coated evaporator resists corrosion

Dimensions & Utilities

• Shelves: 23⁷⁄₈ in. W x 20⁹⁄₁₆ in. D
• Overall: 78¹⁄₈ in. W x 30 in. D x 78⁵⁄₈ in. H
• 9.3 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration GDM-69-HC-LD within the 48 contiguous states.

From The Manufacturer

Refrigerated Merchandiser, three-section, (12) shelves, (3) Low-E thermal glass sliding doors, LED interior lights, powder coated steel exterior, white interior with stainless steel floor, leg levelers, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, NEMA 5-15P, 7.3 amps, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor Parts

True Refrigeration GDM-69-HC-LD Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
