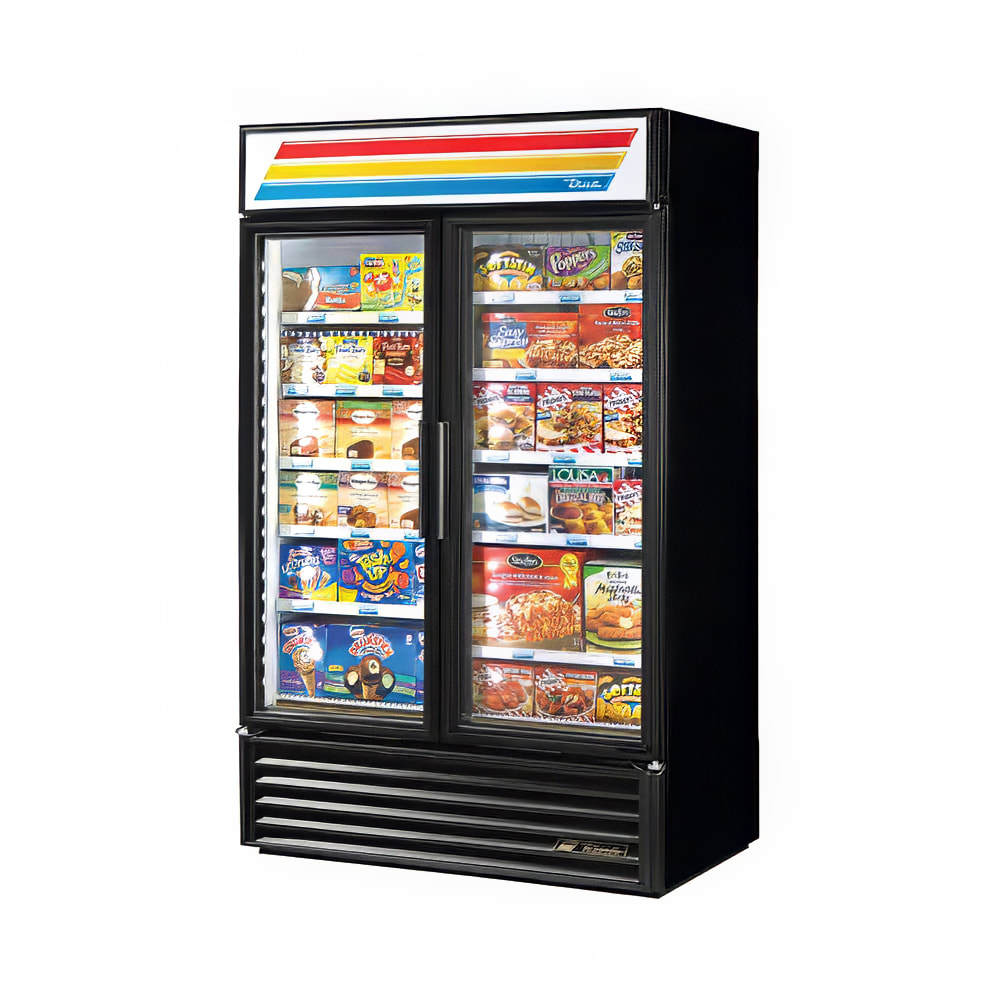

True GDM-43F-HC~TSL01 47 1/8" Two Section Display Freezer w/ Swing Doors - Bottom Mount Compressor, Black, 115v

The True GDM-43F-HC~TSL01 two-section display freezer is excellent for holding frozen food products due to its high-capacity, balanced refrigeration system. This unit ensures that products stay at an ideal temperature of -10 degrees Fahrenheit to maintain the best quality. R290 hydrocarbon refrigerant is used by the self-contained capillary tube system to cool the unit without harming the environment. An evaporator fan motor and larger fan blades create high-volume airflow to provide cold holding temperatures and fast temperature recovery.

This freezer has a condensing fan motor that goes into its unique reverse mode upon start up for 20 seconds. Designed to blow debris, dust, and dirt off the condenser coil, this feature promotes efficient system operation without using a lot of energy. It also keeps temperatures inside consistent while prolonging the system's lifespan. Despite this cleaning feature improving overall operation, it doesn’t replace routine preventative maintenance.

Perfect for high-traffic areas, the black powder-coated exterior is durable enough to endure heavy use in most establishments. A white aluminum cabinet liner creates a clean appearance and adds durability to the interior. The True GDM-43F-HC~TSL01 two-section display freezer has polyurethane insulation that is foamed in place to help keep cold air inside while the doors' magnetic gasket seals off any cracks. Both doors are thermal insulated and made of glass so that people can see inside. Adjusting in ¹⁄₂-inch increments, eight PVC-coated wire shelves accommodate a variety of displayed items in the cabinet's interior.

Product Details

• Self-contained capillary tube system uses eco-friendly R290 hydrocarbon refrigerant
• Operating temperature: -10 degrees F
• Sealed cast iron evaporator fan motor and fan blades provide a high volume of airflow
• Airflow design provides cold temperatures and fast temperature recovery time
• Condenser fan motor keeps coil clean by reversing to remove dust and debris
• Condensing unit is bottom mounted for comfortable access during maintenance
• Evaporator is coated with epoxy to protect it from corrosion
• Time-initiated and temperature-terminated defrost system activates automatically
• Exterior sign panel lights up to catch customers’ attention
• 8 PVC-coated wire shelves accommodate various products because they can adjust in ¹⁄₂-inch increments
• 4 chrome-plated shelf clips for each shelf
• LED interior lights enhance product visibility
• Backguard and floor rack improve airflow

Heavy-duty Construction

• Black powder-coated exterior is durable and permanent
• Durable white aluminum interior liner provides a clean appearance
• Stainless steel floor is durable and quick cleaning
• Entire cabinet is insulated with foamed-in-place polyurethane to keep cold air inside
• Heavy-duty steel frame rail is black powder coated to resist corrosion and has leg levelers for uneven flooring

Self-closing Doors

• 2 triple-pane, thermal-insulated glass doors have 12-in.-long extruded handles
• Doors are self-closing to help keep cold air inside the cabinet
• Magnetic door gaskets can be taken off without tools for cleaning

Dimensions & Utilities

• Shelves: 20⁷⁄₈ in. W x 21 in. D
• Overall: 47¹⁄₈ in. W x 31¹⁄₂ in. D x 78⁵⁄₈ in. H
• 10.6 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug

*Free shipping on True Refrigeration GDM-43F-HC~TSL01 within the 48 contiguous states.

From The Manufacturer

Freezer Merchandiser, two-section, True standard look version 01, -10°F, (8) shelves, (2) triple-pane thermal glass hinged doors, LED interior lights, bottom mounted self-contained refrigeration, powder coated steel exterior, white interior with stainless steel floor, frame rail fitted with leg levelers, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 10.6 amps, NEMA 5-20P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor

True Refrigeration GDM-43F-HC~TSL01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.
