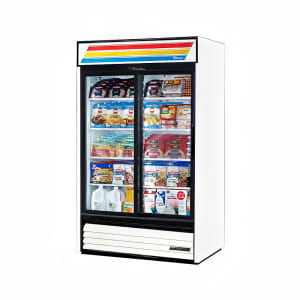

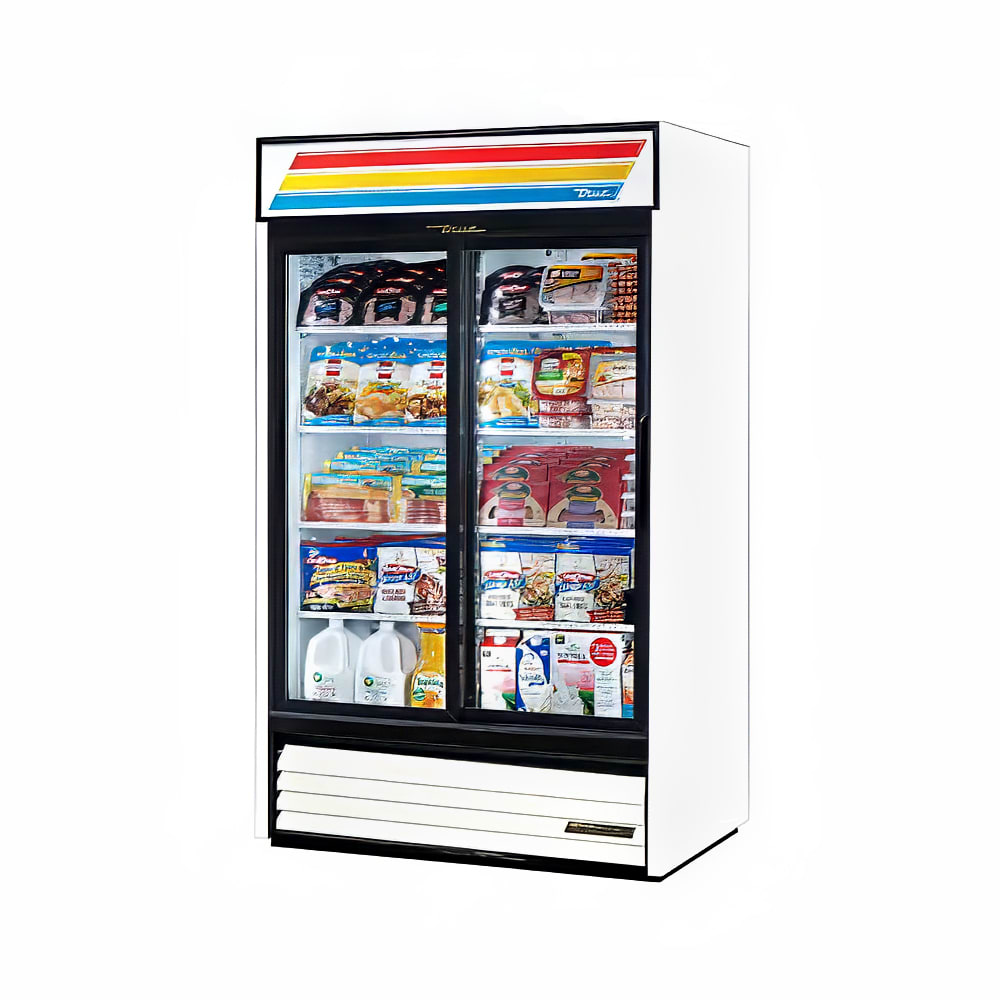

True GDM-41-HC-LD 47 1/8" GDM Series Two Section Glass Door Merchandiser - (2) Sliding Doors, White & Black, 115v

The True GDM-41-HC-LD two-section glass door merchandiser has evaporator and condenser fan motors that produce better airflow in the cabinet, minimizing heat production and energy consumption. To simplify maintenance, the condensing unit is mounted in the bottom of the cabinet, creating a lower shelf that increases product visibility. To protect the evaporator from corrosion, it is epoxy-coated, while the refrigeration system uses R290 hydrocarbon refrigerant to keep temperatures cool from 33 to 38 degrees Fahrenheit.

The condensing fan motor reverses for 20 seconds after the compressor is started, removing dirt, dust, and debris from the condensing coil. By keeping the coil clean, the unit provides proper product temperatures and operates using less energy. Although this feature is self-cleaning, users should still maintain the condensing coil regularly.

The white powder-coated exterior is durable and permanent, and the white, aluminum interior liner will not peel or chip. A drain is conveniently built into the stainless steel floor to ease the cleaning process, and the True GDM-41-HC-LD two-section glass door merchandiser has foamed-in-place polyurethane insulation that keeps cold air in the cabinet. Double-pane, thermal-insulated glass doors help trap cold air and let customers view the product selection. Eight adjustable, PVC-coated wire shelves are adjustable on ¹⁄₂-inch increments for varying product heights.

Product Details

• 8 heavy-duty, PVC-coated shelves are adjustable in ¹⁄₂-in. increments for varying product heights
• 4 chrome-plated shelf clips per shelf
• Products are visible with the LED interior lights
• Bottom shelf is raised for visibility by the bottom-mounted condensing unit to readily display products
• Exterior sign panel is illuminated for merchandising opportunities
• Double-pane, thermal-insulated glass doors have mitered plastic channel frames
• Each door has a 12-in. handle
• Self-closing door helps keep cold air in the cabinet

Refrigeration System

• Temperature range: 33-38 degrees F
• R290 hydrocarbon refrigerant
• Less heat is produced and energy consumption is reduced since the evaporator and condenser fan motors produce a high volume of air
• Condensing coil cleaned with a reverse condensing fan motor
• Condensing unit can be cleaned and maintained since it is mounted on the bottom of the cabinet
• Evaporator resists corrosion since it is coated in epoxy

Durable Cabinet Construction

• Durable, permanent white powder-coated exterior
• White aluminum interior liner avoids peeling and chipping
• Stainless steel floor has a built-in drain that eases cleaning
• Polyurethane insulation is foamed in place to keep cold air in and give the unit structure
• Black powder-coated steel frame rail resists corrosion
• Leg levelers on the frame stabilize on uneven floors

Dimensions & Utilities

• Shelves: 20⁷⁄₈ in. W x 20⁹⁄₁₆ in. D

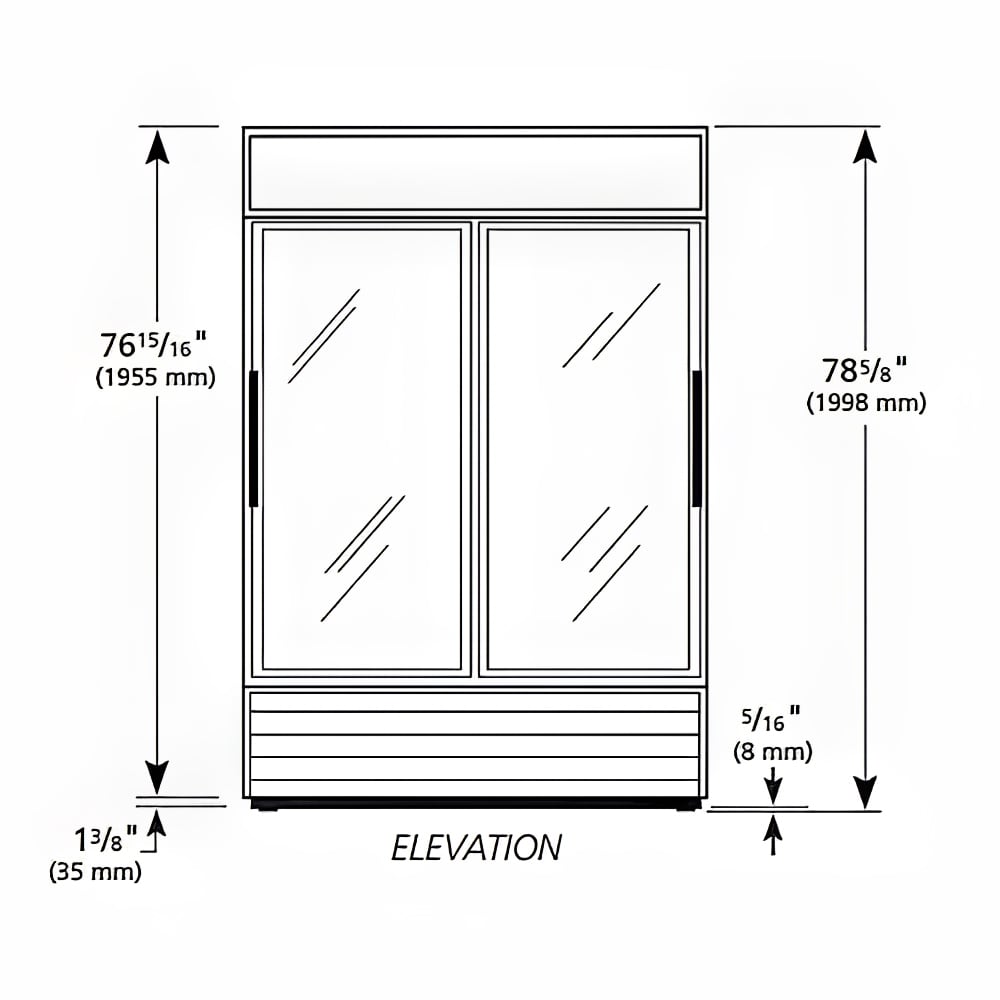

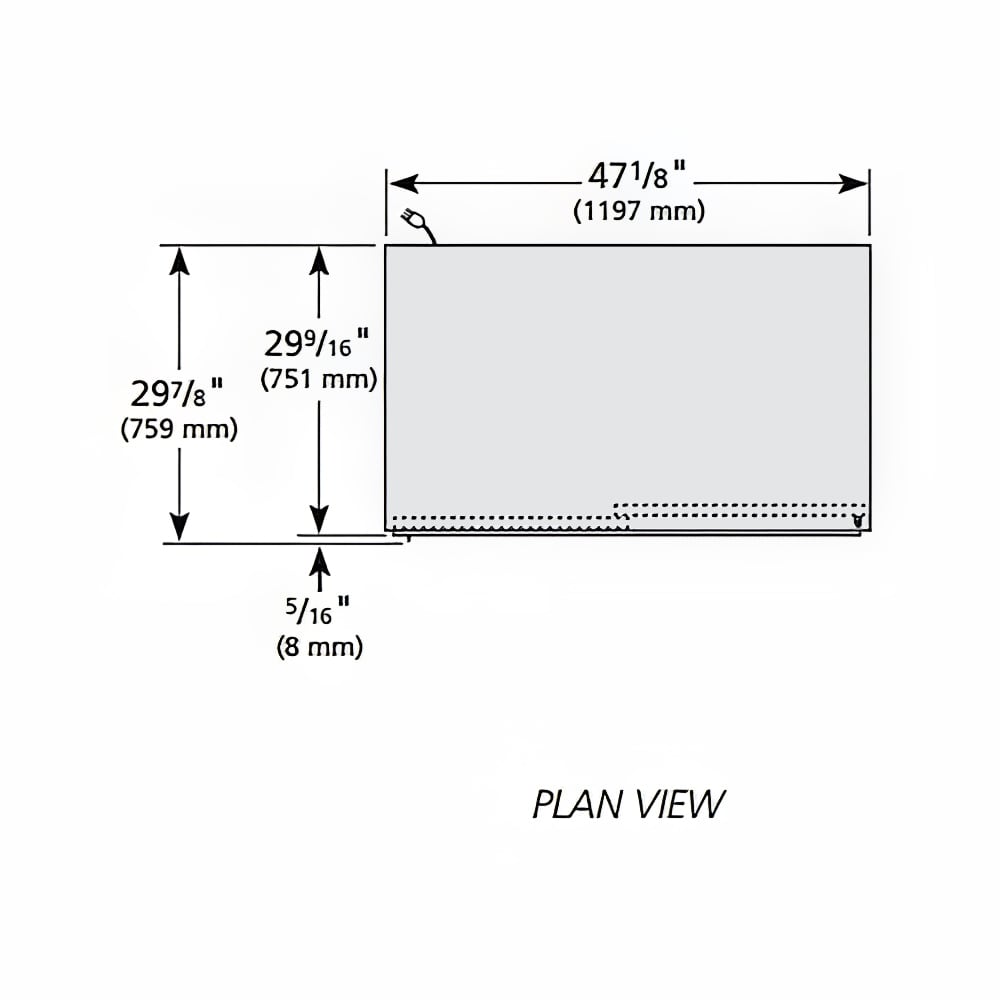

• Overall: 47¹⁄₈ in. W x 30 in. D x 78⁵⁄₈ in. H
• 6.5 A, ¹⁄₂ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration GDM-41-HC-LD within the 48 contiguous states.

From The Manufacturer

Refrigerated Merchandiser, two-section, (8) shelves, (2) Low-E thermal glass sliding doors, LED interior lights, powder coated steel exterior, white interior with stainless steel floor, leg levelers, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cULus, UL EPH Classified

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor Parts

True Refrigeration GDM-41-HC-LD Specifications

Documents

Spec Sheet

Warranty

Product Info
