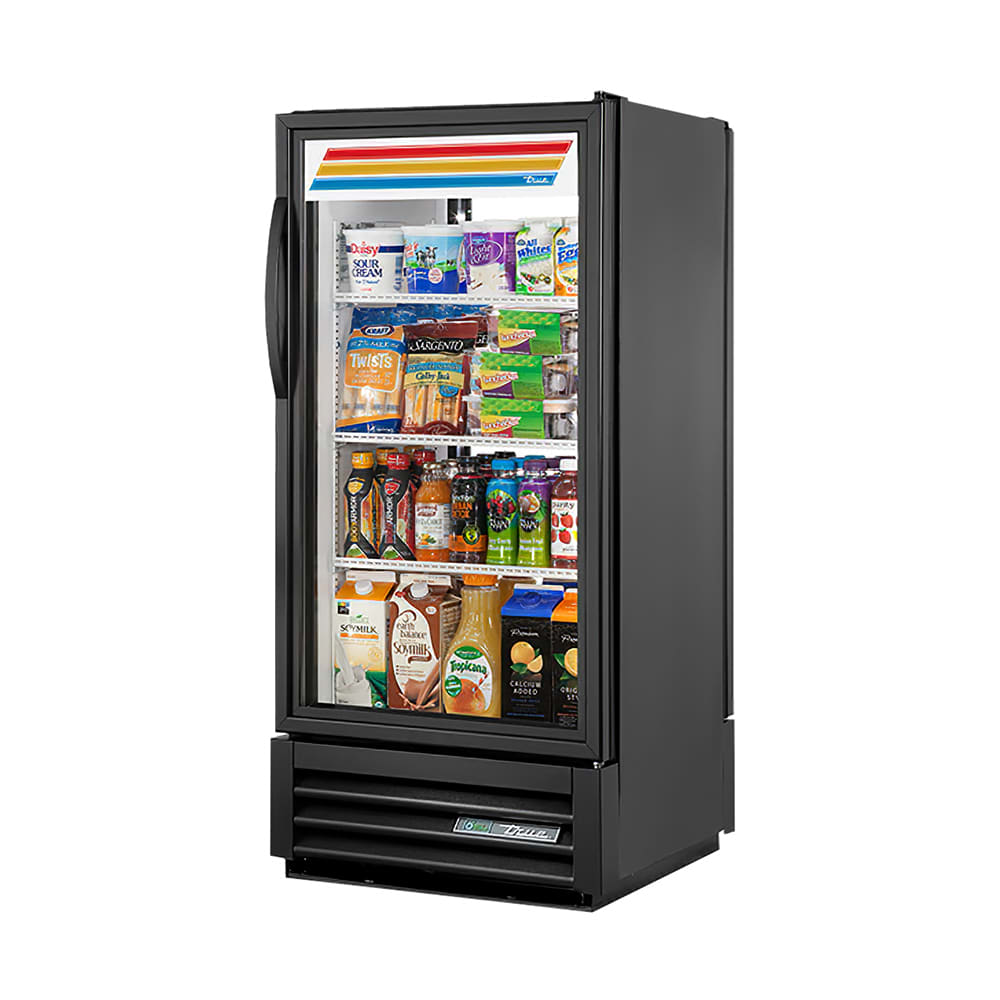

True Refrigeration GDM-10PT-HC-LD Description
The True GDM-10PT-HC~TSL01 one-section glass door merchandiser uses environmentally-friendly R290 hydrocarbon refrigerant. With a swing door on the front and rear of the unit, each equipped with a magnetic gaskets and Low-E double-paned glass, it offers pass-thru capabilities to add flexibility to your workflow. The True GDM-10PT-HC~TSL01 model comes standard with LED interior lighting, a black vinyl exterior, and a white aluminum interior liner with a stainless steel floor and built-in clean out drain. Like all True refrigerators, the refrigeration system features oversized components that maintain temperatures of 33 to 38 degrees Fahrenheit.
Product Details
- One-section glass door merchandiser
- Pass-thru refrigerator with front and back swing doors
- Equipped with energy-efficient Low-E glass doors
- Self-closing doors include magnetic gaskets and 12-in. extruded handle
- Uses R290 hydrocarbon refrigerant
- Foamed-in-place Ecomate provides cabinet insulation
- Maintains temperatures of 33 to 38 degrees F
- Bottom-mounted unit offers easy access to condenser coil and compressor
- Equipped with oversized refrigeration system for high performance
- Black vinyl exterior resists chipping and peeling
- White aluminum interior liner with stainless steel floor
- Cabinet includes built-in clean-out drain
- LED interior lights come standard
- 3 PVC-coated wire shelves: 205⁄8 in. L x 121⁄2 in. D
- Shelves adjustable in 1⁄2-in. increments
- 115 V/60 Hz/1-ph, 5-15P NEMA plug and 9-ft. cord included

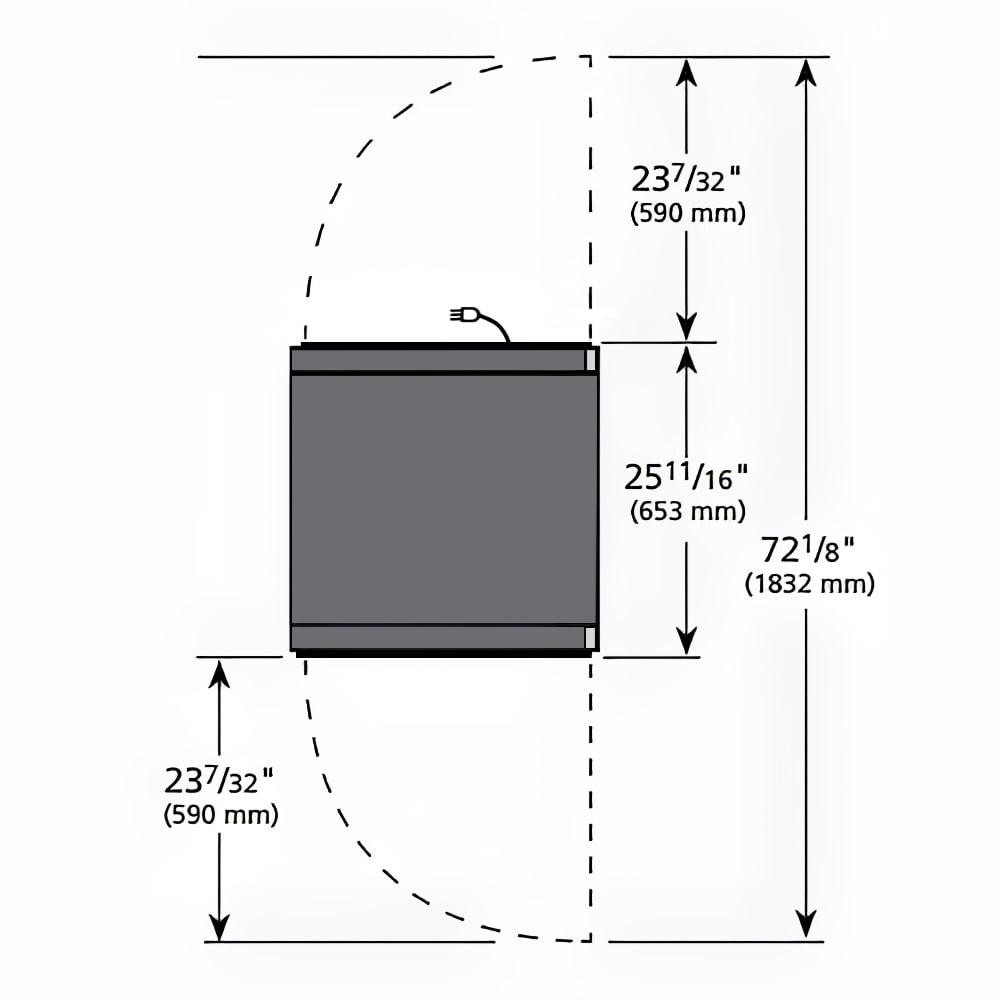

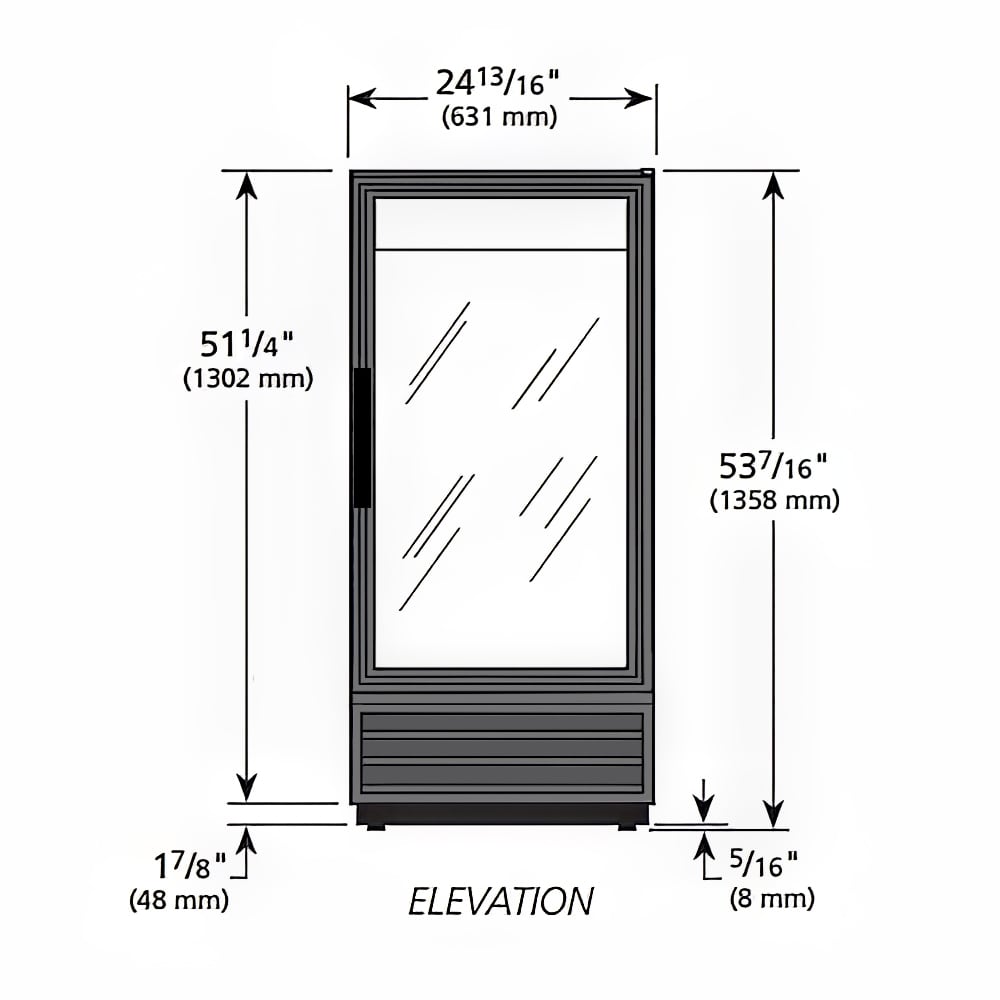

- Overall Dimensions: 247⁄8 in. W x 264⁄5 in. D x 531⁄2 in. H
- CE and cULus Listed; NSF Certified
Product Updates
In 2015, True began transitioning its entire product line to use hydrocarbon refrigerant, a naturally-occurring, energy-efficient, and environmentally-friendly alternative to the man-made substances used conventionally. The company will continue to provide the normal warranty services for the prescribed period and parts for conventional models for the life of the equipment.
Refrigerated Merchandiser, pass thru, one-section, (3) shelves, laminated vinyl exterior, white interior with stainless steel floor, (1) Low-E thermal glass hinged door front and rear, LED interior lights, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1, 2.75 amps, 9' cord, NEMA 5-15P (depth does not include 1" for rear bumpers), cULus, CE, UL EPH Classified, MADE IN USA
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
True Refrigeration GDM-10PT-HC-LD Specifications
PDF Spec Sheet| Manufacturer | True Refrigeration |
| Also Known As | GDM-10PT-LD, GDM-10PT, GDM-10PT-HC-LD BLK, GDM-10PT-HC |
| Compressor Location | Bottom |
| Cubic Feet | 10 |
| Door Design | Swing |
| Exterior Finish | Black |
| Height (in) | 54 |
| Sections | 1 |
| Shelving Type | Wire |
| Warranty | 3-year Parts & Labor; 5-year Compressor |
| Width (in) | 25 |
| Width (in) Range | 21 - 30 in |
| Phase | 1 |
| Hertz | 60 |
| Voltage | 115 |
| Product | Display Refrigerator |
| Product Type | Commercial Refrigeration |
| Special Features | LED Lighting |
| Made in USA | Yes |
| Weight | 225.00 |
