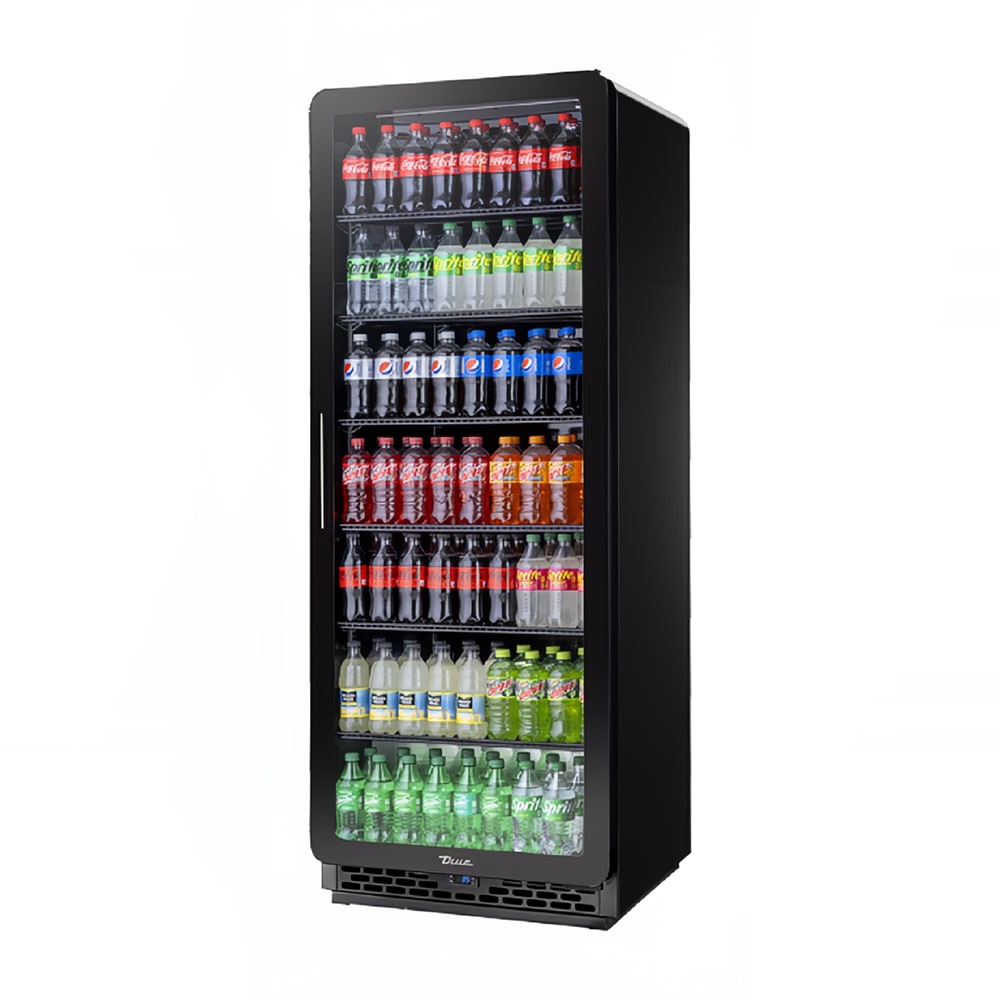

True CVM-27-HC~EGC01 30" CVM Series One Section Glass Door Merchandiser - (1) Right Hinge Door, Black, 115v

Great for highlighting the packaging of packed or bottled beverages, the True CVM-27-HC~EGC01 one-section glass door merchandiser measures 30 inches wide by 29¹/₂ inches deep by 78¹/₂ inches high and is fitted with a double-paned glass door. To maximize interior visibility, the cabinet is outfitted with LED lighting, and the door's one-piece magnetic gasket keeps it flush to the body. To prevent cold air from escaping, the door self-closes, utilizing a torsion-type closure system. The exterior is made of steel, and the interior is made of aluminum with a stainless steel floor. The cabinet is foamed with high-density polyurethane insulation.

The self-contained refrigeration system of the True CVM-27-HC~EGC01 glass door merchandiser features capillary tubes that direct the R290 hydrocarbon coolant. Even airflow inside the cavity is produced using electronically commutated evaporator and condenser fan motors. To eliminate the need for cleaning the condenser coil and reduce operational costs, this unit is built-in with True’s RCU technology.

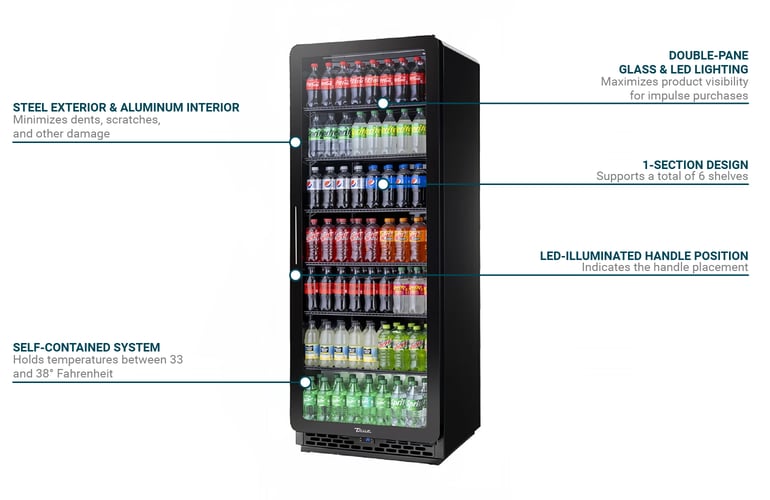

Product Details

• Holds 6 shelves
• 4 chrome-plated shelf clips
• Aluminum shelf support pilaster
• 1 curved-edge, glass-hinged door features built-in handle
• Self-closing door with torsion-type closure system
• Magnetic 1-piece gasket
• LED interior lights
• Illuminated handle indicator
• Steel exterior with black powder coat
• Black aluminum interior featuring stainless steel floor
• Entire cabinet foamed with polyurethane insulation
• Frame fitted with leg levelers

Refrigeration System

• Self-contained capillary tube system
• R290 hydrocarbon refrigerant
• Temperature holding range: 33-38 degrees F
• Electronically commutated evaporator and condenser fan motors increase airflow
• RCU technology

Dimensions & Utilities

• 30 in. W x 30¹/₈ in. D x 78¹/₂ in. H
• 3.4 A, ¹/₄ HP
• 115 V/60 Hz/1 ph, with 10-ft. NEMA 5-15P plug

Product Features

*Free shipping on True Refrigeration CVM-27-HC~EGC01 within the 48 contiguous states.

From The Manufacturer

Refrigerated Merchandiser, one-section, True Edge Glass Curved version 01, (6) shelves, (1) Curved-edged glass hinged door with built-in handle, LED interior lights with illuminated handle indicator, powder coated steel exterior, black interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.4 amps, NEMA 5-15P, (depth does not include 1" for rear bumpers), cULus, UL EPH Classified, Made in USA

*Image may not depict product color, inclusions or accessories.

7-year Parts & Labor; 7-year Compressor Parts

True Refrigeration CVM-27-HC~EGC01 Specifications

Founded in 1948 by World War II veteran Bob Trulaske, True refrigeration got its start creating bottle coolers out of downtown St. Louis warehouse, but the brand has grown into one of the largest players in the global commercial refrigeration market. Known for reliable and sanitary commercial refrigerators, the family-owned business primarily creates refrigerators out of its O'Fallon, Mo., headquarters.

Documents

Spec Sheet

Warranty
