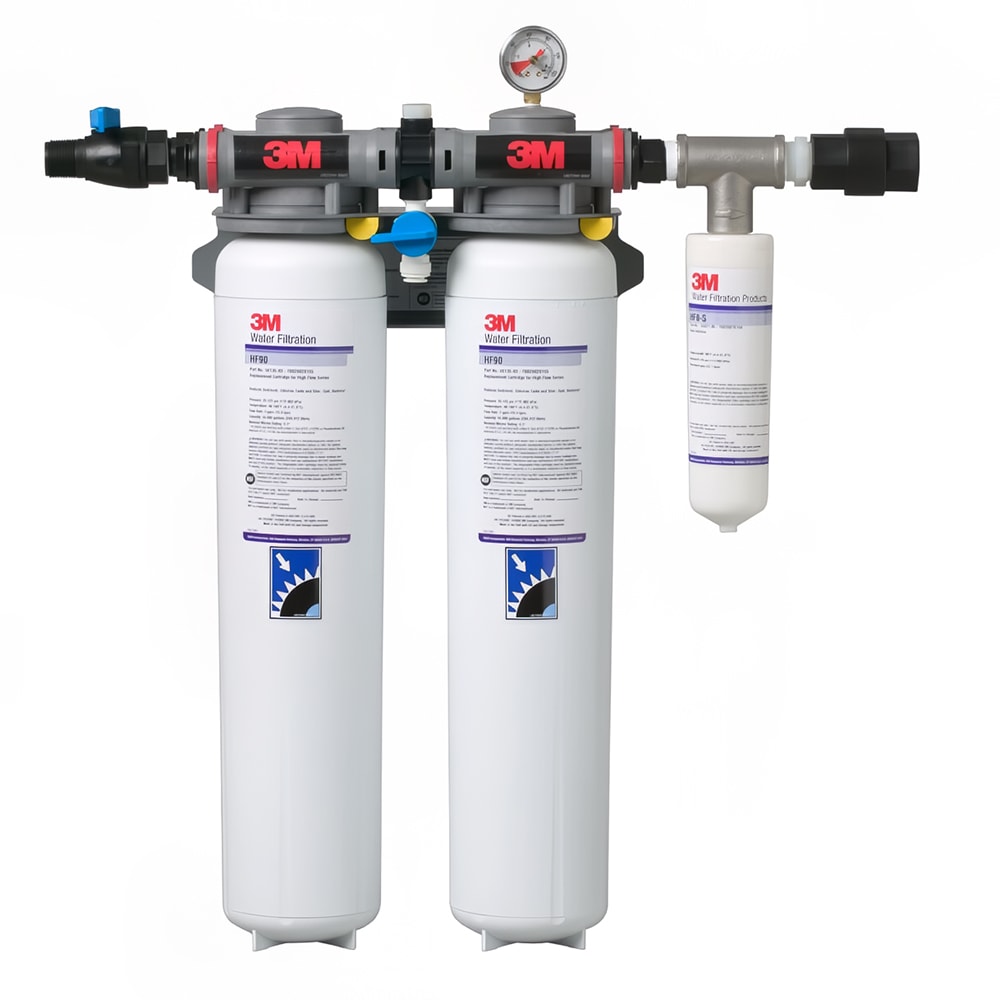

3M Cuno DP290 Twin Combination Water Filter Cartridge Assembly, Tank

The 3M Cuno DP290 dual port water filtration system has two outlet connections that supply cold beverage dispensers and ice machines/coffee brewers at the same time. Both streams that exit the manifold have reduced sediment and chlorine taste and odor. One stream has an added scale inhibitor to help reduce calcium and magnesium precipitation as hard scale on the evaporator plates of an ice machine and/or the heating coils of a coffee brewer. The other stream does not have an added scale inhibitor and supplies cold beverage dispensers. DP290 manifold includes outlet check valves and vent valve.

Product Details

• 1 system w/ dual outlet connections supplying cold beverage dispensers and ice machines/coffee brewers simultaneously
• Integrated Membrane Pre-Activated Carbon Technology dual-zone media cartridge
• 99.99 percent reduction of common water-borne heterotrophic bacteria by membrane filtration
• NSF and/or CFR-21 compliant materials
• Built-in bacteria inhibitor
• Sanitary Quick Change cartridge design for change-outs with 1⁄4 turn
• 3⁄4-in. NPT horizontal inlet and outlet ports for easy connections to plumbing lines
• Expansion kit available to serve higher capacities and flow rates
• Auxiliary inlet gauge port allows optional monitoring of differential water pressure
• Manifold includes outlet check valves and vent valve
• Reduces cysts, bacteria, sediment chlorine taste and odor, and scale in water
• Nominal micron rating 0.2
• 108,000 gal. capacity
• Up to 10.0 gpm service flow rate
• System maximum operating pressure of 125 psi
• System maximum operating temperature of 100 degrees F
• Suitable for most normal water supplies
• Sizing for simultaneous operation of carbonators, coffee machines, and ice machines
• 2 cartridge manifold with built-in pressure gauge
• Inlet water shut-off valve
• Outlet check valves
• Mounting brackets
• 2 cartridge filters
• Dedicated external scale inhibition cartridge
• Filter cartridges are o-ring seal type
• 2 large filter cartridges incorporate a bacteriostatic carbon block filtration medium
• No contact required with filter media curing change-out
• No pre-activation required with filter cartridge
• Overall Dimensions: 24 1⁄16 in. L x 23 5⁄16 in. W
