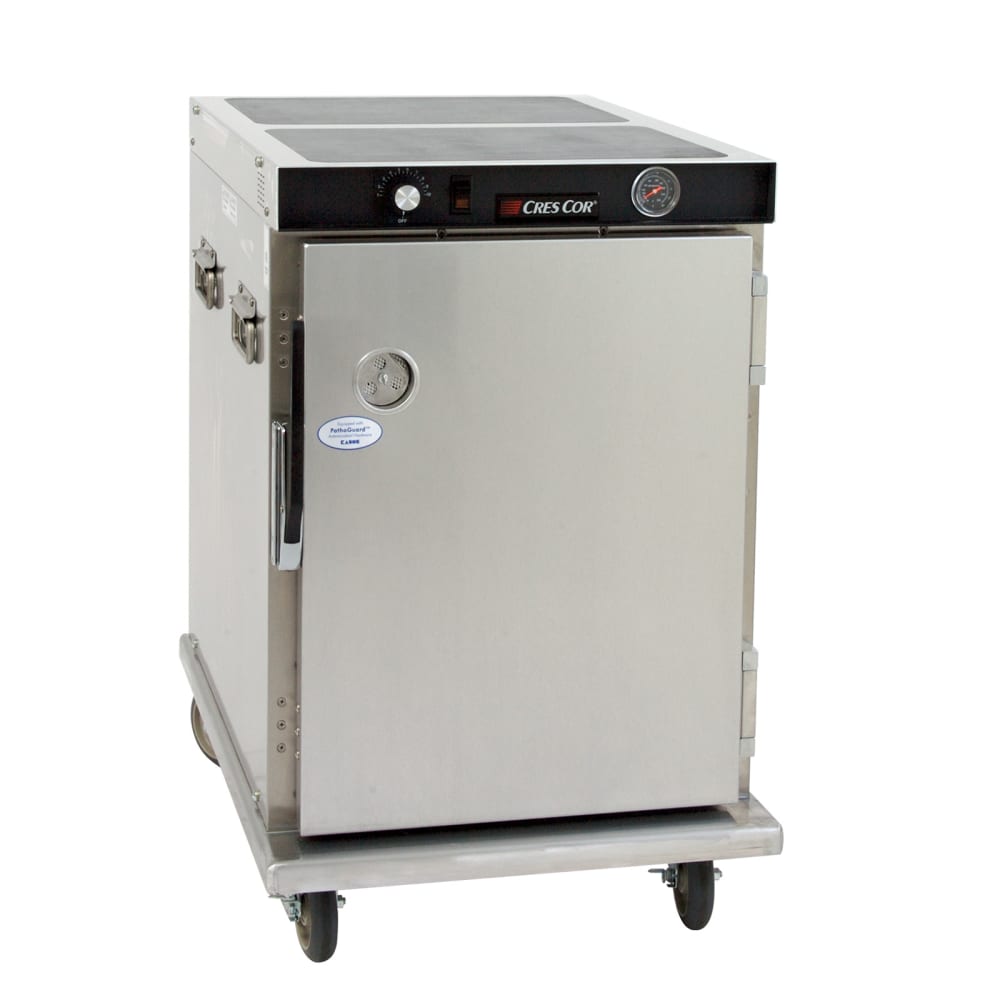

Cres Cor H339188C Half Height Insulated Mobile Heated Cabinet w/ 8 Pan Capacity - 120v
Typically ships in 1 - 3 Business Days
Retail Price: $7,712.00
$3,856.00 /Each
Cres Cor H339188C Description

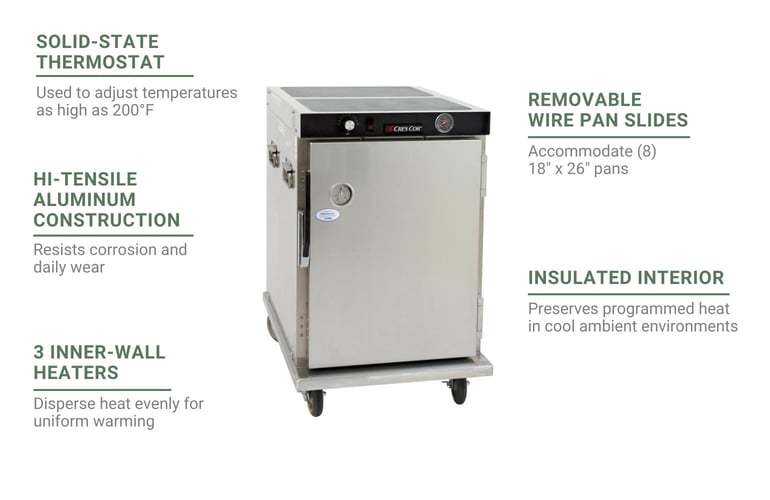

The Cres Cor H-339-188C half-height hot cabinet can warm prepared dishes to serving temperatures with its three inner-wall heaters, which produce and maintain temperatures as high as 200 degrees Fahrenheit. Operators can modify temperatures to accommodate various holding needs with the solid-state thermostat, while the control panel's analog thermometer displays internal cabinet temperatures accurately. To minimize heat loss, the door, top, bottom, and walls are insulated with fiberglass; pan stops built into the inside of the door and the back of the cabinet promote proper airflow. Operators can manage the unit's power status using the illuminated on/off rocker switch.
To fit beneath a counter, this Cres Cor H-339-188C half-height hot cabinet measures 23 7⁄8 inches wide by 32 1⁄4 inches deep by 36 11⁄16 inches high; it's fitted with 5-inch swivel casters that support a 1,000-pound load capacity. These casters can round corners and reverse, and two casters include brakes for stability when pans are loaded or removed. This hi-tensile aluminum unit resists corrosion while its rigid internal frame and extended base protect its body from impacts with walls or equipment. A twist-lock catch built on its field-reversible door ensures it remains closed during transport, preventing heat loss and protecting pans from falling. Inside the cabinet, eight removable wire supports can hold eight 18-inch by 26-inch pans and are secured on 2 3⁄4-inch centers.
- Part of the H-339 series
- Half-height, reach-in configuration
- 1,000-lb. load capacity
- Removable wire pan supports on 2 3⁄4-in. centers
- Accommodates (8) 18-in. x 26-in. pans
- Hi-tensile aluminum construction
- Rigid internal frame
- 1-piece extended base
- Interior insulated with fiberglass
- Pan stops improve airflow
- Field-reversible door with antimicrobial, easy-open magnetic latch and twist-lock catch
- Side lift handles
- (4) 5-in. swivel modulus casters (2 with brakes)
- Maximum temperature: 200 degrees F
- 3 inner-wall heaters
- Solid-state thermostat and analog thermometer
- Top-mounted control panel with lighted on/off rocker switch
- Interior: 18 3⁄16 in. W x 26 1⁄4 in. D x 24 7⁄8 in. H
- Overall: 23 7⁄8 in. W x 32 1⁄4 in. D x 36 11⁄16 in. H
- 7.5 A, 900 W
- 120 V/60 Hz/1 ph, 6-ft. cord with a molded straight NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Cres Cor H339188C within the 48 contiguous states.
From The Manufacturer
Cabinet, Mobile Heated, half-height, insulated, lift-out interior, capacity (8) 18" x 26" pans, slides on 2-3/4" centers, anti-microbial latches, analog thermometer, aluminum exterior & interior, (4) heavy duty 5" swivel casters (2) braked, cCSAus, CSA-Sanitation
Cres Cor H339188C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cres Cor |
| Also Known As | H-339-188C |
| Application | Heat Only |
| Color | Silver |
| Construction | Aluminum |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 32.25 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 36.69 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 0.9 |
| Load Type | Reach In |
| NEMA | 5-15P |
| No. of Doors | 1 |
| Pan Capacity | 8 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | H-339 C Series |
| Size | 1/2 Height |
| Slide Spacing (in) | 2.75 |
| Slide Type | Fixed Wire |
| Special Features | Field Reversible Door |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 2-year Parts; 1-year Labor |
| Width (in) | 23.88 |
| Weight | 150.00 |
