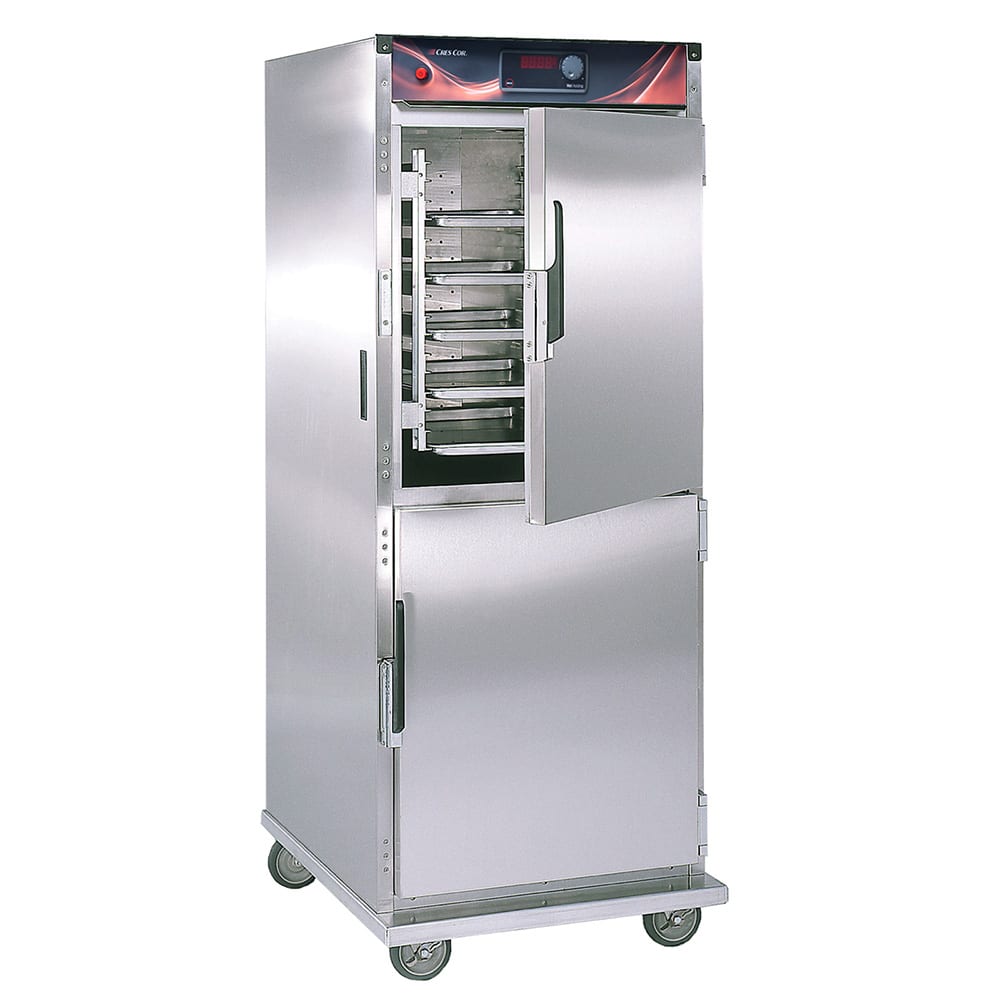

Cres Cor H-138-S-1834D Full Height Insulated Mobile Heated Cabinet w/ (32) Pan Capacity, 120v

To hold high volumes of prepared meals for serving, this Cres Cor H-138-S-1834D insulated stainless steel hot cabinet's channel pan slides accommodate (32) 18-inch by 26-inch pans, and they can be adjusted on 1¹⁄₂-inch centers as needed. The cabinet's powerful yet efficient top-mounted heating system produces and maintains temperatures as high as 200 degrees Fahrenheit, which operators can adjust and monitor with its solid-state digital display control. A blower motor and vent fan help circulate heat evenly, eliminating cold spots that could impact food quality. Fiberglass insulation built into the sides, doors, top, and base preserve programmed temperatures if this system must be stored in cold ambient environments.

This Cres Cor H-138-S-1835D hot cabinet is furnished with four 5-inch swivel casters—two of which have brakes—to transport this unit between the kitchen and serving area. Despite measuring 28³⁄₄ inches wide by 32³⁄₄ inches deep by 73 inches high, it's simple to steer with its recessed side handles, and its stainless steel construction includes a rigid internal frame and a sturdy extended base that protects the cabinet from impact. Its two Dutch doors enable users to access a specific cabinet section, and they can be reversed in the field to accommodate specific kitchen requirements. Both doors have antimicrobial, easy-open latches for quick opening, while their twist-lock catches and silicone gaskets ensure they're sealed properly once closed.

Product Details

• Full-height, reach-in model
• 1,000-lb. load capacity
• Capacity: (32) 18-in. x 26-in. pans
• Channel pan slides adjustable on 1¹⁄₂-in. centers

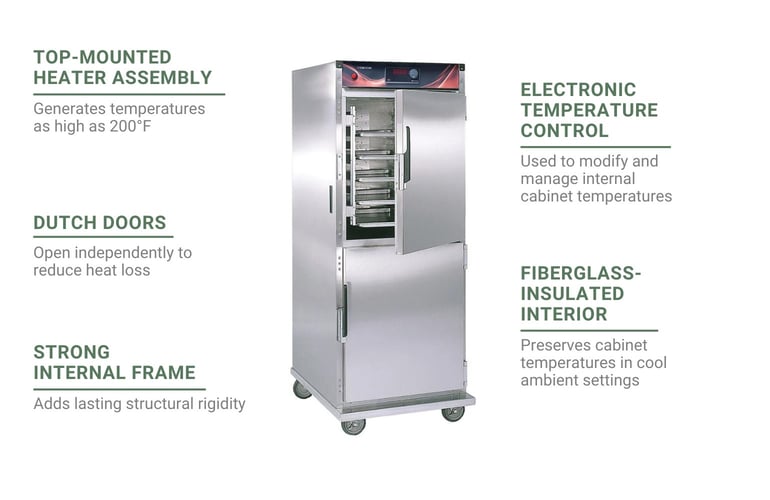

• Top-mounted heater assembly
• Maximum temperature: 200 degrees F
• Solid-state digital display control with digital thermometer
• On/off button
• Blower motor
• Vent fan
• Stainless steel construction with extended base and structurally rigid internal frame
• Recessed pull/push handles on sides
• 2 field-reversible front Dutch doors with silicone door gaskets, antimicrobial magnetic latches, and twist-lock catches
• Sides, doors, top, and base insulated with fiberglass
• Smooth interior with coved corners
• (4) 5-in. swivel casters (2 with brakes)

Dimensions & Utilities

• Interior: 18¹⁄₁₆ in. W x 26⁷⁄₈ in. D x 58 in. H
• Overall: 28³⁄₄ in. W x 32³⁄₄ in. D x 73 in. H
• 12 A, 1500 W
• 120 V/60 Hz/1 ph, includes 10-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Cres Cor H-138-S-1834D within the 48 contiguous states.

From The Manufacturer

Cabinet, Mobile Heated, insulated, top-mount heater assembly, recessed push/pull handle, magnetic latch, channel pan slides hold (32) 18" x 26" pans on 1-1/2" centers, anti-microbial latches, reversible dutch doors, (4) heavy duty 5" swivel casters (2) braked, stainless steel construction, NSF, cCSAus, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

3-year Parts; 1-year Labor
