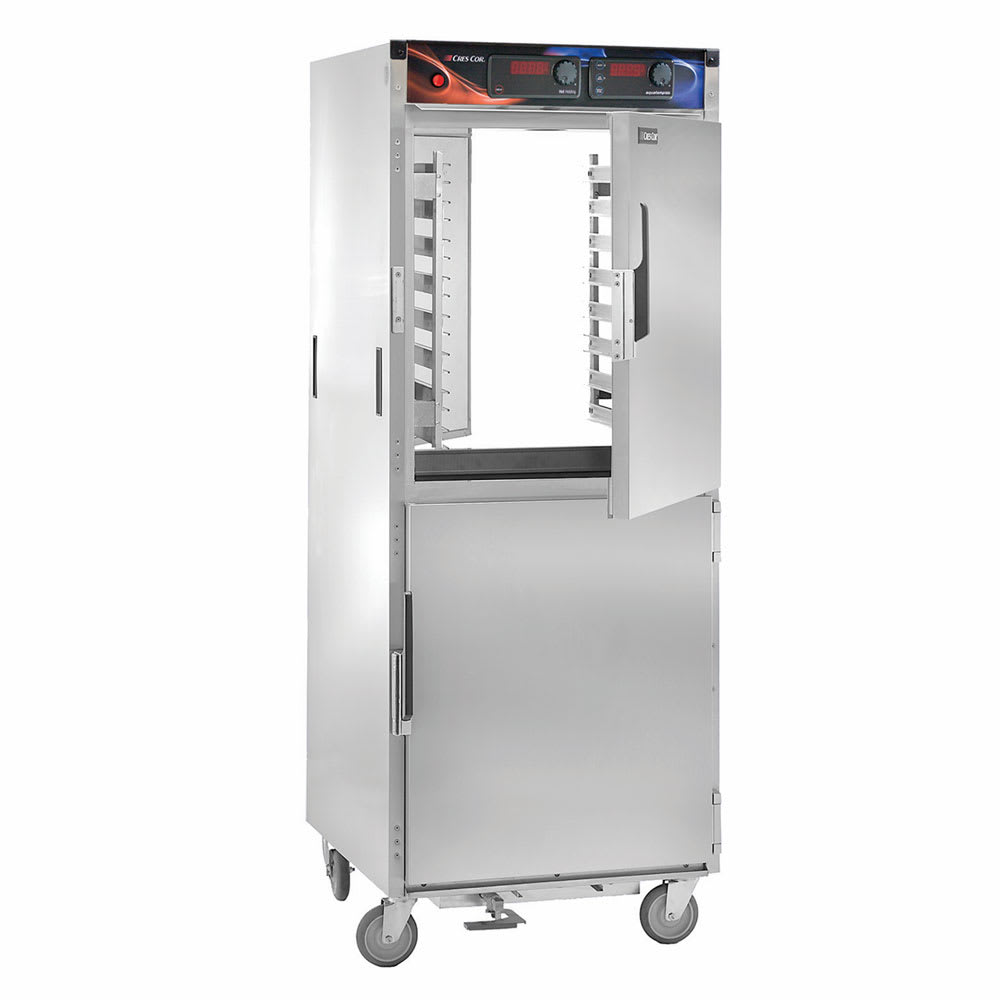

Cres Cor H138PWS1834D AquaTemp™ Full Height Insulated Pass Thru Mobile Heated Cabinet w/ 32 Pan Capacity - 120v

KaTom #: 546-H138PWS1834D • MPN: H138PWS1834D
  • 546-H138PWS1834D Primary Thumbnail Image

Typically ships in 3 - 4 weeks

Free Shipping Item

Retail Price: $15,524.00

$7,762.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove
Eli Yopp User Image
Ask a Foodservice Equipment Specialist






Cres Cor H138PWS1834D Description

Ideal for holding moist, prepared dishes at warm serving temperatures, the Cres Cor H-138-PWS-1834D insulated pass-thru heated cabinet uses its top-mounted heater to produce temperatures as high as 200 degrees Fahrenheit, while its AquaTemp™ humidity system can generate as much as 95 percent humidity. Each system has an individual solid-state digital display control, and a digital thermometer provides an accurate readout of the cabinet's internal temperature. A 4-gallon heated stainless steel water pan produces the moisture required to reach programmed humidity, and an integral drip trough on the unit's front collects leaks to ensure the area in front of the unit remains dry. When the pan's water levels drop, a low-water LED indicator notifies the operator, and its heater will shut off automatically when water reaches a critically low level. To preserve set temperatures and humidity, the cabinet's sides, doors, top, and base are insulated with fiberglass.

The Cres Cor H-138-PWS-1834D mobile hot cabinet's pass-thru design can be used to connect a prep area to a serving station. Users can access a specific cabinet section by opening one front or rear Dutch door, reducing heat loss. All doors open easily with their ceramic, antimicrobial magnetic latches, while their twist-lock catches and silicone door gaskets ensure they're closed securely. Each door is field reversible to accommodate various kitchen requirements. Built to endure transport and repeated pan loading and removal, this stainless steel unit includes a rigid internal frame and a reinforced internal base, and it's furnished with 5-inch swivel casters that can reverse, round corners, and secure the unit in place with brakes. Inside the cabinet, coved corners help reduce food particle and grease buildup because they're simple to wipe clean. As many as (32) 18-inch by 26-inch pans can be stored on the channel pan slides, which are adjustable on 1 1⁄2-inch centers.

  • Full-height unit with pass-thru design
  • 1,000-lb. load capacity
  • Channel pan slides accommodate (32) 18-in. x 26-in. pans
  • Smooth interior with coved corners
  • Fiberglass-insulated interior
  • Integral drip trough on front
  • Stainless steel construction with rigid frame and reinforced base
  • 4 field-reversible Dutch doors (2 front, 2 rear)
  • High-temperature, antimicrobial ceramic magnetic latches
  • Twist-lock catches and silicone door gaskets
  • Recessed push/pull side handles
  • (4) 5-in. heavy-duty swivel casters (2 with brakes)

  • Top-mounted heating system
  • Maximum operating temperature: 200 degrees F
  • Holding thermostat with solid-state digital display control and digital thermometer
  • Blower motor
  • Vent fan
  • AquaTemp humidity system produces humidity as high as 95 percent
  • Humidity thermostat with solid-state digital display controls
  • Digital thermometer
  • 4-gal. 16-ga. stainless steel water pan with heater
  • Low water indicator
  • Water heater shut-off for low water levels
  • On/off button

  • Interior: 21 3⁄4 in. W x 26 7⁄8 in. D x 58 in. H
  • Overall: 28 1⁄4 in. W x 34 5⁄8 in. D x 73 1⁄2 in. H
  • 16 A, 2000 W
  • 120 V/60 Hz/1 ph, includes 10-ft. cord with a NEMA 5-20P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on Cres Cor H138PWS1834D within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Cabinet, Mobile Heated, pass-thru, with AquaTemp™ humidity cabinet, insulated, top-mount heater assembly, solid state electronic control with digital display, recessed push/pull handles, channel pan slides hold (32) 18" x 26" pans on 1-1/2" centers, field reversible dutch doors, anti-microbial magnetic door latches, (4) 5" swivel casters (2) braked, stainless steel construction, cCSAus, CSA, NSF

Warranty Icon
3-year Parts; 1-year Labor
