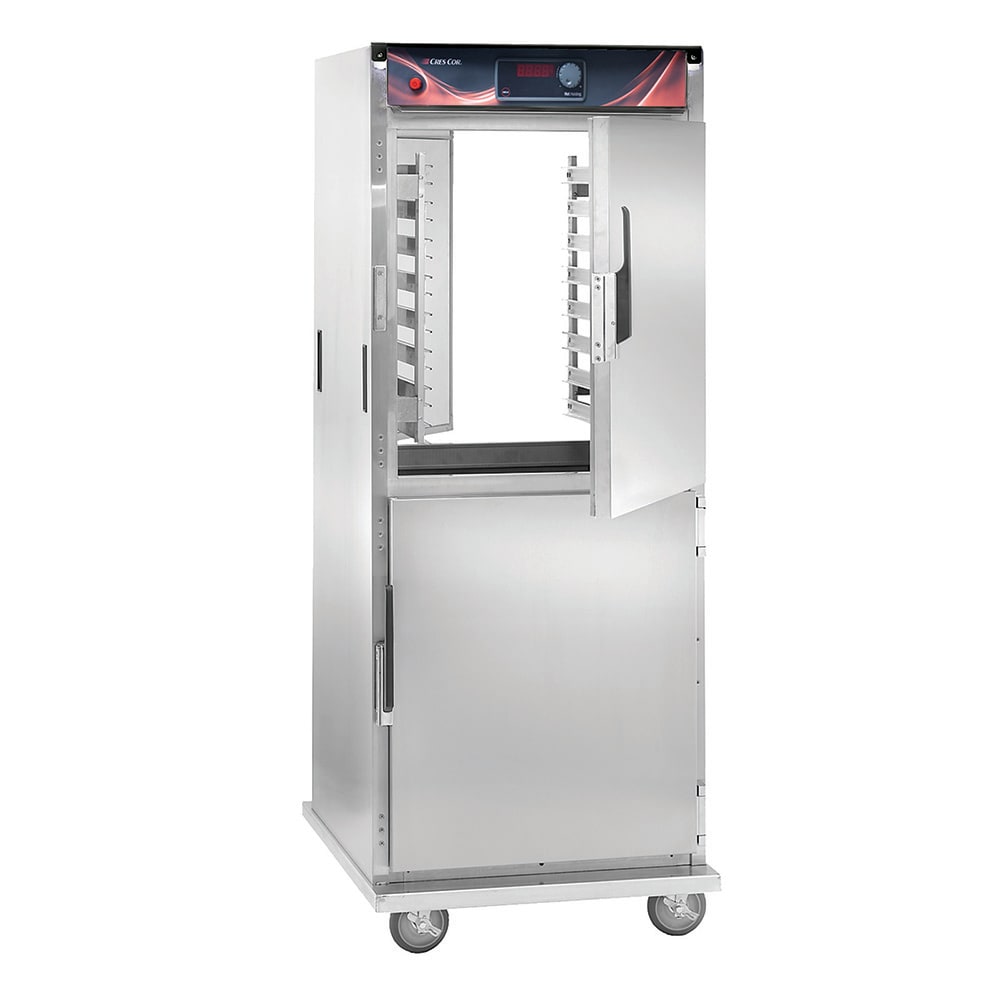

Cres Cor H138PS1834D Full Height Insulated Pass Thru Mobile Heated Cabinet w/ 32 Pan Capacity - 120v
Typically ships in 1 - 3 Business Days
Retail Price: $14,436.00
$7,218.00 /Each
Cres Cor H138PS1834D Description
With its pass-thru configuration, the Cres Cor H-138-PS-1834D insulated hot cabinet connects a preparation area to a serving station, streamlining operation. Operators can access a specific cabinet section through its two rear Dutch doors and two front Dutch doors. Each door is field reversible to accommodate specific kitchen requirements and has a high-temperature, antimicrobial magnetic latch that's simple to open. During transport, the doors' twist-lock catches and silicone gaskets ensure they're sealed properly. This wear-, rust-, and corrosion-resistant stainless steel unit features an extended base that protects the cabinet from damage during collisions, while its internal frame adds structural rigidity for strength. For maintenance and cleaning, this full-height, 28 3⁄4-inch-wide by 34 5⁄8-inch-deep by 73 1⁄2-inch-high cabinet is furnished with 5-inch swivel casters for smooth maneuvering, and its recessed side handles provide a comfortable grip for control when steering.
Prepared meals can be warmed for serving with this Cres Cor H-138-PS-1834D mobile heated cabinet's top-mounted heating system, which produces heat as hot as 200 degrees Fahrenheit. A blower motor disperses heat uniformly throughout the cabinet, and built-in fiberglass insulation preserves temperatures in cool ambient environments and as pans are loaded and removed. Operators can adjust temperatures with the solid-state digital display control, which includes a digital thermometer that displays an accurate temperature readout. This heating system generates ample heat to warm as many as (32) 18-inch by 26-inch pans held on the cabinet's channel pan slides.
- Full-height model with pass-thru design
- Load capacity: 1,000 lbs.
- Channel slides accommodate (32) 18-in. x 26-in. pans (adjustable on 1 1⁄2-in. centers)
- Removable top-mounted heating system
- Maximum temperature: 200 degrees F
- Electronic temperature control with digital temperature display
- Power rocker switch
- Blower motor
- Vent fan
- Stainless steel construction
- Extended base
- Rigid internal frame
- Recessed pull/push handles
- 4 field-reversible Dutch doors (2 rear, 2 front) with silicone door gaskets, antimicrobial magnetic latches, and twist-lock catches
- Sides, doors, top, and base insulated with fiberglass
- Smooth interior coved corners
- (4) 5-in. swivel casters (2 with brakes)
- Interior: 18 1⁄16 in. W x 26 7⁄8 in. D x 58 in. H
- Overall: 28 3⁄4 in. W x 34 5⁄8 in. D x 73 1⁄2 in. H
- 16 A, 2,000 W
- 120 V/60 Hz/1 ph, includes 10-ft. cord with a NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Cres Cor H138PS1834D within the 48 contiguous states.
From The Manufacturer
Cabinet, Mobile Heated, pass-thru, insulated, top-mount heater assembly, solid state electronic control with digital display, channel pan slides hold (32) 18" x 26" pans on 1-1/2" centers, field reversible dutch doors, anti-microbial magnetic door latches, (4) 5" swivel casters (2) braked, stainless steel construction, cCSAus, CSA Sanitation
Cres Cor H138PS1834D Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cres Cor |
| Also Known As | H-138-PS-1834D |
| Application | Heat Only |
| Color | Silver |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Depth (in) | 34.63 |
| Door Design | Half |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 73.5 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Pass Thru |
| NEMA | 5-20P |
| No. of Doors | 4 |
| Pan Capacity | 32 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Size | Full Height |
| Slide Spacing (in) | 1.5 |
| Slide Type | Lip Load |
| Special Features | All Stainless Exterior |
| Special Features | Casters Included - Installed |
| Special Features | Field Reversible Door |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 3-year Parts; 1-year Labor |
| Width (in) | 28.75 |
| Weight | 402.00 |
