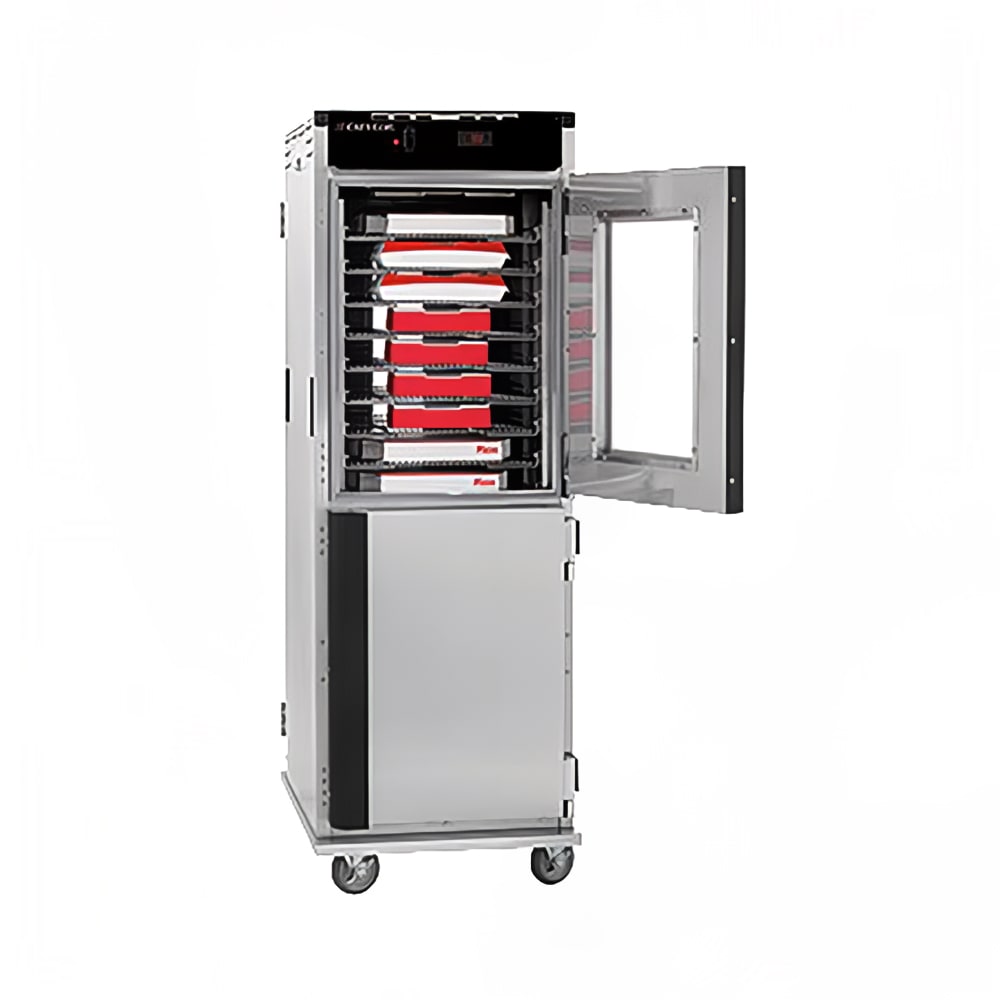

Cres Cor H-138-NPS-CC3MQ Full Height Insulated Mobile Heated Cabinet w/ (12) Pan Capacity, 120v

The Cres Cor H-138-NPS-CC3MQ mobile heated cabinet's pass-thru configuration connects a preparation and serving area to streamline operation, and the top Dutch door and single, full-length rear door feature tempered glass windows that grant a direct view of the lighted cabinet's displayed contents. Inside the cabinet, 12 sets of chrome-plated wire universal angles accommodate (24) 14¹⁄₈-inch pizza boxes on 4¹⁄₂-inch centers and can be adjusted on 1¹⁄₂-inch centers. The cabinet's stainless steel interior coved corners help minimize food particles and grease buildup because they're simple to wipe clean. The unit's stainless steel exterior includes an extended base that protects the cabinet's body and a rigid internal frame that adds structural strength. Simple to transport between various areas, this 25-inch-wide by 33-inch-deep by 73¹⁄₂-inch-high unit is fitted with 5-inch swivel casters and has a 1,000-pound load capacity. Recessed handles integrated on both sides improve steering control and can help protect walls from damage.

This Cres Cor H-138-NPS-CC3MQ pass-thru hot cabinet's top-mounted heater ensures prepared pizzas are warm for serving by generating and maintaining temperatures as high as 200 degrees Fahrenheit. Two blowers circulate heat evenly, eliminating cold spots that could affect food quality. To accommodate changing holding requirements, users can adjust temperature with the electronic temperature control. Its digital temperature display provides a temperature readout so operators can manage cabinet heat. While the cabinet's sides are insulated with 2-inch fiberglass, the doors, top, and base are insulated with 1¹⁄₂-inch fiberglass; this insulation helps retain original temperatures when the unit is stored in cool settings and when the doors are opened for short periods of time.

Product Details

• Full-height model with pass-thru configuration
• 1,000-lb. load capacity
• 12 sets of chrome-plated wire universal angles adjustable on 1¹⁄₂-in. centers
• Capacity: (24) 14¹⁄₈-in. pizza boxes
• Top-mounted heating system (removable with tools)
• Maximum temperature: 200 degrees F
• 2 blowers
• Internal vent fans
• Electronic temperature control
• Accurate digital temperature display
• Power rocker switch
• Stainless steel construction with extended base and internal frame
• 2 field-reversible front Dutch doors with full-length pull handles and self-closing hinges
• Top front Dutch door and single, full-length rear door include tempered glass windows
• Solid stainless steel bottom front door
• Field-reversible rear door with 270-degree swing
• Recessed push/pull side handles
• Fiberglass-insulated interior
• Smooth interior coved corners
• 5-in. heavy-duty swivel casters (2 with brakes)

Dimensions & Utilities

• Interior: 19⁷⁄₈ in. W x 28¹⁄₄ in. D x 58 in. H
• Overall: 25 in. W x 33 in. D x 73¹⁄₂ in. H
• 16 A, 2,000 W
• 120 V/60 Hz/1 ph, 10-ft. cord with right-angle NEMA 5-20P plug

*Free shipping on Cres Cor H-138-NPS-CC3MQ within the 48 contiguous states.

From The Manufacturer

Cabinet, Mobile Heated, pass-thru, insulated, top-mount heater assembly, pan slides hold (24) 14-1/8" pizza boxes, stainless steel construction, dutch doors on front with extruded handle, top door with tempered glass window, full length door on rear with magnetic pull latch, tempered glass viewing window, (4) 5" swivel casters (2) braked, cCSAus, CSA-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts; 1-year Labor
