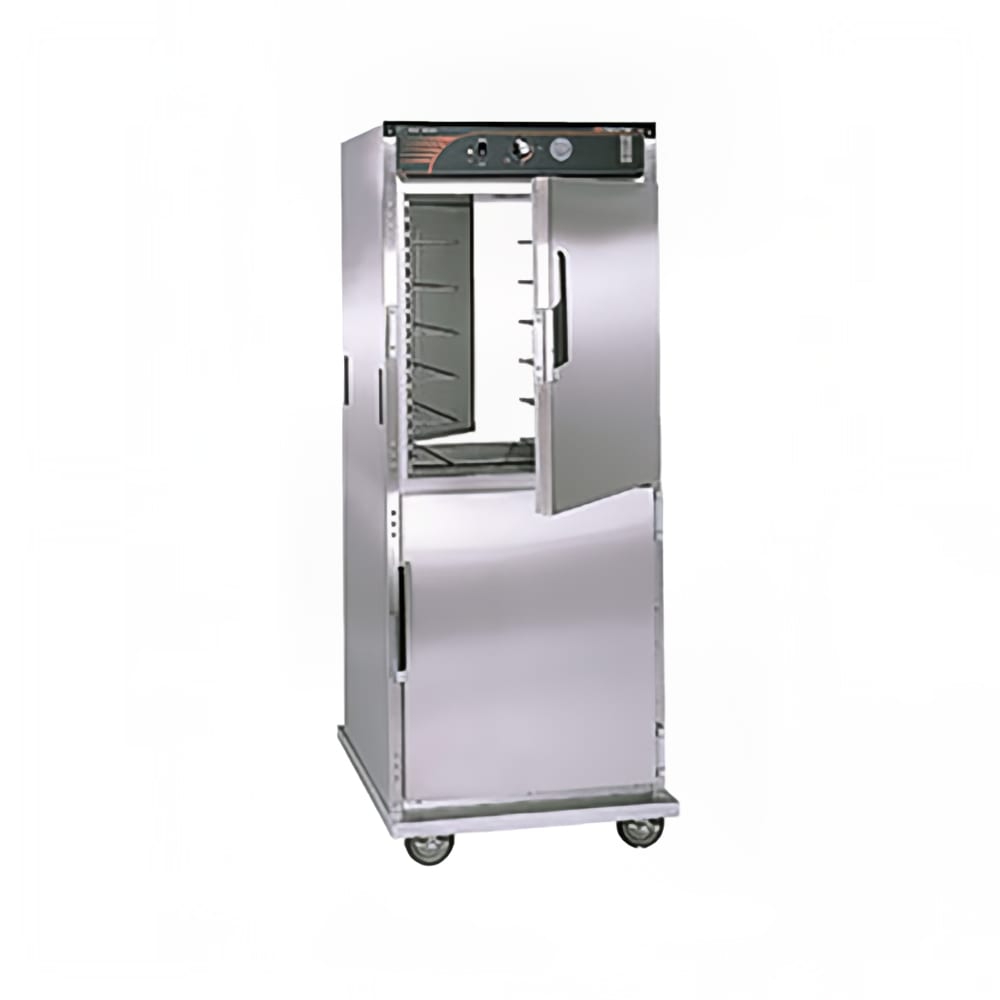

Cres Cor H-137-PSUA-12D Full Height Insulated Mobile Heated Cabinet w/ (12) Pan Capacity, 120v
Retail Price: $13,596.00
$6,798.00 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Cres Cor H-137-PSUA-12D Description
Because it's a pass-thru unit, the Cres Cor H-137-PSUA-12D insulated hot cabinet can connect a kitchen and serving line to streamline operation. Its single compartment has two front and two rear Dutch doors for access to specific cabinet sections. All the doors are installed right hinged but can be adjusted in the field to fit specific kitchen spaces. Constructed of durable, rust-resistant stainless steel, this system features an extended base that protects the cabinet's body, while a rigid internal frame adds structural integrity throughout heavy use. Operators can steer this full-height unit by pushing or pulling the recessed side handles, and its 5-inch swivel casters can handle corners to ease transportation.
To keep foods hot before they’re served, the Cres Cor H-137-PSUA-12D heated mobile cabinet's top-mounted heating system can produce temperatures as high as 200 degrees Fahrenheit, and integrated fiberglass insulation preserves set temperatures to save reheating time for consecutive uses while ensuring contents are held safely. Operators can modify cabinet temperatures using the solid-state electronic controls that feature a large LED digital display that's easy to read. Its 22-inch-wide by 26 7⁄8-inch-deep by 58-inch-high compartment includes 12 sets of chrome-plated wire universal angles that accommodate a wide range of pan sizes, and they can be adjusted on 1 1⁄2-inch centers.
- Full-height, pass-thru unit with 1 compartment
- 250-lb. load capacity
- Top-mount heater assembly
- Solid-state electronic controls with LED digital display
- Heats to 200 degrees F
- On/off push button
- 2-in. fiberglass insulation in sides
- 1 1⁄2-in. fiberglass insulation in doors, base, and top
- 12 sets of chrome-plated wire universal pan angles
- Angles are adjustable on 1 1⁄2-in. centers
- Accommodates various pan sizes
- Stainless steel construction with extended base and rigid internal frame
- Recessed push/pull handles on both sides
- 4 right-hinged, field-reversible Dutch doors
- Smooth, coved interior corners
- High-temperature magnetic latches and twist-lock catch mechanisms
- (4) 5-in. swivel casters (2 with brakes)
- Interior: 22 in. W x 26 7⁄8 in. D x 58 in. H
- Overall: 28 3⁄4 in. W x 34 5⁄8 in. D x 73 1⁄2 in. H
- 16 A, 2000 W
- 120 V/60 Hz/1 ph, includes 10-ft. cord with a NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Cres Cor H-137-PSUA-12D within the 48 contiguous states.
From The Manufacturer
Cabinet, Mobile Heated, pass-thru, insulated, top-mount heater assembly, solid state electronic control with digital display, (12) sets of chrome plated wire universal angle slides adjustable on 4-1/2" centers adjustable 1-1/2" centers, field reversible dutch door, anti-microbial magnetic door latches, (4) 5" swivel casters (2) braked, stainless steel construction, NSF, cCSAus
Cres Cor H-137-PSUA-12D Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cres Cor |
| Application | Heat Only |
| Color | Silver |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Depth (in) | 34.63 |
| Door Design | Half |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 73.5 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Pass Thru |
| NEMA | 5-20P |
| No. of Doors | 4 |
| Pan Capacity | 12 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Size | Full Height |
| Slide Spacing (in) | 4.5 |
| Slide Type | Universal |
| Special Features | All Stainless Exterior |
| Special Features | Field Reversible Door |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 2-year Parts; 1-year Labor |
| Width (in) | 28.75 |
| Weight | 396.00 |
