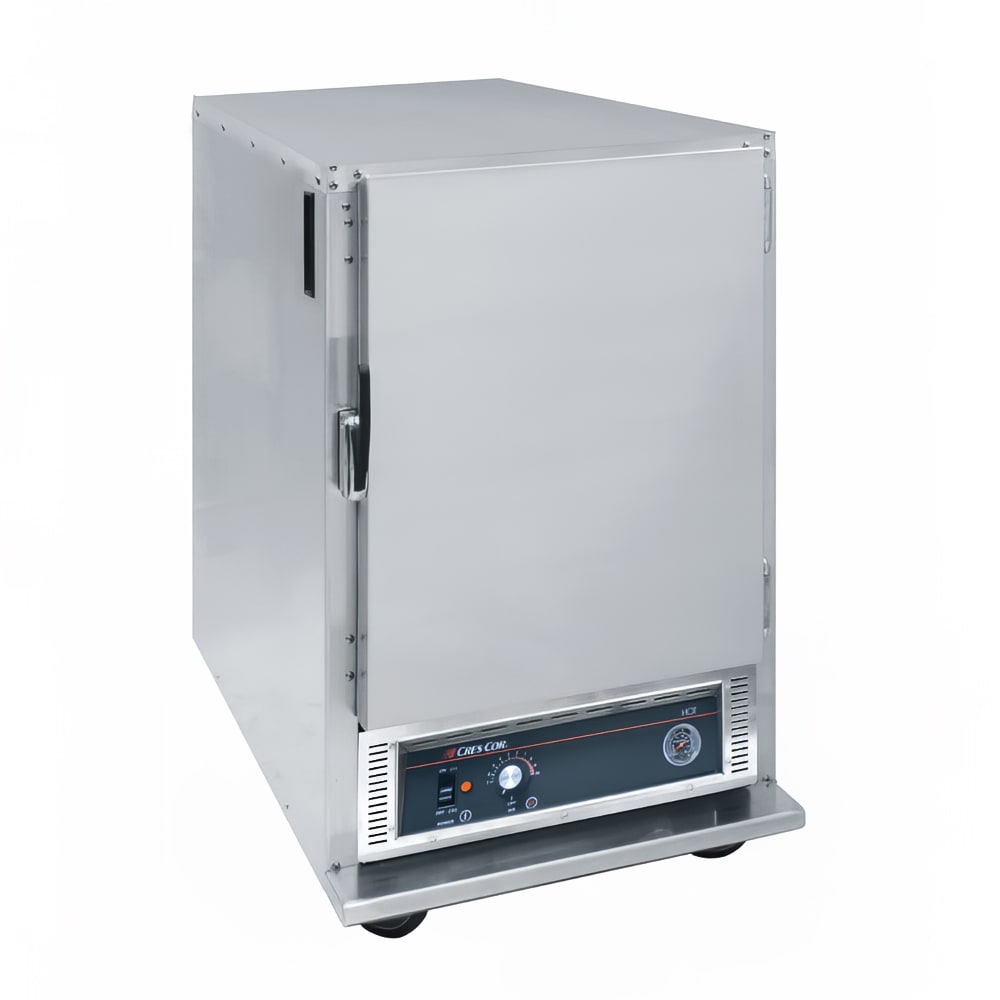

Cres Cor H-135-SUA-6 1/2 Height Insulated Mobile Heated Cabinet w/ (6) Pan Capacity, 120v

The Cres Cor H-135-SUA-6 insulated hot cabinet's bottom-mounted heating system generates and maintains temperatures as high as 200 degrees Fahrenheit to keep prepared foods warm before serving. Fiberglass insulation in the top, back, door, and side walls helps preserve programmed temperatures, reducing lag times when reheating the unit for consecutive uses. Operators can adjust the temperatures as needed using the electromechanical thermostat, and its thermometer is built onto a slanted control panel for clarity. Built for low-volume uses, its six sets of universal wire angles can support various pan sizes including 12-inch by 20-inch steam table pans. These supports are also adjustable on 1¹⁄₂-inch centers to achieve various results.

With its half-size design, heavy-duty swivel casters, and push-and-pull handles, the Cres Cor H-135-SUA-6 can be easily transported from the kitchen to serving areas. This 25³⁄₄-inch-wide by 33¹⁄₂-inch-deep by 42-inch-high unit has a corrosion- and wear-resistant stainless steel body with an extended base that protects the cabinet. Its durable casters provide full mobility when the unit is loaded to its 250-pound capacity, and two of these casters include brakes for added stabilization. Operators can maneuver the system around corners or reverse the unit by steering with its side handles; because they're recessed, they also help reduce damage to walls during collisions.

Product Details

• Half-height model
• Reach-in unit with 1 compartment
• 250-lb. load capacity
• Removable, bottom-mounted heating unit
• Heats to 200 degrees F
• Electromechanical thermostat with thermometer
• On/off rocker switch
• Black slanted control panel is removable for maintenance and cleaning
• Interior insulated with temperature-retaining fiberglass
• Removable, adjustable universal wire angles on 1¹⁄₂-in. centers
• Holds variously sized pans for versatility
• Stainless steel construction with extended base
• Recessed push/pull handles on sides
• 1 right-hinged, field-reversible door
• Antimicrobial, easy-to-open magnetic latch
• (4) 5-in. swivel casters (2 with brakes)

Dimensions & Utilities

• Interior: 21 in. W x 27 in. D x 27¹⁄₈ in. H
• Overall: 25³⁄₄ in. W x 33¹⁄₂ in. D x 42 in. H
• 12.6 A, 1500 W
• 120 V/60 Hz/1 ph, includes 6-ft. cord with molded right-angle NEMA 5-15P plug

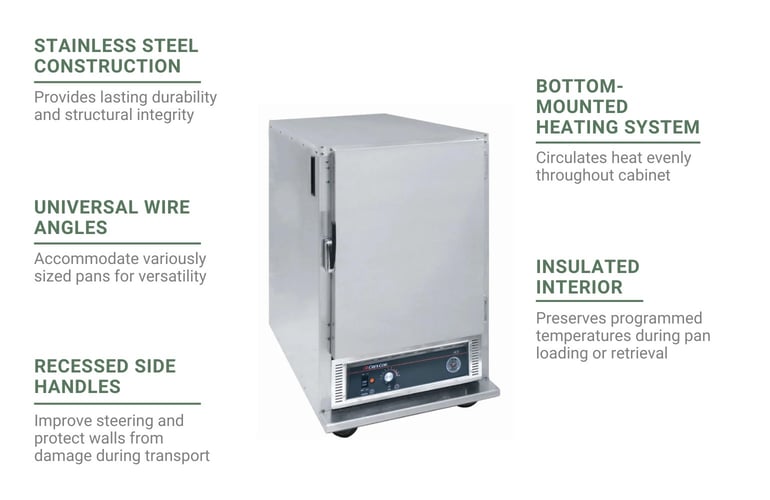

Product Features

*Free shipping on Cres Cor H-135-SUA-6 within the 48 contiguous states.

From The Manufacturer

Cabinet, Mobile Heated, insulated, bottom-mount heater assembly, recessed push/pull handles, magnetic latch, (6) sets chrome plated wire, 4-1/2" centers, adjustable 1-1/2" centers, dutch doors, anti-microbial latches, analog thermometer, (4) 5" swivel casters (2) braked, stainless steel construction, 1500 watt, cCSAus, CSA-Sanitation, 120v/60/1ph

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor

Cres Cor H-135-SUA-6 Specifications

Documents

Spec Sheet

Manual
