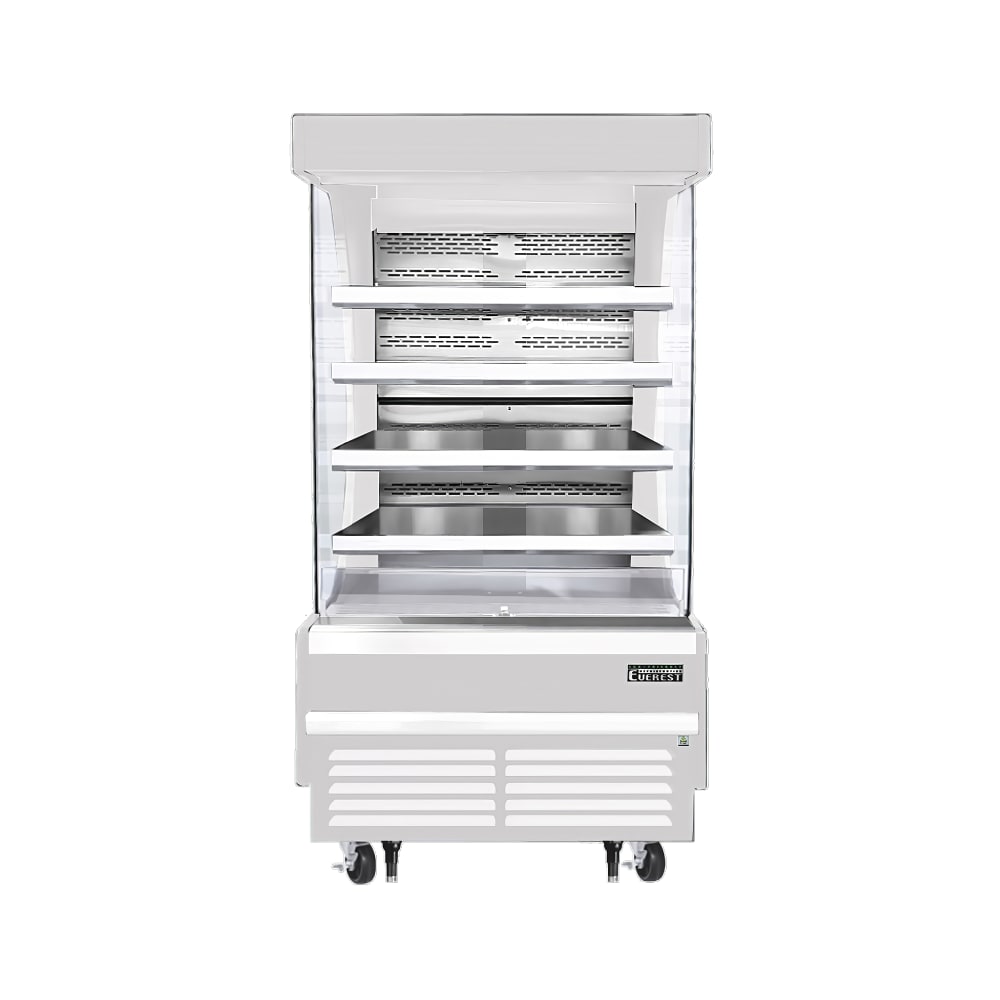

Everest Refrigeration EOMV-36-W-35-T 37 1/4" Vertical Open Air Cooler w/ (5) Levels, White, 115v

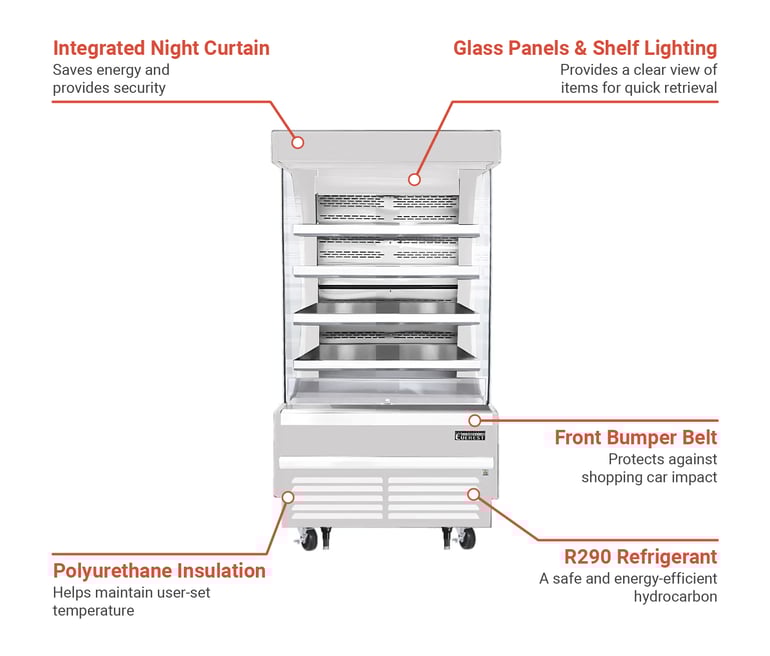

Great for displaying sandwiches, drinks, and other food or grocery items, the Everest Refrigeration EOMV-36-W-35-T vertical open-air merchandiser has four stainless steel shelves with price tag moldings for a total of five levels. The interior has 18.2 cubic feet of internal space and is equipped with interior lights under the shelves to illuminate stored items. The shelves can be positioned flat or at a slight downward 10-degree angle. The interior and exterior are white coated, while the side panels are made of tempered glass featuring a field-replaceable design. The interior back wall is perforated to provide proper airflow around shelf items.

The Everest Refrigeration EOMV-36-W-35-T vertical display merchandiser has a front air intake and rear air discharge configuration to enable side-by-side installation when creating a continuous lineup. This unit has a factory set temperature of 35 degrees Fahrenheit and has an average product temperature of 40 degrees or lower. This merchandiser utilizes R290 refrigerant to achieve cool conditions and has an overheat protection alarm to alert staff if there is an undesired temperature increase. Overall, this unit measures 37¹/₄ inches wide by 34¹/₄ inches deep by 78 inches high.

Product Details

• EOMV series
• 18.2-cu.-ft. capacity
• White-coated interior and exterior
• Moisture-resistant panels
• Tempered glass sides with field-replaceable design
• Stainless steel interior with perforated back wall
• Floor drains included
• Stainless steel front bumper belt
• Galvanized steel top, bottom, and rear
• Shielded LED interior bar lighting under shelves and canopy with on/off switch
• 2¹/₂-in. polyurethane insulation
• 4 stainless steel shelves with price tag moldings
• Shelves can be positioned as flat or slanted downward at 10 degrees F
• Integrated retractable night curtain
• (4) 5-in. swivel casters with locks on front set
• 2 leg stabilizers

Refrigeration System

• Self-contained and bottom mounted
• R290 hydrocarbon refrigerant
• Average product temperature of 40 degrees F or less
• Factory preset temperature: 35 degrees F
• Front air intake and rear air discharge system
• Audible overheat protection alarm
• Electronically commutated fan motors
• Condensate drain pan included
• No external drains or electric heaters required
• Auto-reverse condenser fan motor

Operating Conditions

• Designed for air-conditioned environments where temperature and humidity does not exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 37¹/₄ in. W x 34¹/₄ in. D x 78 in. H
• 8 A, ³/₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-20P

Product Features

*Free shipping on Everest Refrigeration EOMV-36-W-35-T within the 48 contiguous states.

From The Manufacturer

Vertical Open Display Merchandiser, 37-1/4"W x 34-1/4"D x 78"H, 18.2 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, (4) adjustable stainless steel shelves, overheat protection alarm, stainless steel interior, white exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 8.0 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor

Everest Refrigeration EOMV-36-W-35-T Specifications

Documents

Spec Sheet

Warranty

Manual

Catalog
