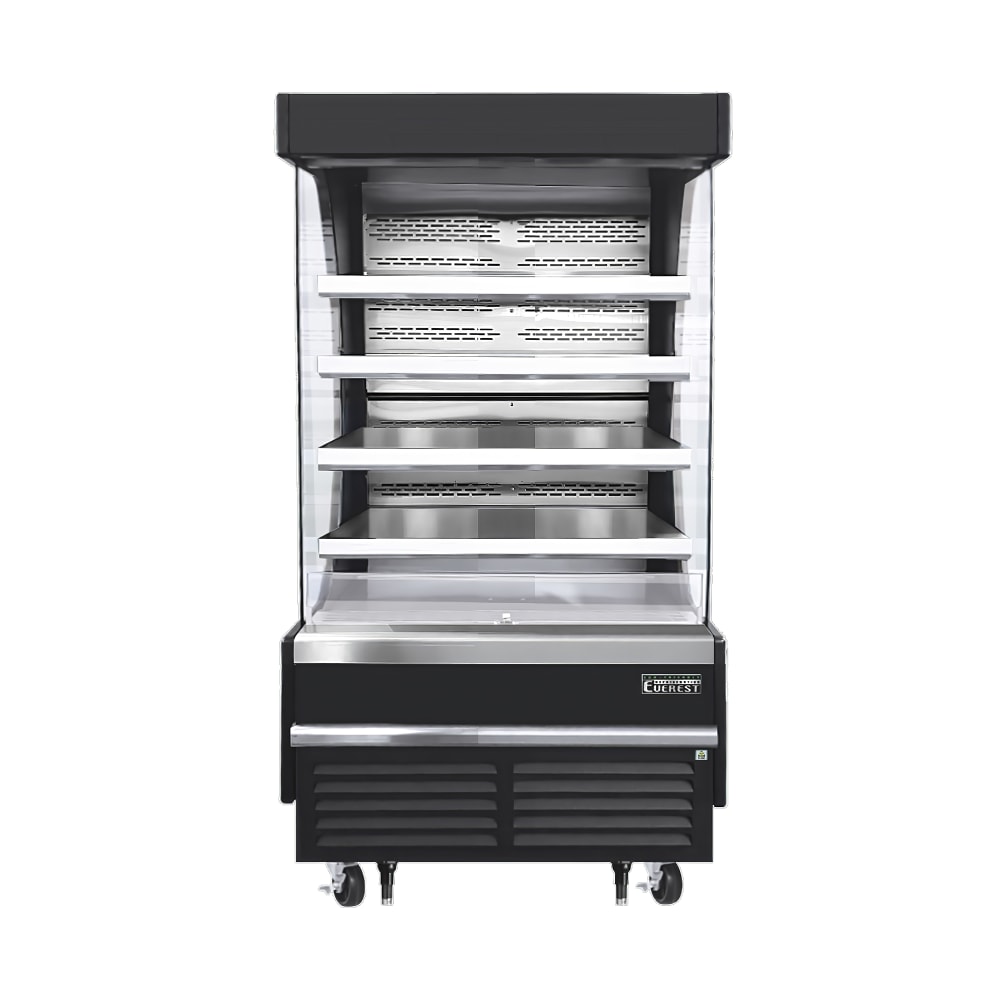

Everest Refrigeration EOMV-36-B-35-T 37 1/4" Vertical Open Air Cooler w/ (5) Levels, Black, 115v

To provide a clear view of stored inventory, the Everest Refrigeration EOMV-36-B-35-T display merchandiser has tempered glass side panels and LED bar lights installed underneath the shelves and canopy. The interior spans 18.2 cubic feet and includes four stainless steel shelves with price tag molding to establish an efficient design; these shelves can be adjusted to sit flat or at a slight 10-degree downward angle for item presentation. A good choice for grocery stores, this unit has a front air intake and rear air discharge system that permit side-by-side installation to create a lineup of open-air cool storage.

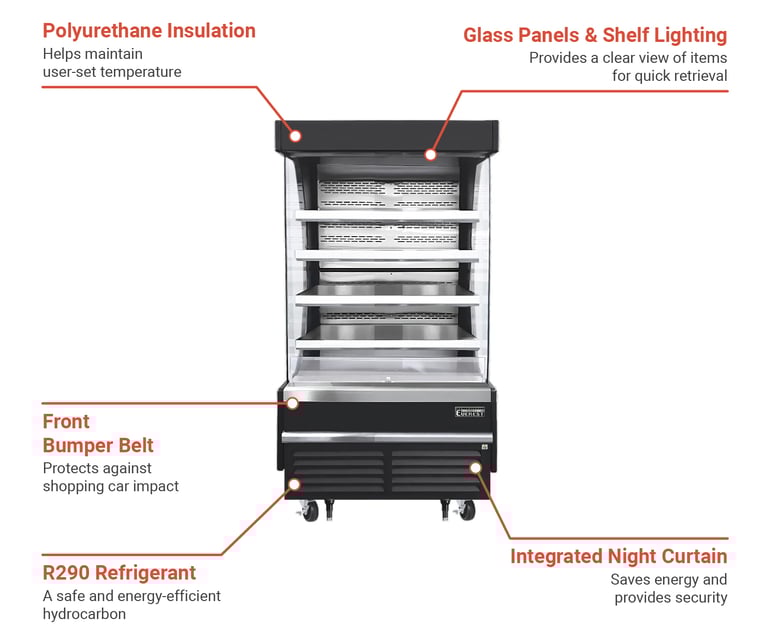

The exterior of the Everest Refrigeration EOMV-36-B-35-T open air merchandiser has a black finish capable of complementing most equipment setups and creating a consistent design. To protect this unit from shopping car impact, the front of this unit has a stainless steel bumper belt mounted to it. To promote proper airflow around shelf items, this unit has a perforated back wall. This unit relies on R290 refrigerant—an eco-friendly hydrocarbon—to maintain cool conditions, making a good choice for eco-conscious locations. The factory-preset temperature is 35 degrees Fahrenheit, while the average product temperature is 40 degrees Fahrenheit or less.

Product Details

• EOMV series
• 18.2-cu.-ft. internal capacity
• Black exterior with moisture-resistant panels
• Field-replaceable tempered glass sides
• Stainless steel interior with perforated back wall
• Floor drains included
• Front-mounted stainless steel bumper belt
• Top, bottom, and rear constructed of stainless steel
• Shielded LED interior bar lighting under shelves and canopy with on/off switch
• 2¹/₂-in. polyurethane foam insulation
• 4 stainless steel shelves with price tag moldings
• Shelves can be positioned as flat or slanted downward at 10 degrees F
• Retractable night curtain
• 5-in. swivel casters with locks on front set
• 2 leg stabilizers

Refrigeration System

• Self-contained, bottom-mounted design
• Eco-friendly R290 refrigerant
• Average product temperature of 40 degrees F or less
• Factory-preset temperature: 35 degrees F
• Front air intake and rear air discharge design
• Audible overheat protection alarm
• Electronically commutated fan motors
• Condensate drain pan
• No external drains or electric heaters required
• Auto-reverse condenser fan motor

Recommended Operating Conditions

• Designed for an air-conditioned environment where temperature and humidity does not exceed 80 degrees F and 55 percent
• Must not be installed near ventilation systems, fans, or exterior doors or windows
• Must not be installed in direct sunlight
• 6-in. clearance required on the front, back, and top for built-in applications

Dimensions & Utilities

• 37¹/₄ in. W x 34¹/₄ in. D x 78 in. H
• 8.53 A, ³/₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug

Product Features

*Free shipping on Everest Refrigeration EOMV-36-B-35-T within the 48 contiguous states.

From The Manufacturer

Vertical Open Display Merchandiser, 37-1/4"W x 34-1/4"D x 78"H, 18.2 cu. ft. capacity, self-contained bottom mount refrigeration, front air intake & rear air discharge, LED lighting in canopy & underneath shelves, retractable night curtain, (4) adjustable stainless steel shelves, overheat protection alarm, stainless steel interior, black exterior, 5" front swivel casters with locks & leg stabilizers, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 8.53 amps, cord, NEMA 5-20P, ETL-Sanitation, cETLus, NSF

*Image may not depict product color, inclusions or accessories.

2-year Parts & Labor; 5-year Electrical; 5-year Compressor
