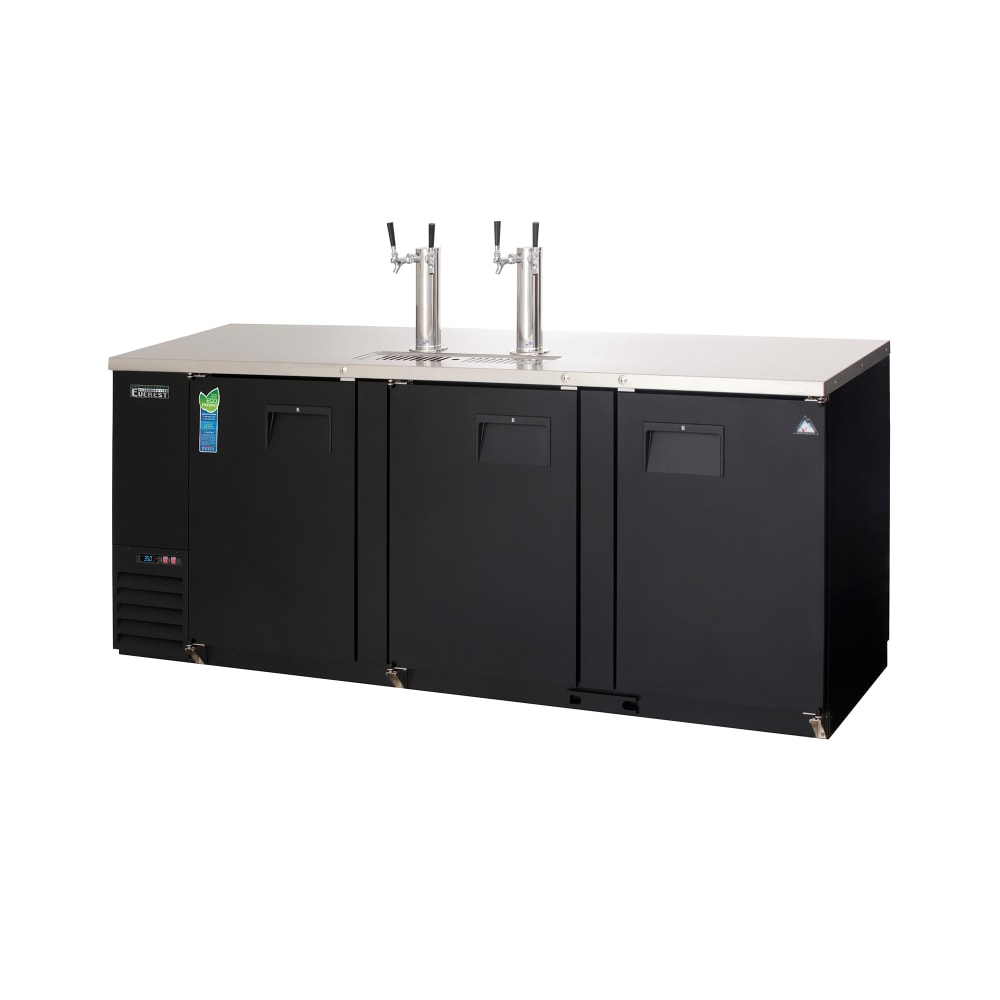

Everest Refrigeration EBD4 89 1/4" Kegerator Beer Dispenser w/ (4) Keg Capacity - (2) Columns, Black, 115v

The Everest Refrigeration EBD4 dispenser from the EBD series serves beer through two 3-inch-diameter draft towers. There are two faucets per tower for medium-volume service. Its 32-cubic-foot capacity can hold four half-barrel kegs that are directly drafted via the air distribution system. The counter and floor are made of stainless steel, and the walls are made of galvanized steel to withstand heavy use. Great for keeping heat out to maintain consistent internal temperatures, the unit is insulated with 1³/₄-inch-thick insulation. Furthermore, the three solid doors with snap-in magnetic gaskets create an airtight closure. For consistent and reliable operation, a proper drain connection should be established.

The Everest Refrigeration EBD4 kegerator beer dispenser is operated via a side-mounted, self-contained refrigeration system. Users can adjust the 33 and 54-degree temperature range via an electronic controller. The unit’s system cools with R290 hydrocarbon refrigerant, and even air circulation is achieved using electronically commutated fan motors and full-length air duct system. An automatic defrost system and self-maintaining condensate pan provide preemptive maintenance.

Product Details

• From the EBD series
• 32-cu.-ft. interior space
• 4 half-barrel capacity
• Stainless steel top with (2) 3-in. draft towers
• 2 faucets per tower
• Stainless steel counter
• Stainless steel floor
• Galvanized steel walls
• 1³/₄-in.-thick insulation
• 3 solid doors
• Snap-in magnetic door gaskets
• Doors feature locks
• Built-in caster thread receptables
• LED interior lights
• Textured black vinyl exterior
• Drain not included
• Floor connection required

Refrigeration System

• Side mounted
• Self-contained
• R-290 hydrocarbon refrigerant
• Energy-saving fan motors
• Automatic defrost
• Large-capacity condenser and evaporator coils
• Self-maintaining condensate pan
• Electronically controlled
• Temperature holding range: 33-54 degrees F

Dimensions & Utilities

• 89¹/₄ in. W x 27 in. D x 37¹/₄ in. H
• 2.5 A, ¹/₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug

*Free shipping on Everest Refrigeration EBD4 within the 48 contiguous states.

From The Manufacturer

Direct Draw Keg Refrigerator, three-section, 89-1/4"W, 32.0 cu. ft. capacity, self-contained side mounted refrigeration, (3) solid hinged doors (locking), holds (4) 1/2 barrel kegs, (2) 3" diameter insulated stainless steel draft towers (NSF) with air distributor, (2) faucets per tower, stainless steel countertop, digital controls with LED display, auto defrost, LED interior lighting, textured & laminated black vinyl exterior, galvanized steel interior wall & stainless steel floor, exterior drain port for excess top tray moisture, drain hose not included, floor drain required, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 2.5 amps, cord, NEMA 5-15P, NSF, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Electrical; 10-year Compressor

Everest Refrigeration EBD4 Specifications

Documents

Spec Sheet

Warranty

Manual

Catalog
