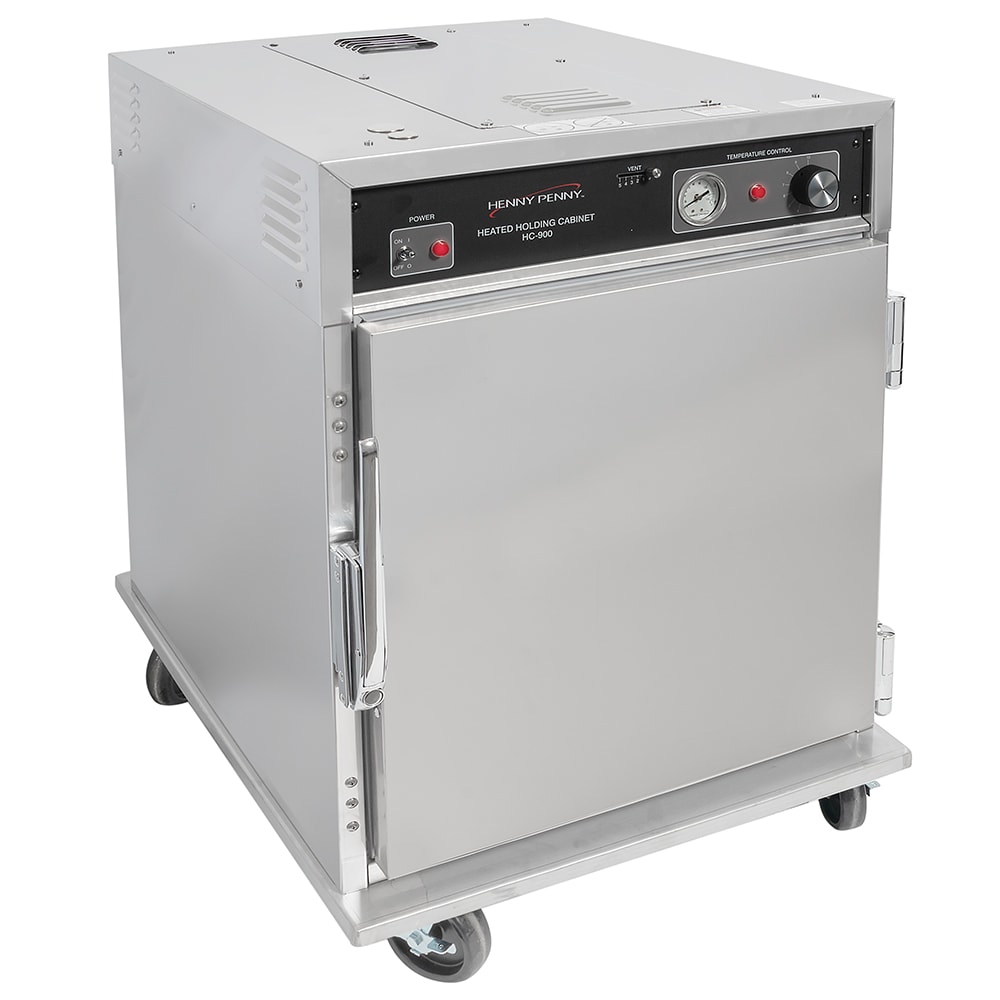

Henny Penny HHC903.17 1/2 Height Insulated Mobile Heated Cabinet w/ (5) Pan Capacity, 120v

KaTom #: 540-HHC90317 • MPN: HHC903.17
  • 540-HHC90317 Primary Thumbnail Image
  • 540-HHC90317 Multiple Thumbnail Image #1
  • 540-HHC90317 Multiple Thumbnail Image #2
  • 540-HHC90317 Multiple Thumbnail Image #3
  • 540-HHC90317 Multiple Thumbnail Image #4
  • 540-HHC90317 Multiple Thumbnail Image #5
  • 540-HHC90317 Multiple Thumbnail Image #6
  • 540-HHC90317 Multiple Thumbnail Image #7
  • 540-HHC90317 Multiple Thumbnail Image #8
  • 540-HHC90317 Multiple Thumbnail Image #9
  • 540-HHC90317 Multiple Thumbnail Image #10
  • 540-HHC90317 Multiple Thumbnail Image #11
  • 540-HHC90317 Multiple Thumbnail Image #12
  • 540-HHC90317 Multiple Thumbnail Image #13
  • 540-HHC90317 Multiple Thumbnail Image #14
  • 540-HHC90317 Multiple Thumbnail Image #15
  • 540-HHC90317 Multiple Thumbnail Image #16
  • 540-HHC90317 Multiple Thumbnail Image #17
  • 540-HHC90317 Multiple Thumbnail Image #18
  • 540-HHC90317 Multiple Thumbnail Image #19
  • 540-HHC90317 Multiple Thumbnail Image #20
  • 540-HHC90317 Multiple Thumbnail Image #21
  • 540-HHC90317 Multiple Thumbnail Image #22
  • 540-HHC90317 Multiple Thumbnail Image #23
  • 540-HHC90317 Multiple Thumbnail Image #24
  • 540-HHC90317 Multiple Thumbnail Image #25

QUICK SHIP: Typically ships in 1 - 3 Business Days

Free Shipping Item

$6,258.00 /Each

Contact us for details!

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove
Kyle Cates User Image
Ask a Foodservice Equipment Specialist






Henny Penny HHC903.17 Description

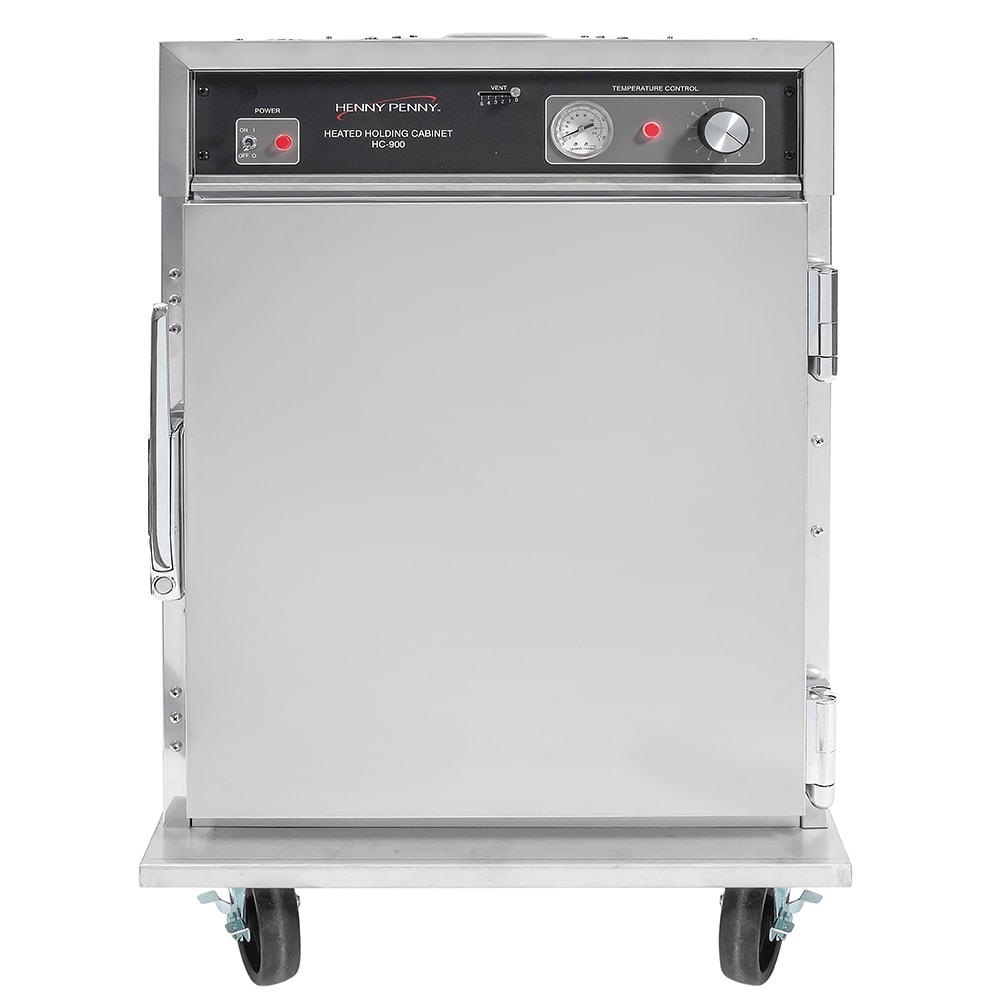

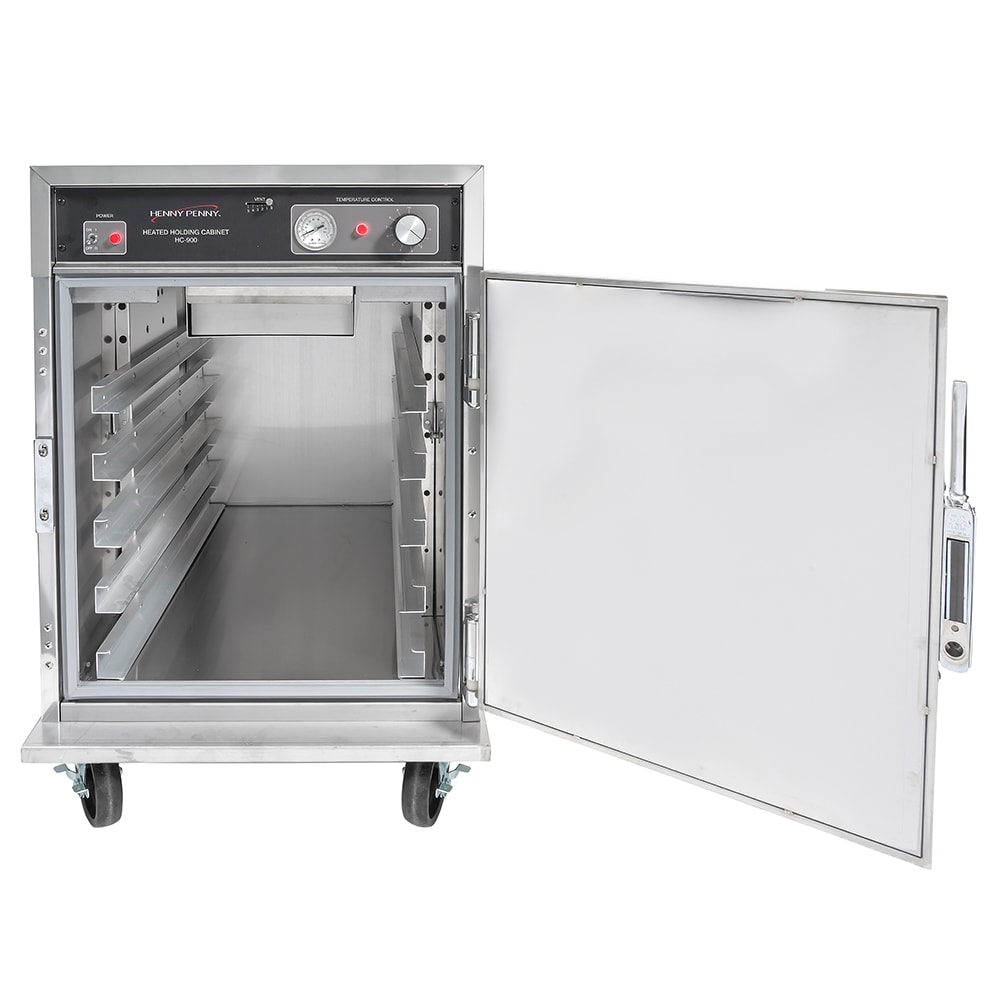

For low-volume holding, the half-size Henny Penny HHC903.17 holding cabinet measures 24.75 inches wide by 31.75 inches deep by 37.50 inches high and accommodates (5) 18-inch by 26-inch sheet pans on its shelf runners. Because of this unit's humidity control, food doesn't dry out during holding, helping to eliminate food waste and maximize profit. A right-hinged stainless steel door encases the unit's front, and this door can stay open past 90 degrees to streamline pan insertion and removal. If it's opened less than 90 degrees, it self-closes to prevent heat loss, and its full-perimeter gasket ensures a tight seal. This rust- and corrosion-resistant stainless steel unit is mounted on four 5-inch casters that can round corners and reverse for smooth maneuvering. Two of these casters can lock for stability.

Operators can adjust the Henny Penny HHC903.17 holding cabinet's thermostat from 160 to 210 degrees Fahrenheit to ensure prepared foods are held at appropriate temperatures. To prevent foods from drying out during long-term holding, a 1-gallon water pan creates the moisture needed to retain textures. Dual blower motors and ventilated side racks circulate hot, humid air throughout the cabinet to eliminate cold spots that could affect food quality. The cabinet's door, side walls, and control module are fully insulated so foods remain at safe temperatures if the unit must be stored in a cool ambient setting.

Mobile Design
Transports food between preparation and service areas
Water Pan System
Adds moisture to the holding environment
Self-Closing Door
Reduces heat loss during product access
Insulated Cabinet
Supports temperature retention during operation

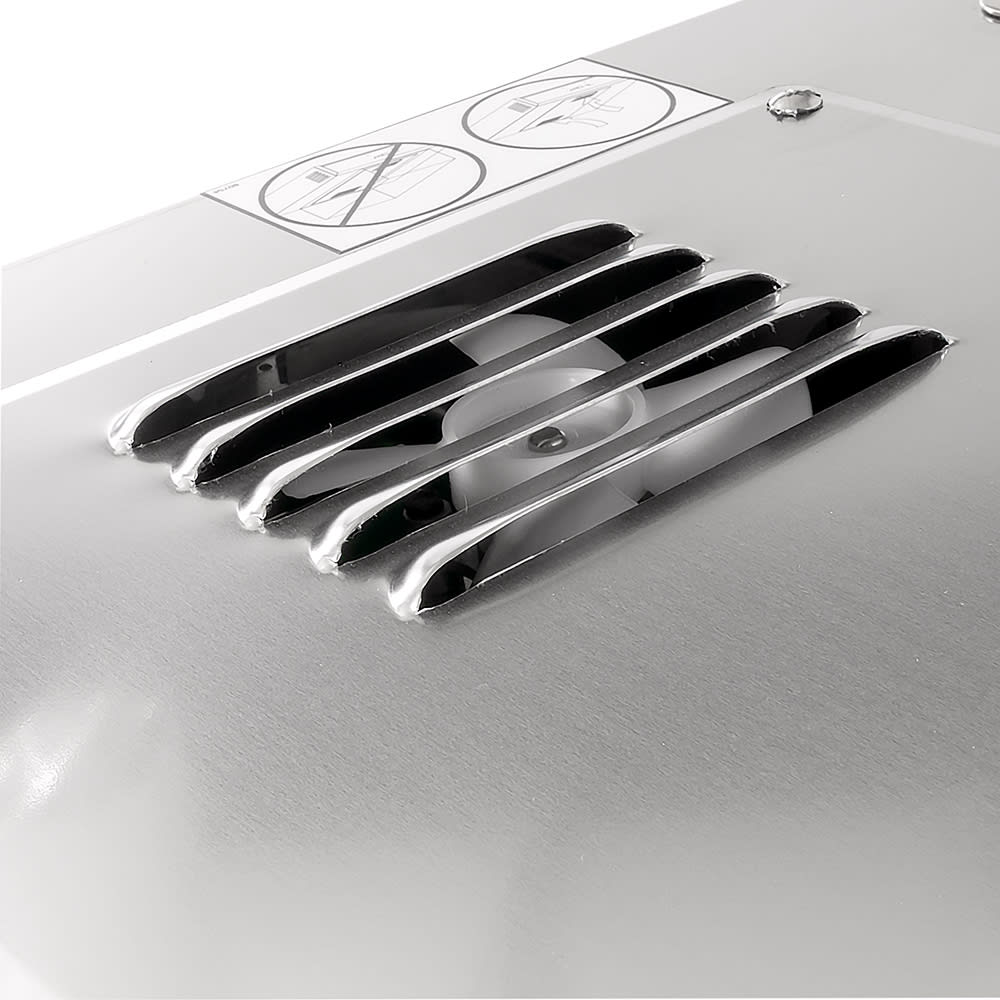

Dual Blower Motors
Circulates heated air throughout the cabinet interior
Adjustable Thermostat
Supports temperature selection for different menu items

  • Half-height unit with capacity of (5) 18-in. x 26-in. sheet pans

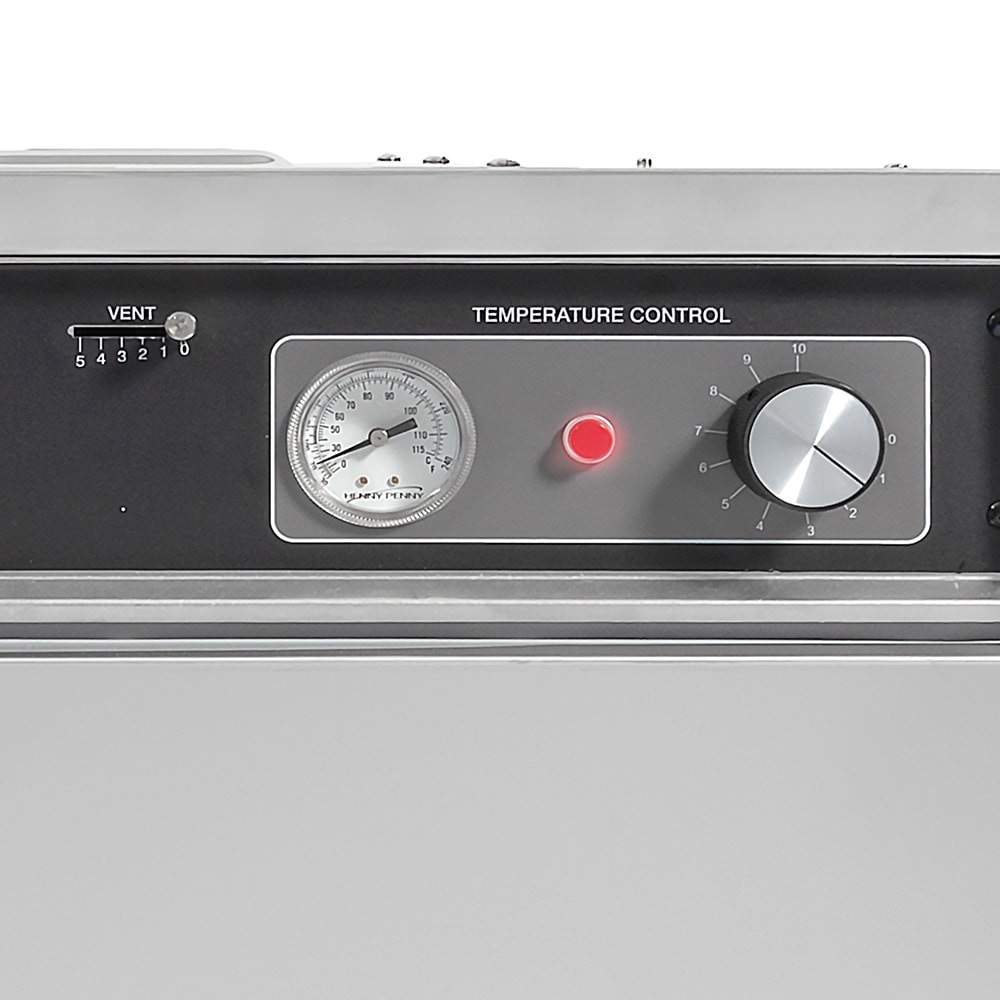

  • Electromechanical controls (thermostat heat control, dial thermometer, on/off switch, and cycle temperature light)
  • Thermostat temperature range: 160-210 degrees F
  • 1,500-watt heaters
  • Dual heavy-duty blower motors and ventilated side racks

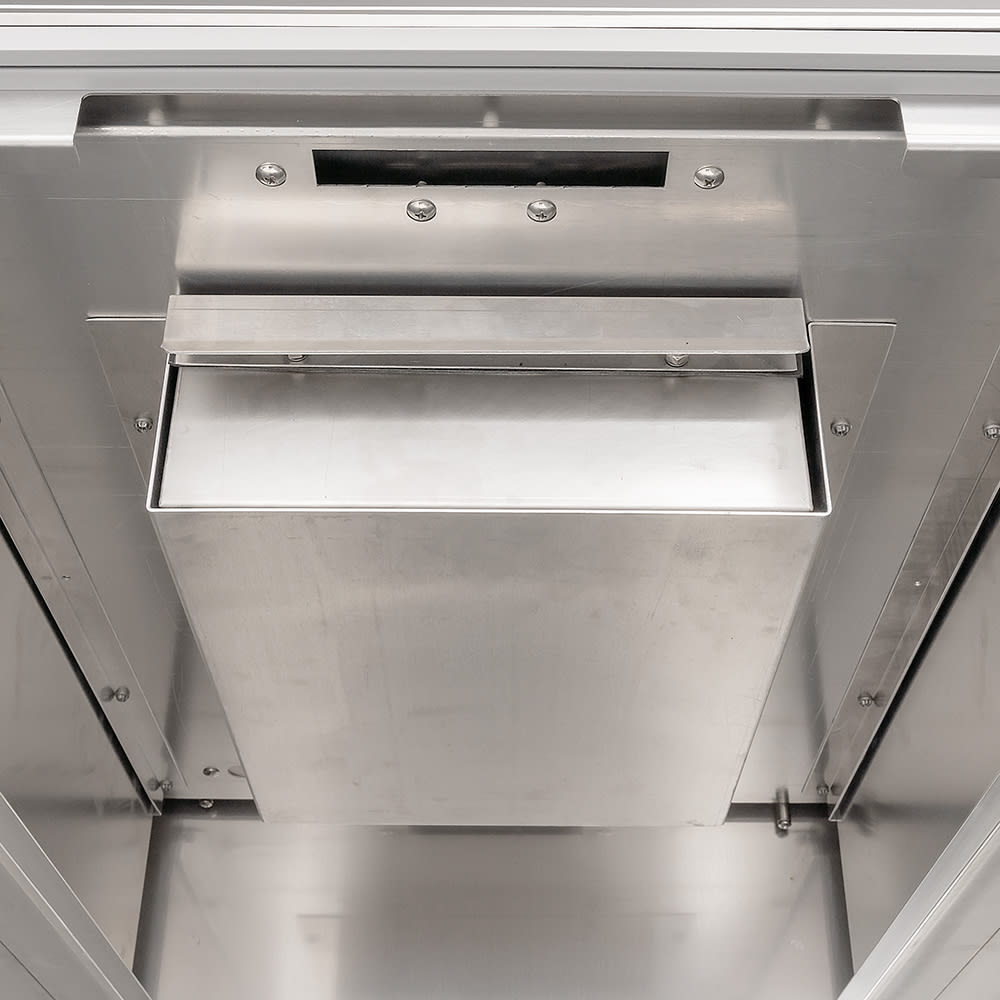

  • 1-gal. stainless steel water pan
  • Insulated cabinet

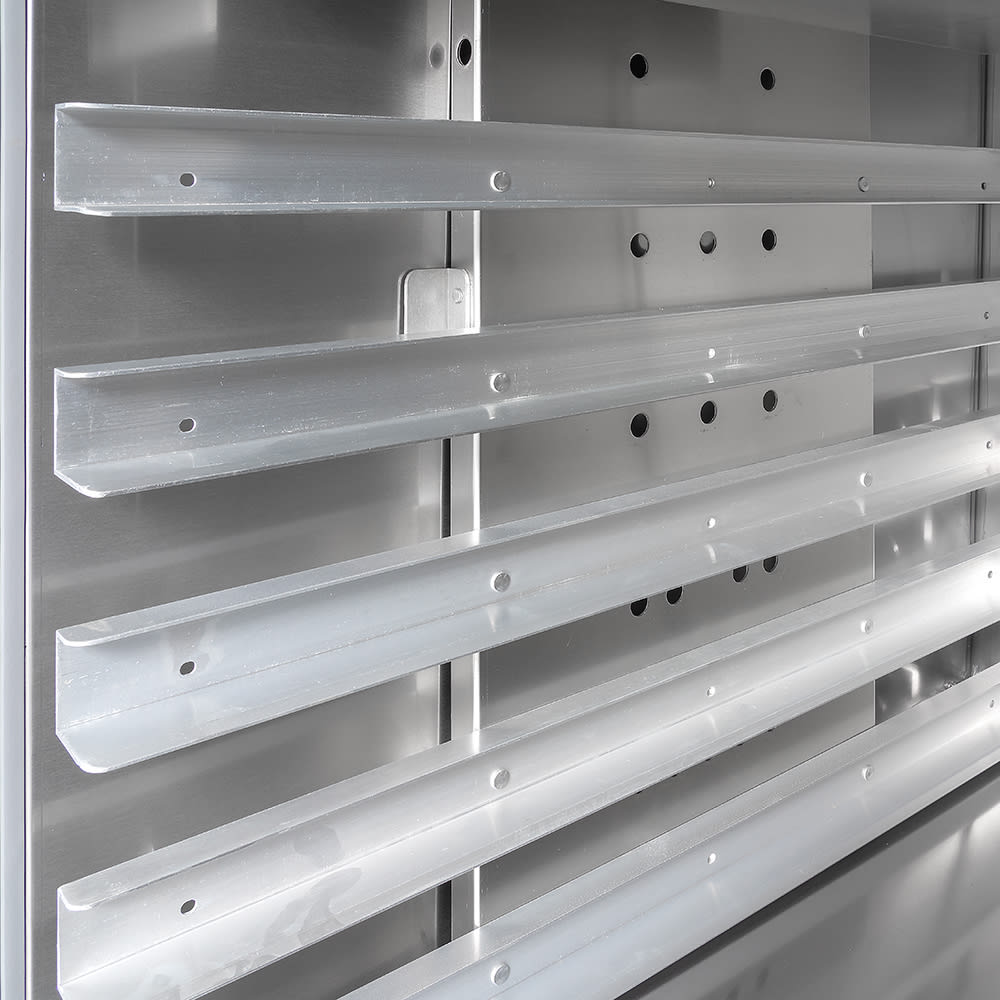

  • Shelf runners on 3.75-in. centers
  • Partial pan removal
  • Self-closing, right-hinged stainless steel door with full-perimeter gasket
  • Door stays open past 90 degrees

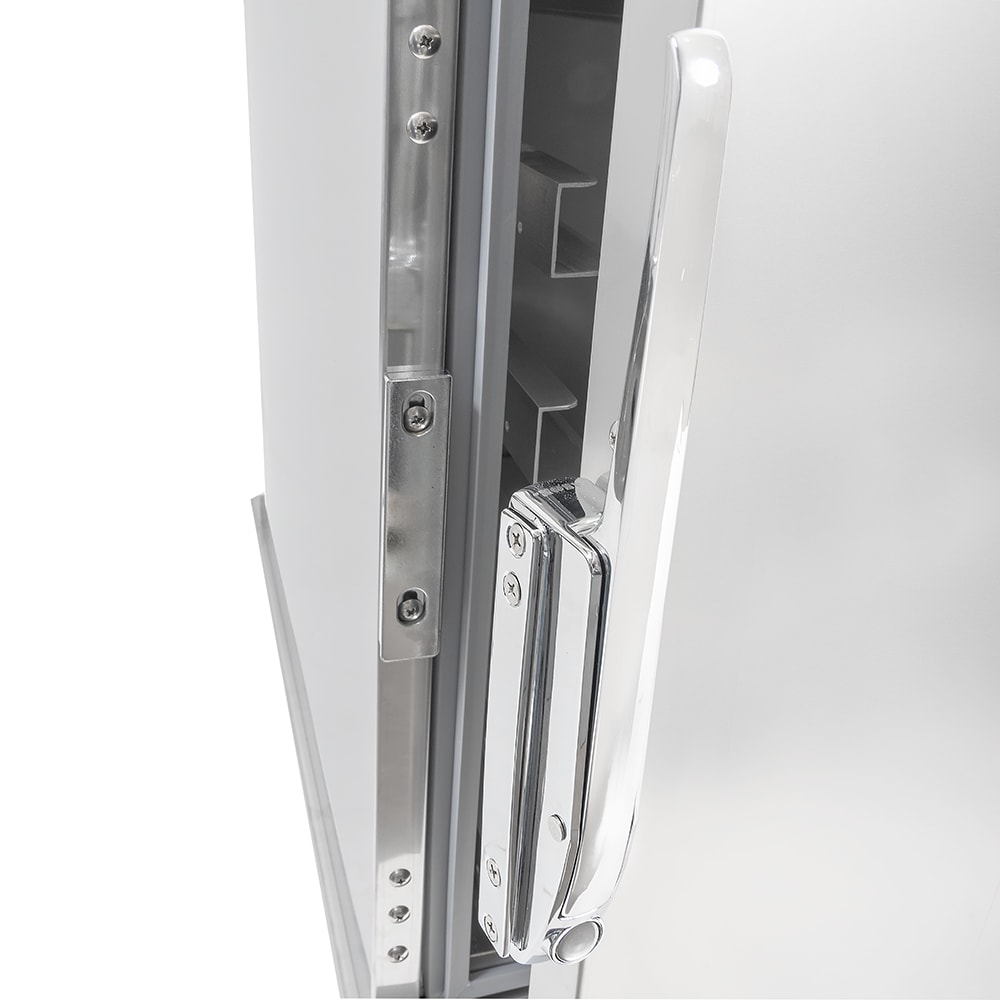

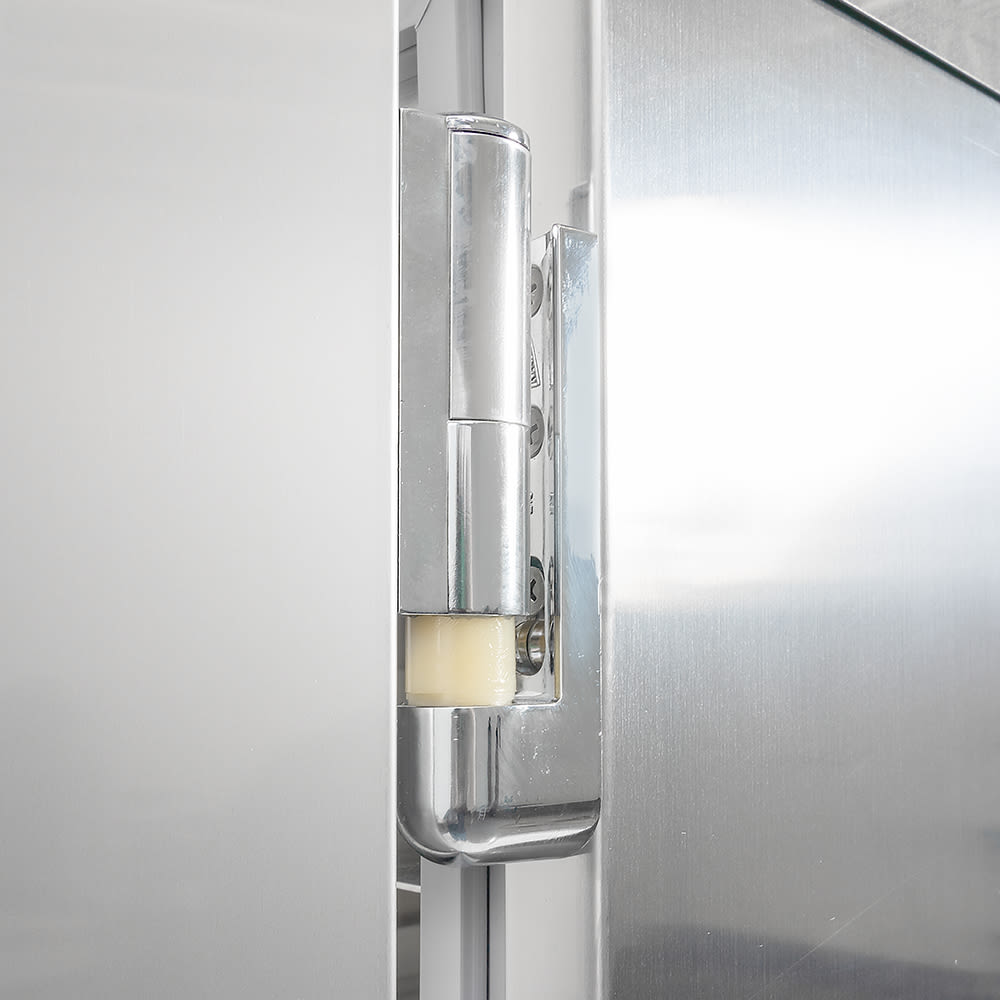

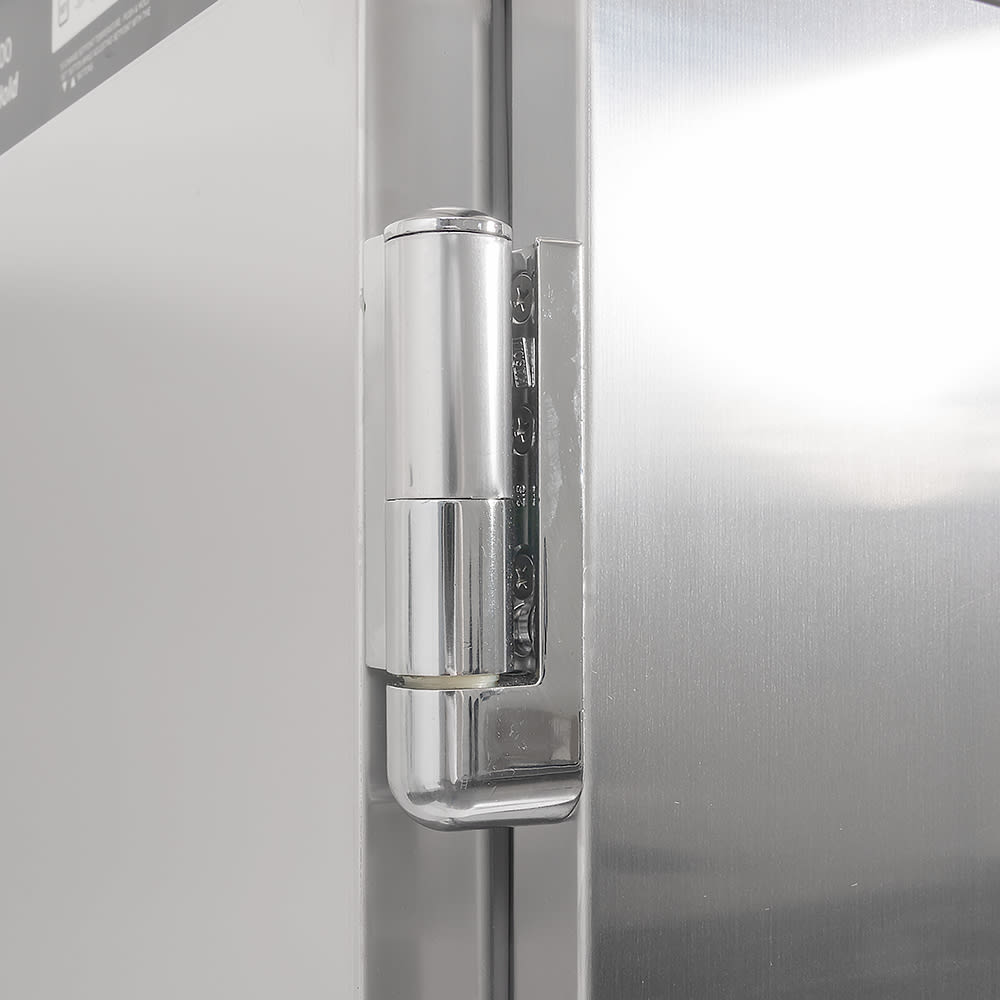

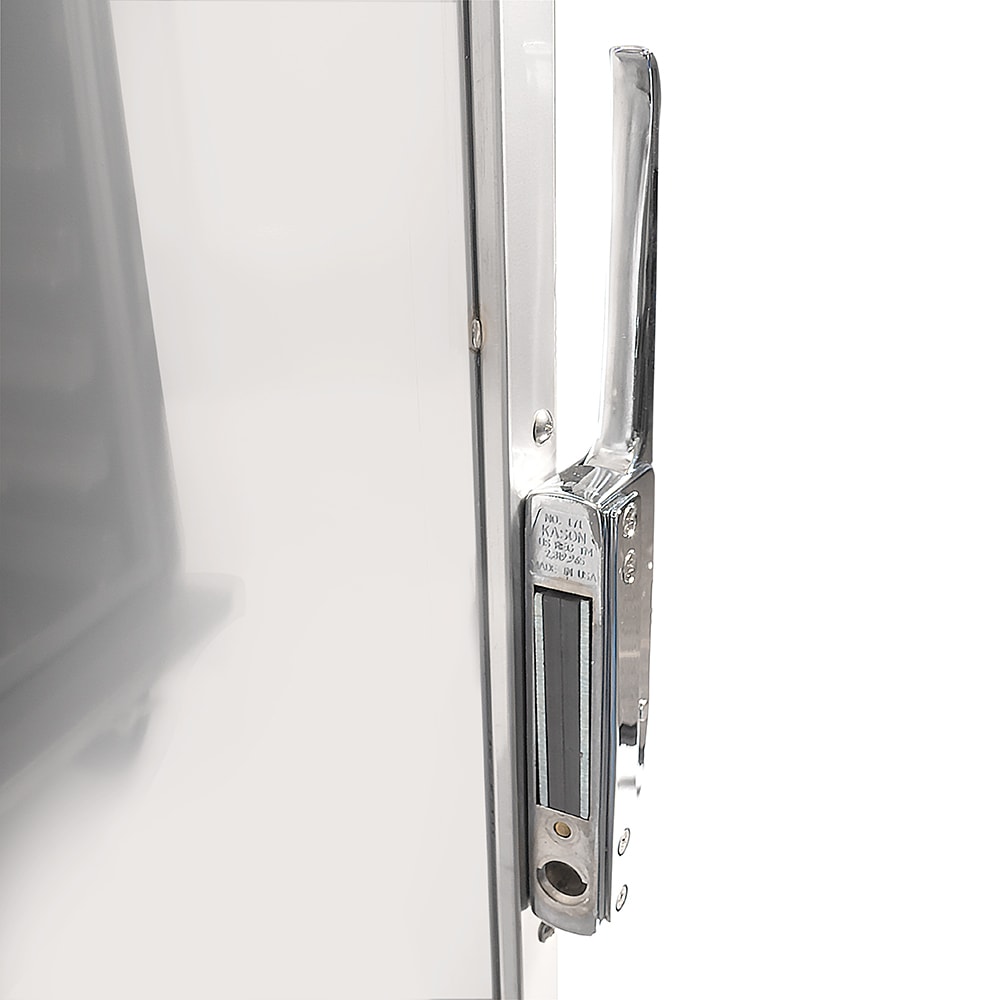

  • Magnetic door latch and heavy-duty plated hinges
  • Stainless steel construction
  • Removable air ducts

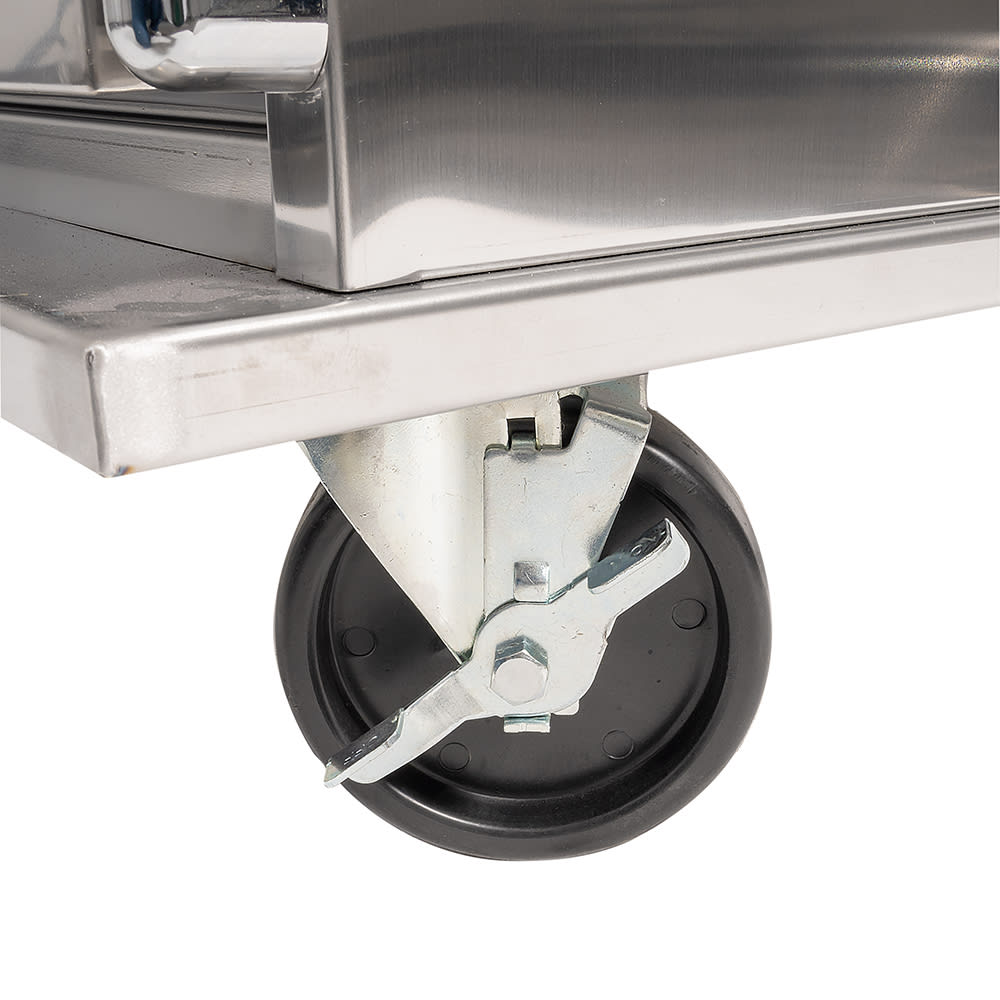

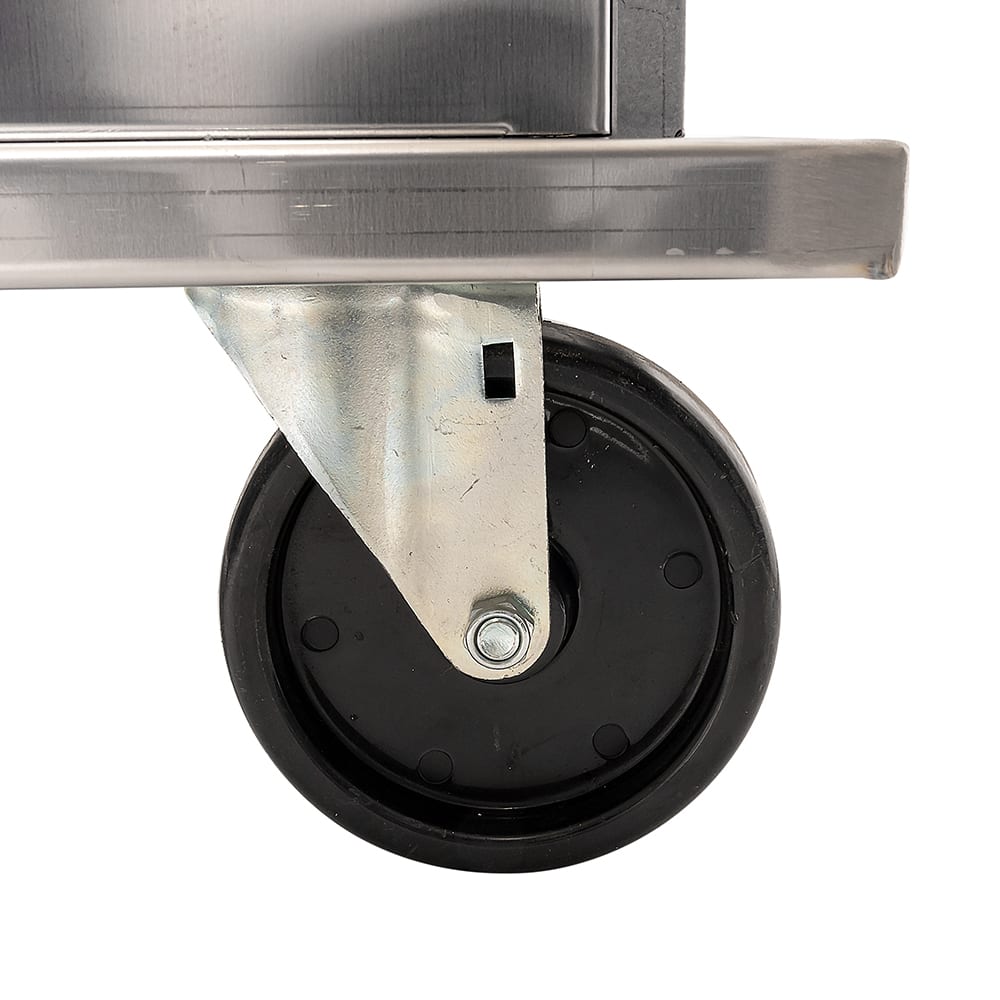

  • (4) 5-in. casters (2 locking)
  • 1.5-in. clearances required for sides, back, and top

  • 24.75 in. W x 31.75 in. D x 37.50 in. H
  • 13.2 A, 1.59 kW

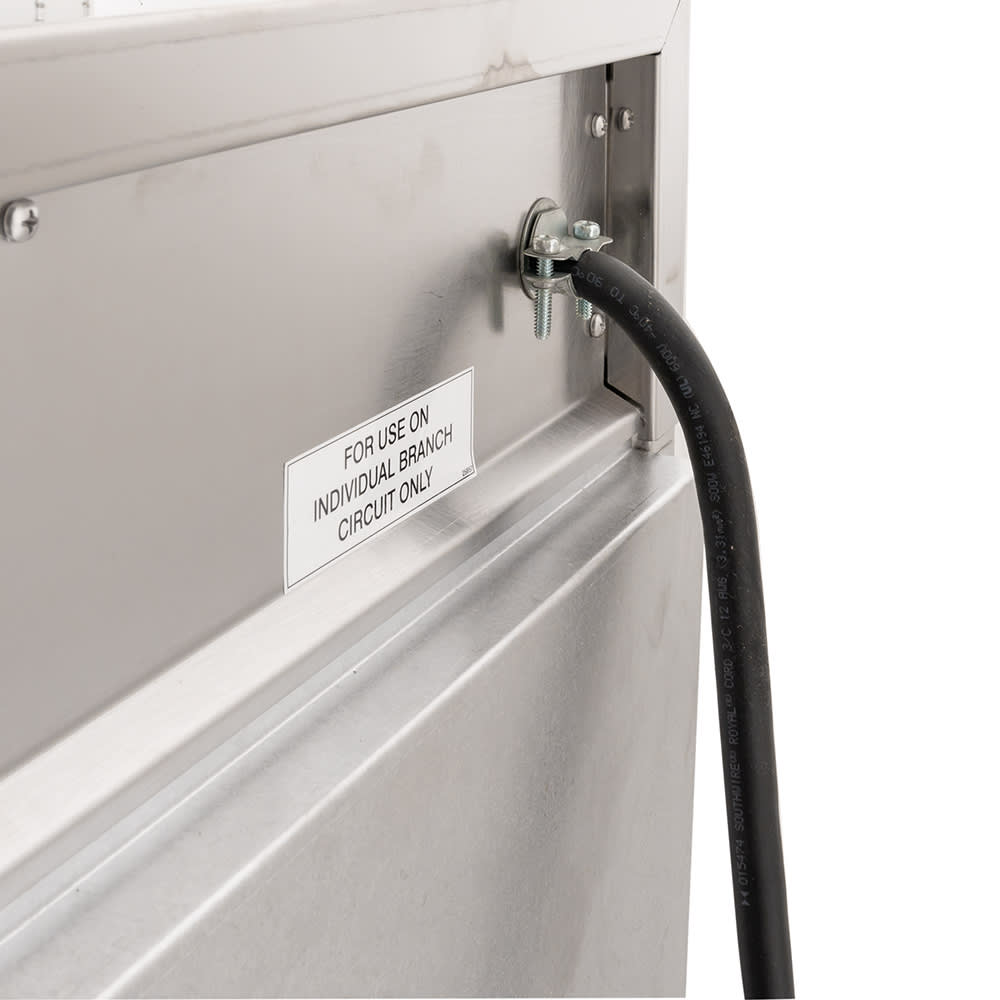

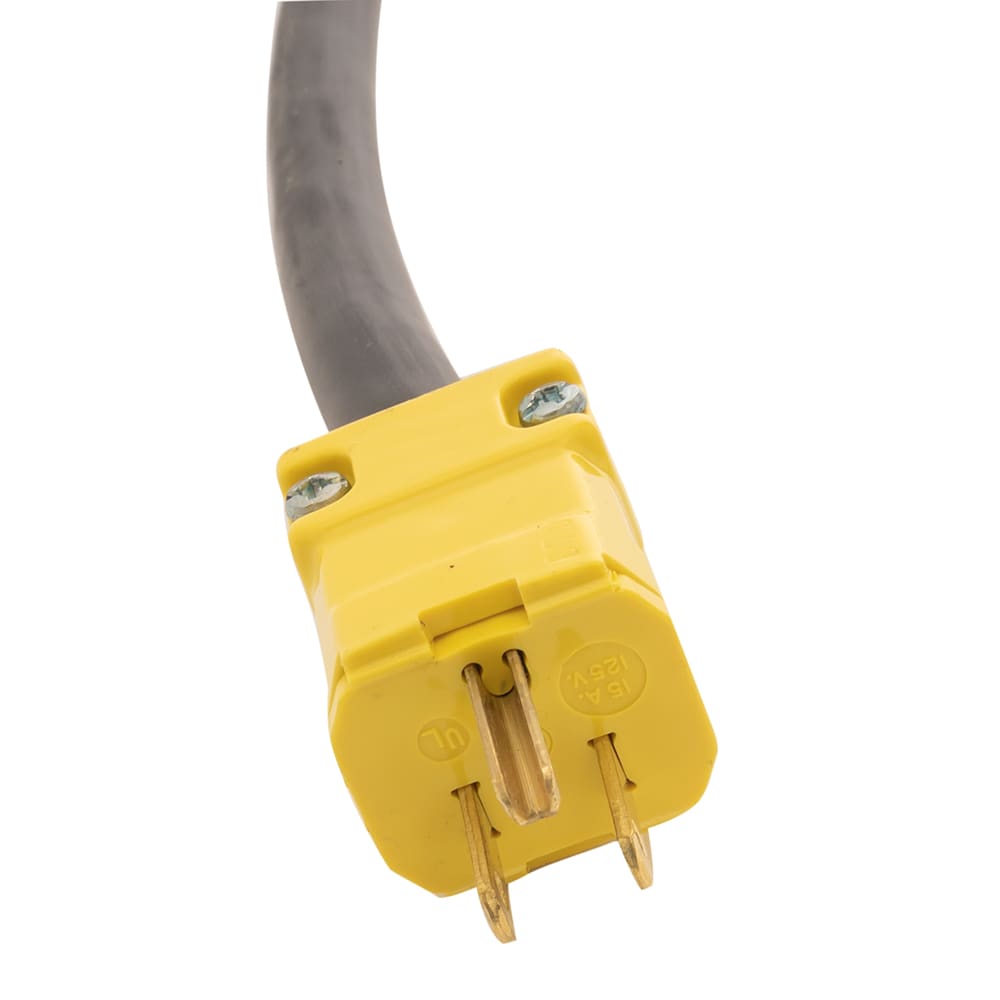

  • 120 V/60 Hz/1 ph, 2+G wire with NEMA 6-20P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on Henny Penny HHC903.17 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

HHC-903 Holding Cabinet, floor, electro-mechanical controls, 160° to 210°F temperature range, insulated, (5) 18" x 26" pan capacity, 3-3/4" spacing, door on front (control side) only, stainless steel construction, cULus, UL EPH
