Structural Concepts GHS456RLB (CURVED) 51" Fusion® Horizontal Open Air Cooler w/ (4) Levels, 110-120v

Featuring clear sliding rear glass doors and a curved lift-up front panel, the Structural Concepts GHS456RLB Fusion® horizontal open air cooler offers full-service merchandising in a 51-inch-wide footprint. The stainless steel rear panel resists wear and supports frequent cleaning in high-use areas. Its four-tier layout includes three solid shelves, while frosted LED lighting on each level enhances product visibility. This layout helps streamline restocking, highlight product presentation, and improve customer accessibility.

The Structural Concepts GHS456RLB Fusion® cooler uses remote DX refrigeration to maintain internal product temperatures at or below 40 degrees Fahrenheit. The black powder-coated interior contrasts with merchandise to draw attention to featured items, while the rail-mounted base allows for floor leveling using shims. Its compact size and open front design help optimize space at service counters or in prepared foods areas that require constant operator access and clear product presentation.

Product Details

• Fusion Series
• Horizontal design
• 4 display levels
• Stainless steel rear exterior
• Black powder-coated interior
• Stainless steel end panel with mirror interior

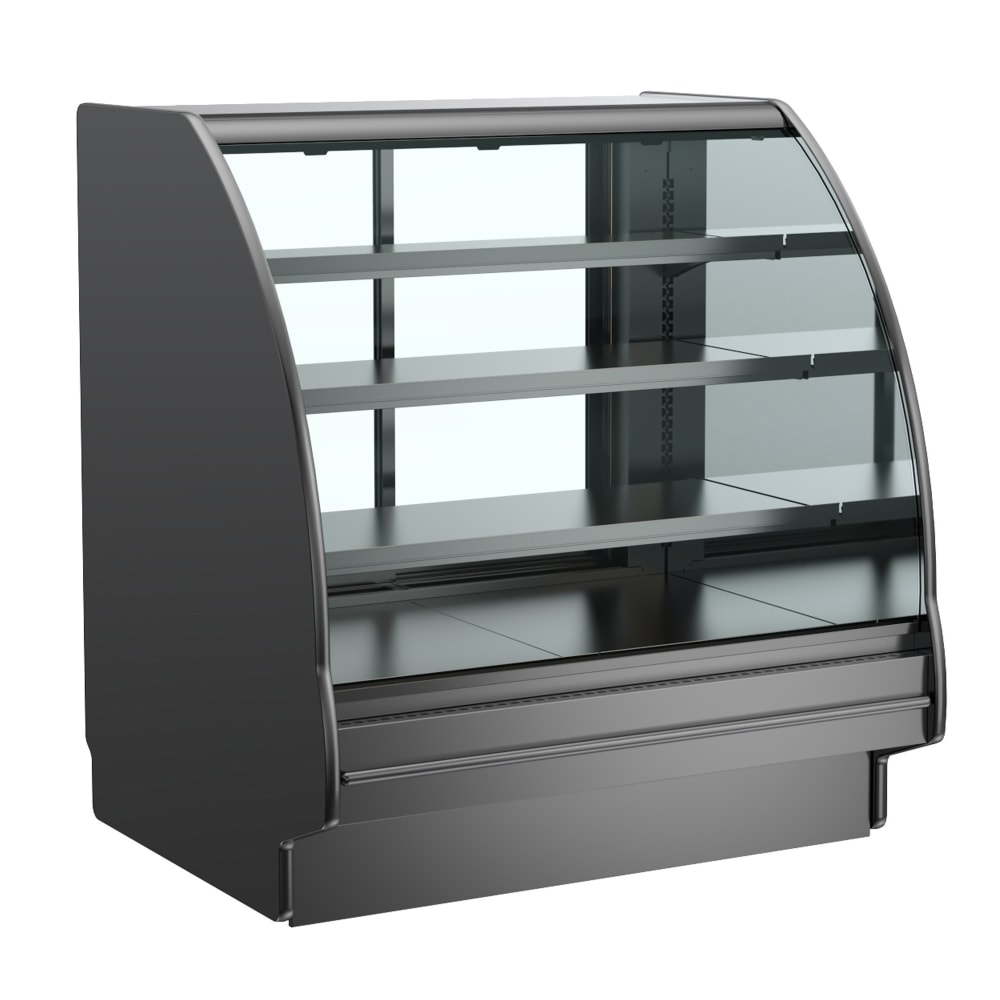

• Curved lift-up front glass

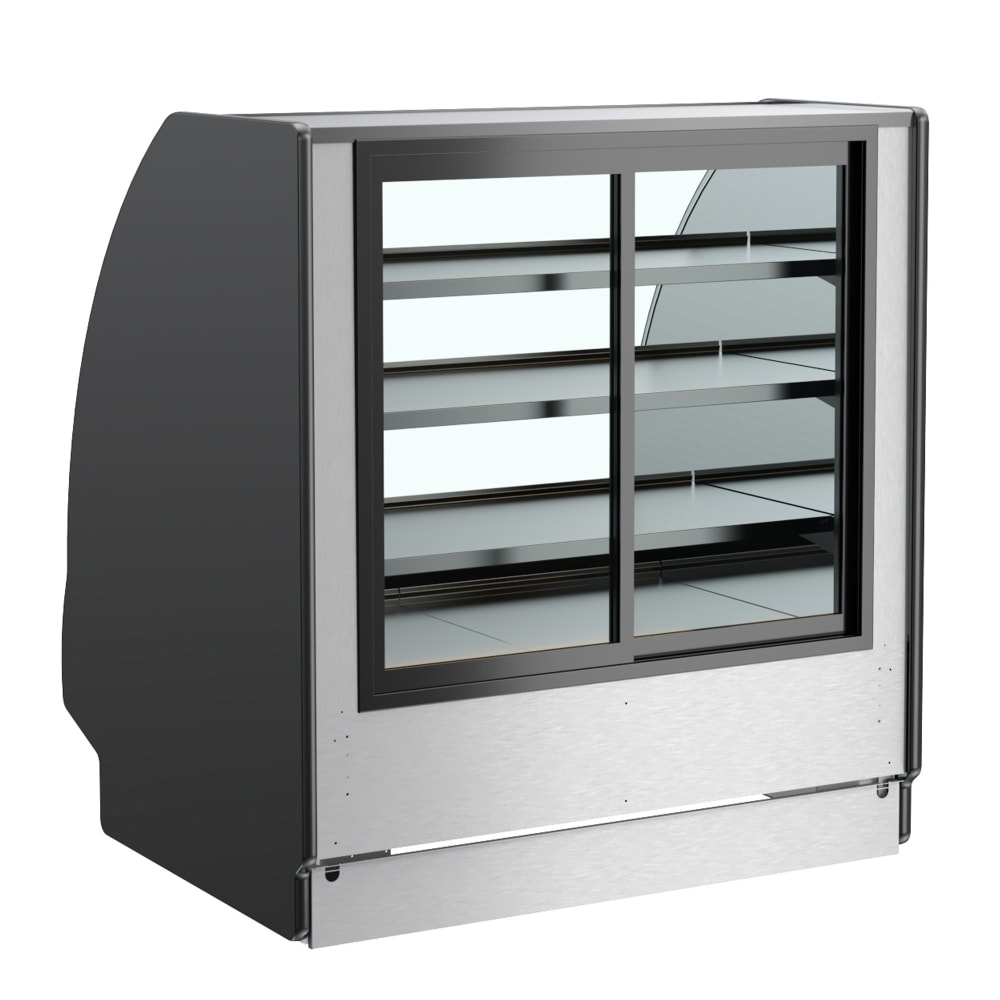

• Clear glass rear sliding doors
• 1-in. Boston bumper
• 3 solid shelves
• Frosted LED 3500K top and shelf lighting
• Rail system base support for shimming
• Remote DX refrigeration
• Integrated average product temperature: 40 degrees F or less

Dimensions & Utilities

• Shelf: 48 in. W x 20 in. D (each level)
• Interior: 48 in. W x 27 in. D x 30 in. H
• Overall: 51 in. W x 42³⁄₄ in. D x 55¹⁄₄ in. H
• 2.66, 251 W
• 110–120 V/60 Hz/1 ph, remote electrical connection

*Free shipping on Structural Concepts GHS456RLB (CURVED) within the 48 contiguous states.

From The Manufacturer

Fusion® Refrigerated Service Case, 51"W x 42-3/4"D x 55-1/4"H, curved lift-up front glass, (3) solid shelves, 40°F or less integrated average product temperature, LED top and shelf lights with frosted lens, clear glass rear sliding doors, remote DX refrigeration, stainless steel rear exterior, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
