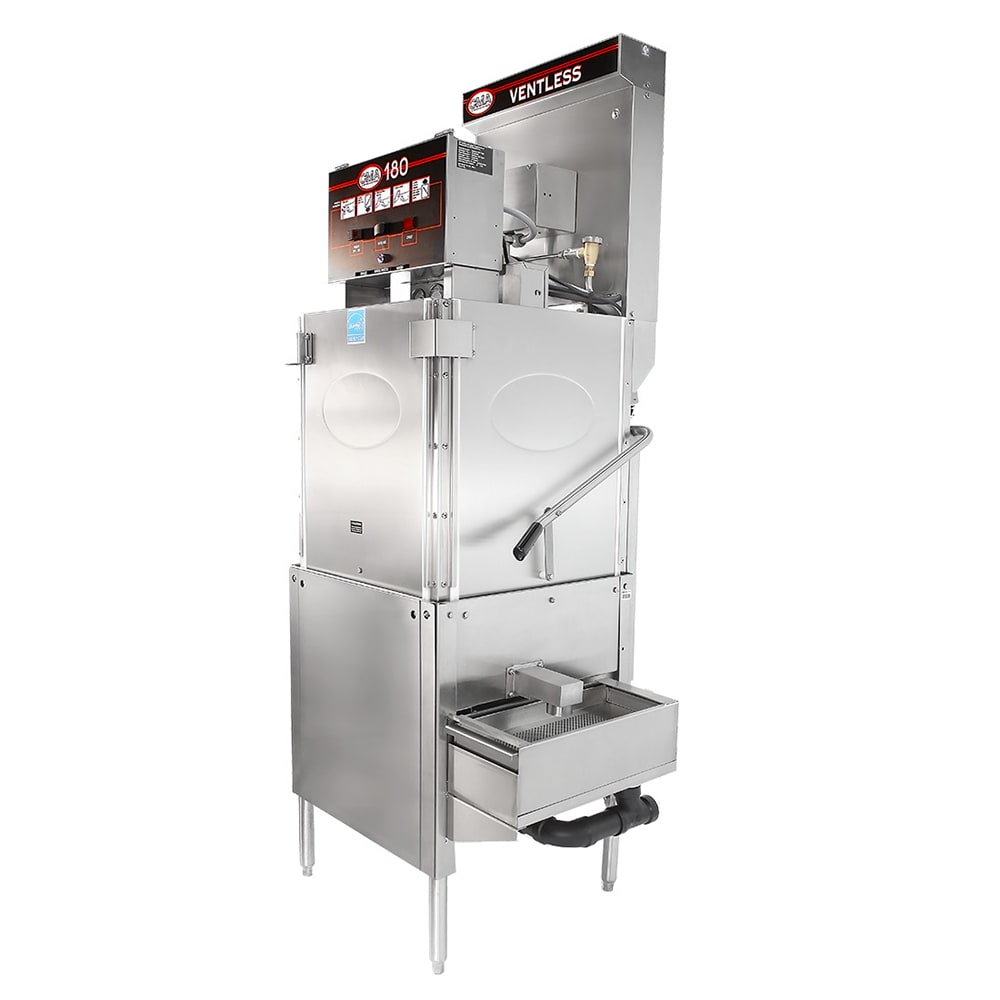

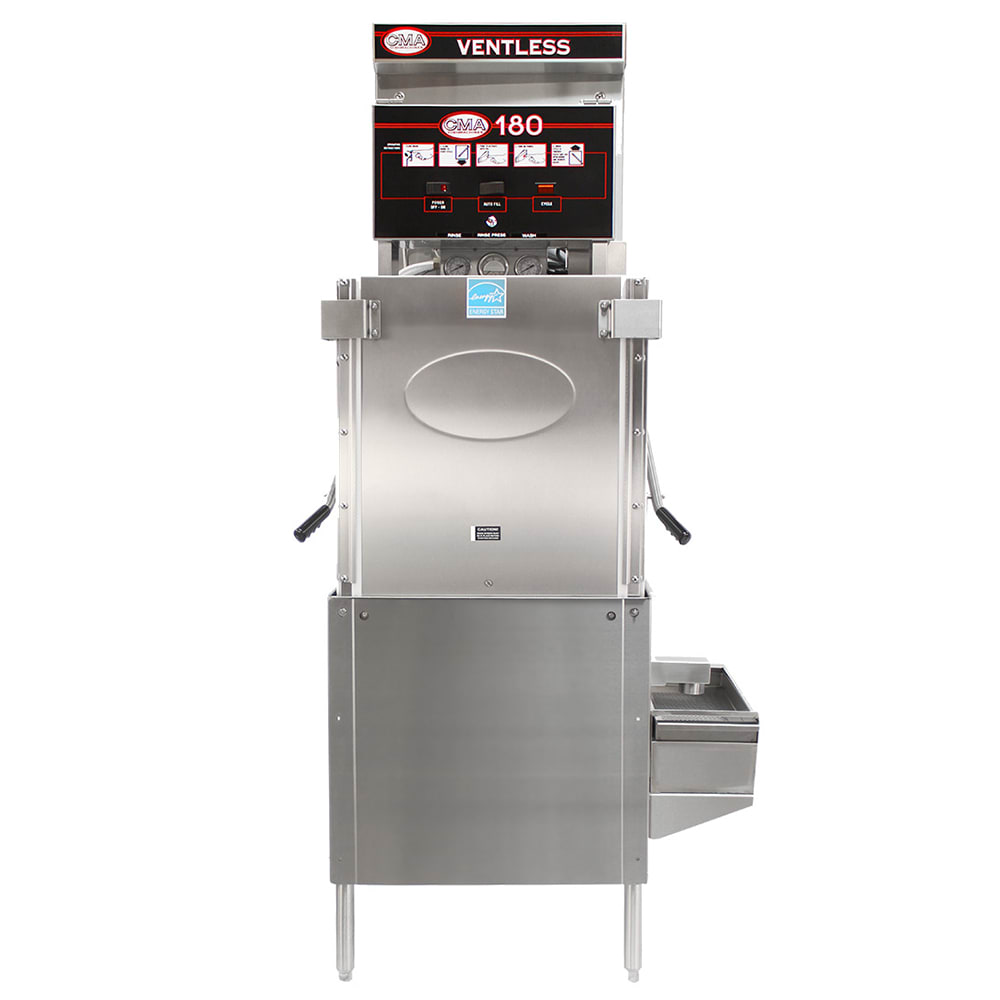

CMA CMA-180-VL High Temp Door Type Dishwasher w/ Booster Heater, 208v/3ph

Image may not depict product color, inclusions or accessories.

KaTom #: 527-CMA180VL2083 • MPN: CMA-180-VL 208/3
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $10,842.00
Login or call us for more info!

Selected Voltage: 208V, 3 Phase

Image may not depict product color, inclusions or accessories.

CMA CMA-180-VL Description


The CMA 180-VL electric, high temp, door-type dishwasher’s cycle is fully automatic and has a door-actuated start. A total cycle, including the wash, rinse, and steam, lasts 90 seconds. Wash temperature stays between 155 and 160 degrees Fahrenheit, while rinse water maintains a range of 180 to 195 degrees Fahrenheit. With the Safe-T-Temp feature, rinse water is guaranteed to maintain a temperature of at least 180 degrees Fahrenheit to properly sanitize dishes.

The warewasher is constructed of stainless steel, offering durability for heavy-duty situations. Wash tank screens filter recirculating wash water, preventing soil from entering spray arms. To reduce water consumption and protect the plumbing system components, there is a rinse pressure regulating valve. There is a 1712 inch maximum clearance for dishes on the CMA 180-VL electric, high temp, door-type dishwasher. It can be used in both straight-through and corner applications since it has three doors.

Product Details

  • 180 degrees F sanitizing rinse is ensured with the Safe-T-Temp feature
  • Booster-safety thermostat measures temperature
  • Cycle is fully automatic to make operation simple
  • Cycle begins when the door is closed and door remains locked through the entire cycle
  • Total wash, rinse, and steam cycle lasts 90 sec.
  • 155-160 degrees F wash temperature range
  • Rinse temperature ranges from 180-195 degrees F
  • Uses 0.89 gal. of water per rack
  • Wash tank screens prevent soil from entering spray arms by filtering the recirculating wash water
  • Constructed of stainless steel to increase durability and prevent corrosion
  • 1712 maximum clearance for dishes
  • Rinse pressure regulating valve reduces incoming water pressure to protect the plumbing system’s components and reduce water consumption
  • Water level safety control ensures the water level is correct to prevent overflowing
  • Can be used in straight or corner applications with the 3 doors
  • 208 V/60 Hz/3 ph, 1 HP, 49 A
  • Overall Dimensions: 2512 in. W x 29 in. D x 86516 in. H
  • cULus listed; NSF and ENERGY STAR certified

Energy Mizer® Ventless Dishwasher, door type, 25-1/2"W x 29"D x 86-5/16"H, ventless heat recovery & condensation removal, high temperature sanitizing with built-in 12.0 kW booster heater, approximately (40) racks/hour, 17-1/2" dish clearance, Safe-T-Temp rinse feature, fully automatic cycle, 6.0 kW wash tank heater, automatic heat exchanger condenser & wash-down, door safety interlock system included, rinse pressure regulating valve & wash tank screens, stainless steel construction, adjustable feet, straight or corner application, 1 HP wash pump motor, cULus, ASTM, NSF, ENERGY STAR®, 208v/60/3ph

(Bare wire unit)

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

CMA CMA-180-VL Specifications

PDF Spec Sheet
Manufacturer CMA
Height (in) 86.31
Width (in) 25.5
Design Standard
Type High Temp
Heat Electric
Racks per Hour 40
Door Type Lift Up
Depth (in) 29
Cavity Height (in) 17.5
Control Location Top of Unit
Specialty Options Elevated Control Panel
Specialty Options Booster Heater
Phase 3
Hertz 60
Voltage 208
Product Type Dishwashing Supplies
Product Dishwasher
Weight 400.00
CMA CMA-180-VL Certifications
  • UL
  • NSF
  • Energy Star
