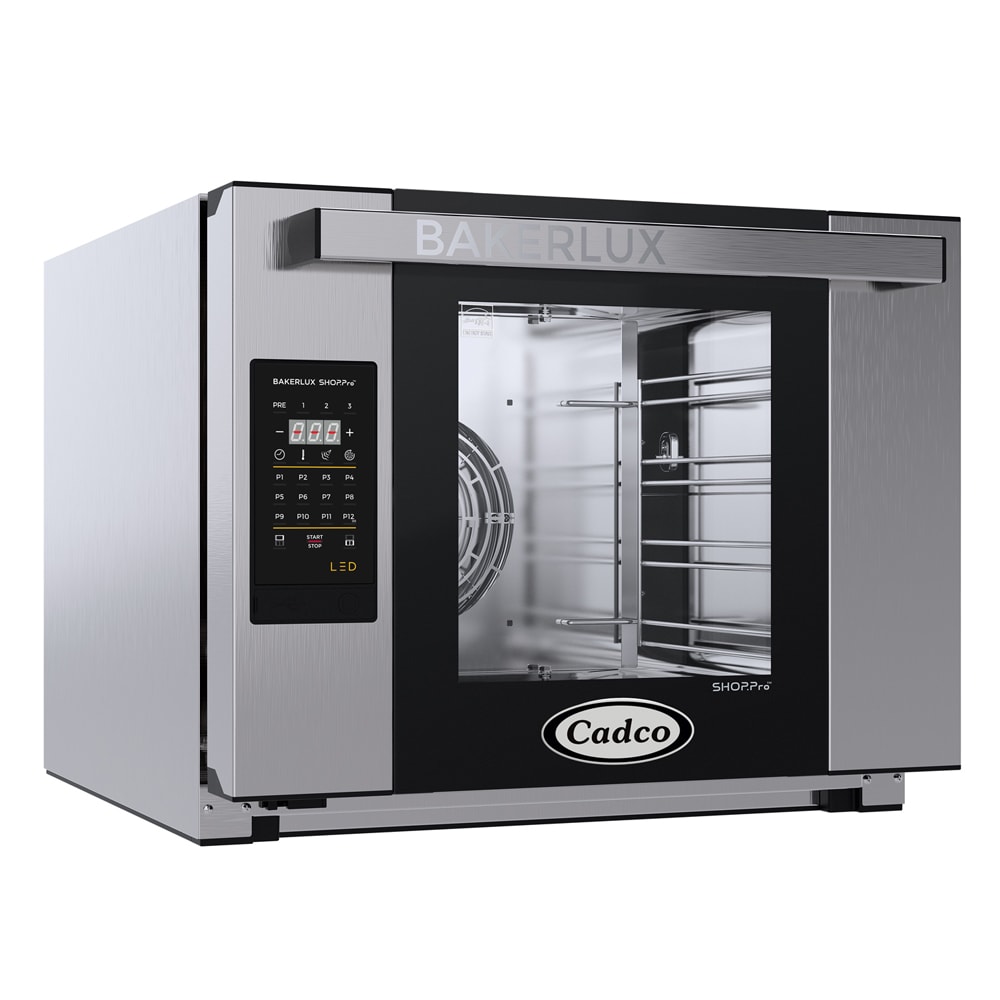

Cadco XAFT-04HS-LD Bakerlux™ Half-Size Countertop Convection Oven, 208-240v

KaTom #: 516-XAFT04HSLD • MPN: XAFT-04HS-LD
  • 516-XAFT04HSLD Primary Thumbnail Image
  • 516-XAFT04HSLD Multiple Thumbnail Image #1

Typically ships in 1 - 3 Business Days

Free Shipping Eligible

$2,321.21 /Each

  • Protect Your Product
  • Coverage starting at $48.00
  • Edit Remove
Josiah Brown User Image
Ask a Foodservice Equipment Specialist

Cadco XAFT-04HS-LD Description

Accommodating four half-size sheet pans, the Cadco XAFT-04HS-LD Bakerlux™ heavy-duty convection oven utilizes an advanced airflow system with one automatically reversible fan and two fan-speed settings to promote even baking throughout the cooking chamber. Digital controls manage time, temperature, and humidity functions, while operators can save up to 99 programs, including 12 quick-access recipes, for consistent results. The oven operates between 175 and 500 degrees Fahrenheit and includes a timer that can run for up to 10 hours or continuously.

Built of heavy-duty stainless steel, the Cadco XAFT-04HS-LD convection oven features a bottom-hinged, cool-touch, double-wall glass door that improves product visibility while helping retain heat. An interior LED light illuminates the cooking chamber, and an electro valve enables direct water connection for humidity-controlled baking applications. Four wire shelves are included, while automatic shutoff activates when the door is opened to support efficient operation. The unit can also be stacked with an optional proofer or stacking kit to increase production capacity without expanding countertop space.

Water Connection
Electro valve supports direct water hookup for humidity control
Interior Lighting
LED chamber lights improve visibility during loading and checks
Glass Door
Two-layer door lets staff monitor product without opening the oven
2-Speed Fan
Reversible airflow promotes even baking across the chamber
Quick Access
12 preset buttons support frequently used recipes

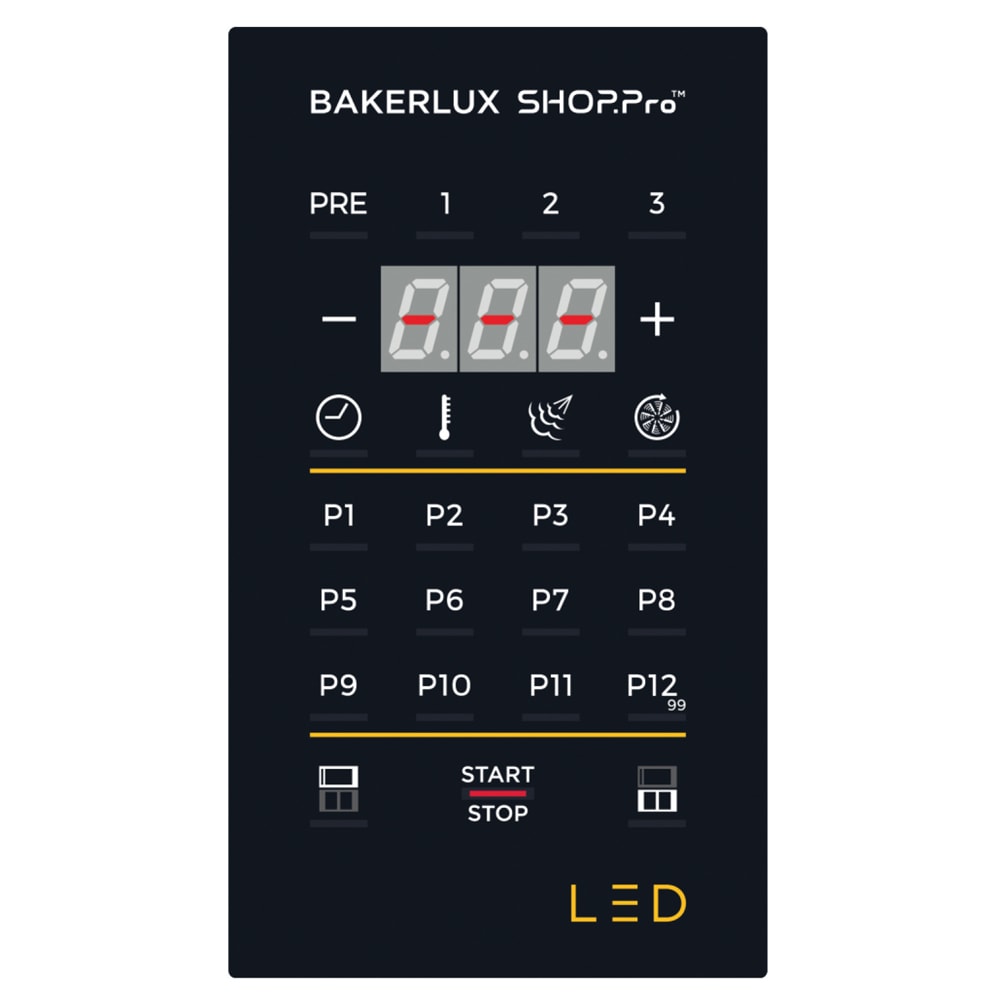

LED Controls
Panel stores up to 99 programs for repeat menu items

  • Part of the Bakerlux series
  • Countertop configuration
  • 4 half-size sheet pan capacity
  • Stainless steel construction
  • Bottom-hinged, cool-touch, double-wall glass door
  • 4 wire shelves included
  • Interior LED light
  • Electro valve for direct water connection
  • 1 automatically reversible fan
  • 2 fan speeds
  • Digital controls for time, temperature, and humidity
  • Up to 99 programmable recipes
  • 12 quick-access programs
  • Up to 3 baking steps per program

  • Cooking chamber: 19 1⁄4 in. W x 14 in. D x 13 1⁄4 in. H
  • Overall: 23 11⁄16 in. W x 25 1⁄2 in. D x 19 in. H
  • 16 A, 2,900-3,800 W
  • 208-240 V/60 Hz/1 ph, cord with NEMA 6-20P plug
516-XAFT04HSLD Content Banner

*Image may not depict product color, inclusions or accessories.

*Cadco XAFT-04HS-LD is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Bakerlux™ LED Heavy-Duty Convection Oven, electric, countertop, half size, (4) half size sheet pan capacity (pans not included), (4) shelves, 175-500° F temperature range, digital touch controls for time, temperature, & humidity, 10 hour timer or continuous on, (3) baking steps, saves up to (99) programs including 12 "Quick Access" programs, interior LED light, (1) automatically reversible fan, (2) fan speeds, includes electro valve for direct water connection, bottom hinged glass door, heavy-duty stainless steel construction, 208-240v/60/1-ph, 2900-3800 watts, 16.0 amps, NEMA 6-20P, NSF, cETLus, ENERGY STAR® (can run optional proofer - not included)

Warranty Icon
2-year Limited Parts & Labor; 3-year Parts; 90-day Light Bulbs & Gasket; 30-day Glass

Cadco XAFT-04HS-LD Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.

Warning Small WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Replacement for the Following Item
  • Cadco XAFT135
