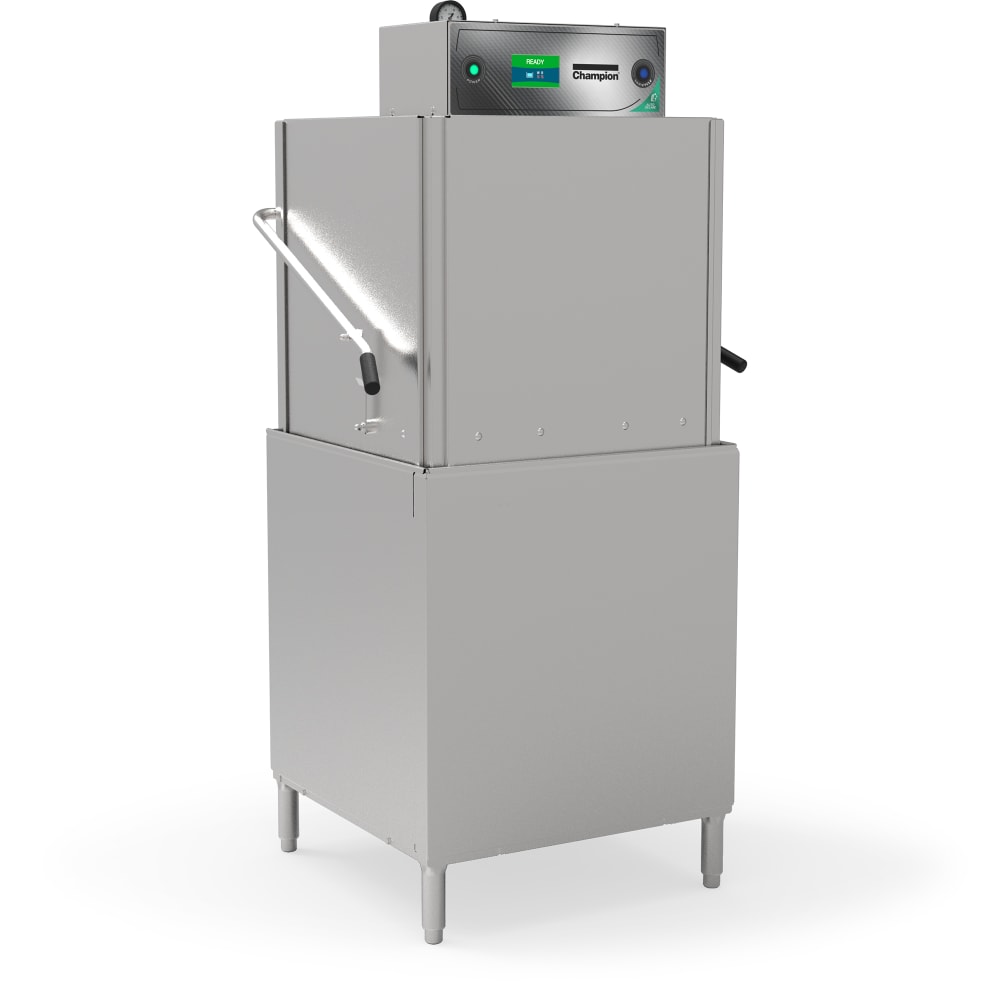

Champion DH-3000 High Temp Door Type Dishwasher w/ 60 Racks/hr Capacity, Built-in Booster, 208-240v/3ph
$10,759.70 /Each
Contact us for details!
Selected Voltage: 208-240V, 3 Phase
| 208-240V, 3 Phase |
| 208-240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Champion DH-3000 Description
The Champion DH-3000 high temp door type dishwasher features a 60 rack-per-hour throughput and a built-in booster that reaches 180 degrees Fahrenheit for sanitizing. It uses just 19⁄25 gallons of water per rack. Auto-start begins the cycle when the door closes, and rinse sentry ensures water reaches temperature before the final rinse.
With its Varicycle feature, the Champion DH-3000 high temp door type dishwasher extends wash time up to 16 minutes for heavy soil loads. Automatic delime and drain functions reduce manual upkeep between shifts. A lift-up door, stainless steel construction, and a 17 7⁄16-inch opening support consistent performance and easy access for streamlined loading and unloading.
- 3000 series
- Sanitizes 60 racks per hour
- 19⁄25 gal. of water per rack
- Built-in electric booster
- User interface with 4 5⁄16-in. color TFT display and on-board diagnostics
- Lift-up door type with 17 7⁄16-inch opening height
- Top-mounted splash-proof controls
- Varicycle feature
- Rinse Sentry
- Auto-start initiates cycle
- Automatic delime and drain
- Vent fan, detergent, and rinse aid signal provided
- Low water tank heat protection
- Water temperature: 110 to 140 degrees F
- Wash temperature: 150 degrees F
- Rinse temperature: 180 degrees F
- Includes peg and flat racks
- Overall dimensions: 31 7⁄8 in. W x 30 3⁄8 in. D x 65 1⁄4 in. H
- 40 A, 7.5 kW, 1 HP
- 208–240 V/60 Hz/3 ph, plug not included
- 3 3⁄4-in. NPT hot water inlet
- 1-in. NPT drain
- 15 GPM flow rate
*Image may not depict product color, inclusions or accessories.
*Free shipping on Champion DH-3000 within the 48 contiguous states.
From The Manufacturer
Dishwasher, door type, high temperature with built-in 40° & 70° F rise electric booster, self-draining pump, 60 racks/hour capacity, top mounted splash proof controls, user intuitive 4.3” color display, Vari-cycle extendable wash timer, rinse sentry, auto-start, automatic drain, automatic delime function, on-board diagnostics, machine can also be field or factory converted to display French/English & Fahrenheit/Celsius, field conversion capable for corner or straight through configuration, NSF, cULus, ENERGY STAR®
Champion DH-3000 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Champion |
| Cavity Height (in) | 17.44 |
| Control Location | Top |
| Depth (in) | 30.38 |
| Design | Standard |
| Door Type | Lift Up |
| Drain Type | Automatic |
| Heating Source | Electric |
| Height (in) | 65.25 |
| Hertz | 60 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 60 |
| Rating | Better |
| Series | 3000 Series |
| Special Features | Built In Booster |
| Special Features | Corner Convertible |
| Type | High Temp |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 31.88 |
| Weight | 318.00 |
