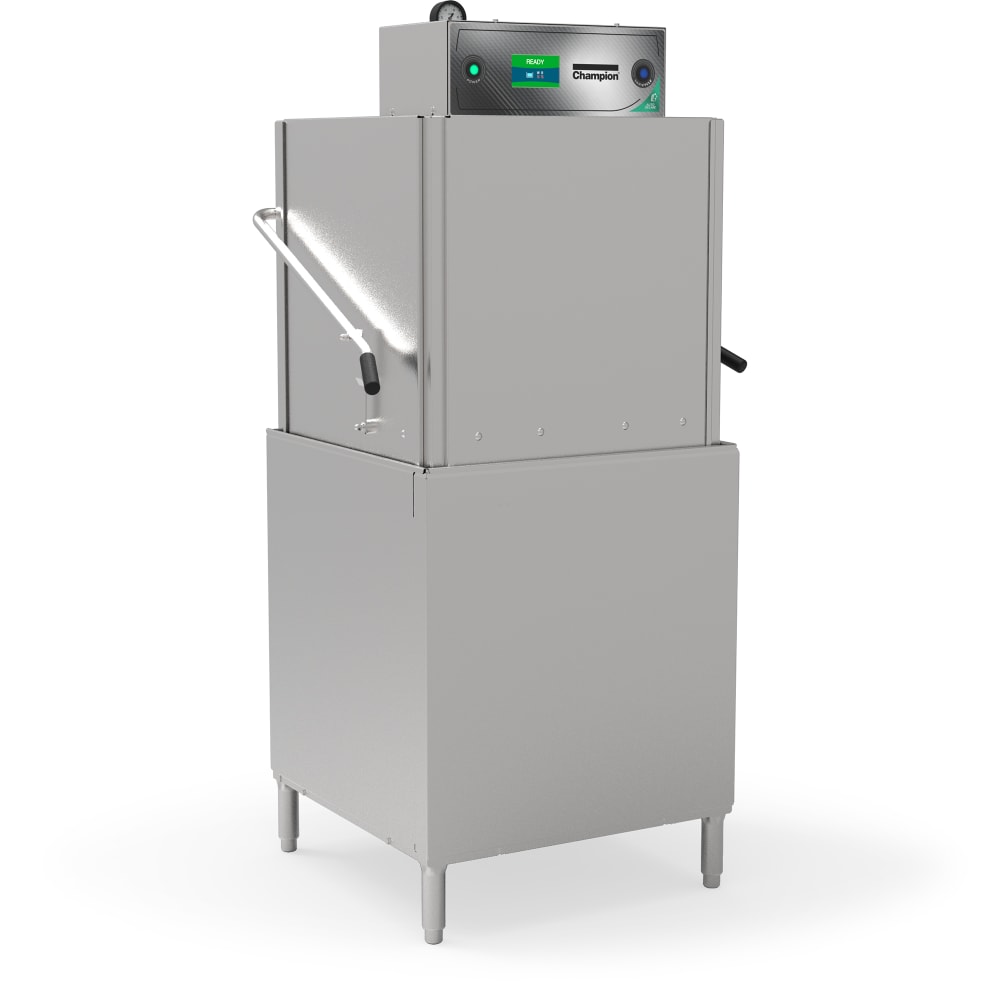

Champion DH-3000 High Temp Door Type Dishwasher w/ 60 Racks/hr Capacity, Built-in Booster, 208-240v/1ph
$10,759.70 /Each
Contact us for details!
Selected Voltage: 208-240V, 1 Phase
| 208-240V, 1 Phase |
| 208-240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Champion DH-3000 Description
To meet sanitation standards, the Champion DH3000-VHR high temp door type dishwasher brings water into the unit between 110 and 140 degrees Fahrenheit, while wash and rinse temperatures reach 150 and 180 degrees Fahrenheit. Low water heat protection safeguards internal components, and the system maintains a 15 GPM flow rate for consistent, efficient wastewater removal.
Designed to adapt with changing kitchen layouts, the Champion DH-3000 high temp door type dishwasher is field convertible for corner or straight-through installation. Its auto-drain system includes a full-port stainless and brass ball valve, while low water tank heat protection maintains system integrity. Top-mounted splash-proof controls and onboard diagnostics aid in identifying issues quickly.
- 3000 series
- Sanitizes 60 racks per hour
- 19⁄25 gal. of water per rack
- Built-in electric booster
- User interface with 4 5⁄16-in. color TFT display and on-board diagnostics
- Lift-up door type with 17 7⁄16-in. opening height
- Top-mounted splash-proof controls
- Varicycle feature
- Rinse Sentry
- Auto-start initiates cycle
- Automatic delime and drain
- Field convertible for straight-through or corner installation
- Vent fan, detergent, and rinse aid signal provided
- Low water tank heat protection
- Water temperature: 110 to 140 degrees Fahrenheit
- Wash temperature: 150 degrees Fahrenheit
- Rinse temperature: 180 degrees Fahrenheit
- Includes peg and flat racks
- Overall dimensions: 31 7⁄8 in. W x 30 3⁄8 in. D x 65 1⁄4 in. H
- 65 A, 7.5 kW, 1 HP
- 208–240 V/60 Hz/1 ph, plug not included
- 3 3⁄4-in. NPT hot water inlet
- 1-in. NPT drain
- 15 GPM flow rate
*Image may not depict product color, inclusions or accessories.
*Free shipping on Champion DH-3000 within the 48 contiguous states.
From The Manufacturer
Dishwasher, door type, high temperature with built-in 40° & 70° F rise electric booster, self-draining pump, 60 racks/hour capacity, top mounted splash proof controls, user intuitive 4.3” color display, Vari-cycle extendable wash timer, rinse sentry, auto-start, automatic drain, automatic delime function, on-board diagnostics, machine can also be field or factory converted to display French/English & Fahrenheit/Celsius, field conversion capable for corner or straight through configuration, NSF, cULus, ENERGY STAR®
Champion DH-3000 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Champion |
| Cavity Height (in) | 17.44 |
| Control Location | Top |
| Depth (in) | 30.38 |
| Design | Standard |
| Door Type | Lift Up |
| Drain Type | Automatic |
| Heating Source | Electric |
| Height (in) | 65.25 |
| Hertz | 60 |
| Phase | 1 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 60 |
| Rating | Better |
| Series | 3000 Series |
| Special Features | Built In Booster |
| Special Features | Corner Convertible |
| Type | High Temp |
| Voltage | 208/240 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 31.88 |
| Weight | 318.00 |
