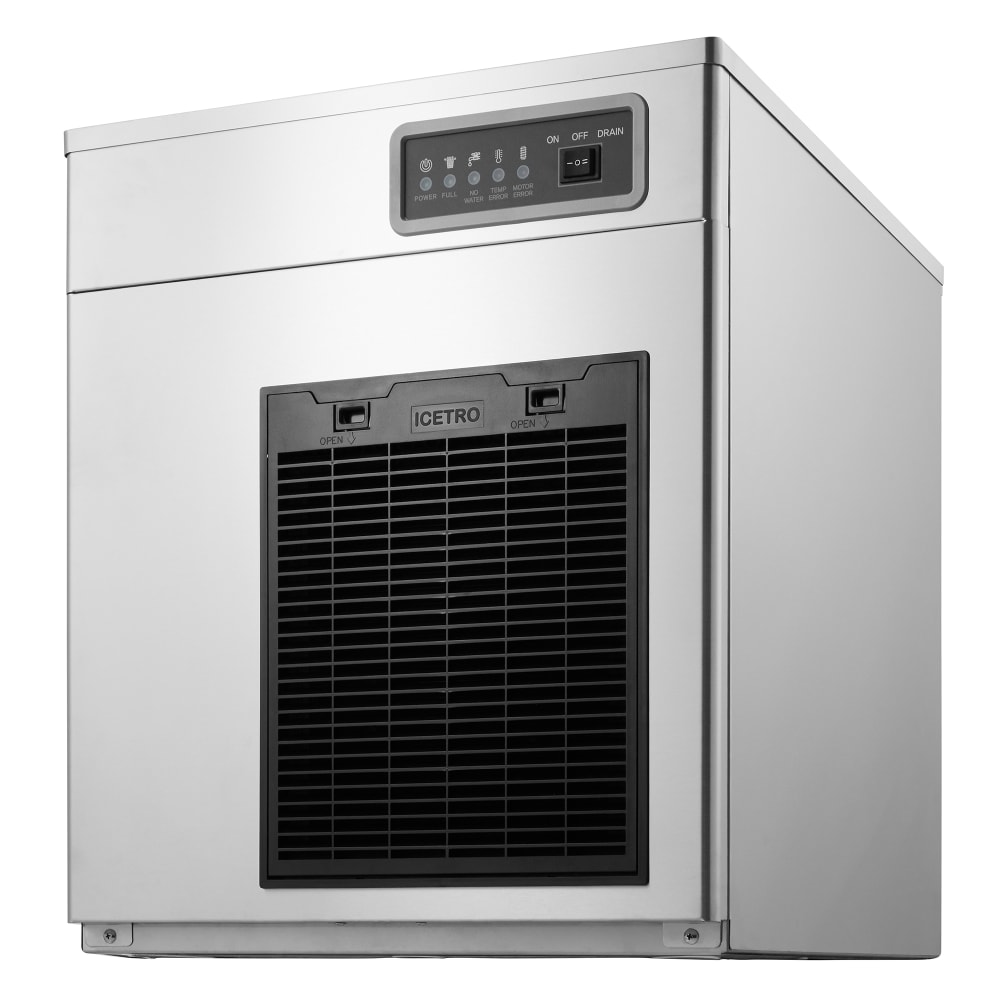

ICETRO IM-0770-AN 22" Nugget Ice Machine Head - 708 lb/24 hr, Air Cooled, 115v/1ph

Built to endure heavy use and resist corrosion, the ICETRO IM-0770-AN ice maker head is made of 304 stainless steel. It can produce 717 pounds of ice when located in 70-degree-Fahrenheit ambient temperatures and using 50-degree-Fahrenheit water. Ideal for sodas, teas, and lemonades, the unit makes nugget-style ice.

The ICETRO IM-0770-AN ice machine head requires the separate purchase of an ice collection bin to function properly. The maker is operated by using the front control panel, which features diagnostic capabilities. The unit is air cooled and features an automatic flush system to reduce buildup.

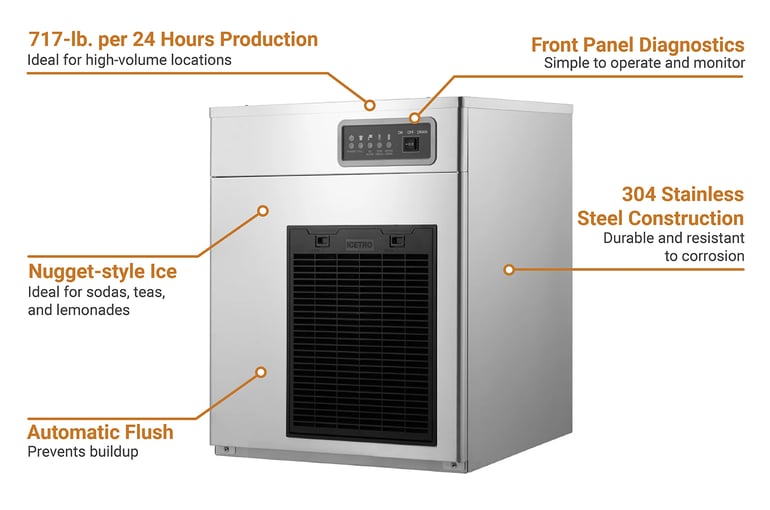

Product Details

• Produces 717-lb. per 24 hours with 70-degree-F ambient and 50-degree-F water temperature
• Nugget-style ice
• 304 stainless steel construction
• Stainless steel evaporator
• Automatic flush
• Front control panel with diagnostics
• Air-cooled compressor

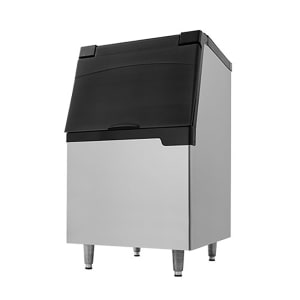

• Requires ice bin for operation (sold separately)
• R-404a refrigerant

Dimensions & Utilities

• 22 in. W x 25²/₅ in. D x 26 in. H
• 20 A, 5.49 kW
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on ICETRO IM-0770-AN within the 48 contiguous states.

From The Manufacturer

Ice Maker, nugget-style ice, air-cooled, self-contained condenser, production capacity up to 708 lbs/24 hr at 70°/50° (635 lbs at 90°/70°), control board diagnostics, automatic flush cycle, 304 stainless steel construction, R-404A refrigerant, 115v/60/1-ph, CE, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor Parts; 3-year Compressor Labor
