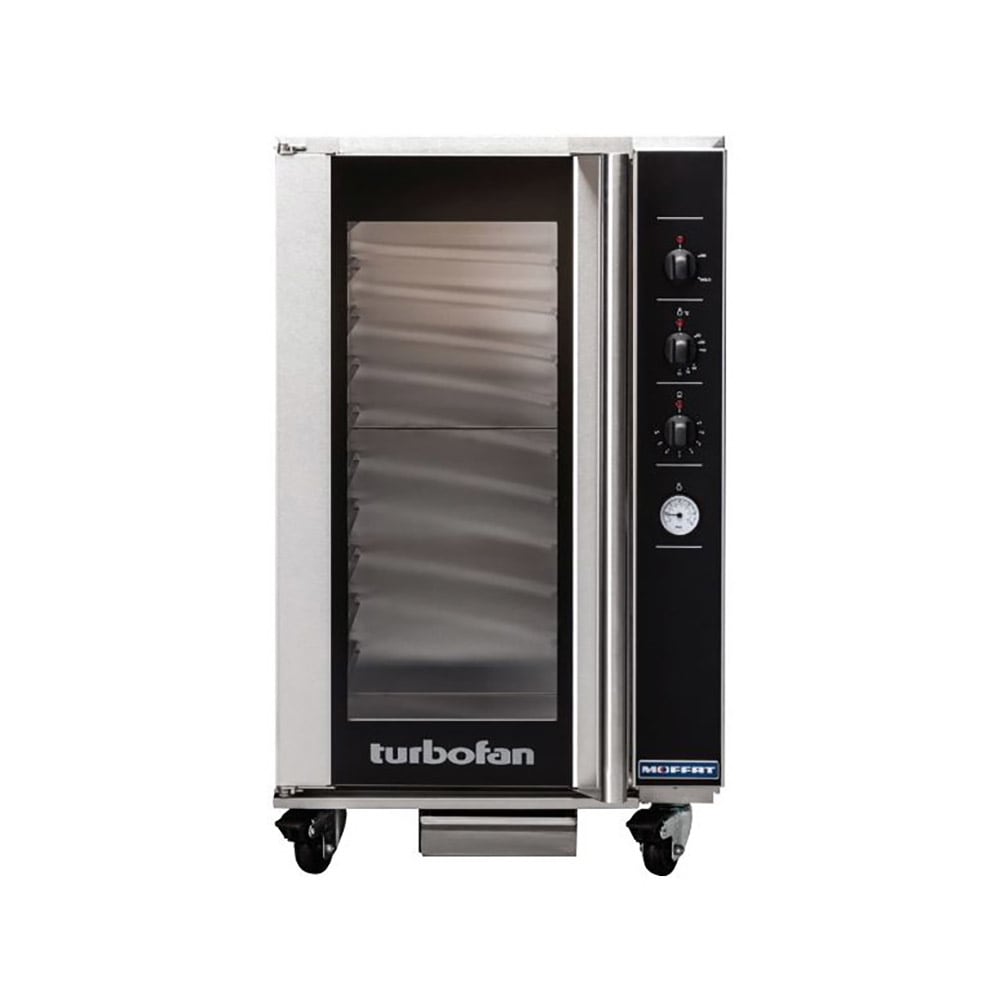

Moffat P10M Turbofan® Half Height Insulated Mobile Heated Cabinet w/ (10) Pan Capacity, 110-120v
$4,810.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Moffat P10M Description
The dual-function Moffat P10M Turbofan® proofing and holding cabinet generates moisture and heat to activate yeast so dough can rise properly. Its control panel features a straightforward mode-selector switch with off, proof, and hold options to initiate humidity production or heating. To accommodate specific proofing and holding requirements as inventory changes, operators can adjust humidity levels and use the mechanical thermostat to modify cabinet heat between 65 and 185 degrees Fahrenheit. For even results, its low-velocity circulation fan system distributes moist air and heat throughout the cabinet. To eliminate manual refilling, its water reservoir refills automatically.
This compact Moffat P10M proofing and holding cabinet measures 24 inches wide by 263⁄4 inches deep by 40 inches high and can be installed with a Turbofan E33D convection oven. Its interior trays accommodate (10) 12-inch by 20-inch steam pans or 10 half-size sheet pans—ideal for medium-volume proofing applications. Operators can monitor proofing through the side-hinged glass door, which grants a full view into the illuminated cabinet. To withstand heavy-duty use, its stainless steel construction resists wear, corrosion, and rust, and it's simple to wipe clean between uses. For smooth mobility when cleaning or maintenance is required, this cabinet is mounted on 3-inch casters—two of which are rigid, while two swivel and lock.
Product Details
- Part of the P series
- Half-height, reach-in unit
- Compatible for installation with Turbofan E33D convection ovens
- Capacity: 10 half-size sheet pans or (10) 12-in. x 20-in. steam pans
- Trays spaced 27⁄8 in. apart
- Dual-function proofing and holding
- Off/proof/hold modes
- Mechanical thermostat temperature range: 65-185 degrees F
- Humidity level control
- Auto water-fill system
- Low-velocity circulation fan system
- Cabinet temperature thermometer
- Stainless steel construction
- Full double-skin construction
- Side-hinged door with 0.2-in.-thick glass and stainless steel frame
- Dual halogen cabinet lamps
- (4) 3-in. casters (2 rigid and 2 swivel with brakes)
- Required incoming water pressure: 20-80 PSI
- Required rear clearance: 1 in.
- Required side clearances: 12 in.

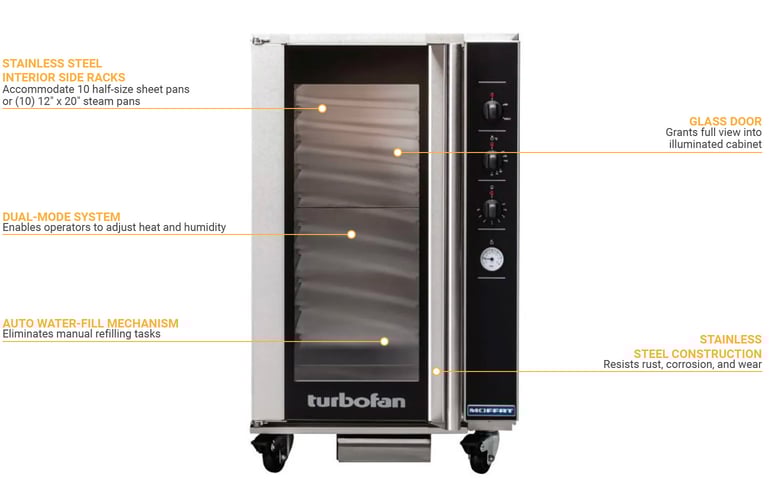

Product Features
Dimensions & Utilities
- 24 in. W x 263⁄4 in. D x 40 in. H
- 11.6 A, 1.45 kW
- 110-120 V/50/60 Hz/1 ph, cordset fitted with NEMA 5-15P plug
- 3⁄4-in. GHT male cold water connection
From The Manufacturer
Turbofan® Proofer/Holding Cabinet, capacity 10 half-size pans, mechanical thermostat, humidity level control, off/proof/hold mode selection, stainless steel interior & exterior with full view glass door, casters, 1.45kW, 110-120v/50/60/1-ph, 11.6 amps, NEMA 5-15P, cETLus, NSF
*Image may not depict product color, inclusions or accessories.
Moffat P10M Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Moffat |
| Application | Heat & Humidity |
| Construction | Stainless Steel |
| Control Location | Side |
| Controls | Dial |
| Depth (in) | 26.75 |
| Door Design | Full |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 40 |
| Hertz | 60 |
| kW | 1.45 |
| Load Type | Reach In |
| NEMA | 5-15P |
| No. of Doors | 1 |
| Pan Capacity | 10 |
| Phase | 1 |
| Product | Proofing Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | Turbofan® |
| Size | 1/2 Height |
| Slide Spacing (in) | 2.87 |
| Slide Type | Bottom Load |
| Type | Insulated |
| Voltage | 110/120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 24 |
| Weight | 210.00 |
