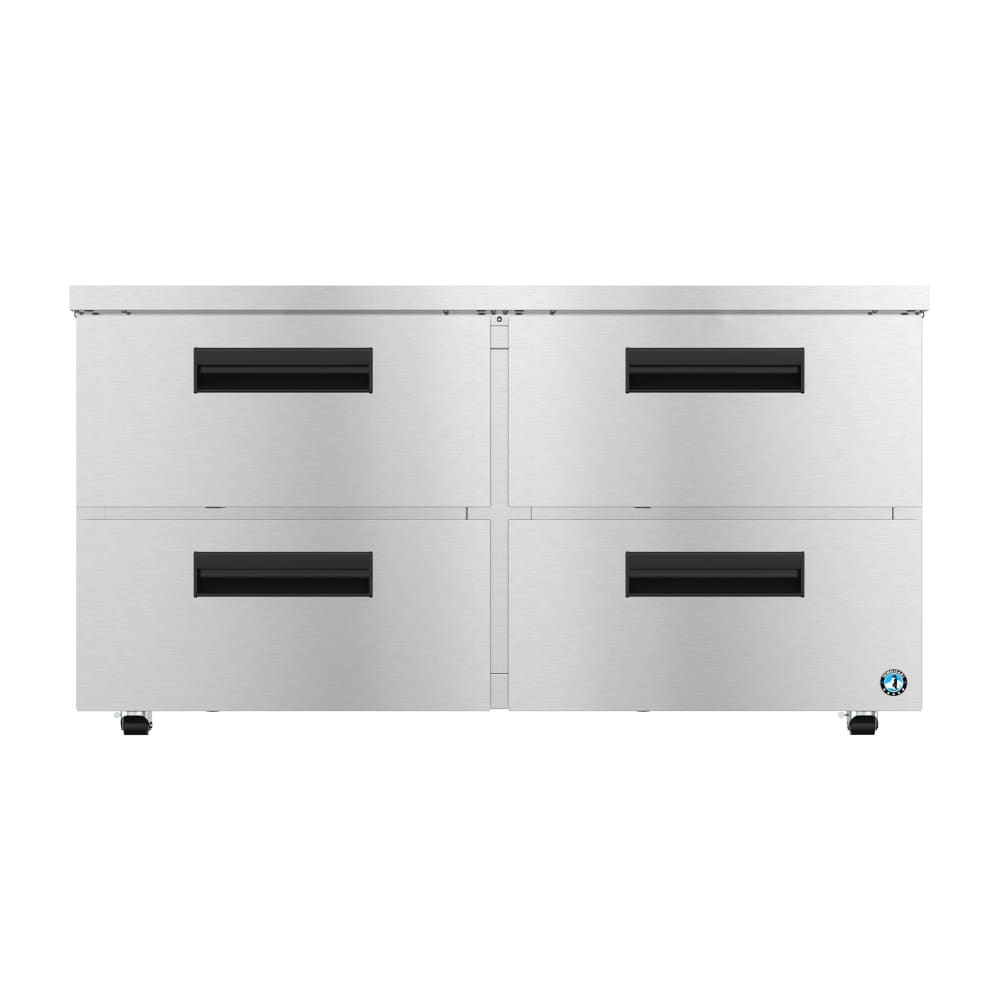

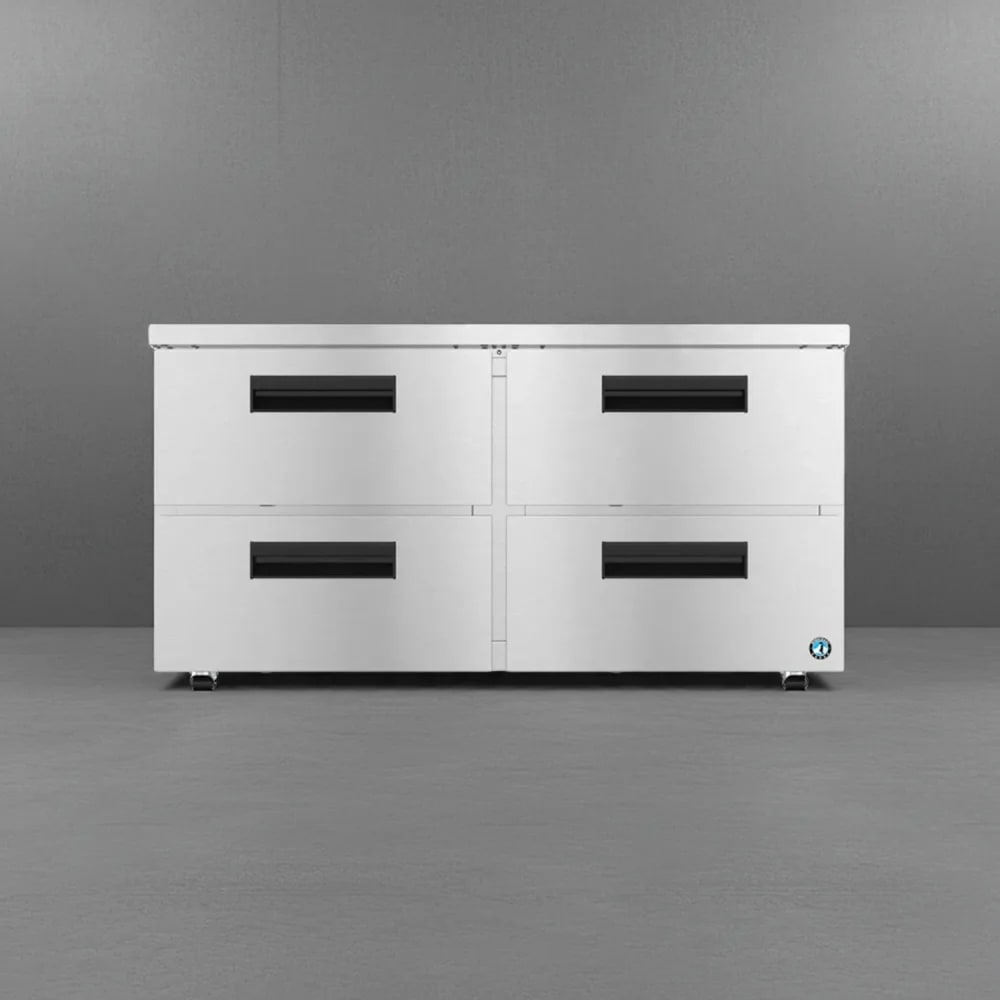

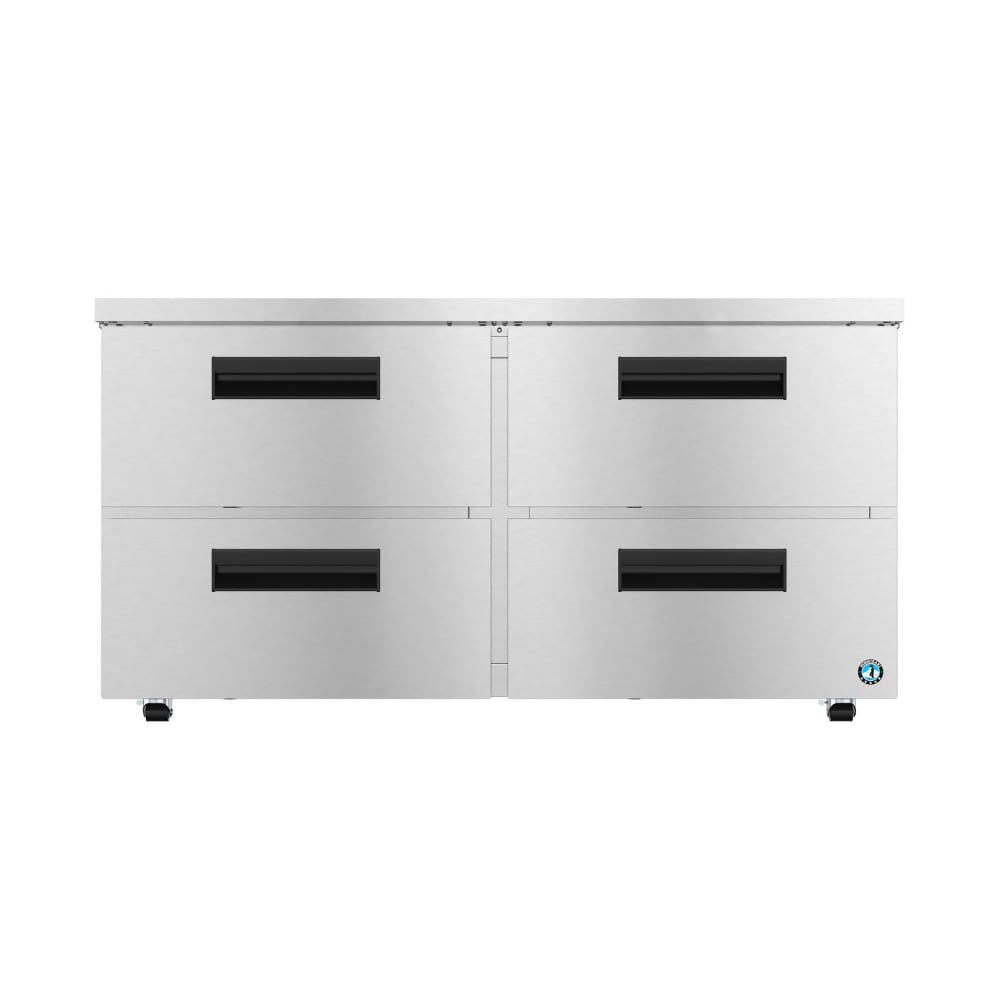

Hoshizaki UR60B-LPD4 60" Steelheart Undercounter Refrigerator w/ (2) Sections & (4) Drawers, 115v

Designed for versatility and durability in commercial kitchens, the Hoshizaki UR60B-LPD4 60-inch Steelheart® ADA-compliant undercounter refrigerator fits beneath 34-inch-high counters and has a 15.1-cubic-foot capacity and four drawers with stainless steel slides, frames, and acetal rollers. The top drawers will accommodate one 20-inch-long by 12-inch-wide full-size pan and two ¹⁄₄-inch-size pans, and the bottom drawers will accommodate one full-size pan. Each drawer can hold 6-inch-deep pans. The drawer handles are made of flush-mounted, extruded aluminum for durability, aesthetic appeal, and a small footprint. The exterior and interior are constructed of stainless steel.

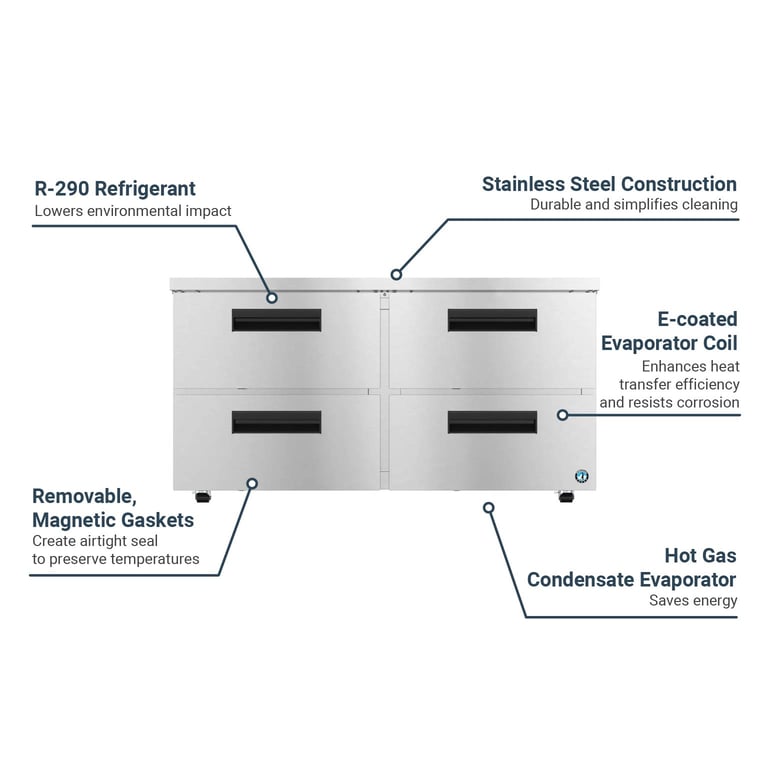

The Hoshizaki UR60B-LPD4 undercounter refrigerator is designed to maintain food-safe, NSF-7 temperatures in environments up to 100 degrees Fahrenheit. The cabinet and drawers have 2 inches of CFC-free, foamed-in-place polyurethane insulation, and the drawers feature magnetic, removable drawer gaskets for a firm seal and simplified cleaning. For a lower environmental impact, this unit utilizes eco-friendly R-290 hydrocarbon refrigerant and an energy-saving hot gas condensate evaporator. The evaporator coil is e-coated for corrosion resistance and enhanced heat transfer capability, while the off-cycle defrost system improves efficiency by preventing ice buildup on the evaporator coil.

Product Details

• Steelheart series
• 15.1-cu.-ft. capacity
• Stainless steel construction
• 4 stainless steel drawers
• Removable, magnetic drawer gaskets
• 2-in., CFC-free, foamed-in-place polyurethane
• Accommodates 6-inch-deep pans
• (4) 2¹⁄₄-in. casters (2 with brakes)

Refrigeration System

• Rear mounted
• Self-contained
• R-290 hydrocarbon refrigerant
• E-coated evaporator coil
• Off-cycle defrost system
• Hot gas condensate evaporator

Dimensions & Utilities

• Overall: 60 in. W x 30 in. D x 31⁹⁄₁₀ in. H
• 15 A, ¹⁄₅ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki UR60B-LPD4 within the 48 contiguous states.

From The Manufacturer

Undercounter Refrigerator Low Profile, with Drawers, reach-in, two-section, 60"W, 15.1 cu. ft., self-contained rear mounted refrigeration system, (4) drawers, stainless steel exterior front, sides & top, coated steel exterior back and bottom, stainless steel interior sides, back and floor with ABS top, (4) 2-1/4" casters, R290 hydrocarbon refrigerant, 10 ft. cord and plug, 1/5 HP, cord, NEMA 5-15P, ADA compliant, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

5-year Limited Labor; 6-year Limited Parts; 7-year Limited Compressor Parts
