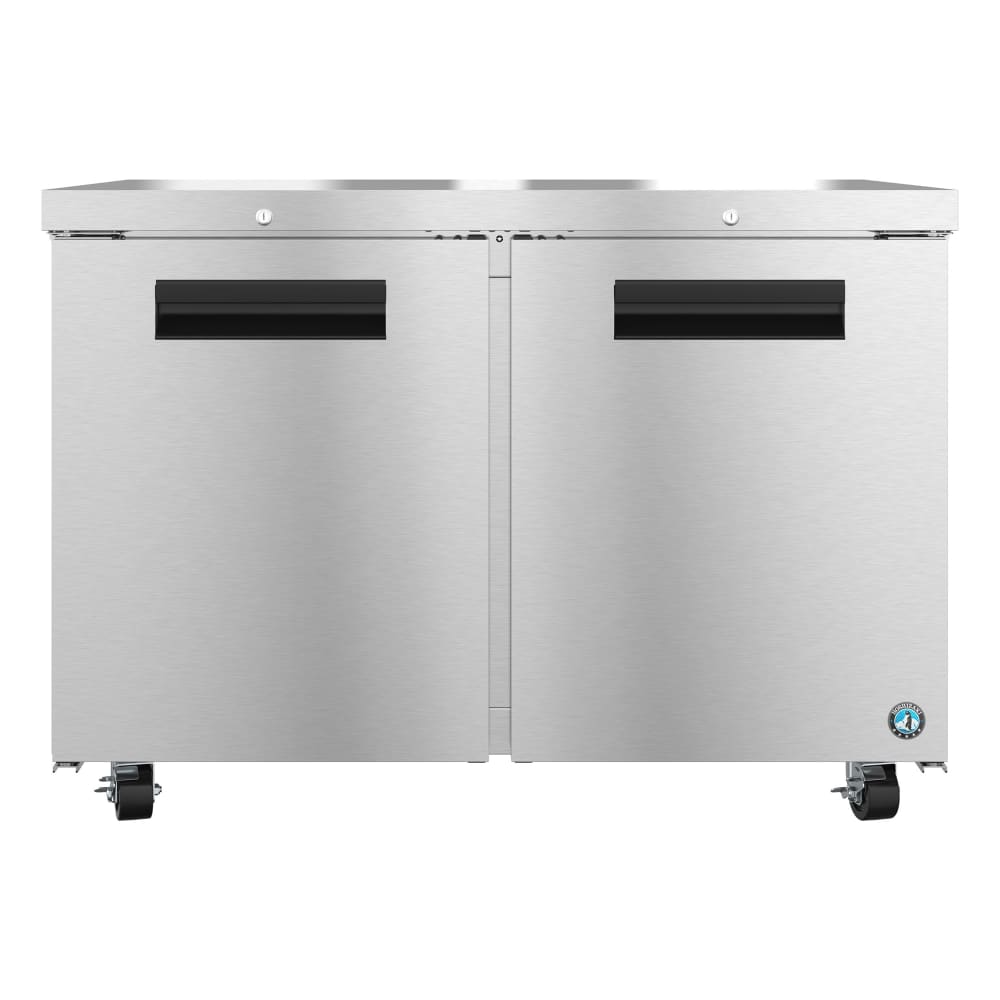

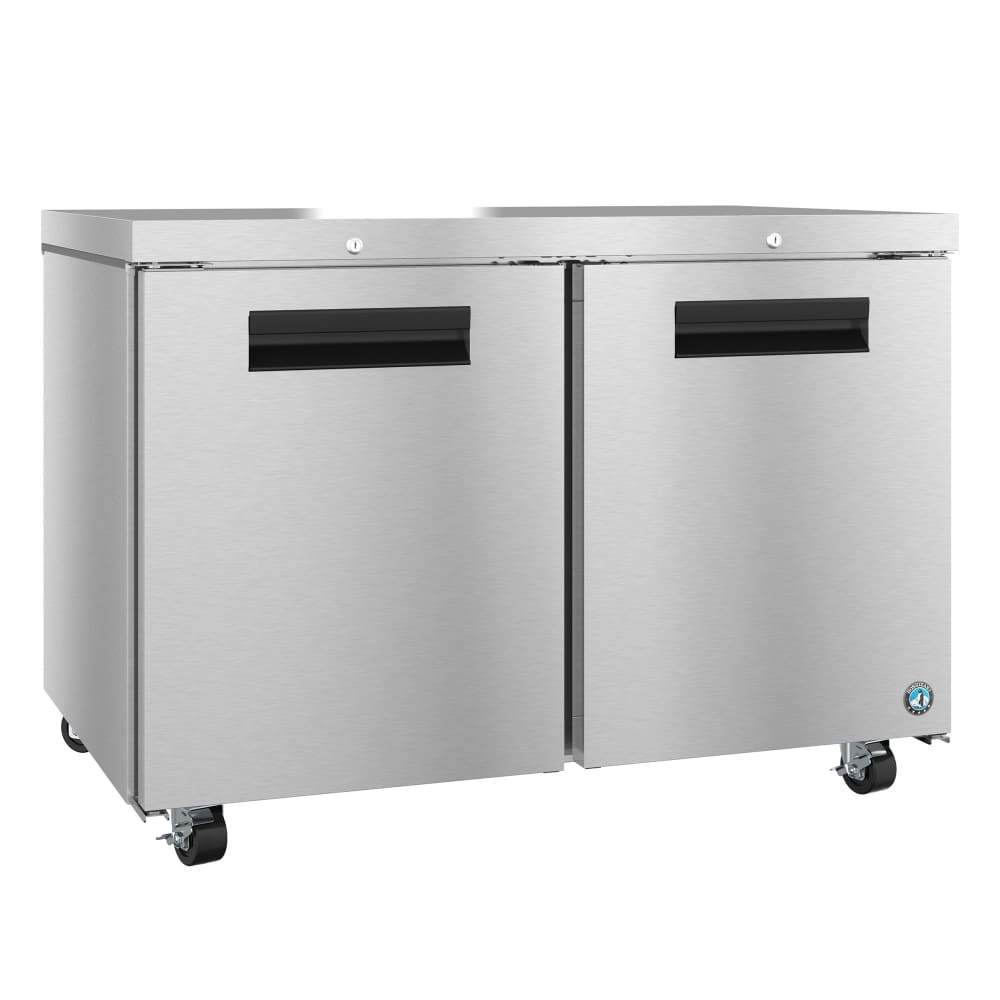

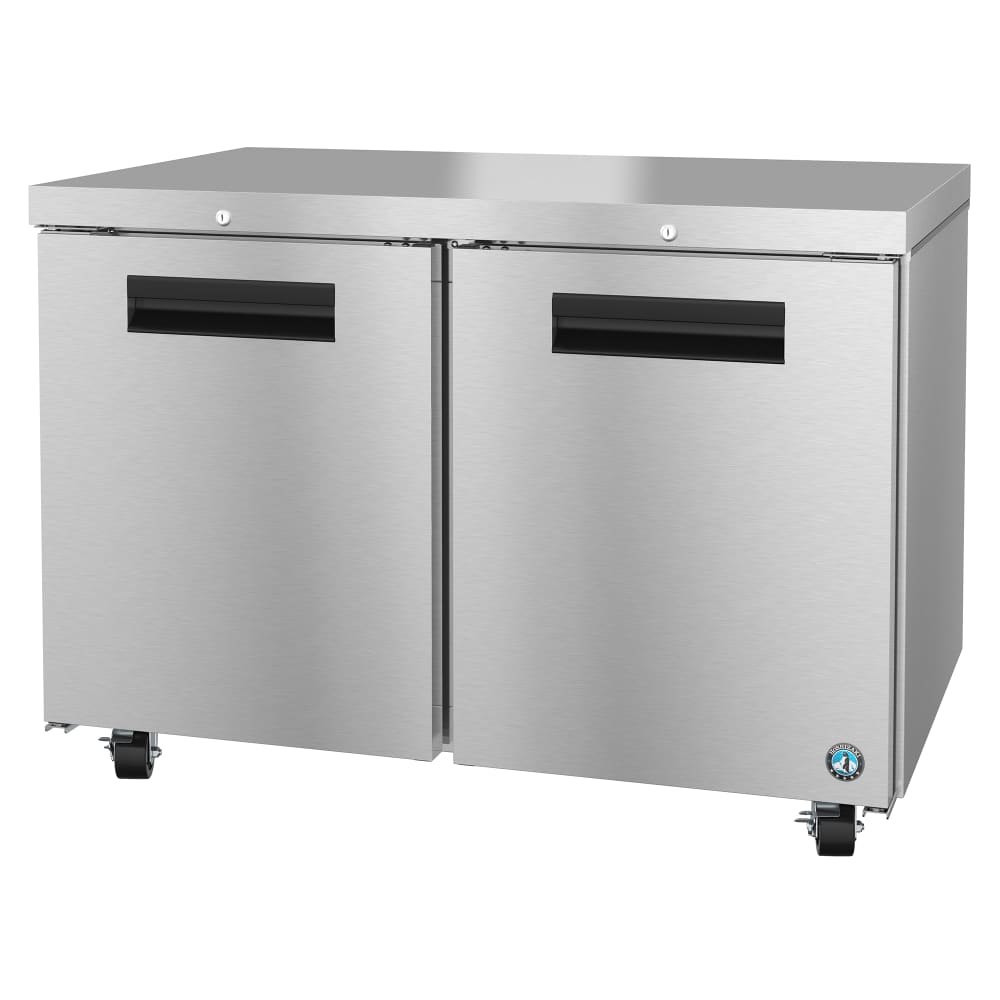

Hoshizaki UR48B-01 48" W Undercounter Refrigerator w/ (2) Sections & (2) Doors, 115v

Designed for long-term use, the Hoshizaki UR48B-01 two-section refrigerator provides 12 cubic feet of cold storage space beneath foodservice countertops. It’s constructed of durable stainless steel—a corrosion-resistant material—which extends from its interior and exterior front, top, and sides to its double doors. These doors are field reversible to fit any layout and incorporate stay-open and self-closing features to assist staff members. Two extruded aluminum handles grant access to the refrigerated cabinet, which is equipped with an adjustable shelf in each section. Additionally, the refrigerator sits on four 4-inch casters to enable smooth mobility as needed.

The Hoshizaki UR48B-01 cold storage unit maintains temperatures between 32 and 52 degrees Fahrenheit with a developed air circulation system and self-contained refrigeration. Located at the rear, the refrigeration compartment features an evaporator with an enamel-coated coil to initiate hot gas condensate removal and travelling R290 hydrocarbon refrigerant that dispels hot air. When the air inside is appropriate to the temperature range, the circulation system works to evenly disperse cold air through the body. Considering this unit tends to build ice, it’s programmed with off-cycle defrosts to restrict refrigerant and protect performance.

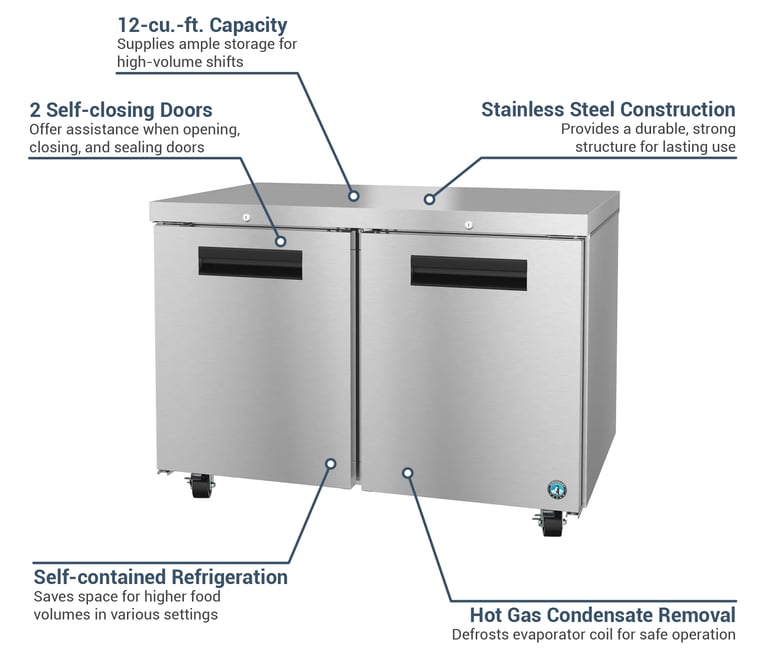

Product Details

• The Steelheart series
• 12-cu.-ft. capacity
• Interior and exterior constructed of stainless steel
• 2 stainless steel doors are field reversible
• Doors automatically close and stay open past 90 degrees
• 2 extruded aluminum handles
• 2 anodized aluminum shelves are adjustable
• (4) 4-in. casters (with 2 that brake)
• Insulated doors and cabin
• Temperature holding range: 32-52 degrees F

Refrigeration System

• Self-contained, rear-mounted refrigeration
• Developed air distribution system
• Enamel-coated evaporator coil
• Removes hot gas condensate
• Off-cycle defrosts
• R290 hydrocarbon refrigerant

Dimensions & Utilities

• 48 in. W x 31 in. D (51¹/₂ in. D with door open) x 33³/₄ in. H
• 3 A, ¹/₅ HP motor
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Hoshizaki UR48B-01 within the 48 contiguous states.

From The Manufacturer

Steelheart Series Undercounter Refrigerator, reach-in, two-section, 48"W, 13.66 cu. ft., self-contained rear mounted refrigeration system, (2) solid hinged doors, cylinder door lock, (2) adjustable shelves, stainless steel interior, stainless steel exterior front, sides & top, (4) 4" stem casters (2 with brakes), hot gas condensate removal, R290 Hydrocarbon refrigerant, 1/6 HP, cord, NEMA 5-15P, ETL-Sanitation, cETLus , ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

6-year Parts; 5-year Labor; 7-year Compressor Parts
