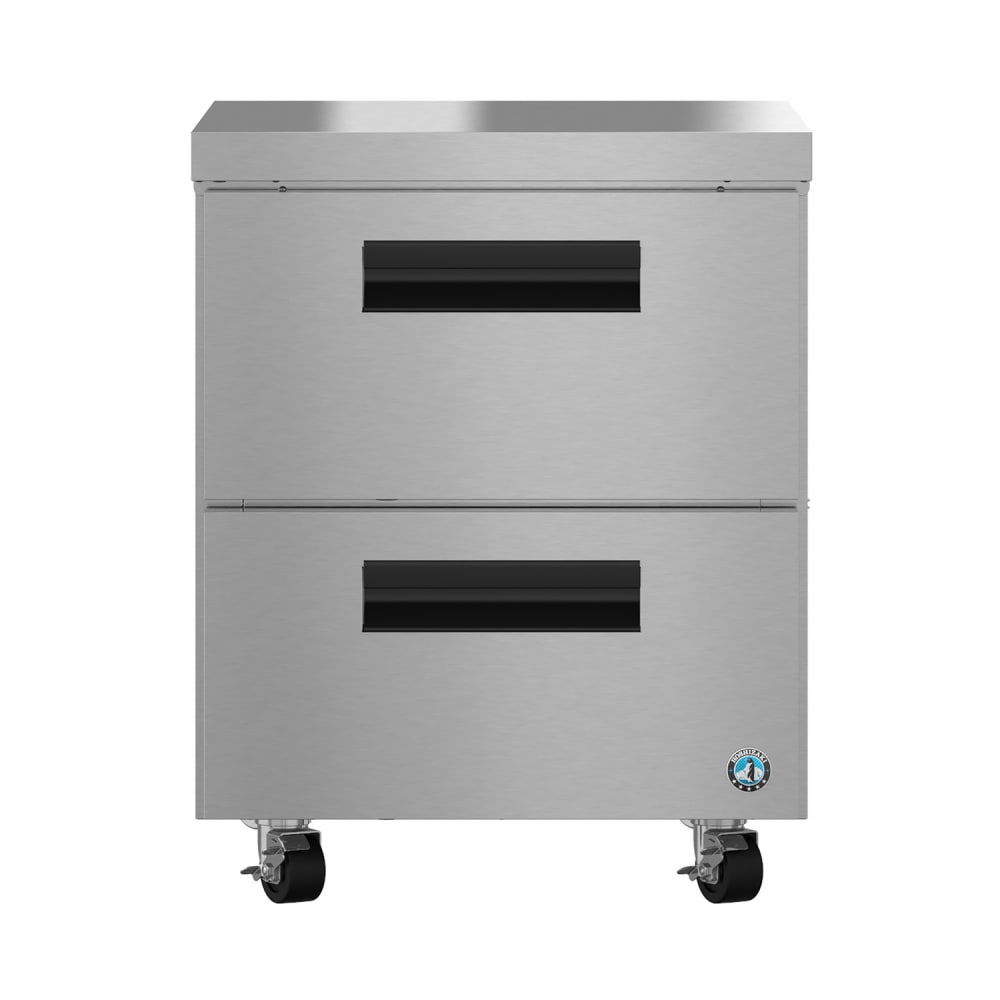

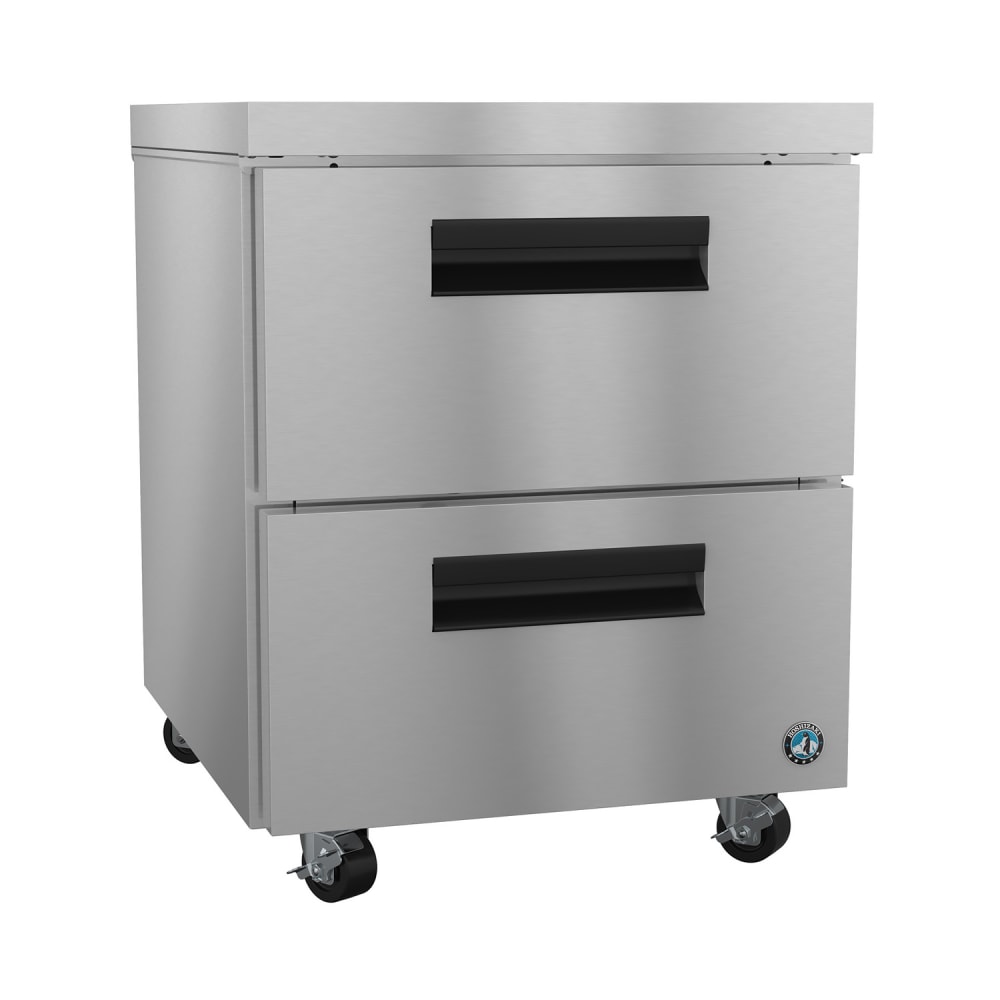

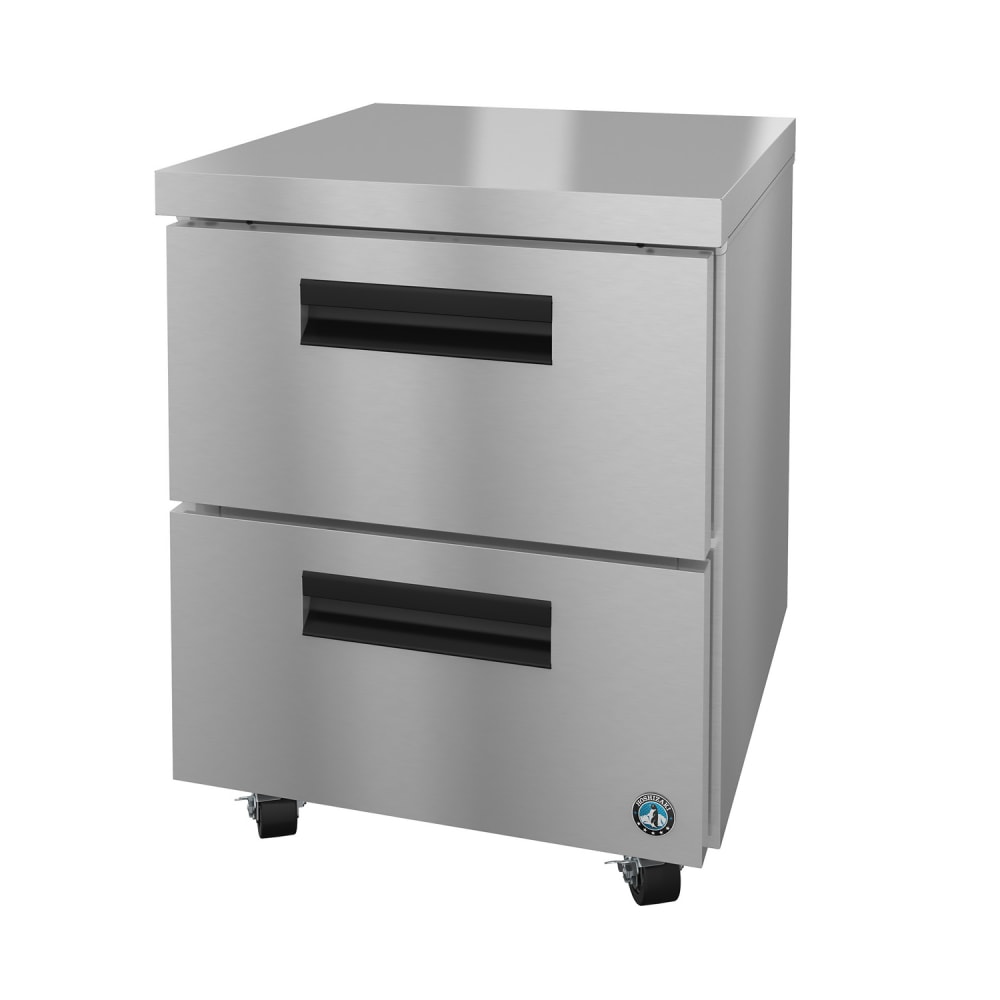

Hoshizaki UR27B-D2 Steelheart 27" W Undercounter Refrigerator w/ (1) Section & (2) Drawers, 115v

Part of the Steelheart series, the Hoshizaki UR27B-D2 undercounter refrigerator is designed with two stainless steel drawers that comfortably hold one full-size pan, two fourth-size pans in the top and and another full-size pan in the bottom. Collectively, this unit offers 6.21 cubic feet of space while maintaining temperatures between 32 and 52 degrees Fahrenheit. To further promote these chilled environments, the refrigerator is paired with 2-inch-thick polyurethane insulation. Additionally, it’s made of stainless steel to promote rust and corrosion resistance and sits atop four 4-inch casters for heightened mobility.

The Hoshizaki UR27B-D2 single-section refrigerator has a self-contained refrigeration system located at the rear, which works to maximize available space for food-safe storage. This unit uses R290 hydrocarbon refrigerant and an enamel-coated evaporator to remove warm air from the storage space, while the innovative air distribution system spreads the cooled air evenly. Because this refrigerator creates a very cool storage space, it initiates automatic off-cycle defrosts and hot gas condensate removal to help prevent eliminate ice on key components.

Product Details

• Part of the Steelheart series
• 6.21-cu.-ft. interior space
• 2 stainless steel drawers
• Top drawer capacity: (1) 12-in. x 20-in. full-size pans and (2) fourth-size pans
• Bottom drawer capacity: 1 full-size pan
• Stainless steel interior, front, sides, and top resist corrosion
• 2-in. polyurethane insulation
• (4) 4-in. stem casters with 2 braking
• Silver

Refrigeration System

• Rear-mounted refrigeration is self-contained
• Even cooling with air distribution system
• Temperature holding range: 32-52 degrees F
• Enamel-coated evaporator
• Hot gas condensate removal
• Off-cycle defrosts automatically
• R290 hydrocarbon refrigerant

Dimensions & Utilities

• 27 in. W x 31 in. D x 33³/₄ in. H
• 2.5 A, ¹/₆ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

From The Manufacturer

Steelheart Series Undercounter Refrigerator, one-section, 27"W, 7.21 cu. ft., self-contained rear mounted refrigeration system, (2) drawers allow for 6" deep pans, hot gas condensate removal, stainless steel interior, stainless steel exterior front, sides & top, (4) 4" stem casters (2 with brakes), R290 Hydrocarbon refrigerant, 1/6 HP, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

6-year Parts; 5-year Labor; 7-year Compressor Parts

Hoshizaki UR27B-D2 Specifications

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure

Certifications
