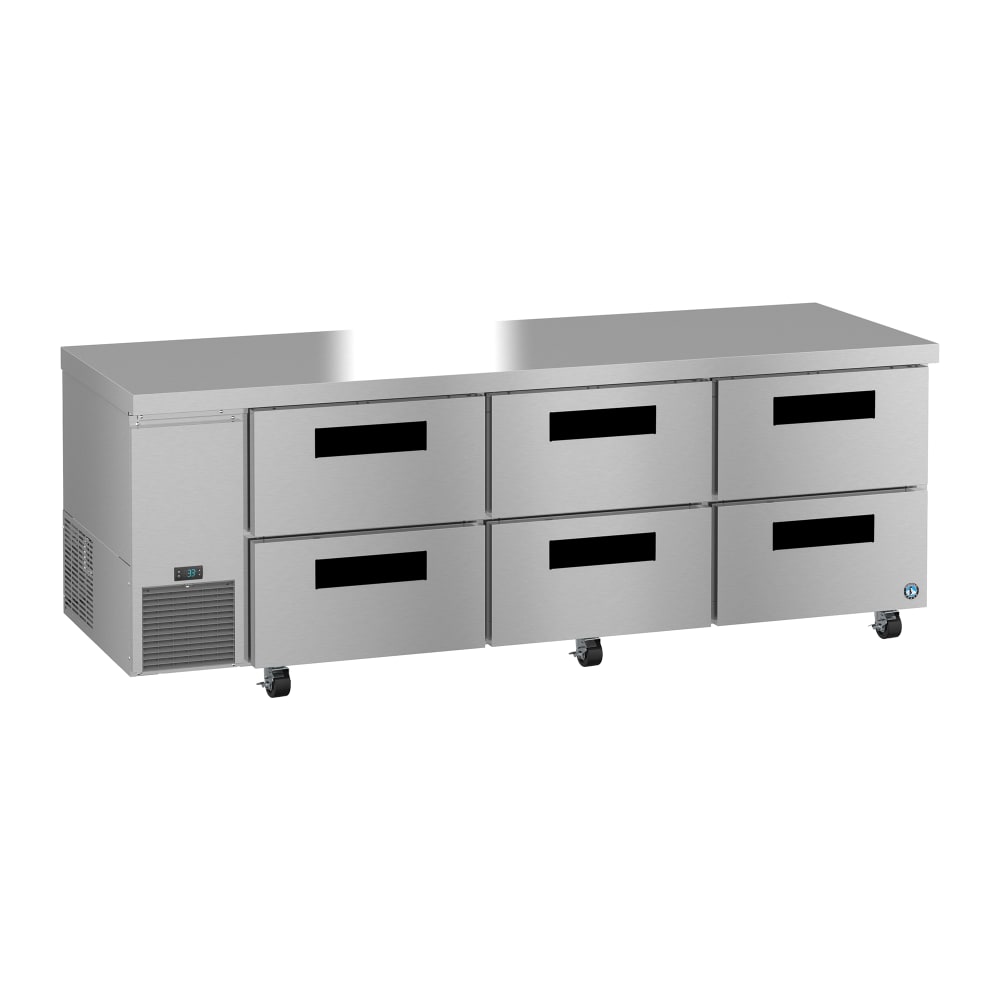

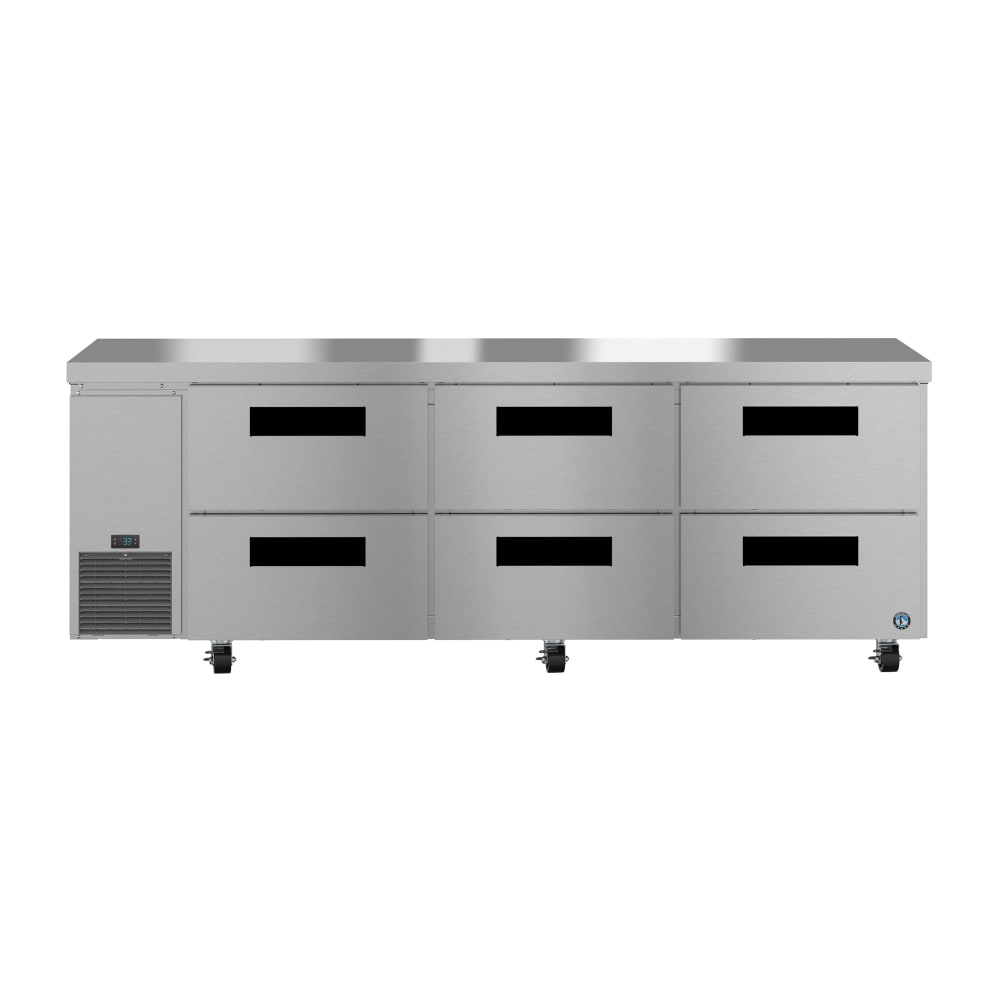

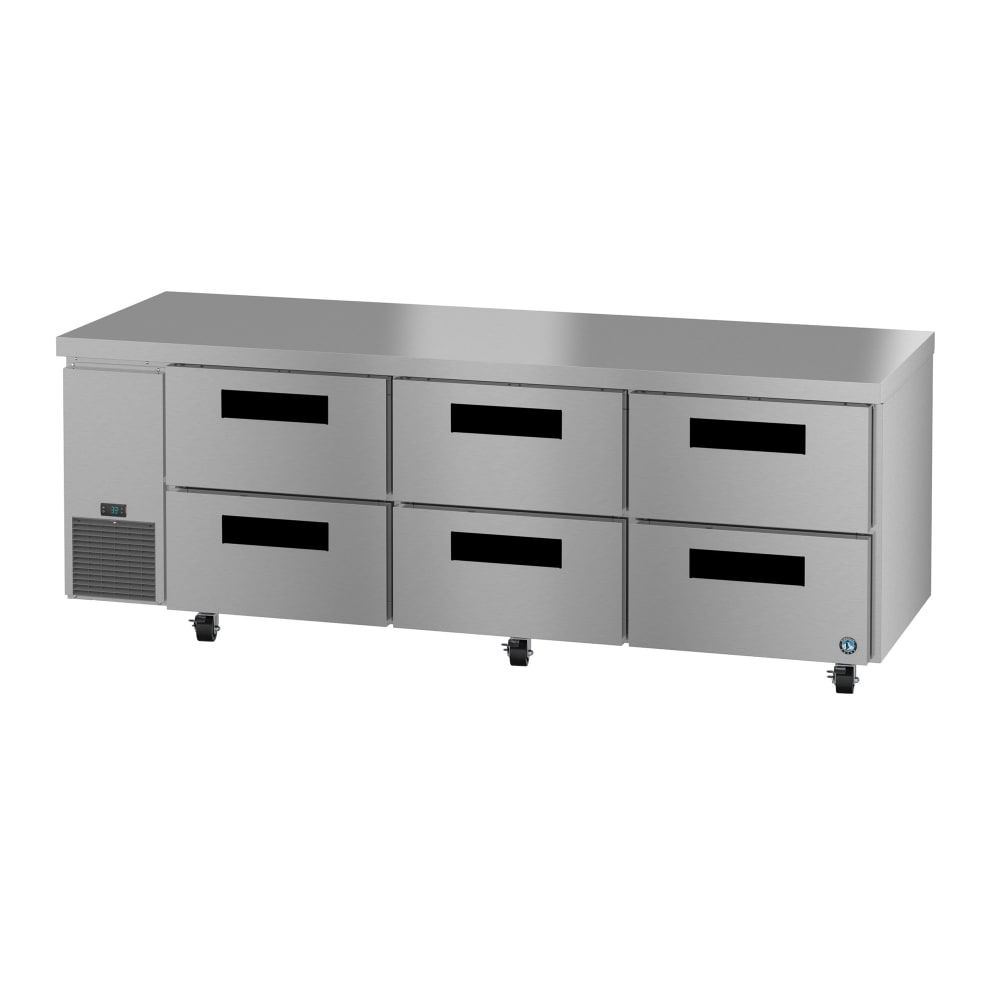

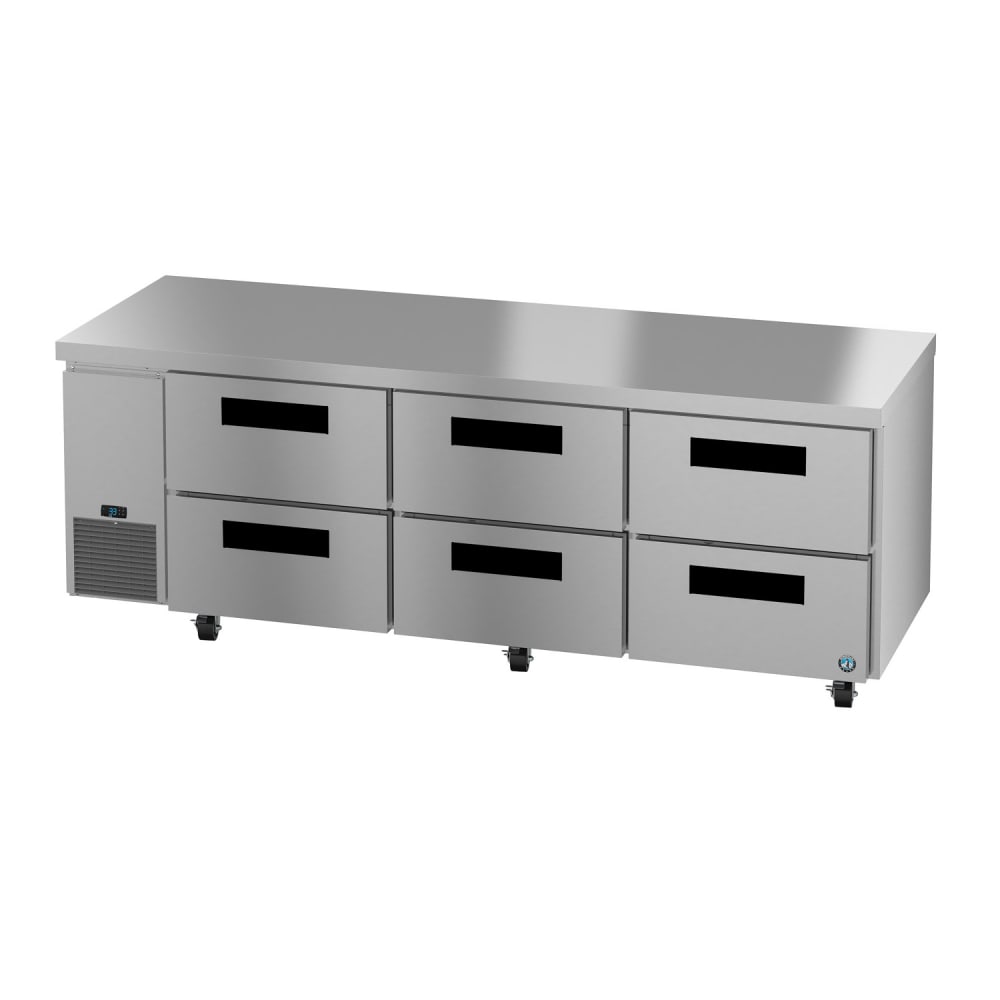

Hoshizaki ULR93B-D6 93" Steelheart Undercounter Refrigerator w/ (3) Sections & (6) Drawers, 115v

Designed for durability, the Hoshizaki ULR93B-D6 Steelheart undercounter refrigerator is constructed of stainless steel with coated steel back and bottom panels. 2 inches of polyurethane foam sit between the metal paneling, preventing hot air from entering the cabinet with its insulating properties. The unit’s six drawers can hold two 12-inch by 20-inch by 6-inch food pans each and are equipped with aluminum handles and magnetic gaskets. Overall, this refrigerator measures 93 inches wide by 33¹/₄ inches deep by 33⁷/₈ inches high.

The Hoshizaki ULR93B-D6 undercounter refrigerator streamlines cleaning with its removable air filter, side-mounted refrigeration system, and six stem casters. For placement in kitchens with limited space, this unit features a front-breathing airflow design that supports a 1-inch rear wall clearance. Since this unit uses R290 hydrocarbon refrigerant for cooling, it consistently keeps conditions between its temperature holding range: 28 to 45 degrees Fahrenheit. The non-electric evaporator reduces excess condensate, while the off-cycle defrost prevents ice buildup from hindering performance.

Product Details

• Part of the Steelheart series
• 3 sections
• 30.17-cu.-ft. interior capacity
• Stainless steel construction with coated steel back and bottom panels
• 2-in. polyurethane foam insulation
• 4 solid drawers
• Built with stainless steel frames, acetal rollers, and stops
• Each drawer holds (2) 12-in. x 20-in. x 6-in. pans (sold separately)
• Extruded aluminum handles
• Removable, magnetic gaskets
• (6) 4-in. stem casters
• Digital temperature display

Refrigeration System

• Self-contained and side mounted
• Front-breathing airflow design
• Removable air filter
• Mullion heaters
• Non-electric evaporation system
• E-coated evaporator coil
• Off-cycle defrost system prevents ice buildup
• R290 hydrocarbon refrigerant
• Temperature holding range: 28-45 degrees F

Dimensions & Utilities

• 93 in. W x 33¹/₄ in. D x 33⁷/₈ in. H
• 5 A, ¹/₃ HP
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

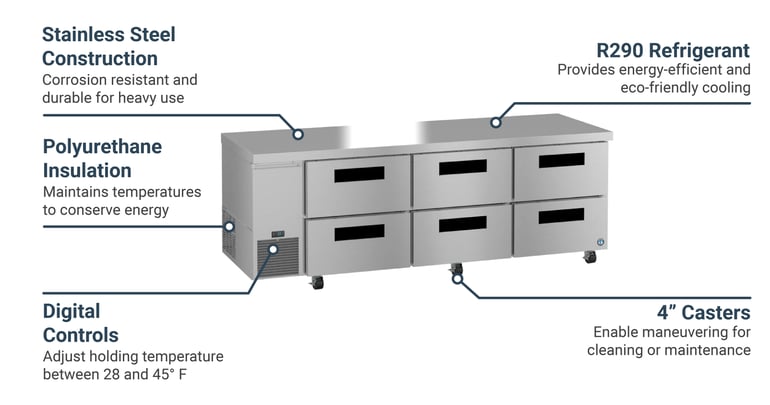

Product Features

*Free shipping on Hoshizaki ULR93B-D6 within the 48 contiguous states.

From The Manufacturer

Steelheart Series Undercounter Refrigerator, reach-in, three-section, 93"W, 30.17 cu. ft., self-contained side mounted refrigeration system, (6) drawers each accommodates (2) 12" x 20" x 6" deep (pans by others), stainless steel interior, stainless steel exterior front, sides & top, stainless steel interior sides, back, and floor, (6) 4" stem casters (3 with brakes), R290 hydrocarbon refrigerant, 1/3 HP, cord, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

6-year Limited Parts; 5-year Labor; 7-year Compressor Parts
