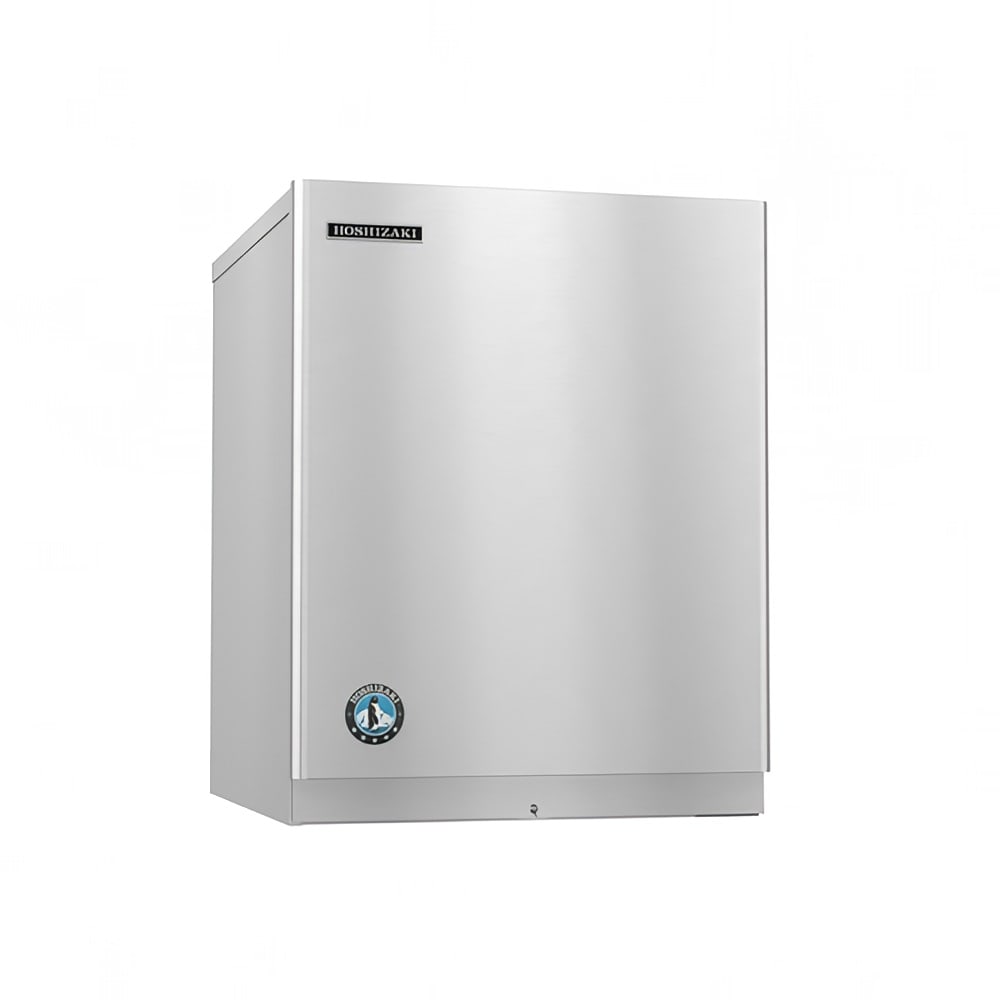

Hoshizaki KMS-822MLJ 22" Serenity Crescent Cube Ice Machine Head - 851 lb/24 hr, Remote Cooled, 208-230v/1ph

Generating as much as 851 pounds daily, the Hoshizaki KMS-822MLJ Serenity ice maker head can produce more ice in ideal conditions with lower ambient air and incoming water temperatures. It makes crescent cubes, which are uniquely shaped versions of half-cube ice with rounded backs. Such cubes can be used in many applications, from soft drinks and blended frozen drinks to bagged and dispensed ice. The ice machine cools remotely, so it requires a separately sold condensing unit to operate. This condenser is installed elsewhere to keep heat and noise away from the ice machine head.

This Hoshizaki KMS-822MLJ ice machine head has a CycleSaver™ feature to produce as much ice as standard models in fewer cycles; this minimizes energy use and extends component life. The system monitors itself and beeps to alert the operator of the issue's diagnosis. To protect against fast bacterial growth, the ice maker is made with an antimicrobial agent. Made of stainless steel, the evaporator and exterior support heavy use and expedite cleaning.

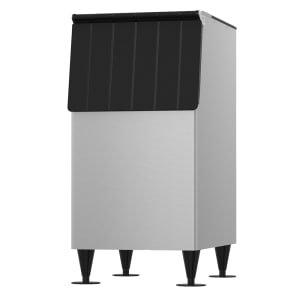

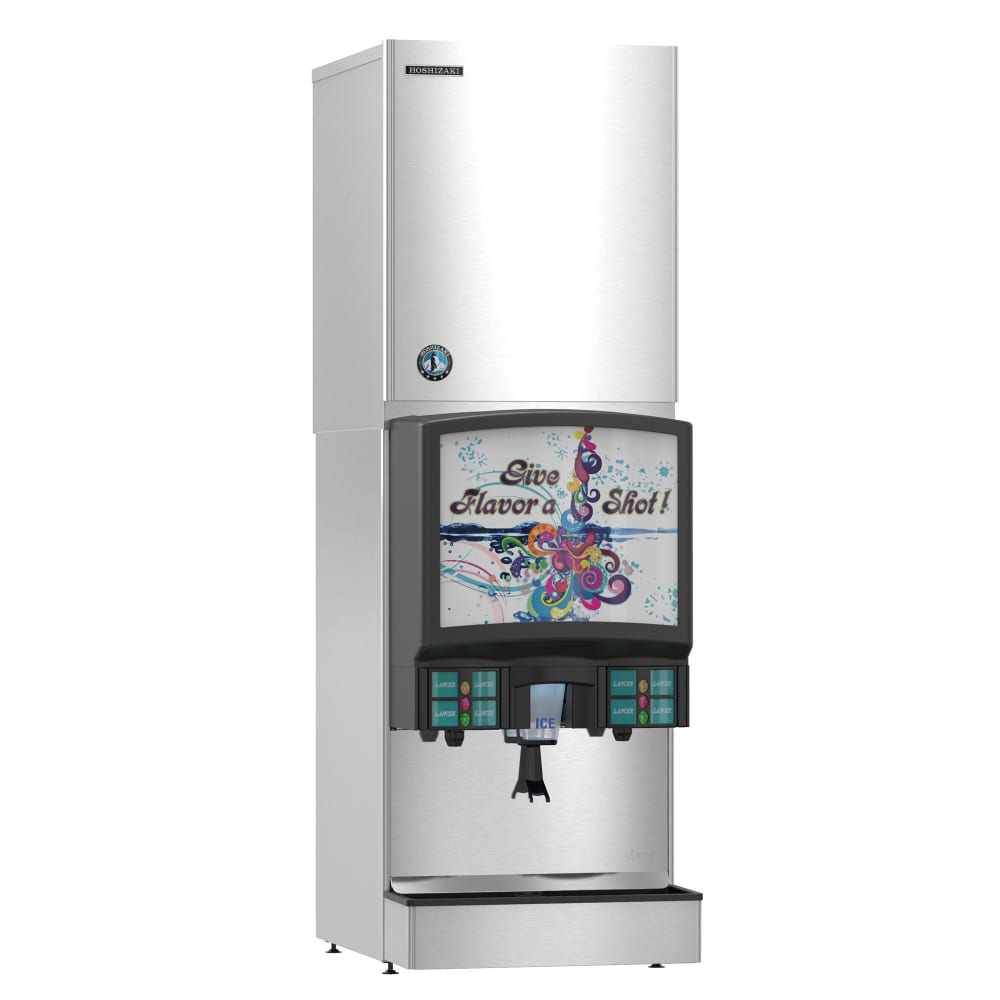

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 851-lb. maximum daily ice production
• 770-lb. AHRI-certified daily ice production
• Crescent cube ice
• Ice cube size: ¹⁄₂ in. x 1¹⁄₈ in. x 1¹⁄₂ in.

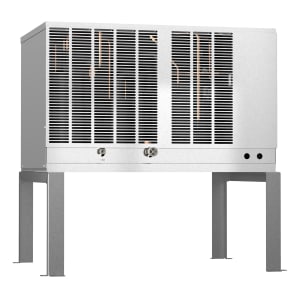

• Remote cooling (condenser is sold separately)
• CycleSaver design implements fewer cycles to craft as much ice as other units
• EverCheck™ alert system has several beep patterns for error diagnostics
• H-GUARD Plus® antimicrobial slows bacterial growth
• Stainless steel evaporator
• Stainless steel exterior finish
• Uses R-404A refrigerant
• Part of the Serenity series
• Ice bin or dispenser base sold separately

Product Features

Ideal Installation Conditions

• Ambient air temperature: 45-100 degrees F
• Incoming water temperature: 45-90 degrees F
• Incoming water pressure: 10-113 PSIG
• 6-in. side, top, and rear clearances for service access and airflow

Dimensions & Utilities

• 22 in. W x 24.63 in. x 28 in. H
• 208-230 V/60 Hz/1 ph

*Free shipping on Hoshizaki KMS-822MLJ within the 48 contiguous states.

From The Manufacturer

Serenity Ice Maker, Cube-style, 22"W, air-cooled, remote condenser (priced separately), production capacity up to 851 lb/24 hours at 70°/50° (770 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, designed for use with beverage dispensers, R-404A refrigerant, NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KMS-822MLJ Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure
