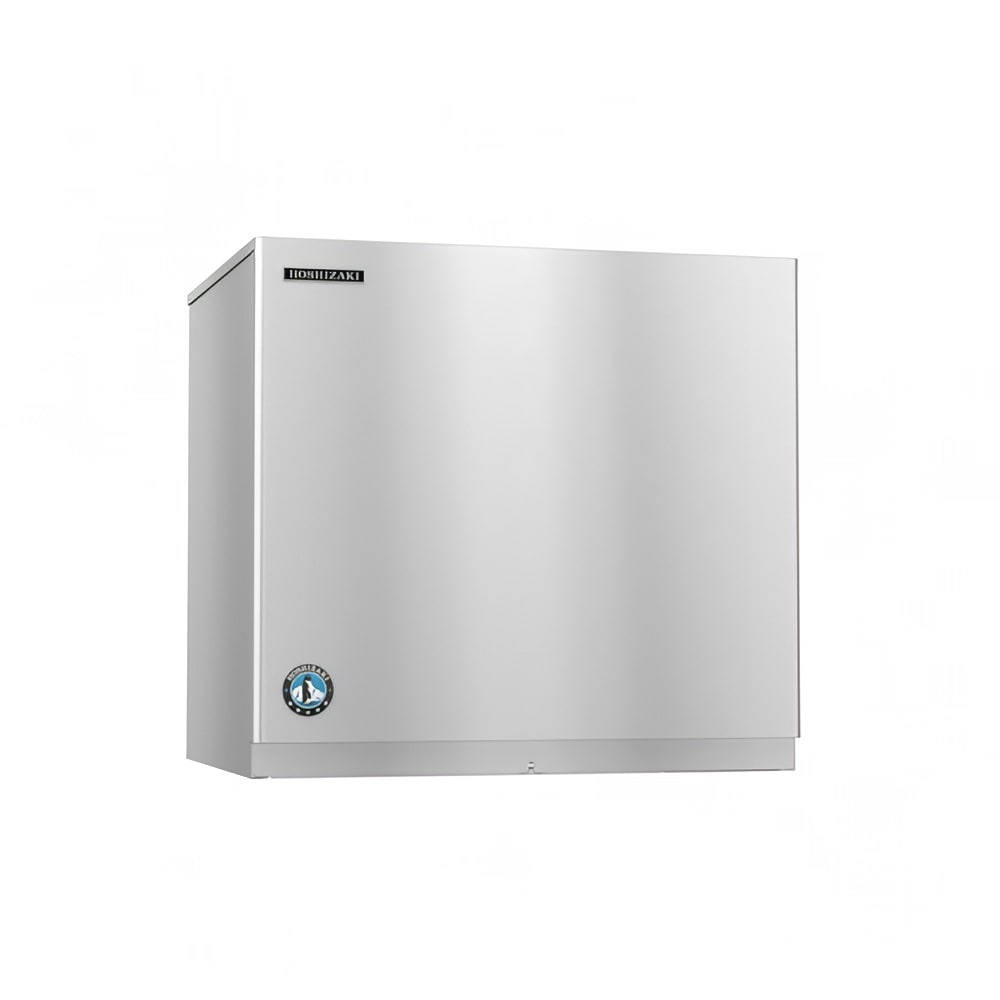

Hoshizaki KMS-1402MLJ 30" Serenity Crescent Cube Ice Machine Head - 1501 lb/24 hr, Remote Cooled, 115v/1ph

Designed for high-volume operations, the Hoshizaki KMS-1402MLJ Serenity ice maker can produce 1,501 pounds of ice in 24 hours. This amount depends on ambient air and incoming water temperatures, with higher levels resulting is less ice production. It generates crescent cubes, which are a unique style of half-cubed ice that have curved backs to fit in glasses, cool soft drinks, and for bagging. The ice maker is cooled via a remote condenser that's sold separately. Using this condenser style enables operators to relocate heat and noise from the ice maker to a remote area.

This Hoshizaki KMS-1402MLJ ice machine head can craft the same amount of ice as similarly sized units in fewer cycles, resulting in a longer unit lifespan and reduced energy consumption. If there is an issue with the ice maker, it signals the operator with a series of beeps to diagnose the issue. It features built-in antimicrobial protection that impedes bacterial growth, and its stainless steel evaporator and exterior provide durability while expediting cleaning.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 1,501-lb. maximum daily ice production
• 1,400-lb. AHRI-certified daily ice production
• Produces crescent cube ice
• Ice cube size: 1¹⁄₈ in. x 1¹⁄₂ in. x ¹⁄₂ in.
• Remotely cooled (condenser is sold separately)
• CycleSaver™ reduces the number of cycles needed to produce high volumes of ice
• Beeping EverCheck™ alert system
• H-GUARD Plus® antimicrobial protection inhibits bacterial growth
• Simple-to-clean, stainless steel exterior
• Durable, stainless steel evaporator
• Uses R-404A refrigerant
• Part of the Serenity series
• Ice bin or dispenser base sold separately

Product Features

Ideal Installation Conditions

• 6-in. clearances on top, sides, and rear for airflow and maintenance access
• Ambient air temperature: 45-100 degrees F
• Incoming water temperature: 45-90 degrees F
• Incoming water pressure: 10-113 PSIG

Dimensions & Utilities

• 30 in. W x 24 in. D x 28 in. H
• 115 V/60 Hz/1 ph

*Free shipping on Hoshizaki KMS-1402MLJ within the 48 contiguous states.

From The Manufacturer

Serenity Ice Maker, Cube-style, 30"W, air-cooled, remote condenser (priced separately), production capacity up to 1501/1474 lb/24 hours at 70°/50° (1400/1325 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KMS-1402MLJ Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
