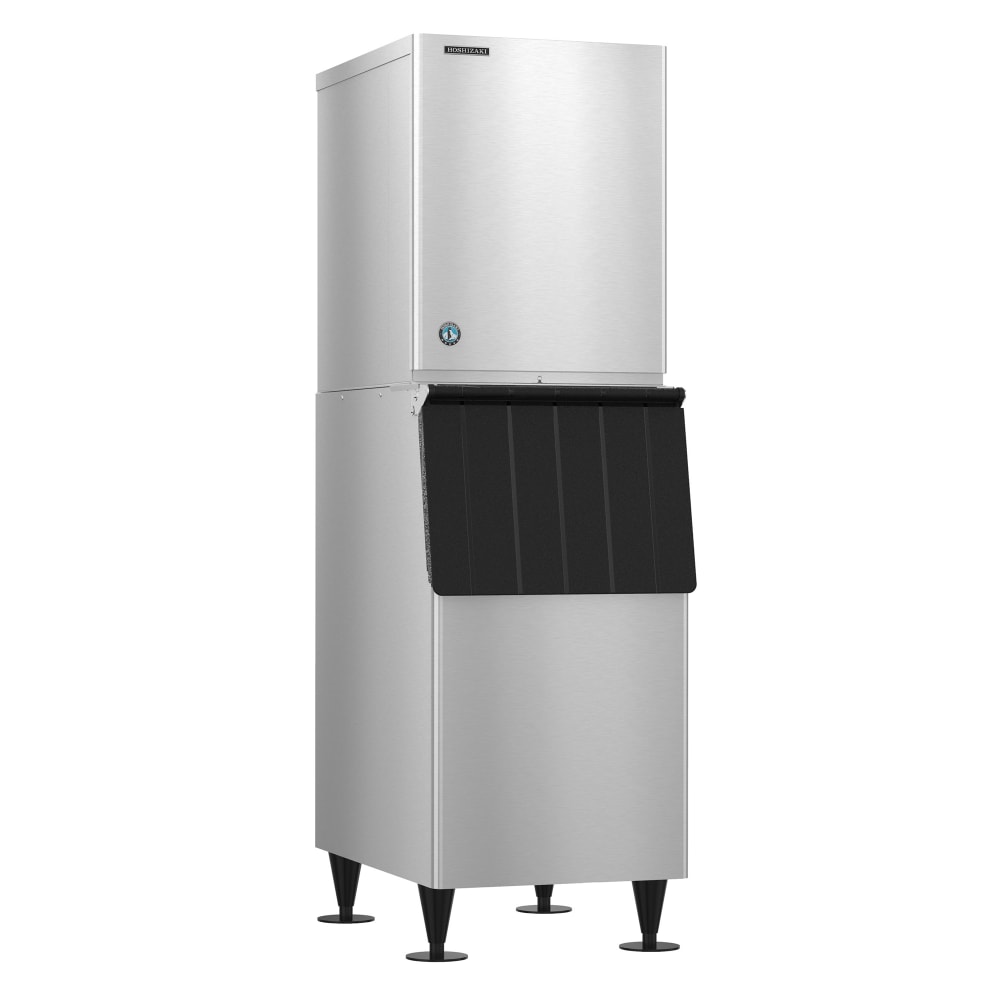

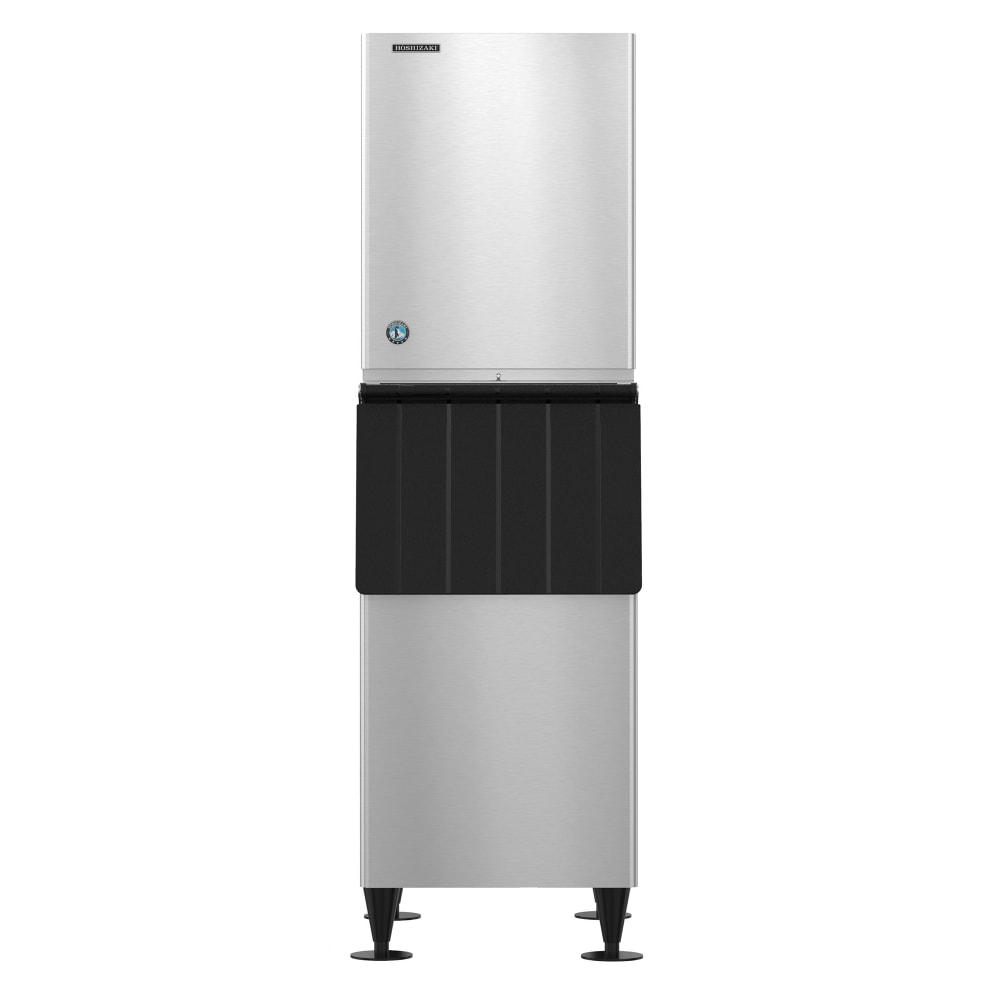

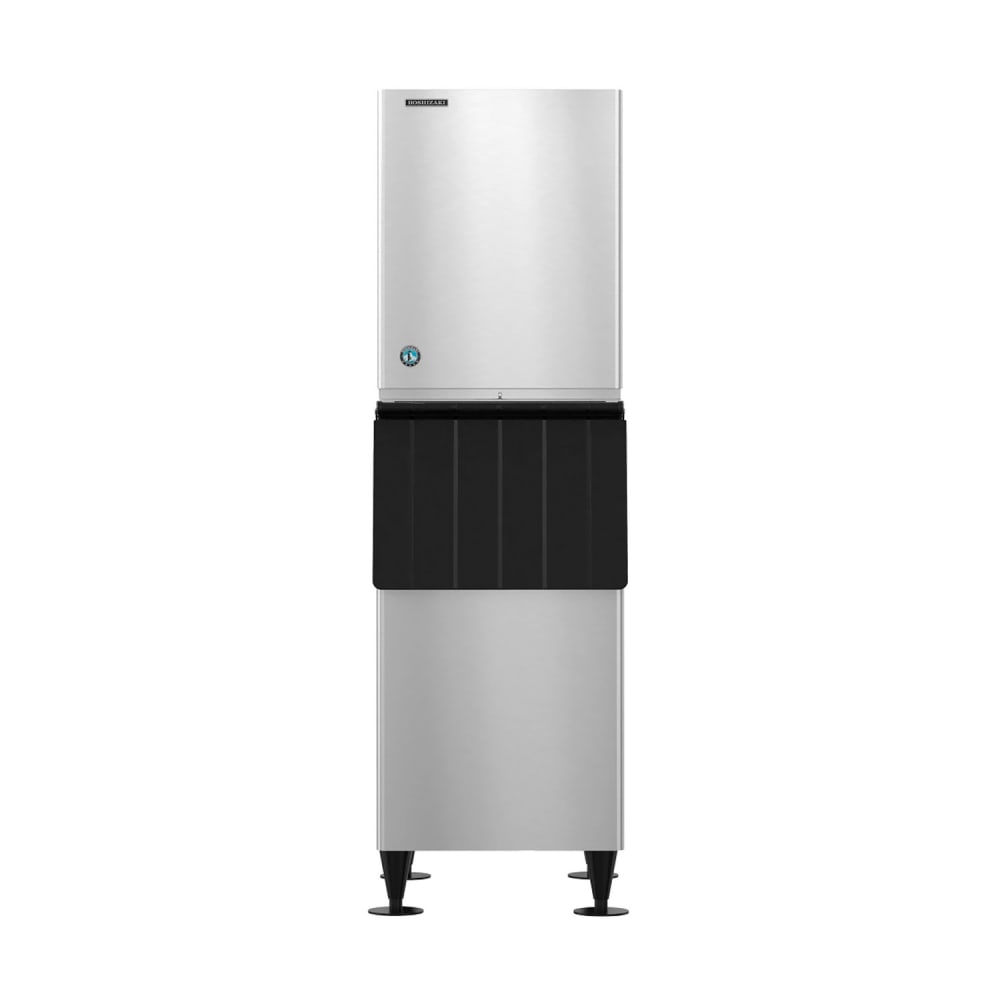

Hoshizaki KM-660MWJ/B-300SF 647 lb KM Series Crescent Cube Ice Machine w/ Bin - 300 lb Storage, Water Cooled, 115v

The Hoshizaki KM-660MWJ/B-300SF crescent cube ice machine’s bin holds 300 pounds of ice. It’s elevated with painted flange legs for easy cleaning underneath. The unit’s H-GUARD antimicrobial agent works to prevent mold and bacteria growth, maintaining the ice cubes’ quality. For safety and easy access, the unit features a top-hinged front door opening.

The Hoshizaki KM-660MWJ/B-300SF ice machine makes 647 pounds of ice when incoming air is 70 degrees and water is 50 degrees. Its refrigeration system is self-contained, features a water-cooled condenser, and uses R404A hydrocarbon coolant. It makes crescent-cube ice—great for soft drinks, blended frozen drinks, and bagged ice. It’s stainless steel-finished for durability and corrosion resistance.

Ice Maker Details

• 647 lbs. every 24 hours
• Crescent-cube style ice
• Self-contained water-cooled condenser
• Double-sided evaporator
• R404A hydrocarbon refrigerant
• All stainless steel finish

Bin Details

• 300-lb. storage capacity
• Stainless steel body
• Antimicrobial agent
• Top-hinged front door opening
• Includes painted flange legs

Dimensions & Utilities

• Ice Maker: 22 in. W x 27²/₅ in. D x 28 in. H
• Bin: 22 in. W x 32¹/₂ in. D x 46 in. H
• 12.35 A
• 115 V/60 Hz/1 ph

Product Features

*Free shipping on Hoshizaki KM-660MWJ/B-300SF within the 48 contiguous states.

From The Manufacturer

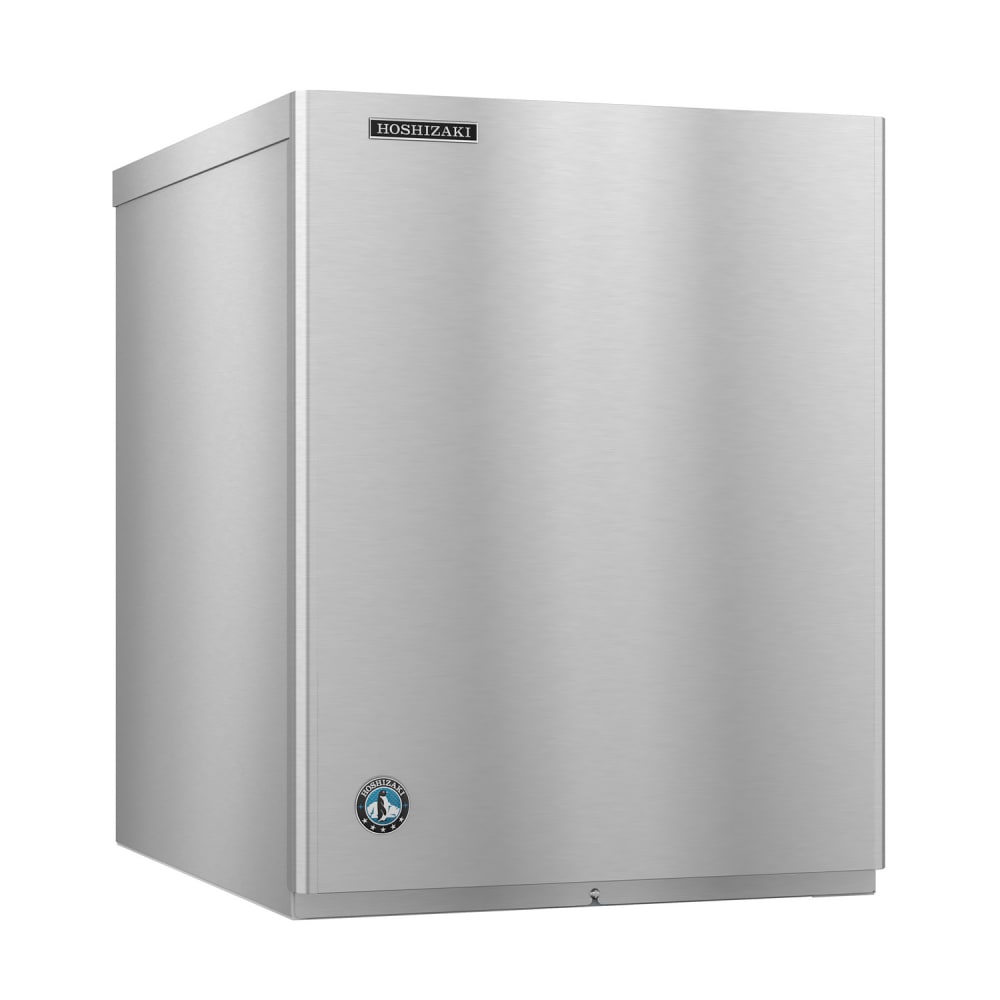

Ice Maker, Cube-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 647 lb/24 hours at 70°/50° (630 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 12.35 amps, NSF, UL

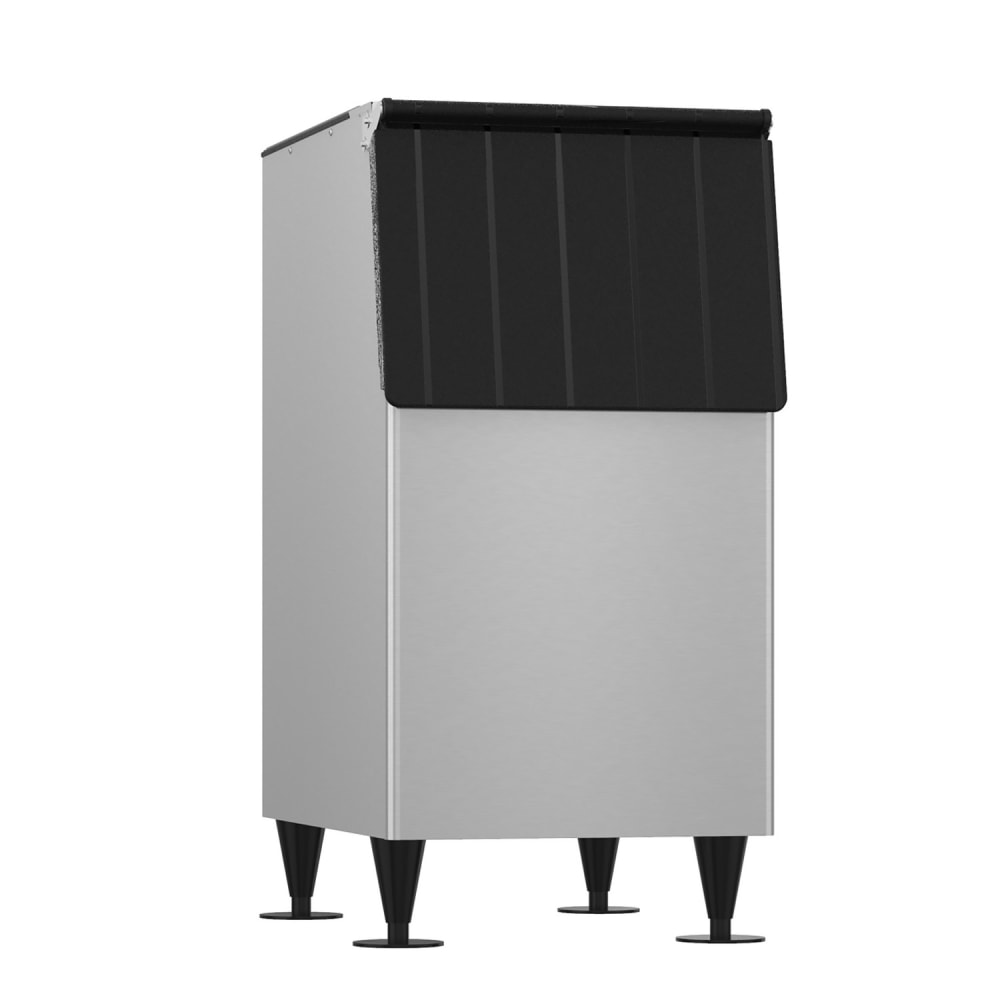

Ice Bin, 22"W, top-hinged front-opening door, 300-lb ice storage capacity, for top-mounted ice maker, stainless steel exterior, 6" painted flange legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-660MWJ/B-300SF Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Installation Guide

Brochure

Cleaning Guide
