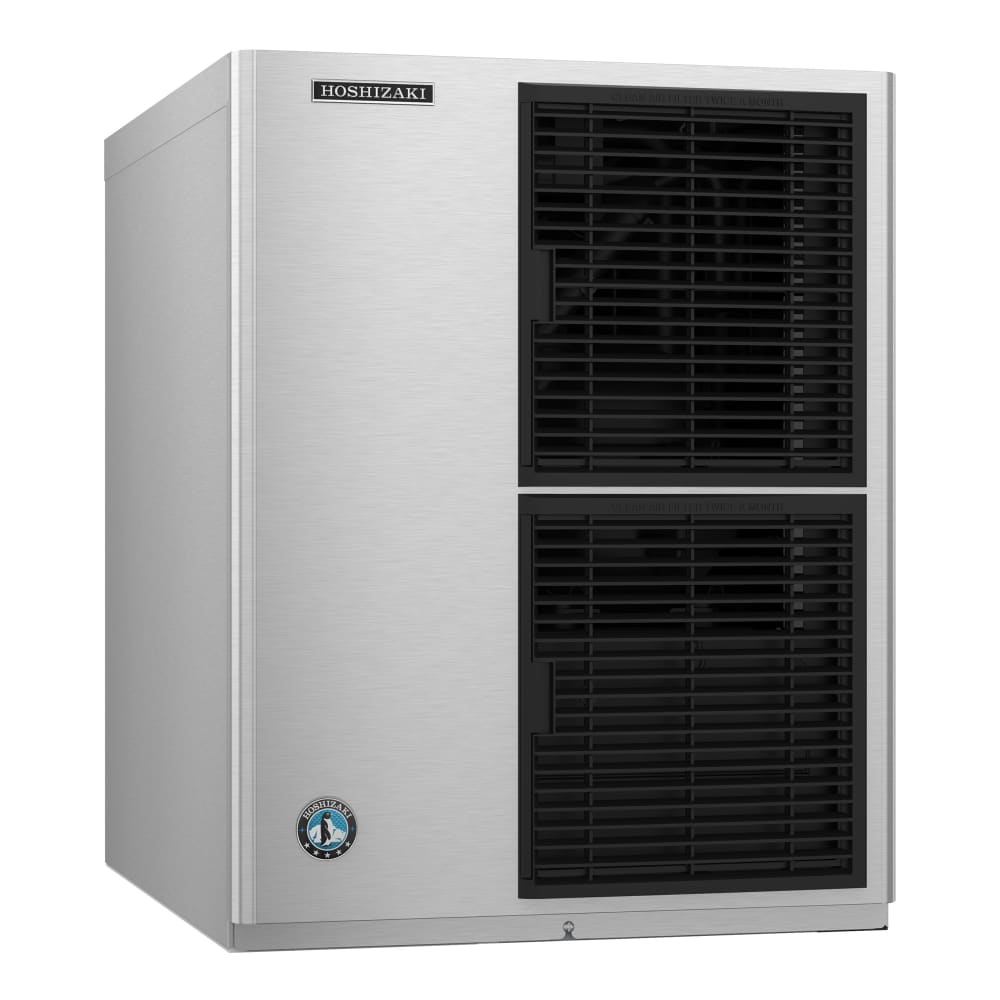

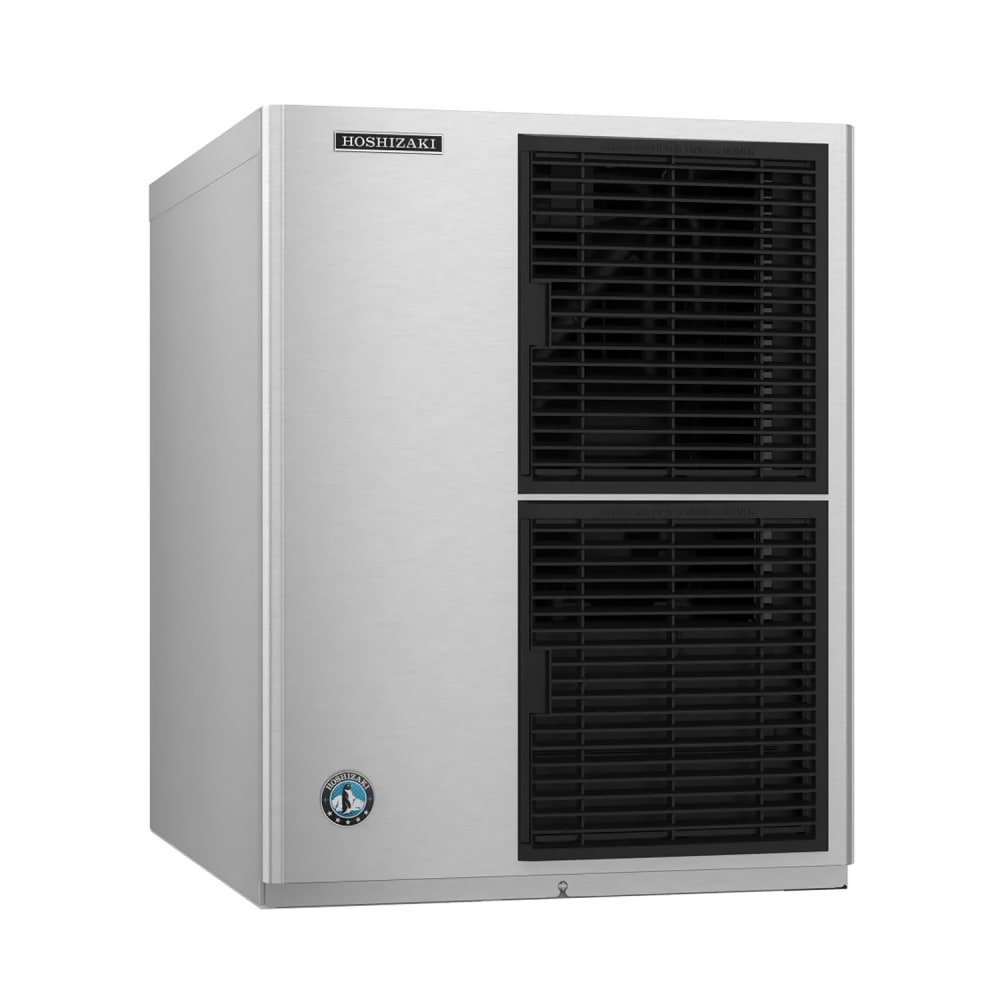

Hoshizaki KM-520MAJ-E 22" Crescent Cube Ice Machine Head - 525 lb/24 hr, Air Cooled, 220-240v/1ph

The Hoshizaki KM-520MAJ-E ice machine head can produce 524.7 pounds of crescent cube ice per day. This kind of ice is known for melting slowly and resisting clouding. For operator convenience, this unit has an ultrasonic bin control feature that regulates the production of ice and can be field adjusted to meet specific production needs. Removable air filters and H-Guard Plus® antimicrobial enhancement help keep the machine clean and sanitary throughout use.

Helping prolong the lifespan of the Hoshizaki KM-520MAJ-E crescent cube ice machine head, the built-in EverCheck™ system alerts users when maintenance is needed to keep the machine running smoothly. When repairs are required, users can quickly remove the panels of this unit to provide access to all components. Snap-fit parts facilitate cleaning, enabling users to clean this machine in just one hour.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the KM Edge X series
• 524.7-lb. maximum daily ice production
• 434.3-lb. certified daily ice production
• Air-cooled system
• Produces crescent cube ice
• Self-contained condenser
• CycleSaver™ design
• EverCheck alert system promotes maintenance for optimized performance
• Self-diagnostic programming to automatically adjust settings
• H-Guard Plus antimicrobial agent keeps unit clean and sanitary
• Stainless steel, double-sided evaporator withstands intensive use
• Removable panels simplify maintenance
• Snap-fit parts enable 1-hr. cleaning
• Crescent cube size: 1¹⁄₈ in. W x ¹⁄₂ in. D x 1¹⁄₂ in. H
• Recommended ambient air temperature: 45-100 degrees F
• Recommended incoming water temperature: 45-90 degrees F
• Recommended incoming water pressure: 10-113 PSI
• R404A refrigerant
• 7,300-BTU heat transfer capacity
• Recommended clearance: 6 in. at rear, sides, and top

Dimensions & Utilities

• 22 in. W x 27³⁄₈ in. D x 28 in. H
• 8.4 A, 6.52 kW
• 220-240 V/50 Hz/1 ph

Product Features

*Free shipping on Hoshizaki KM-520MAJ-E within the 48 contiguous states.

From The Manufacturer

(50hz Model) Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 238 kg/24 hours at 21°/10° (197 kg certified at 32°/21°), stainless steel finish, crescent cube Style, R-404A refrigerant, 220-240v/50/1-ph, 8.4 amps, CE, NSF

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-520MAJ-E Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual

Brochure
