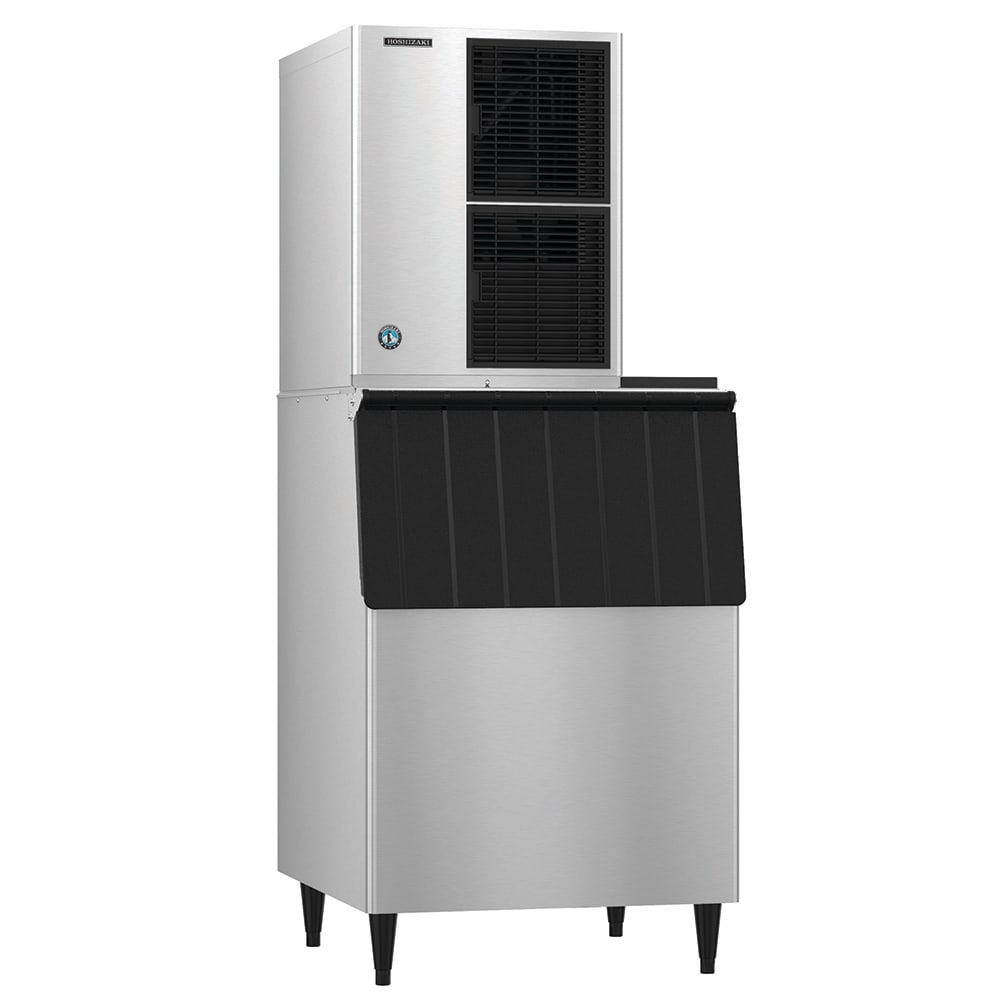

Hoshizaki KM-520MAJ/B-500SF/HS-2033 556 lb KM Series Crescent Cube Ice Machine w/ Bin - 500 lb Storage, Air Cooled, 115v

The Hoshizaki KM-520MAJ/B-500SF/HS-2033 ice maker head and bin produces crescent ice, an all-purpose cube great for many applications, particularly soft drinks in sports bars or fast food restaurants. Its head can create 556 pounds of ice under optimal conditions, enabling it to keep pace with steady customer demand. The head is air cooled, requiring none of the advanced setup of water- or remote-cooled systems. Its stainless steel evaporator is shielded from rust and corrosion, keeping ice clean where the mineral content in water might otherwise wear down the evaporator.

The bin of the Hoshizaki KM-520MAJ/B-500SF/HS-2033 commercial ice machine can hold 500 pounds of ice, providing plenty of product for kitchen, banquet, or restaurant staff to work with. It is insulated with foamed-in-place polyurethane to give the cabinet additional structural integrity and chill retention. Antimicrobial protection cuts down on contaminant buildup to boost sanitation. For user convenience, the bin comes with an ice scoop.

Ice Maker

• 556-lb. maximum daily ice production
• 480-lb. AHRI-certified daily ice production
• Self-diagnostic programming adapts to condition changes
• EverCheck™ alert system
• CycleSaver™ functionality
• Ideal incoming water pressure: 10-113 PSIG
• Ideal incoming water temperature: 45-90 degrees F
• Ideal ambient air temperature: 45-100 degrees F
• Air filters are removable for maintenance
• Resilient, stainless steel finish
• Condenser is self-contained
• Produces crescent ice
• Cube size: 1¹⁄₈ in. x ¹⁄₂ in. x 1¹⁄₂ in.
• Stainless steel evaporator is double sided and rust resistant
• Air-cooled system
• R-404A refrigerant
• 6,600-BTU heat transfer capacity
• Ideal clearances: 6 in. at the top, rear, and sides

Product Features

Ice Bin

• 500-lb. bin capacity
• Polyethylene bin liner enhances unit sanitation
• Vinyl-clad exterior adds durability and length of life
• Antimicrobial protection enabled by the H-GUARD Plus® agent
• Polyurethane insulation is foamed in place for cabinet strength
• Includes an ice scoop
• Includes 6-in. painted legs

Dimensions & Utilities

• 22 in. W x 27.38 in. D x 28 in. H
• 10.6 A, 4.68 kW
• 115 V/60 Hz/1 ph

• Interior: 27 in. W x 27.7 in. D x 37.6 in. H
• Overall: 30 in. W x 32.3 in. D x 46 in. H

*Free shipping on Hoshizaki KM-520MAJ/B-500SF/HS-2033 within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 22"W, air-cooled, self-contained condenser, production capacity up to 556 lb/24 hours at 70°/50° (480 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 10.6 amps, NSF, UL, ENERGY STAR®

Ice Bin: 30"W, top-hinged front-opening door, 500-lb ice storage capacity, for top-mounted ice maker, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation; (HS-2033) Ice Bin Top: Top Kit, 8", ABS

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-520MAJ/B-500SF/HS-2033 Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.

Documents

Spec Sheet

Warranty

Service Manual

Parts Breakdown

Manual
