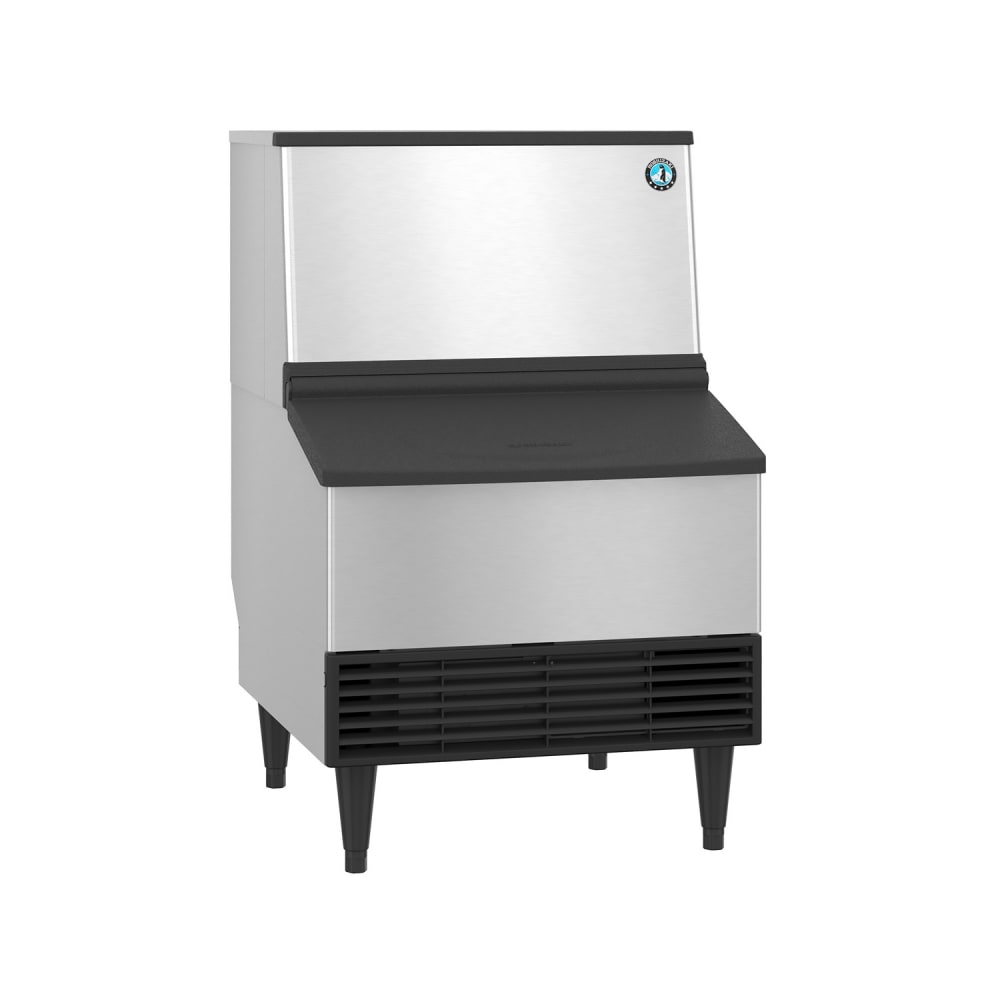

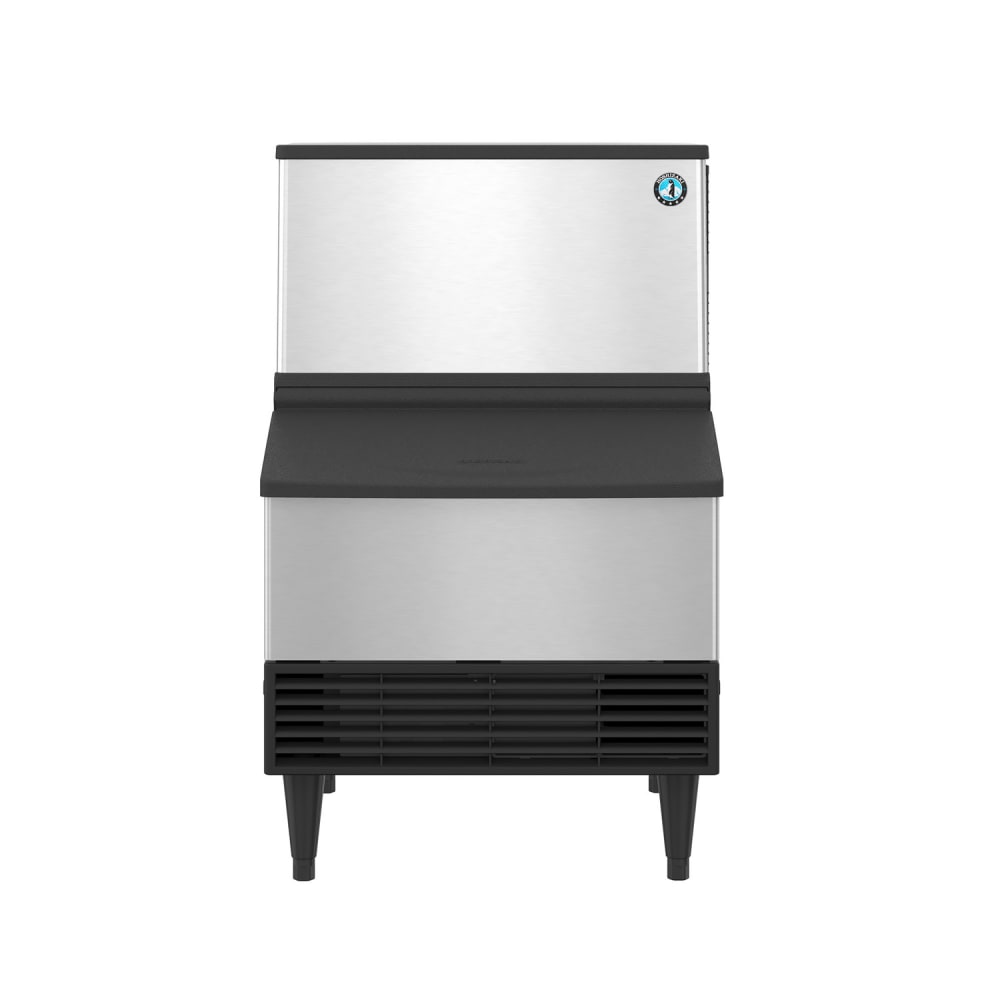

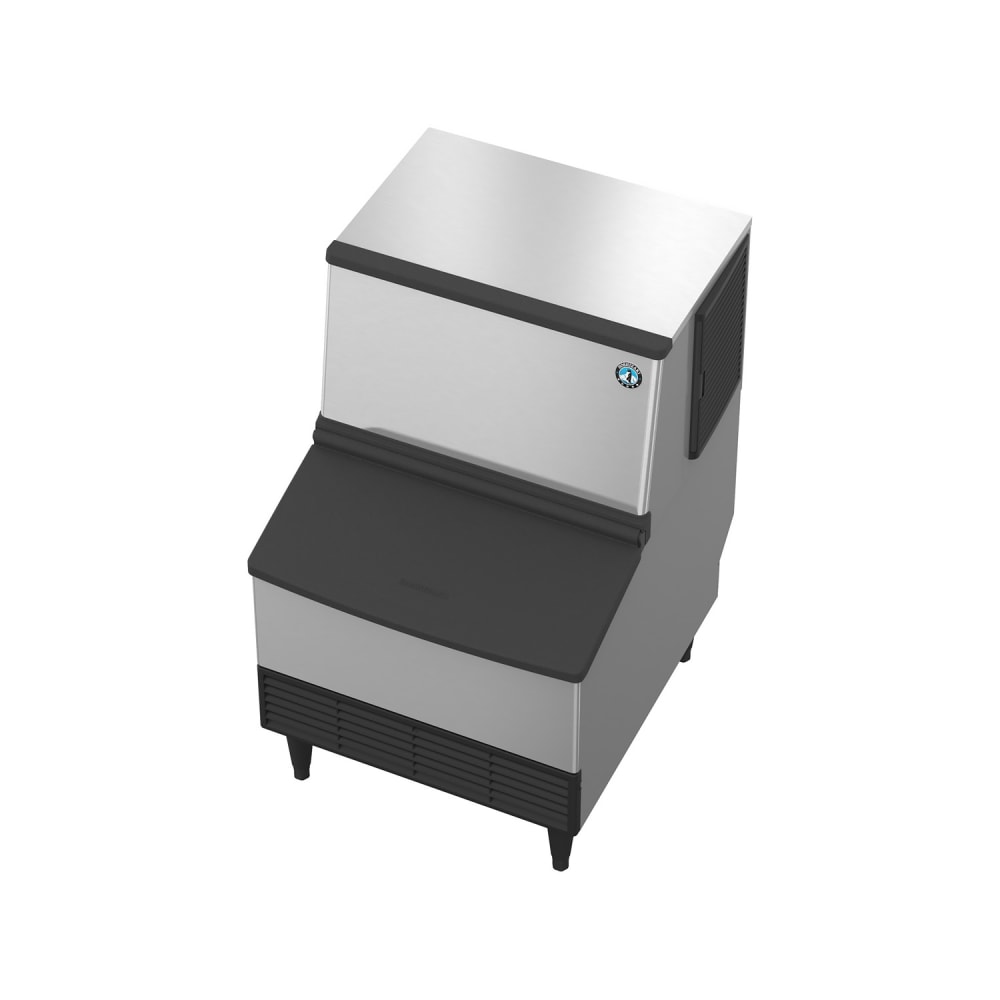

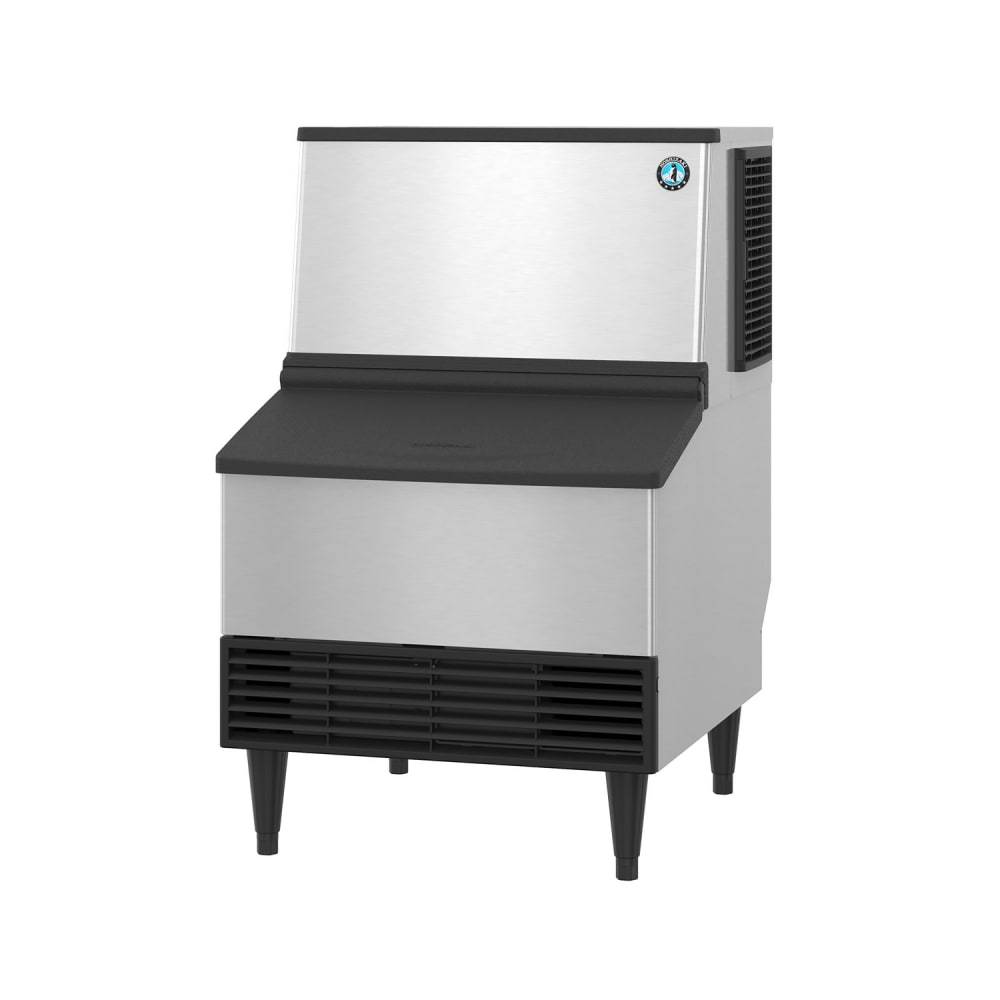

Hoshizaki KM-231BAJ 213 lb KM Series Crescent Cube Ice Machine w/ Bin - 80 lb Storage, Air Cooled, 115v
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$3,850.00 /Each
Contact us for details!
Hoshizaki KM-231BAJ Description
The Hoshizaki KM-231BAJ ice maker with bin keeps restaurants stocked with ice, producing as much as 213 pounds of crescent ice in a 24-hour period with ideal conditions. Because of its high ice-to-water ratio, crescent ice is great for keeping soft drinks and mixed beverages cold. For streamlined maintenance, the air filter is removable, while the stainless steel exterior can be wiped clean. Using R404A refrigerant, the refrigeration system is self-contained and air cooled.
Made of stainless steel with 6-inch painted legs, the Hoshizaki KM-231BAJ ice machine with bin stores 80 pounds. When the unit requires attention and service, the EverCheck™ alert system will help users diagnose issues. The bin is at an ADA-compliant height, and the included scoop is protected with an H-Guard Plus antimicrobial agent for sanitary scooping.
- 213-lb. maximum daily ice production
- 147-lb. AHRI-certified daily ice production
- 80-lb. storage capacity
- Makes crescent cube ice
- Crescent cube ice size: 1 1⁄8 in. x 1⁄2 in. x 1 1⁄2 in.
- Self-contained, air-cooled condenser
- Stainless steel exterior adds durability
- Air filter is removable for cleaning and servicing
- Front-in, front-out airflow
- Ice scoop has H-Guard Plus antimicrobial protection
- EverCheck alert system helps operators diagnose issues
- Uses R404A refrigerant
- Requires clearance of 2 in. on right side and 6 in. at top
- ADA-compliant ice bin opening
- Ideal ambient air temperature: 45-100 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 24 in. W x 28 in. D x 39 in. H
- 7.1 A
- 115 V/60 Hz/1 ph, 6.5-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-231BAJ within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Hoshizaki KM-231BAJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 213 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 80 |
| Compressor Type | Air Cooled |
| Depth (in) | 28 |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 24 |
| Weight | 165.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The unit produces 223 lbs. of ice every 24 hours.
Yes. The built-in bin stores 80 lbs. of ice.
It produces KMEdge™ crescent-style cube ice.
Yes. The machine requires 2-in. right-side clearance.
The EverCheck™ alert system displays service notifications.
The refrigeration system uses R290 hydrocarbon refrigerant.
Yes. The air filter removes for routine cleaning access.
Yes. The front-opening bin meets ADA compliance standards.
It produces up to 213 lbs. of ice per 24 hours.
The bin holds up to 80 lbs. of ice.
It makes crescent cube ice.
It measures 24 in. W x 28 in. D x 39 in. H.
It uses an air-cooled condensing system.
It runs on 115 V/60 Hz/1 ph and has a NEMA 5-15P plug.
It requires a 1/2-in. water inlet connection.
It uses R404A refrigerant.
The bin is accessed through a lift-up door.
It operates in ambient temperatures from 45°F to 100°F.
Yes, this purchase includes an ice machine head and a storage bin.
Its listed certifications include ADA Compliant, AHRI, cETLus Listed, ETL-Sanitation, NSF and UL.
Yes, it has a diagnostic alert system to assist with maintenance and service.
Yes, the bin has antimicrobial protection.
It requires incoming water pressure from 10 to 113 PSI.
It requires incoming water from 45°F to 90°F.
