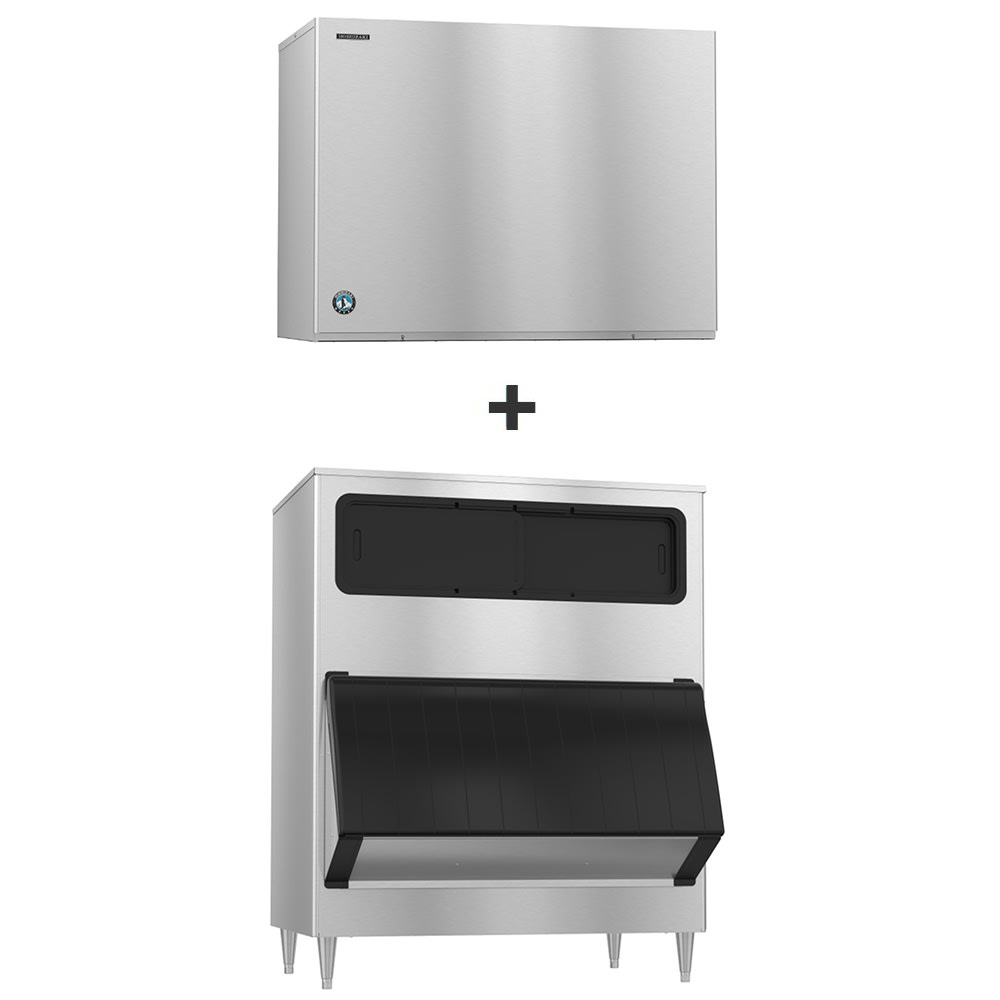

Hoshizaki KM-2200SWJ3/B-1300SS 2221 lb KM Series Crescent Cube Ice Machine w/ Bin - 1304 lb Storage, Water Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$19,660.00 /Each
Contact us for details!
Hoshizaki KM-2200SWJ3/B-1300SS Description
The Hoshizaki KM-2200SWJ3/B-1300SS ice maker and bin is made of stainless steel to grant durability and resistance to dents, scratches, and stains. This metal—which also composes the unit's evaporator—resists corrosion when exposed to moisture. The bin holds as much as 1,304 pounds of ice and the head can create 2,221 pounds in one day when operating conditions are at their peak. Along with its self-contained, water-cooled condenser, this unit operates quickly due to its CycleSaver™ feature.
To prevent condensation, the Hoshizaki KM-2200SWJ3/B-1300SS ice bin's door has a pouch design, and when it's closed, it seals shut with a gasket to prevent contamination to the ice. Foamed-in-place, polyurethane insulation ensures ice can be stored for long periods without melting and an 82-ounce scoop facilitates ice retrieval. To check how much ice is available in the bin, users can look through the upper viewing windows without opening the door, reducing the amount of energy lost.
- 2,221-lb. maximum daily ice production
- 2,200-lb. AHRI-certified daily ice production
- Produces crescent cube ice
- Crescent cube ice size: 1 1⁄2 in. x 1⁄2 in. x 1 1⁄8 in.
- H-GUARD Plus® antimicrobial protects the unit from germs
- EverCheck™ alert system expedites maintenance needs
- CycleSaver generates ice rapidly
- Durable, stainless steel construction
- Water-cooled, self-contained condenser uses R-404A refrigerant
- Stainless steel evaporator is protected from corrosion
- Ideal ambient temperature range: 45-100 degrees F
- Ideal incoming water temperature range: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
- 27,200-BTU heat transfer capacity
- 1,304-lb. ice storage capacity
- Polyurethane insulation is dependable for storing ice
- Pouch-style door prevents condensation and seals shut with a gasket
- Viewing windows are resistant to breaking and provide an interior view
- H-GUARD Plus antimicrobial slows bacterial growth in bin and on 82-oz. scoop
- Bin is lined with seamless, sanitary polyethylene
- Rust-resistant, stainless steel construction and 6-in. legs
- Legs can be adjusted if needed
- Ice head: 48 in. W x 27.38 in. D x 36.44 in. H
- Ice bin: 48 in. W x 41 in. D x 66.13 in. H
- 12.8 A, 3.11 kW
- 208-230 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KM-2200SWJ3/B-1300SS within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 48"W, stackable, water-cooled self-contained condenser, production capacity up to 2221 lb/24 hours at 70°/50° (2200 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/3-ph, 12.8 amps, NSF, UL
Ice Bin, 48"W, hinged bottom door & top view windows, 1304-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Watch a video about this product
Hoshizaki KM-2200SWJ3/B-1300SS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 2221 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 1304 |
| Compressor Type | Water Cooled |
| Depth (in) | 41 |
| Height (in) | 102.63 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 3 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM Series |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 48 |
| Weight | 805.00 |
