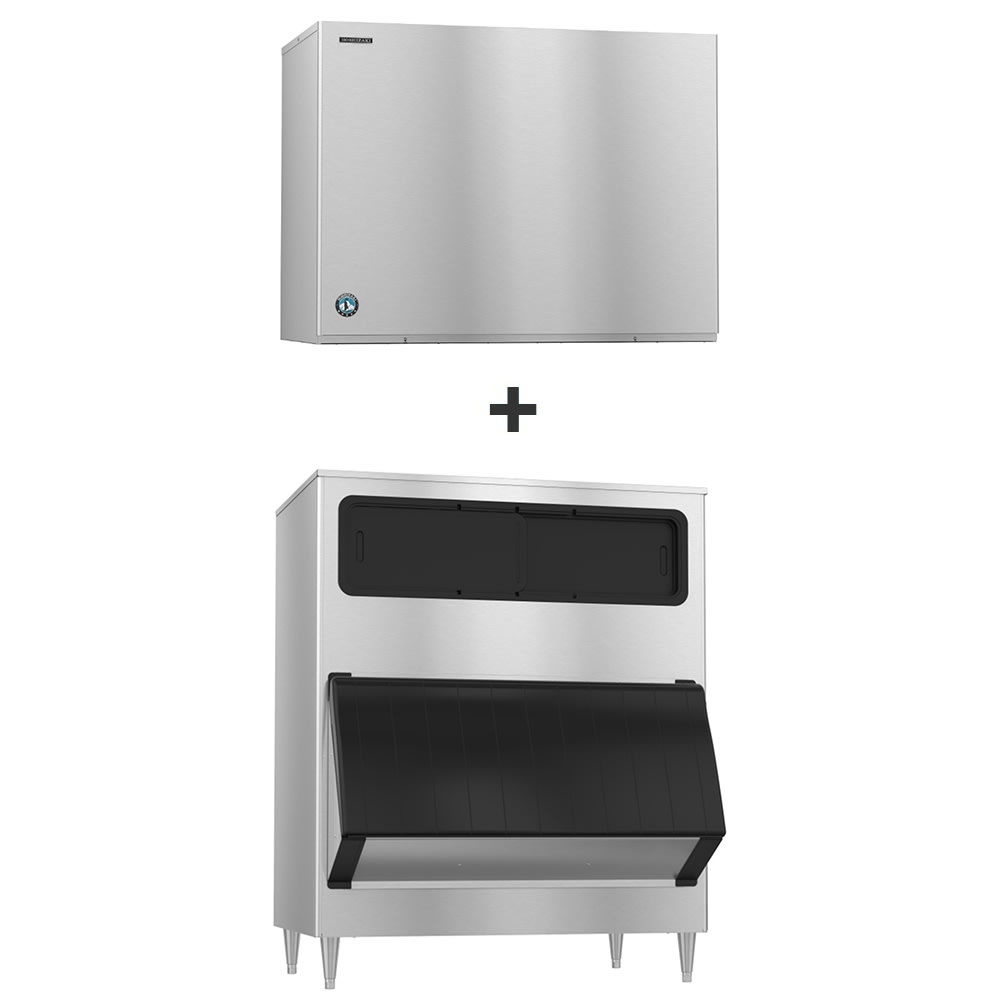

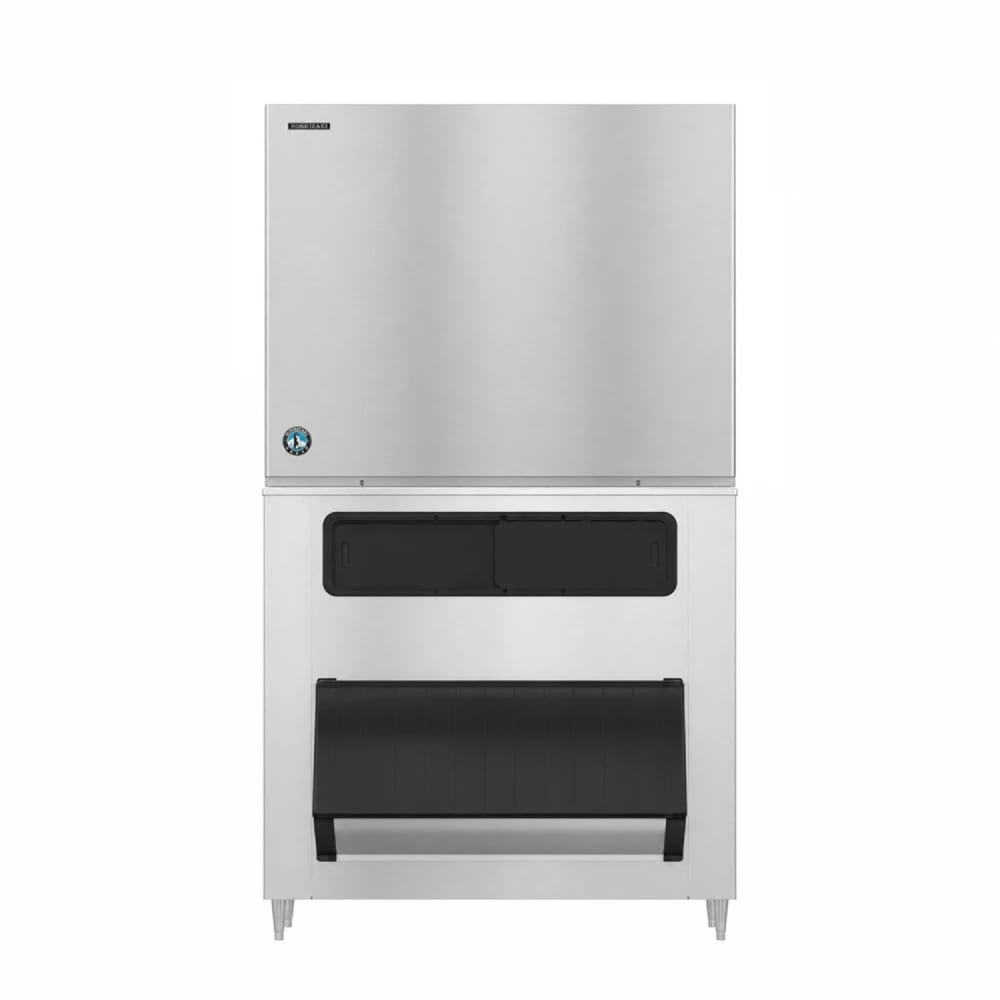

Hoshizaki KM-2200SWJ3/B-1150SS 2221 lb KM Series Crescent Cube Ice Machine w/ Bin - 1148 lb Storage, Water Cooled, 208-230v

Producing plenty of ice for use in a restaurant, hotel, or banquet hall, the Hoshizaki KM-2200SWJ3/B-1150SS crescent cube ice maker and bin generates 2,221 pounds per day. The water-cooled condenser operates with R-404A refrigerant and it's self-contained to reduce the risk of cross-contamination during installation. For later use, the bin holds 1,148 pounds and an 82-ounce scoop can be used to retrieve product, preventing employees from grabbing it by hand. For optimum use, this unit has an EverCheck™ alert system that informs users of service needs.

The Hoshizaki KM-2200SWJ3/B-1150SS ice maker and bin operates with a quick, reliable CycleSaver™ feature. Its pouch-style door doesn't spill condensation when lifted and it seals shut with a gasket to prevent air loss. Ensuring ice doesn't melt in storage, the bin is insulated with foamed-in-place polyurethane. The H-GUARD Plus® agent on the scoop, bin, and head slows the growth of bacteria, and the unit's stainless steel construction can be wiped free of dust and debris.

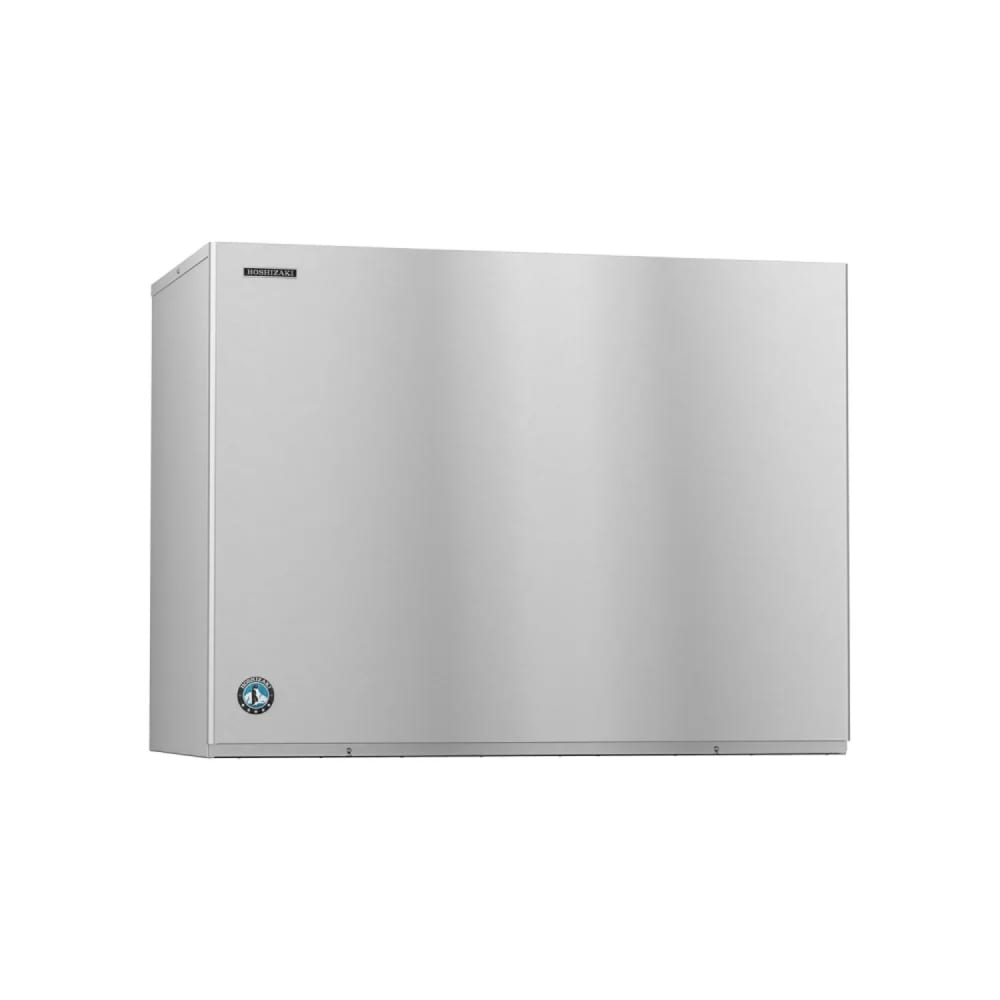

Ice Machine Details

• 2,221-lb. maximum daily ice production
• 2,200-lb. AHRI-certified daily ice production
• Supplies crescent cube ice
• Crescent cube ice size: 1¹⁄₂ in. x ¹⁄₂ in. x 1¹⁄₈ in.
• Water-cooled, self-contained condenser
• Uses R-404A refrigerant
• CycleSaver design ensures ice is made quickly
• Protected with H-GUARD Plus antimicrobial
• EverCheck monitors the system for any issues
• Made of durable stainless steel
• Stainless steel, rust-resistant evaporator
• Ideal ambient temperature range: 45-100 degrees F
• Ideal incoming water temperature range: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 27,200-BTU heat transfer capacity

Product Features

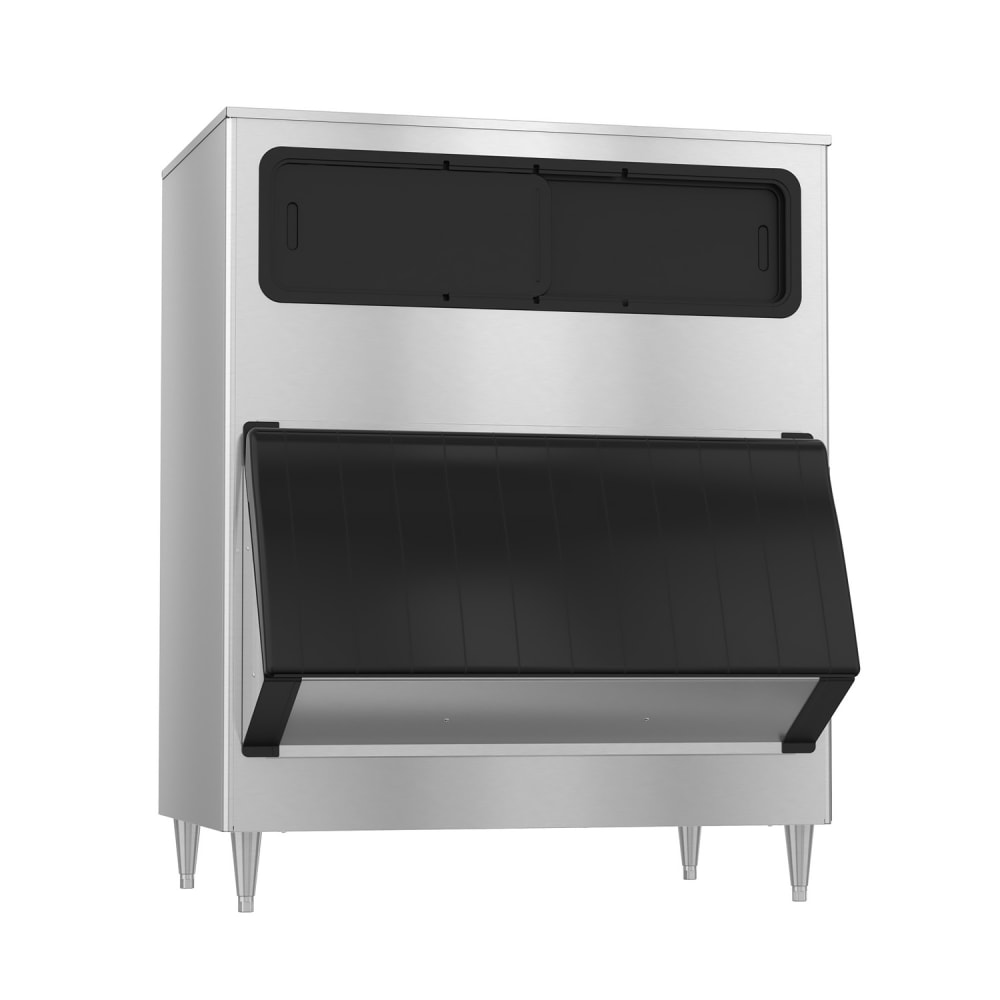

Ice Bin Details

• 1,148-lb. ice storage capacity
• Ability to view ice through the window reduces energy loss
• Rapid bacterial growth is restrained by H-GUARD Plus antimicrobial
• Seamless polyethylene lines the bin and keeps ice clean
• Polyurethane insulation is efficient and foamed in place
• 82-oz. ice scoop for safe retrieval
• Door's pouch style doesn't produce condensation
• Sealed gasket prevents bacteria from entering the unit
• Rust-resistant, stainless steel construction
• 6-in. adjustable legs

Dimensions & Utilities

• Ice head: 48 in. W x 27.38 in. D x 36.44 in. H
• Ice bin: 48 in. W x 41 in. D x 60.13 in. H
• 12.8 A, 3.11 kW
• 208-230 V/60 Hz/3 ph

*Free shipping on Hoshizaki KM-2200SWJ3/B-1150SS within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, stackable, water-cooled self-contained condenser, production capacity up to 2221 lb/24 hours at 70°/50° (2200 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 208-230v/60/3-ph, 12.8 amps, NSF, UL

Ice Bin, 48"W, hinged bottom door & top view windows, 1148-lb ice storage capacity, for top-mounted ice maker, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-2200SWJ3/B-1150SS Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
