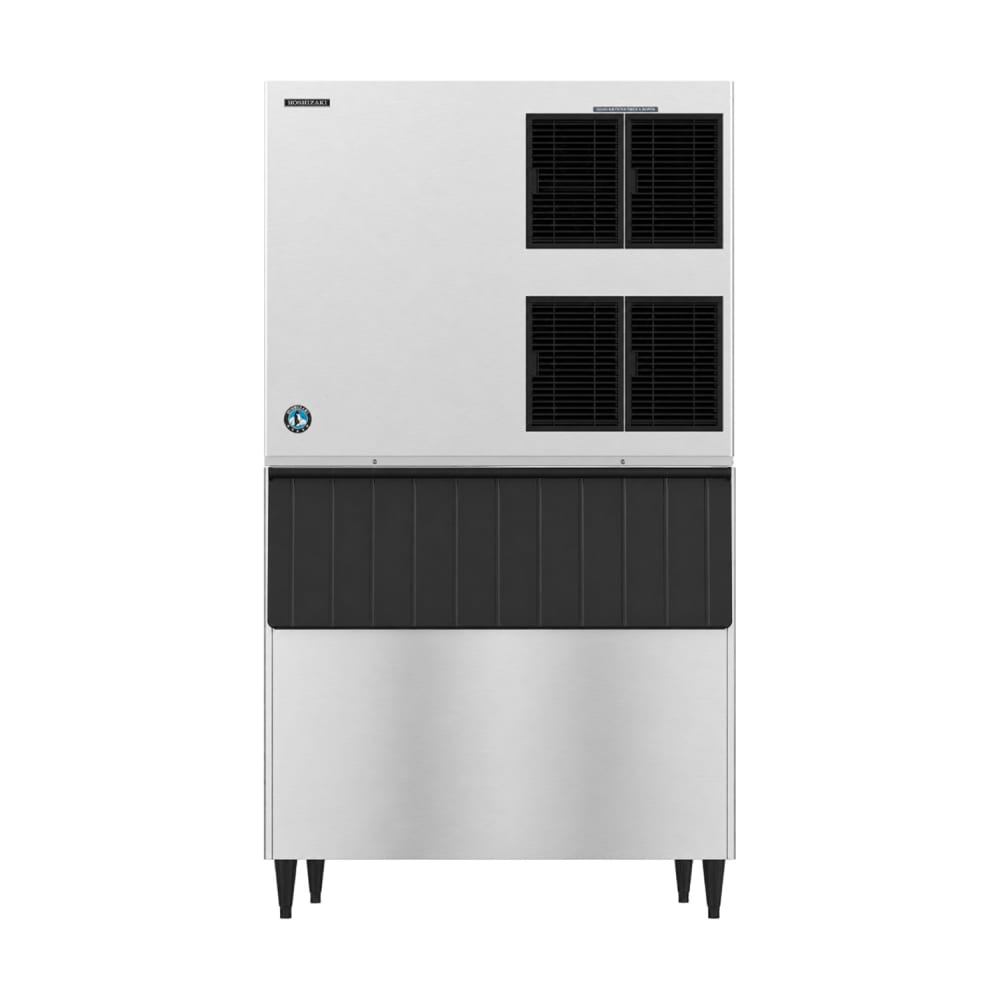

Hoshizaki KM-1900SAJ/B-800SF 1875 lb Crescent Cube Ice Machine w/ Bin - 800 lb Storage, Air Cooled, 208-230v/1ph

In a 24-hour period with ideal conditions, the Hoshizaki KM-1900SAJ/B-800SF ice maker and bin produces as much as 1,875 pounds of ice with its stainless steel evaporator and self-contained, air-cooled condenser. Users can monitor the unit's functions and know when maintenance is required with the EverCheck™ alert system.

The Hoshizaki KM-1900SAJ/B-800SF ice machine with bin has a storage capacity of 800 pounds of ice, and all of its walls are insulated to stop ice from melting. Made of PVC-coated galvanized steel, the bin is strong enough to be stacked with other units, and the scoop is protected with H-Guard Plus antimicrobial, which slows the formation of bacteria for clean, fresh ice.

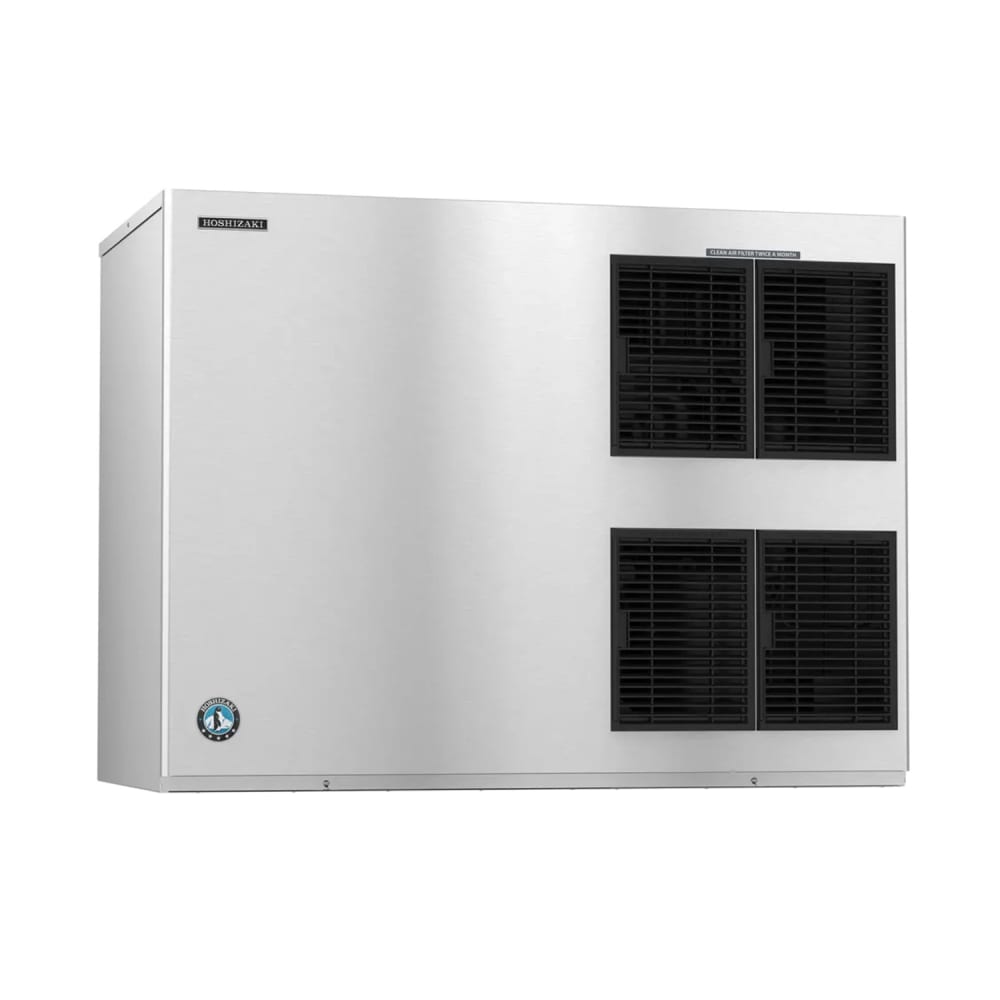

Ice Maker Details

• 1,875-lb. maximum daily ice production
• 1,675-lb. AHRI-certified daily ice production
• Stainless steel evaporator makes consistent cubes without clustering
• Produces crescent cubes, which are great for serving in drinks and blending into beverages
• Crescent cube ice size: 1¹⁄₈ in. x ¹⁄₂ in. x 1¹⁄₂ in.
• Air-cooled condenser is self-contained
• Bacteria, mold, and other microorganisms are deterred by an integrated H-Guard Plus antimicrobial agent
• Audible alarm and diagnostic features provided by the EverCheck alert system
• Can be stacked with more units
• R404A refrigerant
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG

Product Features

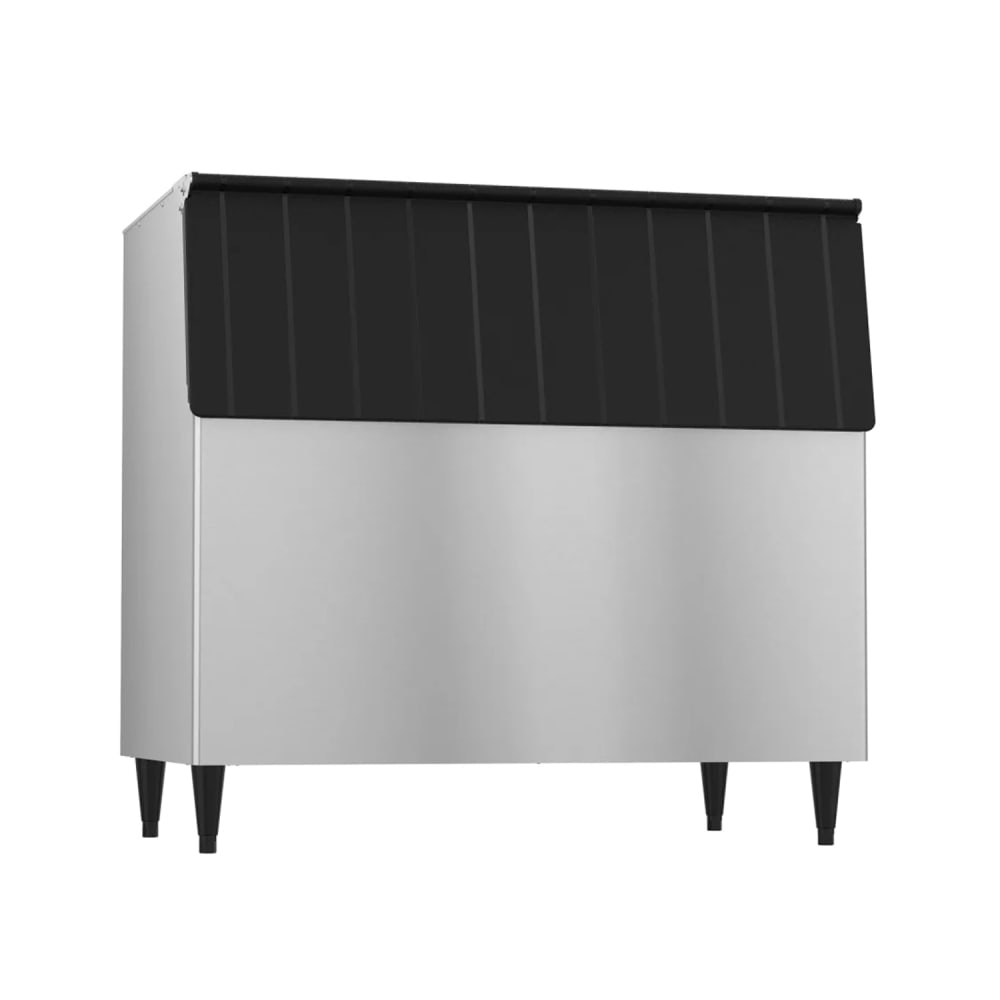

Ice Bin Details

• 800-lb. storage capacity
• PVC-coated galvanized steel finish for durability
• All bin walls and bottom have foamed-in-place polyurethane insulation to preserve product
• Polyethylene bin liner can be wiped clean
• Ice scoop is integrated with H-Guard Plus antimicrobial agent

Dimensions & Utilities

• Ice Maker
• 48¹⁄₄ in. W x 27⁷⁄₁₆ in. D x 36⁷⁄₁₆ in. H
• 14.5 A
• 208-230 V/60 Hz/1 ph
• Ice Bin
• 48 in. W x 32.3 in. D x 46 in. H

From The Manufacturer

Ice Maker with Bin, Cube-Style, 48"W, stackable, air-cooled, self-contained condenser, production capacity up to 1875 lb/24 hours at 70°/50° (1675 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 14.5 amps, NSF, UL, ENERGY STAR®; Ice Bin: 48"W, top-hinged front-opening door, 800-lb ice storage capacity, for top-mounted ice makers, vinyl clad, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
