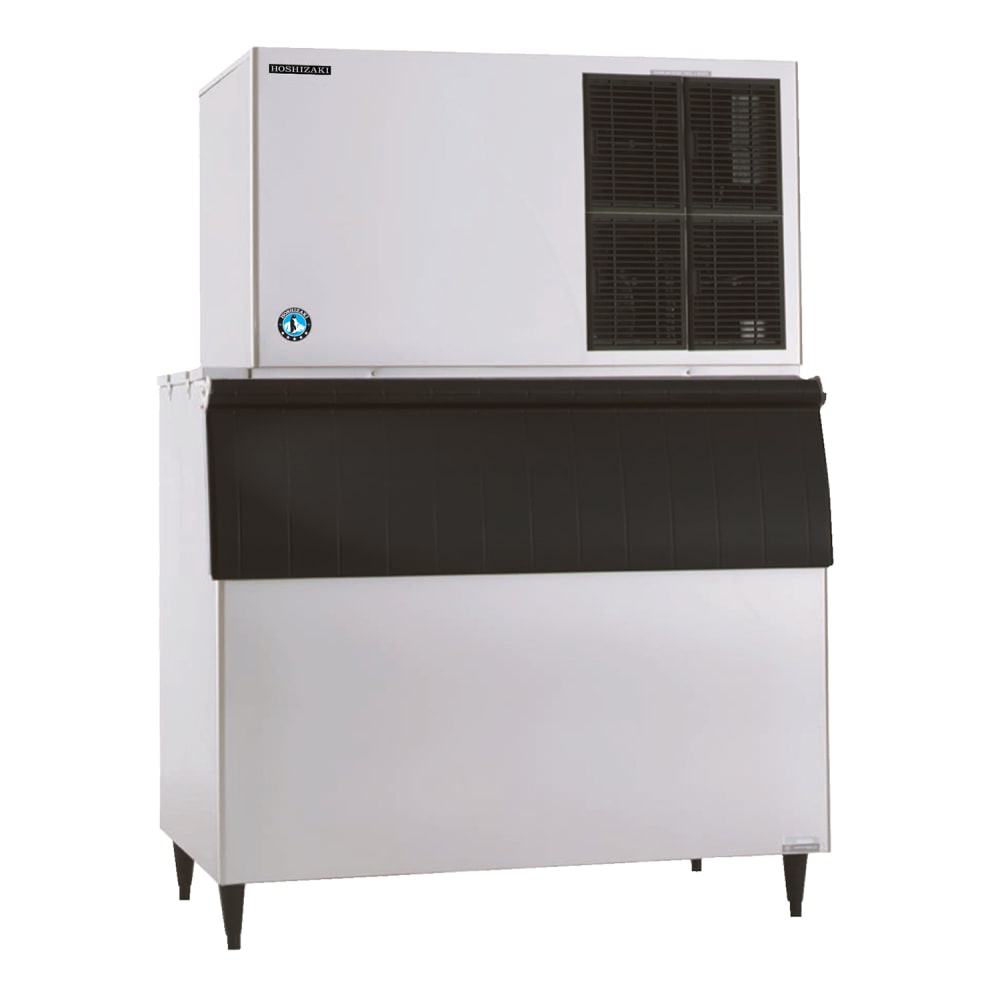

Hoshizaki KM-1301SAJ/B-900SF/HS-2032 1365 lb KM Series Crescent Cube Ice Machine w/ Bin - 900 lb Storage, Air Cooled, 208-230v

The Hoshizaki KM-1301SAJ/B-900SF/H ice machine can make 1,365 pounds of ice per day. The crescent-shaped ice it produces measures 1¹/₂ inches by 1¹/₈ inches. The condenser is air cooled, and the compressor uses R-404A refrigerant to hold cold temperatures. For replacement or cleaning, the air filters are removable. The machine’s CycleSaver™ design reduces energy costs by running fewer cycles per day, and the EverCheck™ alert system sounds notifies the users if the machine encounters a problem.

With a 900-pound storage capacity, the Hoshizaki KM-1301SAJ/B-900SF/H ice machine’s bin maintains cold temperatures with its polyurethane foam insulation. To help ensure a sanitary environment, this bin features a polyethylene liner and ice scoop with H-GUARD antimicrobial protection, which inhibits bacteria and mold growth between regular cleanings. This stainless steel bin is fitted with four 6-inch legs and a top-hinged, front-opening door.

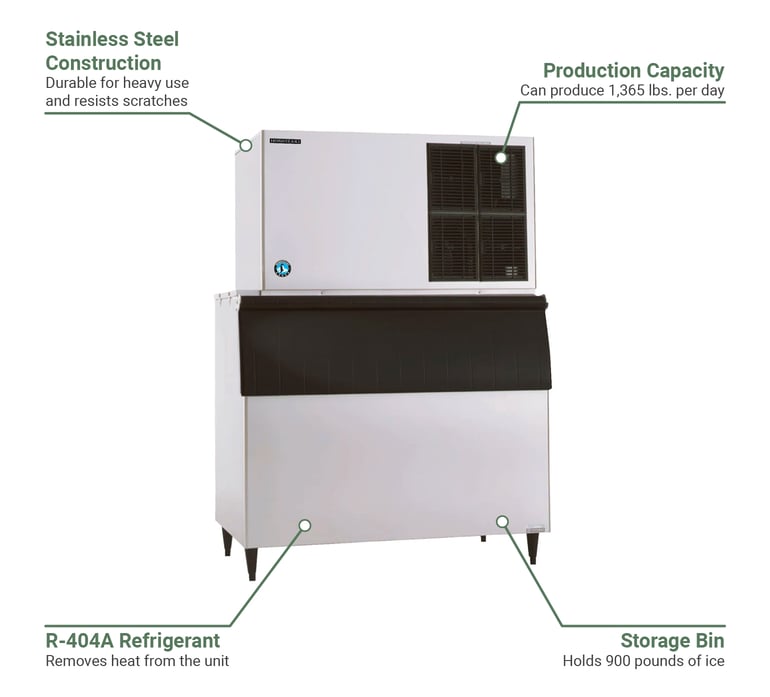

Ice Maker

• Made of durable stainless steel
• 1,365 lbs. of ice production per day
• Crescent-style ice
• R-404A refrigerant
• Air cooled
• Air filters are removable
• Stainless steel evaporator
• CycleSaver design
• EverCheck alert system
• Ambient temperature range: 45-100 degrees F
• Water temperature range: 45-90 degrees F
• 19,400-BTU heat transfer capacity

Ice Bin

• 29.59-cu.-ft. interior space
• 900-lb. storage capacity
• Stainless steel finish
• Top-hinged, front-opening door
• Polyethylene bin liner
• Polyurethane foam insulation
• H-GUARD plus antimicrobial protection
• 6-in. legs

Dimensions & Utilities

• Ice maker: 48 in. W x 27³/₈ in. D x 27³/₈ in. H
• Bin interior: 49 in. W x 27⁷/₁₀ in. D x 37³/₅ in. H
• Bin exterior: 52 in. W x 32³/₁₀ in. D x 46 in. H
• 12.4 A
• 208-230 V/60 Hz/1 ph

Product Features

*Free shipping on Hoshizaki KM-1301SAJ/B-900SF/HS-2032 within the 48 contiguous states.

From The Manufacturer

Ice Maker, Cube-Style, 48"W, air-cooled, self-contained condenser, production capacity up to 1365 lb/24 hours at 70°/50° (1301 lb AHRI certified at 90°/70°), crescent cube style, stainless steel exterior, R-404A refrigerant, 208-230v/60/1-ph, 12.4 amps, NSF, UL

Ice Bin, 52"W, top-hinged front-opening door, 900-lb ice storage capacity, for top-mounted ice makers, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation; (HS-2032) Top Kit, 4", ABS

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts

Hoshizaki KM-1301SAJ/B-900SF/HS-2032 Specifications

A Japan-based brand that started as a electric company in the 1940s, Hoshizaki has developed into one of the world's leading ice maker producers. Built around sustainable products and innovation, they strive to be an evolving company that creates original products to satisfy their customers. They also manufacture refrigerators, prep tables, and freezers, and more.
