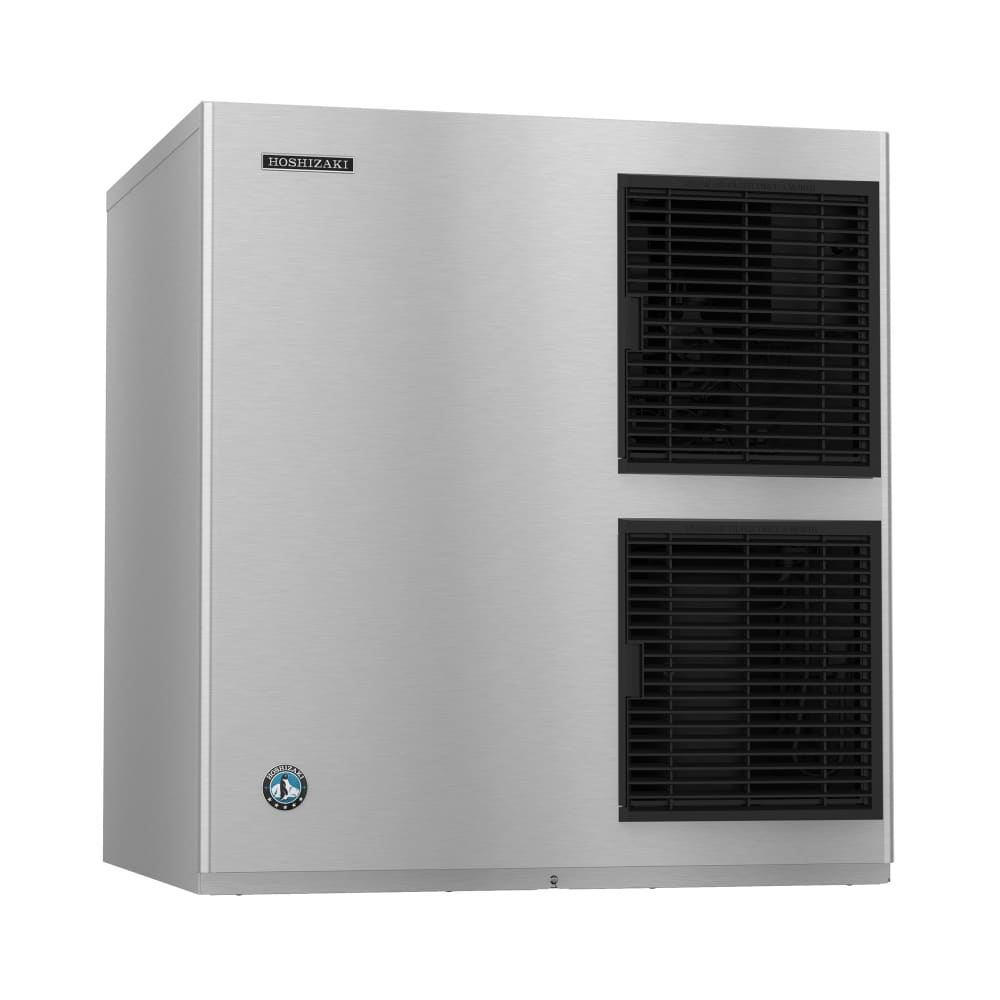

Hoshizaki KM-1100MAJ50 30" Crescent Cube Ice Machine Head - 1023 lb/24 hr, Air Cooled, 220-240v/1ph

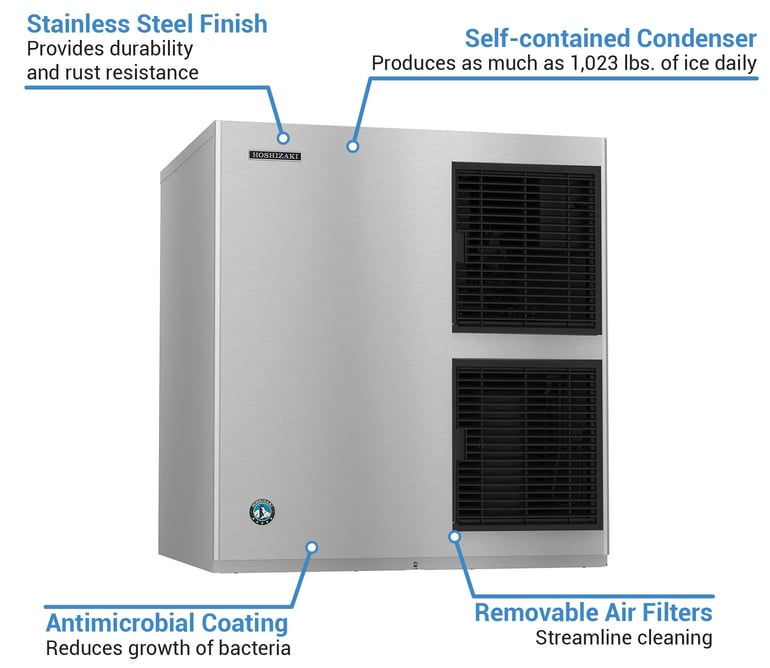

To facilitate cleaning, the Hoshizaki KM-1100MAJ50 ice machine head has removable air filters. It's coated with H-GUARD Plus® antimicrobial to slow the growth of bacteria, reducing the spread of germs when multiple people come in contact with it. If maintenance is needed, the EverCheck™ alert system informs employees of the issue to eliminate guesswork. A bin must be purchased separately for use.

The Hoshizaki KM-1100MAJ50 crescent-cube ice maker's evaporator is made of stainless steel to resist rust and corrosion. For durability, the exterior also has a stainless steel construction. This unit makes as much as 1,023 pounds of ice each day, but if conditions are less than ideal, it produces closer to 785 pounds of ice daily. Its condenser is self-contained and air cooled, and it operates with eco-friendly R404A refrigerant.

Product Details

• 1,023-lb. maximum daily ice production
• 785-lb. AHRI-certified daily ice production
• Makes crescent-cube ice
• Ice dimensions: 1¹⁄₂ in. x ¹⁄₂ in. x 1¹⁄₈ in.
• CycleSaver™ design
• Stainless steel evaporator and exterior
• Self-contained condenser is air cooled
• Operates with R404A refrigerant
• H-GUARD Plus antimicrobial reduces germ spread
• EverCheck alert system
• Removable air filters
• No bin included
• Ideal incoming air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 12,600-BTU heat transfer capacity

Dimensions & Utilities

• 30 in. W x 27.36 in. D x 32.5 in. H
• 11.2 A, 5.65 kW
• 220-240 V/50 Hz/1 ph

Product Features

*Free shipping on Hoshizaki KM-1100MAJ50 within the 48 contiguous states.

From The Manufacturer

(50hz Model) Ice Maker, Cube-Style, 30"W, air-cooled, self-contained condenser, production capacity up to 464 kg/24 hours at 21°/10° (356 kg certified at 32°/21°), stainless steel finish, crescent cube style, R-404A refrigerant, 220-240v/50/1-ph, NSF, UL

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts
