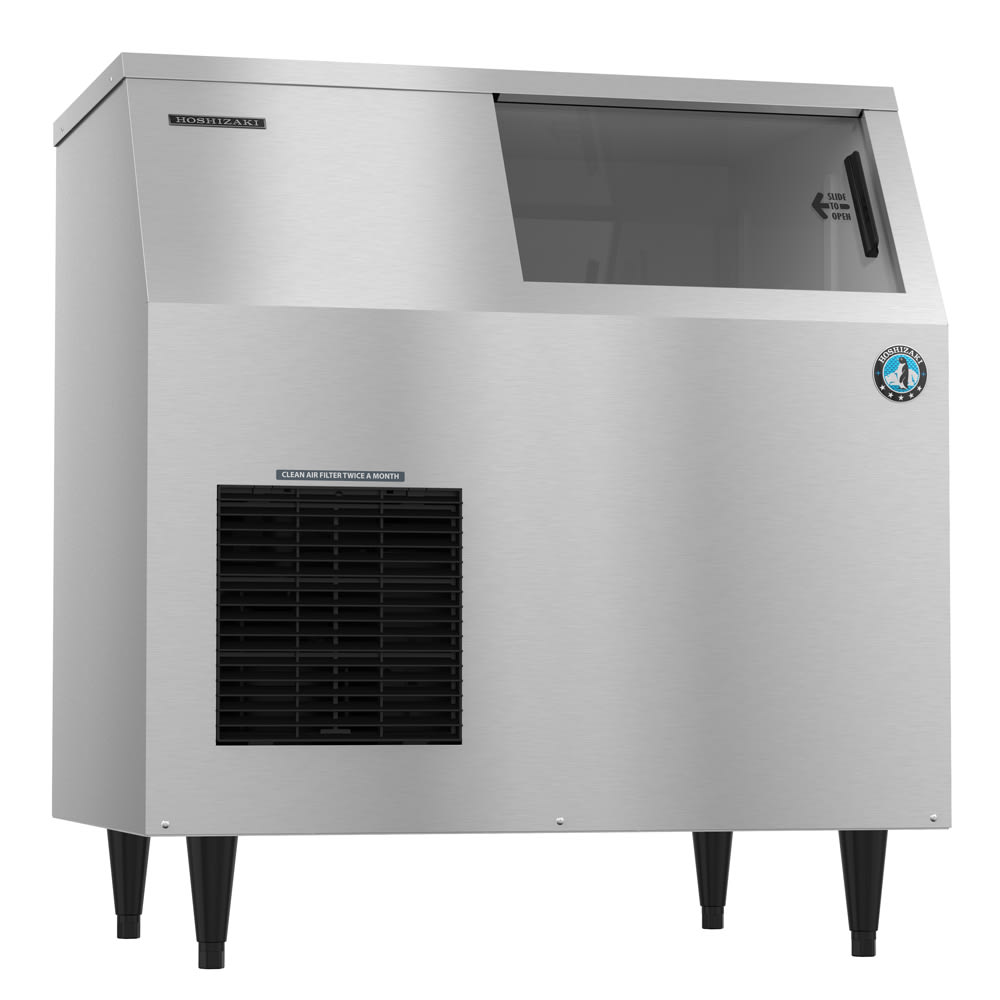

Hoshizaki F-500BAJ 38"W Flake Undercounter Ice Machine - 536 lbs/day, Air Cooled
Typically ships in 3 - 4 weeks
$7,160.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Hoshizaki F-500BAJ Description
Slowing the growth of bacteria, the Hoshizaki F-500BAJ undercounter ice maker is protected with H-GUARD Plus® antimicrobial. It comes with an ice scoop to facilitate product retrieval and is also coated with an antimicrobial for sanitary purposes. The ice bin accommodates 170 pounds of ice, and depending on the operating conditions, the machine makes from 420 to 536 pounds of ice per day. This unit operates with an air-cooled, self-contained refrigeration system and cools with R-404A refrigerant.
Elevating it from the ground so employees can sweep underneath it, the Hoshizaki F-500BAJ flake undercounter ice machine sits on painted legs. A 2-second flush cycle is performed every hour to eliminate impurities from the ice, and the auger, greaseless bearing, and exterior are made of stainless steel to provide durability and resistance to rust and corrosion.
Product Details
- 536-lb. daily ice production capacity
- 420-lb. AHRI-certified daily ice production capacity
- 170-lb. ice storage capacity

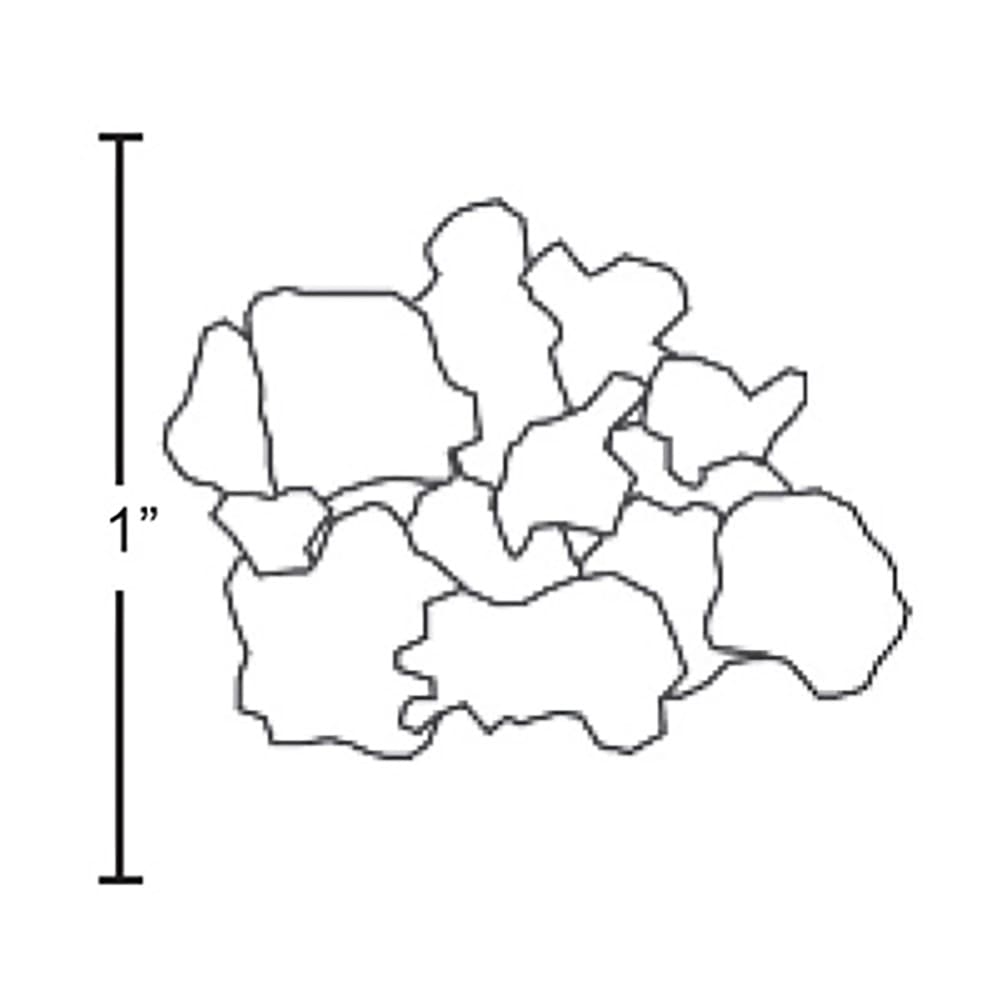

- Makes flake ice
- Air-cooled, self-contained condenser
- R-404A refrigerant
- Removable air filter
- Stainless steel exterior, auger, and greaseless bearing
- Advanced CleanCycle24™ design
- H-GUARD Plus antimicrobial slows the growth of microbes
- Ice scoop protected with antimicrobial
- Infrared bin control
- 2-second flush cycle is performed hourly to remove sediment
- Sits on painted legs
- 2,500-BTU heat transfer capacity
- Ideal incoming air temperature: 45-110 degrees F
- Ideal incoming water temperature: 45-90 degrees F
- Ideal incoming water pressure: 10-113 PSIG
Dimensions & Utilities
- 38 in. W x 29 in. D x 42 in. H
- 13.8 A, 5.05 kW
- 115 V/60 Hz/1 ph
Product Features
From The Manufacturer
Ice Maker with Bin, Flake-Style, 38"W, air-cooled, self-contained condenser, production capacity up to 536 lb/24 hours at 70°/50° (420 lb AHRI certified at 90°/70°), 170 lb of ice storage capacity, stainless steel finish, R-404A refrigerant, painted legs included, 115v/60/1-ph, 13.8 amps, NSF, UL
*Image may not depict product color, inclusions or accessories.
Hoshizaki F-500BAJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 536 |
| Bin Capacity (lb) | 170 |
| Compressor Type | Air Cooled |
| Depth (in) | 29 |
| Design | Standard Height |
| Drain Type | Gravity |
| Height (in) | 42 |
| Hertz | 60 |
| Ice Type | Flake |
| Special Features | Antimicrobial |
| Special Features | Removable Air Filter |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
| Width (in) | 38 |
| Series | F Series |
| Phase | 1 |
| Rating | Best |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Front Style | Stainless Door |
| Weight | 270.00 |
