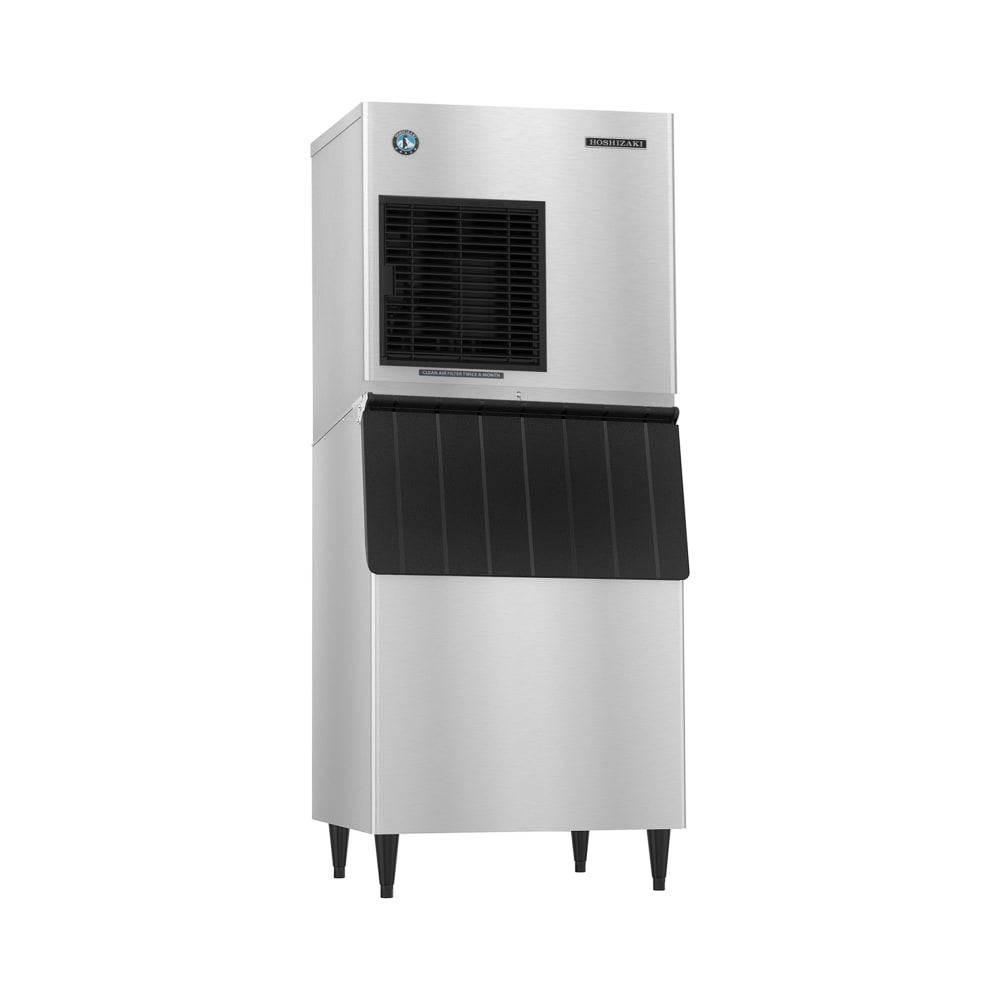

Hoshizaki F-422MAK-C/B-500SF 476 lb Nugget Ice Machine w/ Bin - 500 lb Storage, Air Cooled, 115v
Typically ships in 4 - 8 Business Days
$7,950.00 /Each
Contact us for details!
Hoshizaki F-422MAK-C/B-500SF Description
The Hoshizaki F-422MAK-C/B-500SF nugget ice machine with bin produces compressed cubelet-style ice using an air-cooled, self-contained condenser, generating up to 476 pounds of ice per 24 hours at standard conditions. A two-second flush cycle activates each hour as part of the Advanced CleanCycle24™ system to remove sediment during operation, supporting consistent ice production. The stainless steel exterior supports durability in commercial environments, while removable panels provide access to internal components for service.
For ice access, the Hoshizaki F-422MAK-C/B-500SF ice machine with bin includes a 500-pound-capacity storage unit equipped with a top-hinged front-opening door. A stainless steel auger with a greaseless bearing supports ice formation, while the system uses R290 hydrocarbon refrigerant for cooling. The included top kit aligns the head and bin, and painted legs elevate the unit for floor placement. The bin interior is treated with H-GUARD Plus antimicrobial agent, and a removable air filter supports airflow in air-cooled operation.
- 476-lb. ice production capacity per 24 hours
- Nugget ice in compressed cubelet style
- Advanced CleanCycle24 system with hourly flush cycle
- Stainless steel exterior
- Stainless steel auger with greaseless bearing
- 360-lb. production at 90 degrees F air/70 degrees F water
- Removable panels for service access
- Removable air filter
- 500-lb. ice storage capacity
- Top-hinged front-opening door
- Stainless steel exterior
- H-GUARD Plus antimicrobial-treated interior
- Designed for top-mounted ice maker
- Painted legs included
- Top kit included for installation
- Self-contained condenser
- Air-cooled operation
- Uses R290 hydrocarbon refrigerant
- Ice Maker: 22 in. W x 32 3⁄10 in. D x 28 in. H
- Bin: 30 in. W x 32 3⁄10 in. D x 50 in. H
- 8.8 A, 5,300 W per 100 lbs. of ice
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki F-422MAK-C/B-500SF within the 48 contiguous states.
From The Manufacturer
Ice Maker, cubelet-style, 22"W, air-cooled, self-contained condenser, production capacity up to 476 lb/24 hours at 70°/50° (360 lb AHRI certified at 90°/70°), stainless steel finish, compressed cubelet style ice, Advanced CleanCycle24™, R290 refrigerant, 115v/60/1-ph, 8.8 amps, NSF, UL
Ice Bin, 30"W, top-hinged front-opening door, 500-lb ice storage capacity, for top-mounted ice maker, stainless steel exterior, painted legs included, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation
Top Kit, 8", ABS
Hoshizaki F-422MAK-C/B-500SF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 476 |
| Access | Lift Up Door |
| Bin Capacity (lb) | 500 |
| Compressor Type | Air Cooled |
| Depth (in) | 32.3 |
| Height (in) | 68 |
| Hertz | 60 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 30 |
| Weight | 340.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hoshizaki F-422MAK-C/B-500SF Hoshizaki F-422MAK-C/B-500SF 476 lb Nugget Ice Machine w/ Bin - 500 lb Storage, Air Cooled, 115v Current Item |
Manitowoc Ice RNP0320A/D420 Manitowoc Ice RNP0320A/D420 308 lb Nugget Ice Machine w/ Bin - 383 lb Storage, Air Cooled, 115v |
|---|---|---|
| Customer Rating |
|
|
| Price | $7,950.00 / Each | $6,273.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 4 - 8 Business Days | QUICK SHIP: Ships in 1 Business Day |
| Ice Type | Nugget | Nugget |
| 24 Hr. Production (lb) | 476 | 308 |
| Width (in) | 30 | 22 |
| Bin Capacity (lb) | 500 | 383 |
| Compressor Type | Air Cooled | Air Cooled |
| Rating | Best | Best |
| Height (in) | 68 | 76 |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | Machine: 3-year Parts & Labor, 5-year Compressor Parts; Dispenser: 3-year Parts & Labor |
