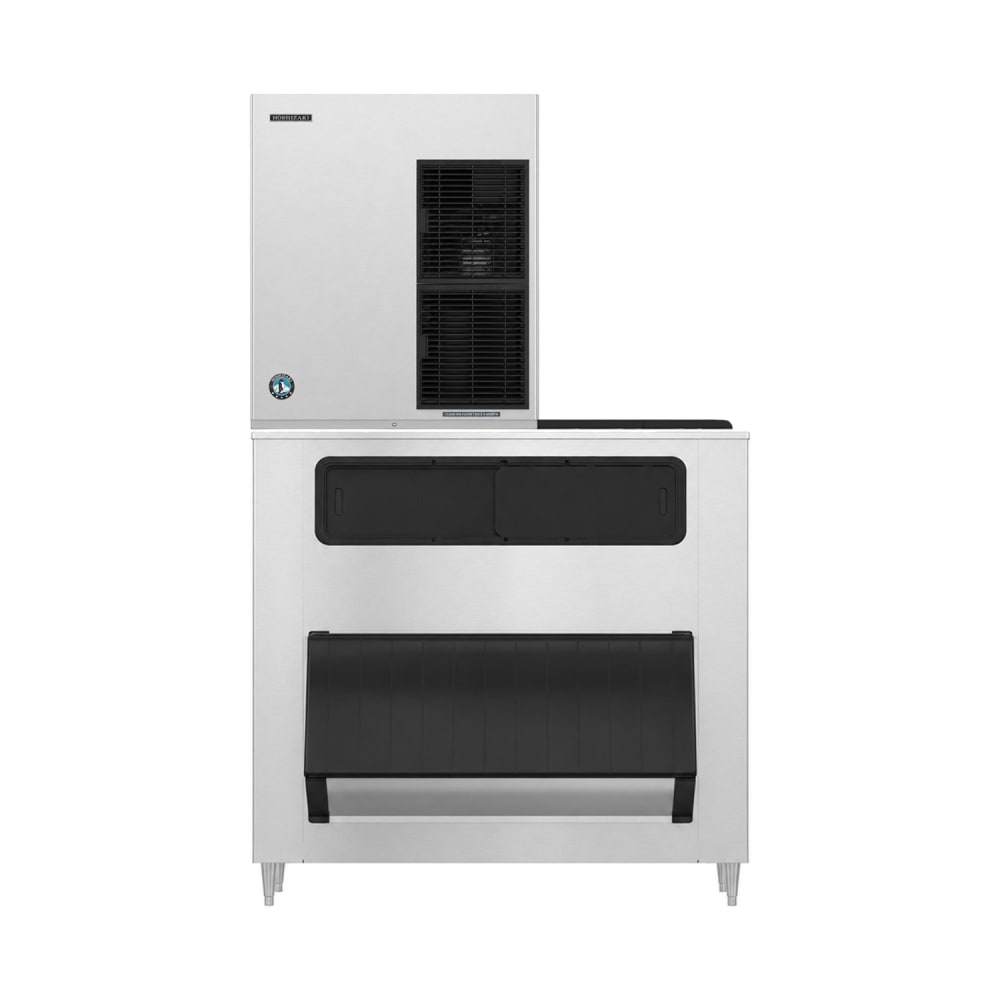

Hoshizaki F-1002MWJ/B-1300SS 955 lb Flake Ice Machine w/ Bin - 1304 lb Storage, Water Cooled, 115v

The Hoshizaki F-1002MWJ/B-1300SS ice machine and bin combo includes a scoop with a capacity of 82 ounces. Ideal for serving chilled food at a buffet, this unit produces 955 pounds of flake ice in a 24-hour period, depending on ambient conditions. This unit's exterior is constructed of resilient stainless steel that can withstand intensive use, and it uses R404A refrigerant to create ice.

Because the Hoshizaki F-1002MWJ/B-1300SS ice maker has a water-cooled refrigeration system, it uses more water than an air-cooled unit, but it's also more efficient. The bin is insulated with foamed-in-place polyurethane to maintain ideal ice temperatures and is protected with a sanitary polyethylene liner. To ensure consistently fresh ice, this unit has an Advanced CleanCycle24™ feature that flushes the evaporator for 2 seconds every hour, removing impurities and sediment.

Ice Machine Details

• Part of the Slim-Line series
• 955-lb. daily ice production
• 833-lb. daily AHRI-certified ice production
• Self-contained, water-cooled refrigeration system
• Flake ice size: 1-in. length
• Infrared bin sensor prevents excessive ice production
• Corrosion-resistant stainless steel exterior
• Protected with H-Guard Plus® antimicrobial agent
• Advanced CleanCycle24 initiates a 2-sec. flush cycle every hr. to remove sediment for fresh ice
• Uses R404A refrigerant
• Ideal ambient temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 8,200-BTU heat transfer capacity

Product Features

Ice Bin Details

• 1,304-lb. ice storage capacity
• Top windows provide visibility
• Hinged bottom door
• Stainless steel exterior resists scratching and rusting
• Foamed-in-place polyurethane insulation retains cold air for quality ice
• 6-in. adjustable stainless steel legs
• Sealed door gasket reduces risk of contamination from airborne bacteria
• Polyethylene interior liner
• Included ice scoop protected with H-Guard Plus antimicrobial agent
• Ice scoop capacity: 82 oz.

Dimensions & Utilities

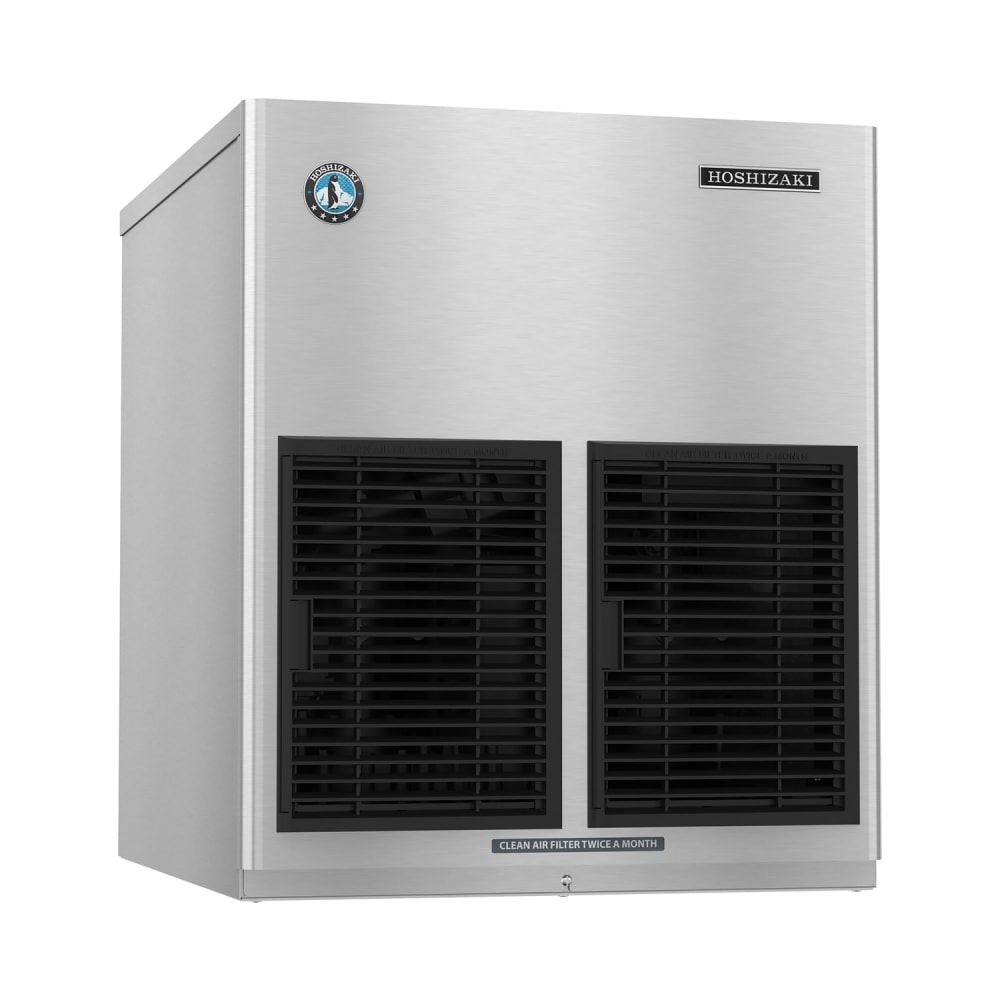

• Ice Maker
  • 22 in. W x 27³⁄₈ in. D x 26 in. H
  • 13.7 A, 3.57 kW
  • 115 V/60 Hz/1 ph
• Ice Bin
  • 48 in. W x 41 in. D x 66³⁄₁₆ in. H

From The Manufacturer

Ice Maker with Bin, Flake-Style, 22"W, water-cooled, self-contained condenser, production capacity up to 955 lb/24 hours at 70°/50° (833 lb AHRI certified at 90°/70°), stainless steel finish, Advanced CleanCycle24™, infrared bin sensor, R-404A refrigerant, 115v/60/1-ph, 13.7 amps, NSF, UL; Ice Bin: 48"W, hinged bottom door & top view windows, 1304-lb ice storage capacity, for top-mounted Ice Maker with Bin, stainless steel construction, universal top included, stainless steel legs, protected with H-GUARD Plus Antimicrobial Agent, ETL, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Compressor & Condenser Parts
