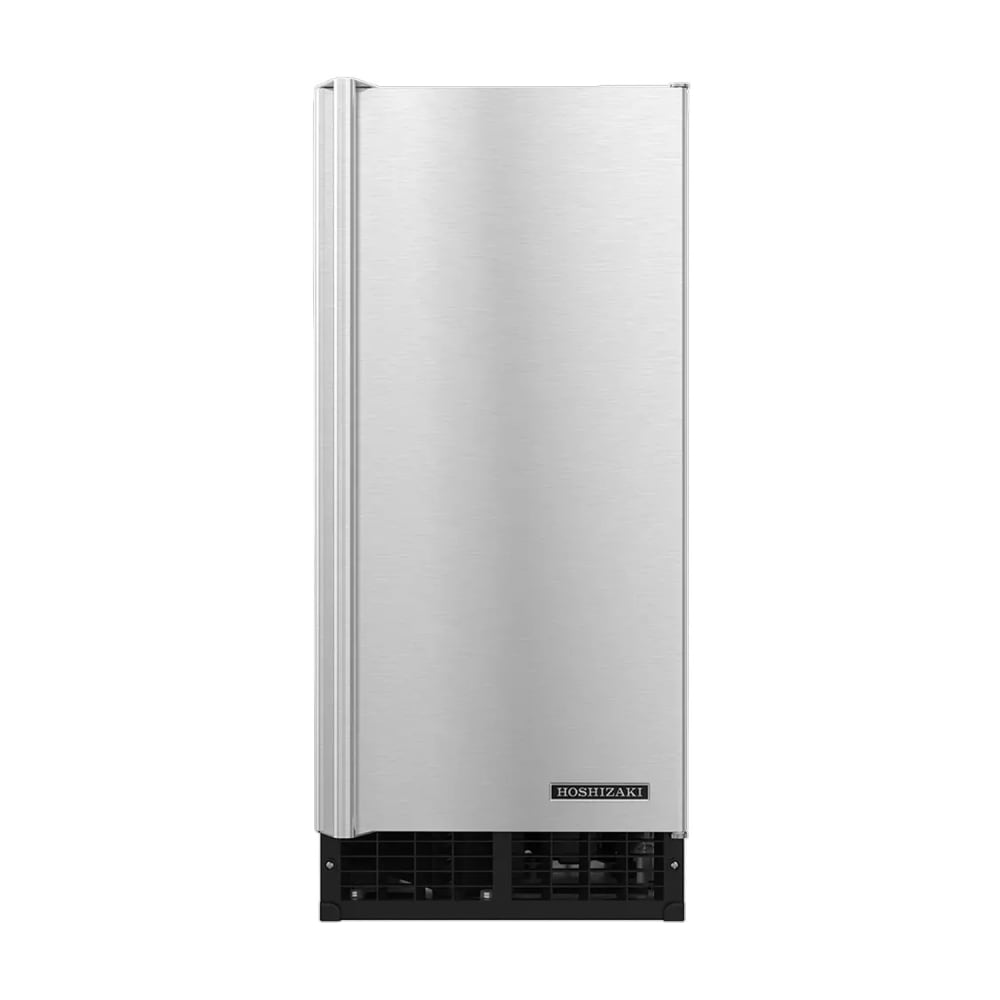

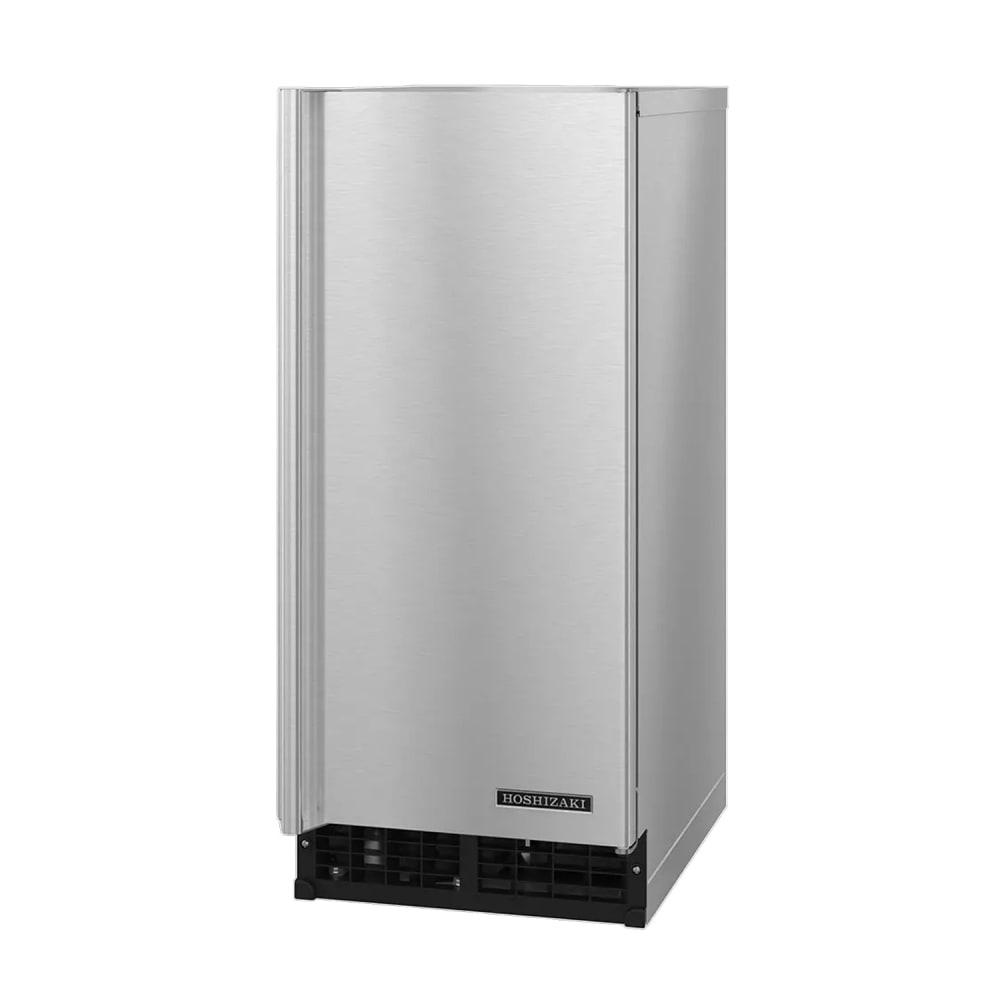

Hoshizaki C-80BAJ-AD Description
The Hoshizaki C-80BAJ-AD undercounter nugget ice maker can produce 80 pounds of ice in 24 hours depending on the air and water temperature. It makes cubelet ice, which is perfect for drink stations with its compact shape – great for liquid displacement – and blending with its soft texture. Since the system is air cooled, it has no added utilities required for installation. The power switch is accessible without removing the control panel. This Hoshizaki C-80BAJ-AD undercounter nugget ice maker is only 311⁄2 inches tall and can fit under ADA-compliant counters
Product Details
- Can produce 80 lbs. of ice in 24 hrs. with 70-degree F air temperature and 50-degree F water temperature
- Can produces 45 lbs. of ice in 24 hrs. with 90-degree F air temperature and 70-degree F water temperature
- Makes cubelet ice that is ideal for beverage stations and blending
- System is easy and cost-friendly to install and service since it has an air-cooled condenser
- Power switch is accessible without removing the panel
- Water circuit can be disassembled for cleaning
- Compatible with ADA-compliant counters
- 115 V/60 Hz/1 ph, 4 A, 17.3 kW, 6-ft. cord with a NEMA 5-15P plug

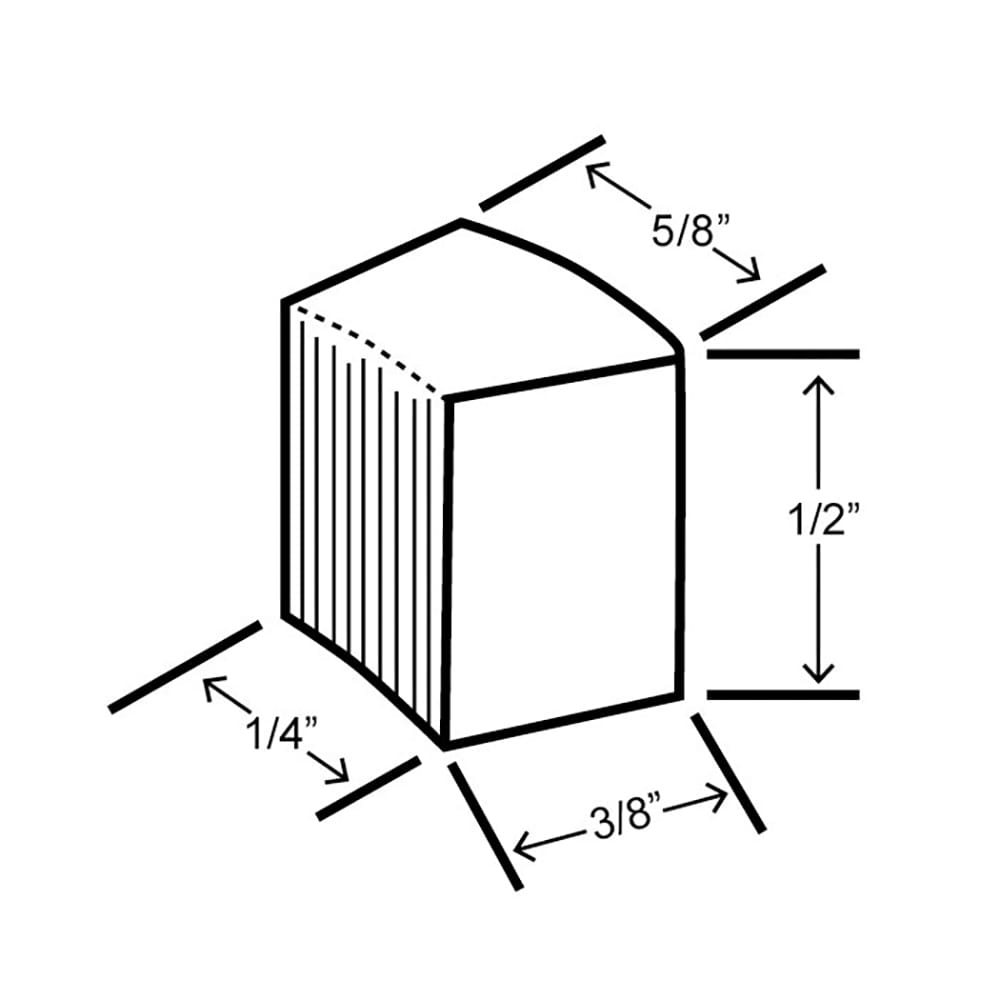

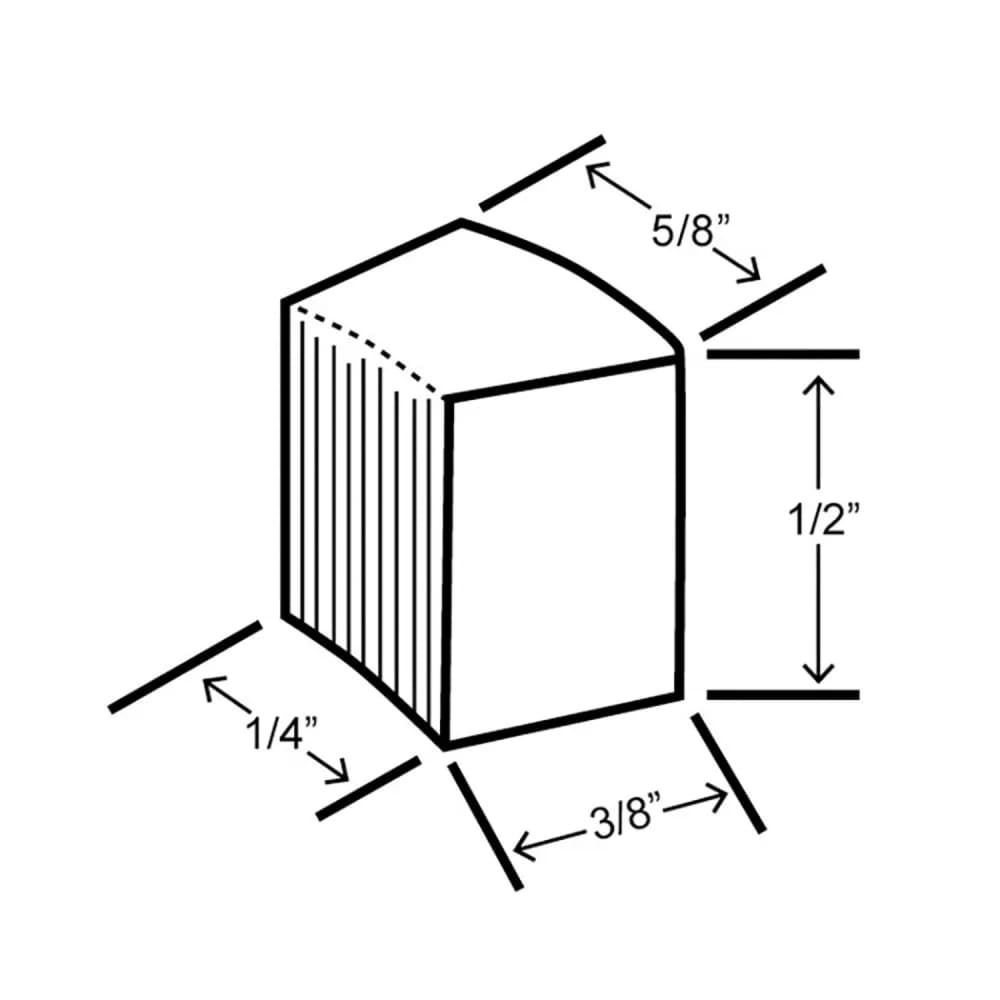

- Ice Dimensions: 1⁄2 in. x 1⁄4 in. x 5⁄8 in. x 3⁄8 in.
- Overall Dimensions: 147⁄8 in. W x 225⁄8 in. D x 311⁄2 in. H
- ETL-Sanitation and UL listed; NSF certified
Product Features
Operating Requirements
- Ideal ambient temperature ranges 45-100 degrees F
- Ideal water temperature ranges 45-90 degrees F
- Water pressure should be 7-113 PSIG
- Requires a 15-in. front clearance and space in the back for water and drain connections
Ice Maker With Bin, air-cooled, self-contained condenser, production capacity up to 80 lb/24 hours at 70°/50° (45 lb at 90°/70°), 22 lb built-in storage capacity, cubelet style, stainless steel exterior, ADA compliant, 115v/60/1-ph, 4.0 amps, UL (approved for outdoor use), ETL-Sanitation, NSF
Important Prop 65 information for California residents.
Hoshizaki C-80BAJ-AD Specifications
PDF Spec Sheet| Manufacturer | Hoshizaki |
| 24 Hr. Production (lbs) | 80 |
| Height (in) | 31.5 |
| Ice Type | Nugget |
| Width (in) | 14.87 |
| Bin Capacity (lb) | 22 |
| Warranty | 2-yr. Parts & Labor |
| Compressor Type | Air Cooled |
| Production Range (per day) | 1 - 99 lbs |
| Phase | 1 |
| Hertz | 60 |
| Voltage | 115 |
| Suggested Use | Home/Office |
| Suggested Use | Commercial |
| Suggested Use | Outdoor |
| Bin Capacity Range (lbs) | 20 - 49 |
| ADA Compliant | Yes |
| Drain Type | Gravity |
| Width (in) Range | 10 - 14 inches |
| Product | Undercounter Ice Maker |
| Product Type | Ice Makers & Bins |
| Special Features | Outdoor Rated |
| Weight | 130.00 |
